Optical
Light source: OSRAM SHARXS HTI 1500 W/D7/60 or PHILIPS MSR Gold 1510 SA/DE
Expected average lifetime: 750 hours
Beam angle: Zoom range 4˚ - 8˚ (Manually adjustable)
Focus: Variable range, from 15m to infinity (Manually adjustable)
Ballast: Electronic
Total Output (Lumen): 14400 lm narrow/15900 lm wide
Color
Color wheel: 3 colors + 1 changeable color/gobo + open
Electrical
Power input, nominal: AC 200-240V 50/60Hz
Max. Power consumption: 1740W
Power supply unit: Auto-ranging electronic SMPS
Main fuse: 250V/15A
Control and programming
Display: 4 x 8 segment display
Physical / Installation
Weight: 48 kg (105 lbs.)
IP rating: IP20
Material: Aluminum, steel, plastic
Mounting points: Mounting for tripod
Minimum distance to combustible materials: 0.5 mtr (1.64 ft.)
Minimum distance to illuminated surfaces: 3 mtr (9.8 ft.)
Dynamic effects
Pan/Tilt movement: Manually adjustable
Iris: Manually adjustable
Dimmer: Mechanical manually adjustable
Zoom: Manually adjustable
Thermal
Operating range: 14˚F - 113˚F(-10˚C - 45˚C)
Startup range: 5˚F - 113˚F(-15˚C - 45˚C)
Storage range: -40˚F - 140˚F(-40˚C - 60˚C)
Cooling: Active fan
Humidity: ≤85%
Connections
AC power: Neutrik powerCon
Certification and Safety
EMC: EN 55103-1:2009, EN 55103-2:2009, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013
Safety: EN 60598-2-17:1989/A2:1991
Technical Specification

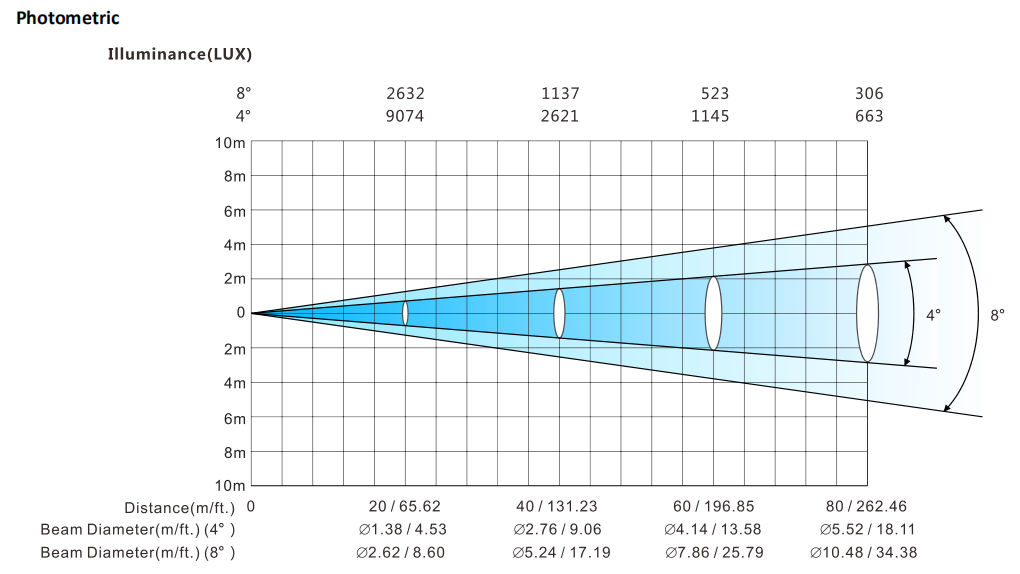

Photometric Diagram

Gobos & Colours

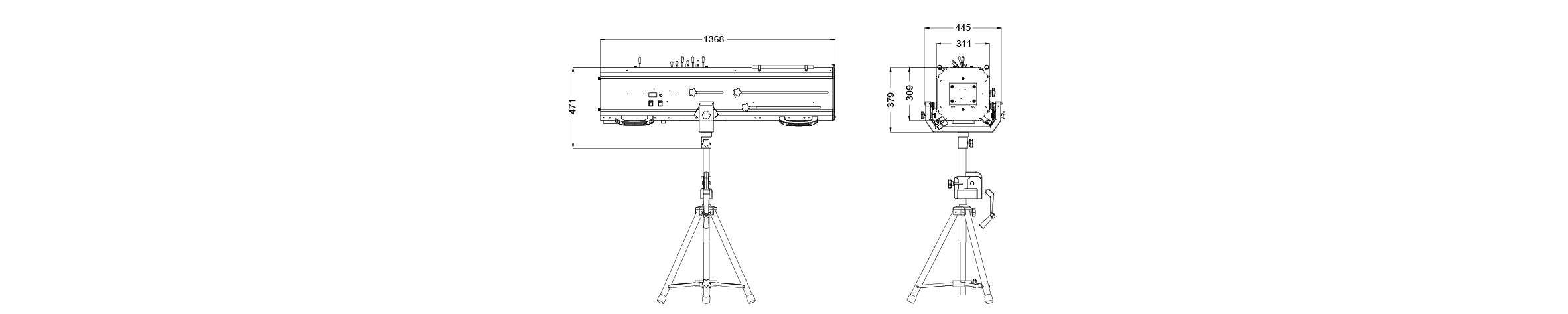

Exterior Dimensions

Accessories
Downloads
Product Video

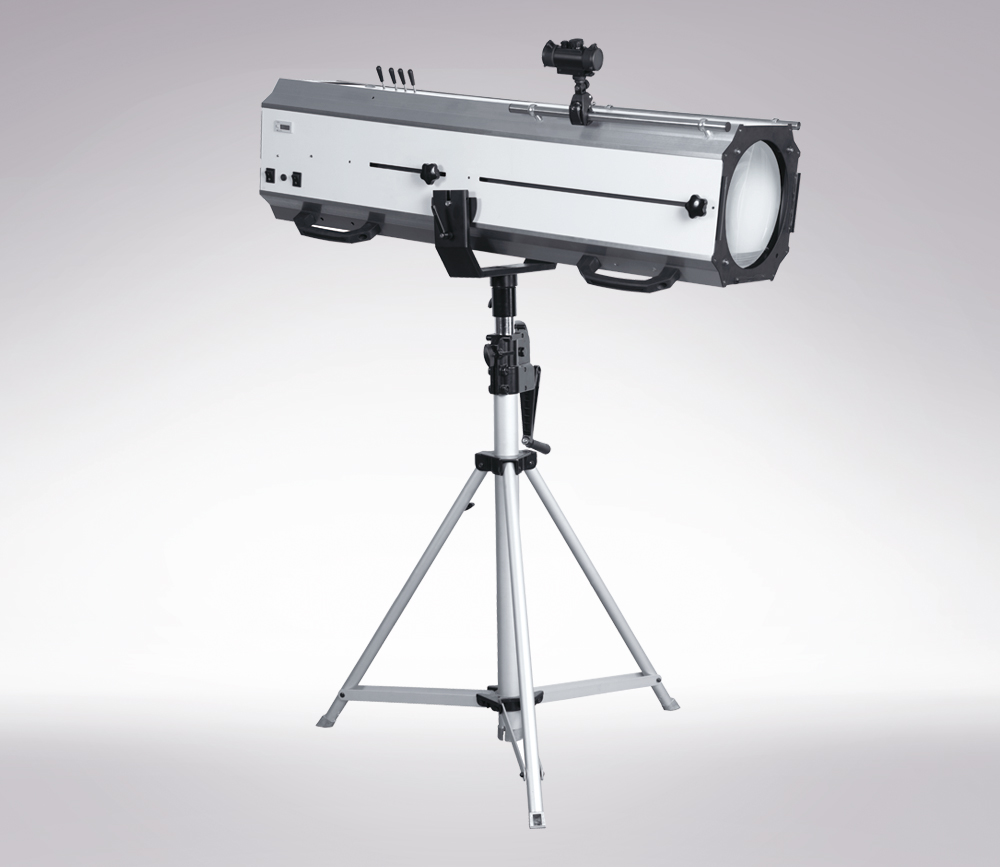

GTD-1500FS
