OPTICAL

· Light source: LED 700W

· Expected life: 20,000 hours

· Color temperature: 6,000K

· Focus: adopt high precise glass lens, electronic linear HD focus

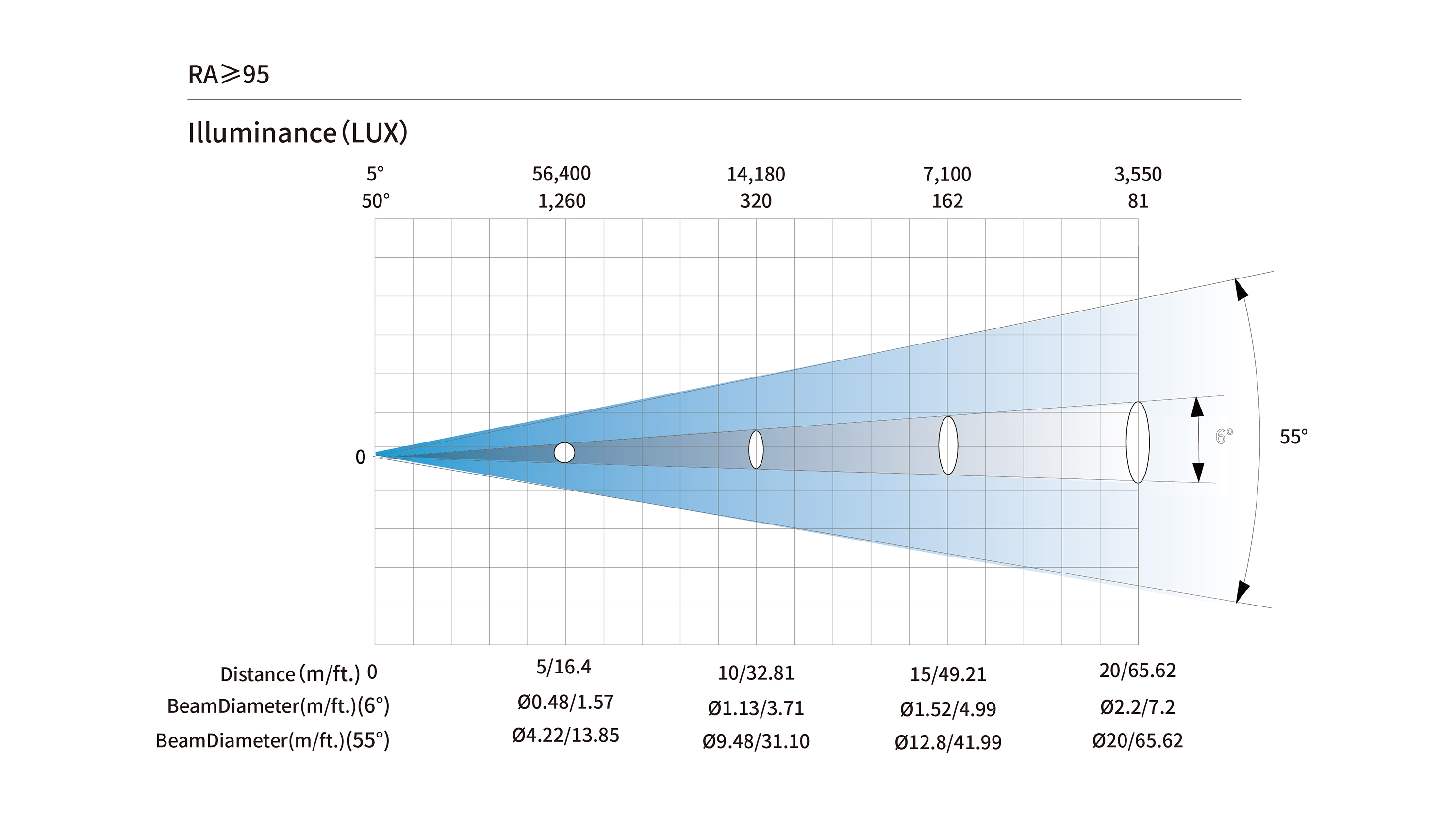

· Zoom range: 6°~55°

· CRI: Ra≧95, R9≧95, R15≧95, TLCI≧98, CQS≧93, TM-30-Rf:93, TM-30-Rg:100

FRAMING

· Framing: One set of full process framing system, 4 sets of blades fast movement to form geometric graphics；The graphics can be different shapes and different size.

GOBO

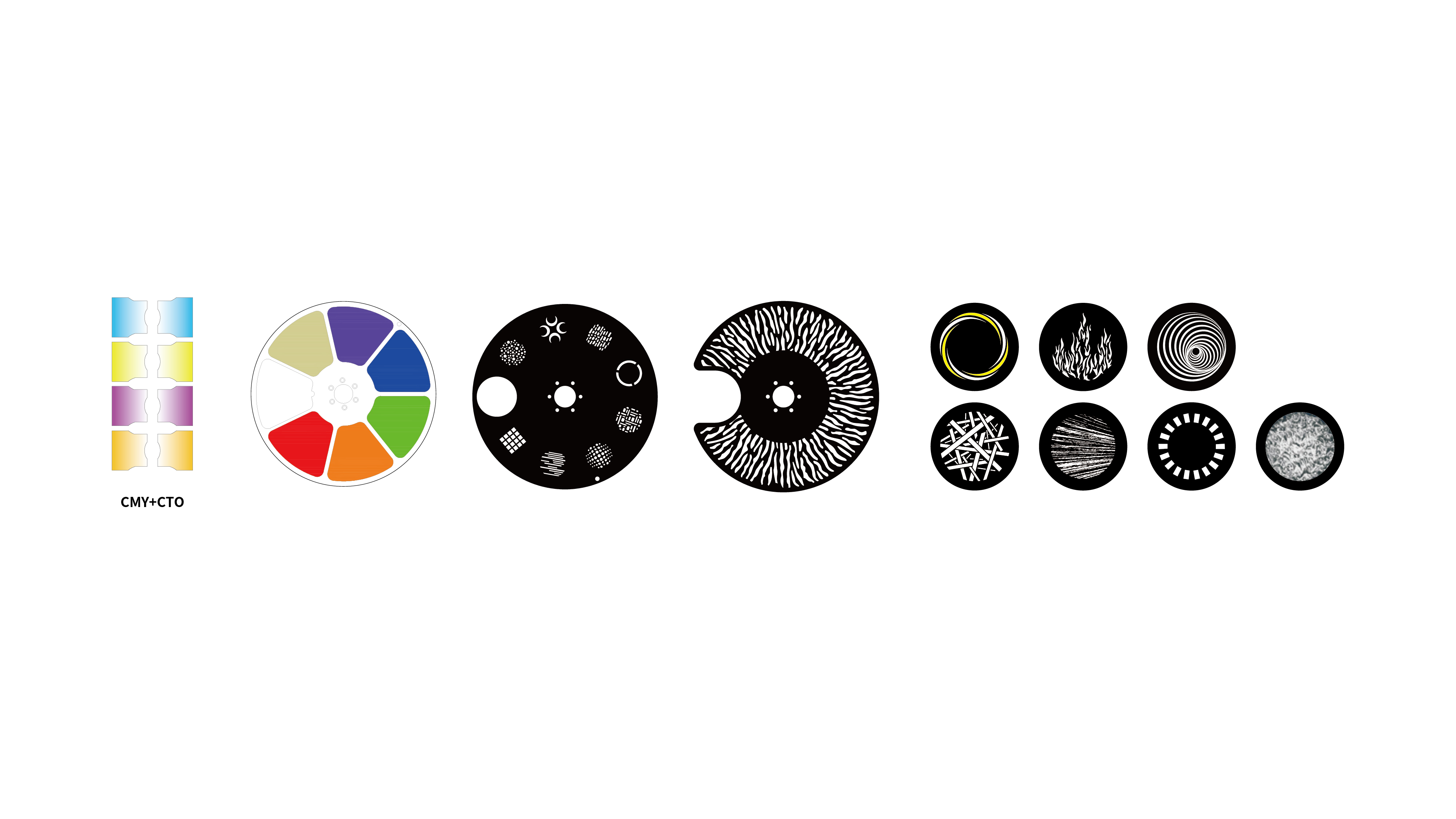

· Rotating gobo: 1 rotating gobo wheel with 7 optional glass gobo, variable speed shaking and two-way rotating, 16-bit fine tuning.

· Static gobo: 1 static gobo wheel with 8 gobos+ white, variable speed shaking and two-way rotating.

COLOR

· CMY color mixing, colors macro

· CTO linear color temperature adjustment(6,000K-2,700K)

· Color wheel: 1 color wheel with 6color filters, realize bidirectional rainbow effect, half color and linear adjustment.

ELECTRICAL

· Input voltage: AC 100V-240V   50/60Hz

· Max power: 930W

· Power supply unit: waterproof plug in/out

· DMX data input/output: Waterproof Chassis 3-pin Seetronic XLR

CONTROL/PROGRAMMING

· Control channel: 36/34/54

· Protocol: DMX512, Art-Net, RDM

· Display: LCD

DYNAMIC EFFECTS

· Pan/Tilt: 540°/270° Auto- return correction, 16-bit precision

· Strobe: 1-25Hz/s fast strobe with pulse/asynchronous/synchronous  strobe effect

· Dimmer: 0-100% electronic linear dimming

· Prism: 1 variable speed bidirectional rotating prism

· Frost: 1 independent frost filter

· Animation wheel: 1 bi-directional rotating wheel


PHYSICAL

· Weight: 33Kg

· IP rate: IP66

OTHERS

· Auto energy saving: Intelligent energy saving system for reducing power of light source

· Sleep mode: Auto stand-by and sleep mode when signal disconnected. Make the fixture more stable and safe.

· Transmission: DMX/wireless DMX, software upgraded by DMX.

· Cooling: The internal circulation heat dissipation+copper tube heat dissipation system and temperature intelligent monitoring technology are used to automatically adjust the heat dissipation system to effectively control the temperature of the lamp.
