Product Model
GTD-F11 II BSWP(Pro version)
Product Series
IP66 SERIES
Technical Specification

OPTICAL

· Light source: LED 1,000W

· Lifespan: 20,000 hours

· Focus: adopt high precise glass lens, electronic linear HD focus

· Zoom range: 5°~50°, linear high speed zoom, uniform spot in free scope

· CRI: Ra95

· Uniformity rate: >90%


FRAMING

· One set of full process framing system, 4 sets of blades fast movement to form geometric graphicsThe graphics can be different shapes and different size.

GOBO

·Rotating gobo: 1 rotating gobo wheel with 6 optional glass gobo, variable speed shaking and two-way rotating, 16-bit fine tuning.

·Static gobo: 1 static gobo wheel with 7 gobos, variable speed shaking and two-way rotating.

COLOR

· CMY color mixing, colors macro

· CTO linear color temperature adjustment(6000K-2300K)

· Color wheel: 1 color wheel with 5 color filters, realize bidirectional rainbow effect, half color and linear adjustment.

ELECTRICAL

· Input voltage: AC 100V-240V   50/60Hz

· Maximum power: 1,200W

CONTROL/PROGRAMMING

· Control protocol: DMX512 RDM

· Display: LCD

DYNAMIC EFFECTS

· Pan/Tilt: pan=540°, tilt=270°Auto- return correction, 16-bit precision

· Iris: 5-100% linear adjustment, macro function

· Strobe: 1-25Hz/s fast strobe with pulse/asynchronous/synchronous  strobe effect

· Dimmer: 0-100% electronic linear dimming

· Prism: 1 variable speed bidirectional rotating prism

· Frost: 0-100% linear softy adjustment

· Animation wheel: 1 bidirectional rotating wheel

· Noise: <40dB in ultra-silent mode

PHYSICAL

· Weight: 39Kg

· IP rating: IP66

OTHERS

· Auto energy saving: Intelligent energy saving system for reducing power of light source

· Power-off setting: built-in rechargeable battery to set menu without power

· Eco mode: Auto stand-by and sleep mode when signal disconnected. Make the fixture more stable and safe.

· Control Protocol: DMX/wireless DMX, software upgraded by DMX.

· Cooling system: copper tube+fan, with intelligent temperature control system, effectively control temperature of fixture.

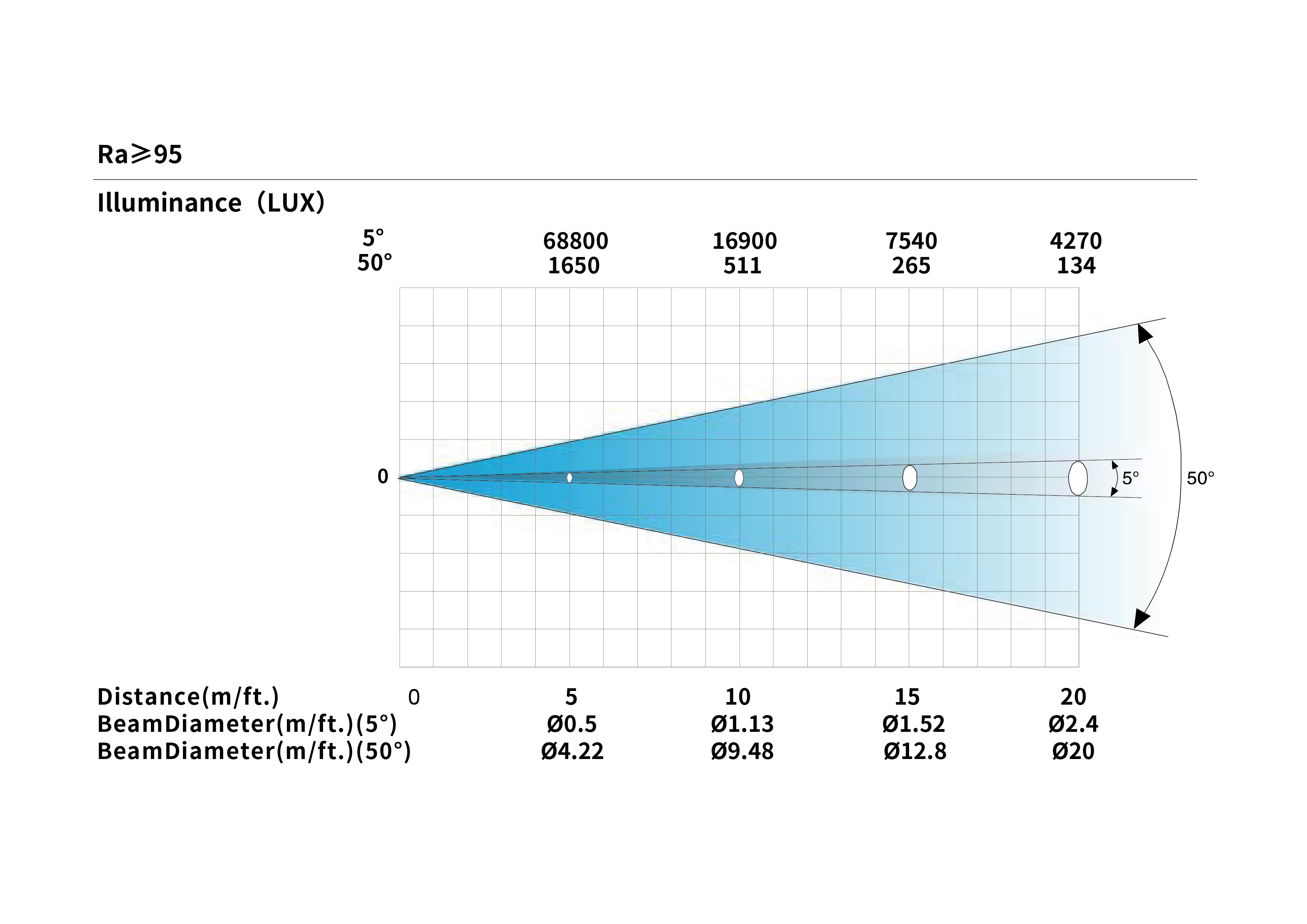

Photometric Diagram
Gobos & Colours
Exterior Dimensions
Accessories
Downloads
Product Video
GTD-F11 II BSWP(Pro version)
