OPTICAL
· Light source: LED 1,400W
· Expected life: 20,000 hours
· Color temperature: 6,500K
· Focus: High-precision glass lenses, electronic linear HD focus

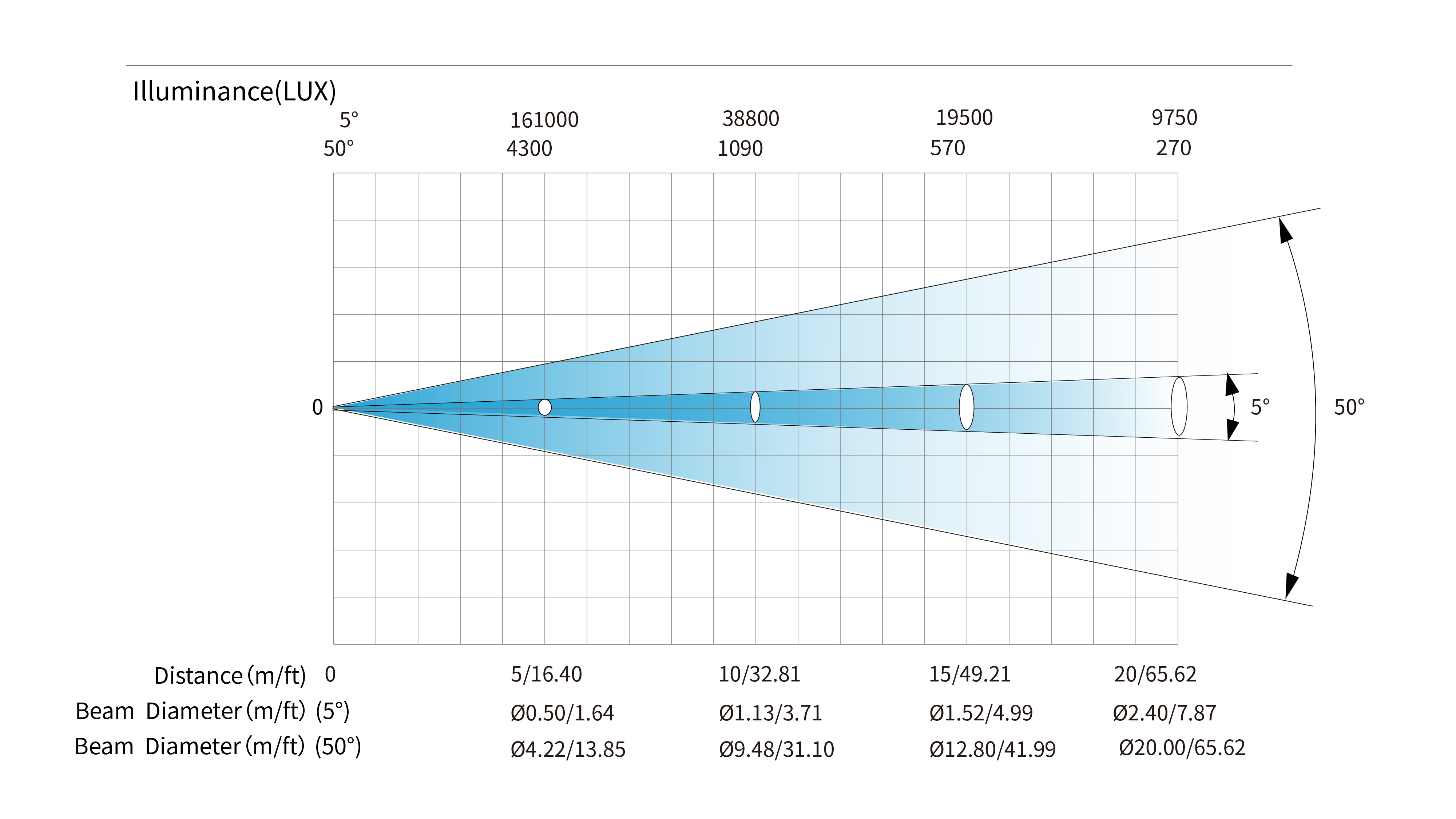

· Zoom: 5°-50°
· Noise: low noise mode is less than 35db
· CRI: Ra≧70；Ra≧90 in high CRI mode
FRAMING
· Consists of four shutter blade, full crossover of each blade, the framing system can rotate 110°and each blade can shape individually and cut off.

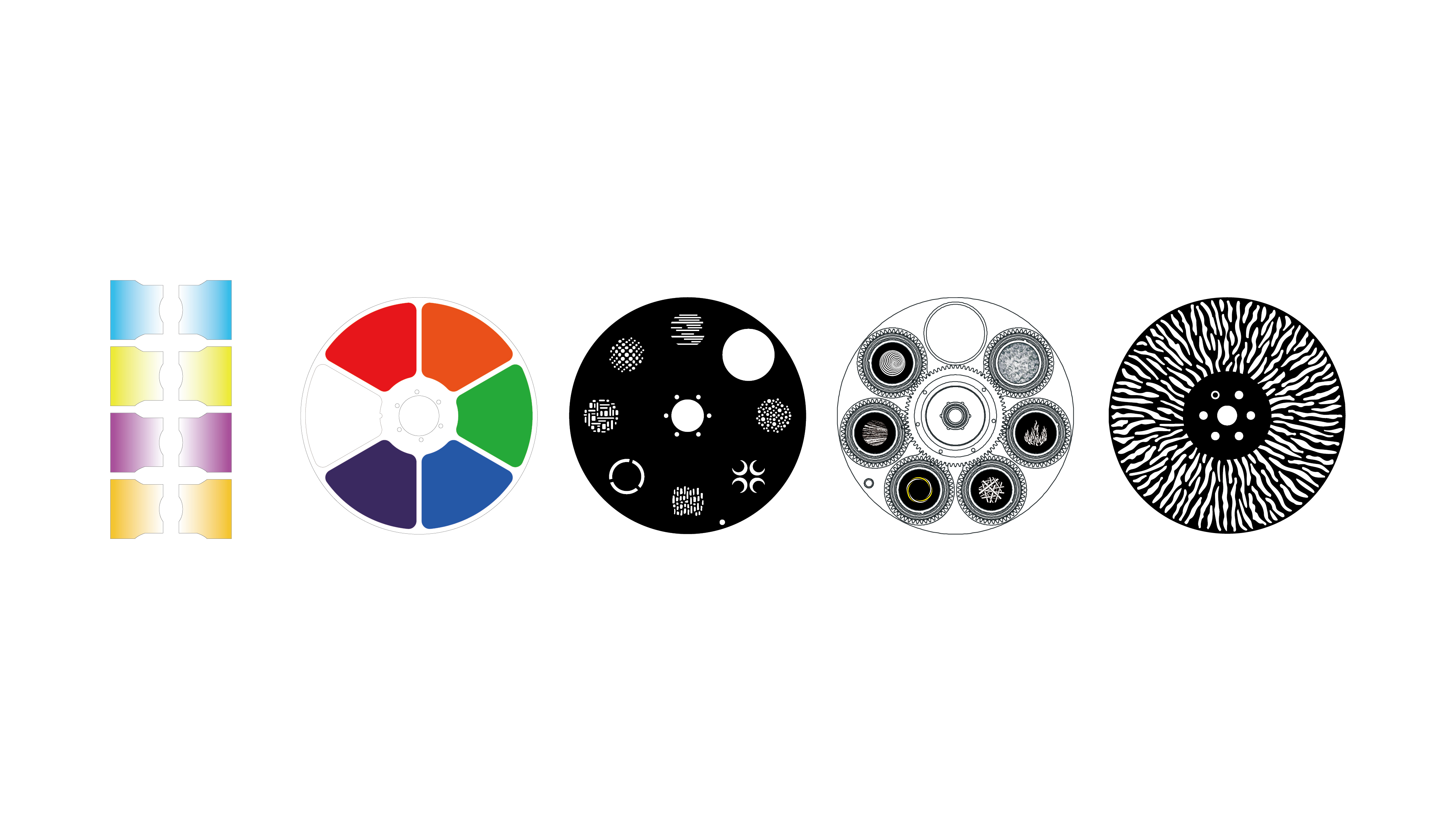

GOBO
· Rotating gobo: 6 interchangeable gobos + open, 16-bit precision fine-tuning
· Static gobo: 7 gobos + open
· Animation: 1 wheel
COLOR
· Color Wheel: 5 colors + open
· CMY: CMY for linear infinity color mixing, macros
· CTO: 6,500K-2,700K
ELECTRICAL
· Input: AC 100V-240V 50/60Hz
· Maximum power : 1,550W
· Power supply unit: Waterproof plug
· DMX data in/out: Waterproof 3-pin seetronic XLR
CONTROL/PROGRAMMING
· Control channels: 37/35/54
· Protocol: DMX512, RDM
· Display: LCD back-lit
DYNAMIC EFFECTS
· Pan/tilt: 540°/270°, 16-bit control and automatic return correction
· Dimmer: 0-100% linear electronic dimming,
· Frost: 0-100% linear frost control
· Strobe: 1-25Hz, synchronized, pulse effects
· Prism: 1 wheel, CW/CCW rotation, variable speed

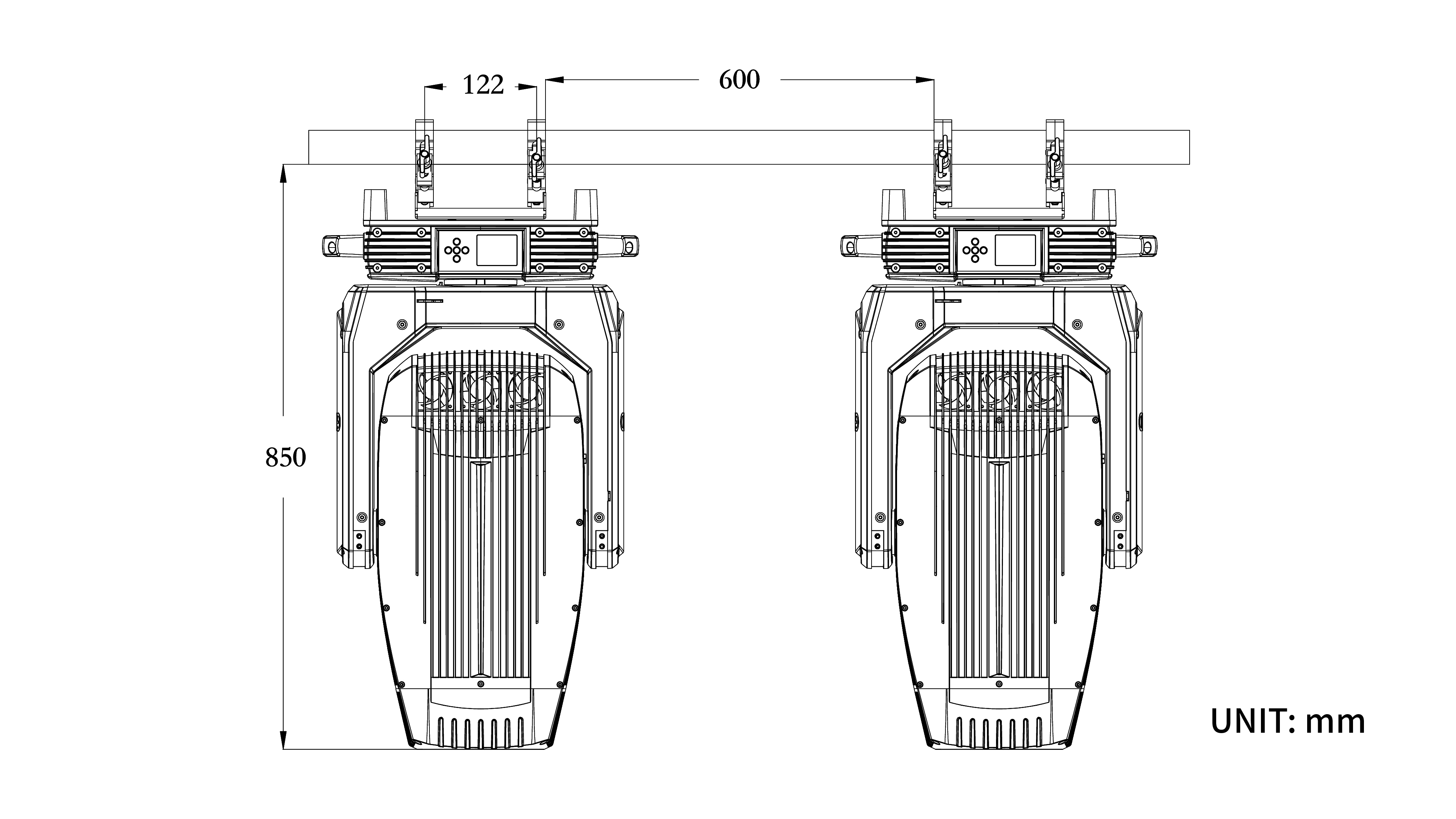

PHYSICAL
· Weight: 42kg
· IP rating: IP66
OTHERS
· Power setting: Internal battery, able to control the LCD display without power connection
· Sleep mode: When disconnect DMX, the fixture returns to sleep mode automatically
· Transmission: DMX signal, update software by DMX
· Cooling: The internal circulation heat dissipation+copper tube heat dissipation system and temperature intelligent monitoring technology are used to automatically adjust the heat dissipation system to effectively control the temperature of the lamp.
