Product Model
GTD-F11 II BSWP (Standard version)
Product Series
IP66 SERIES
Technical Specification
Optical
Light source: LED 1,000W
Lifespan: 20,000 hours
Focus: adopt high precise glass lens, electronic linear HD focusing
Zoom range: 5°~50°, linear high speed zoom, uniform spot in free scope
CRI: Ra≧70, Ra≧90 (optional adding high CRI filter)

Framing
One set of full process framing system, 4 sets of blades fast movement to form geometric graphics; the graphics can be different shapes and different size.

Gobo
Rotating gobo: 1 rotating gobo wheel with 6 optional glass gobo, variable speed shaking and two-way rotating, 16-bit fine tuning.
Static gobo: 1 static gobo wheel with 7 gobo filters, variable speed shaking and two-way rotating

Color
CMY color mixing, colors macro
CTO linear color temperature adjustment (6,000K-2,700K)
Color wheel: 1 color wheel with 5 color filters, realize bidirectional rainbow effect, half color and linear adjustment

Physical
Weight: 39Kg
IP rate: IP66

Electrical
Input voltage: AC 100V-240V   50/60Hz
Maximum power: 1,200W

Control and programming
Control protocol: DMX512, RDM
Display: LCD

Dynamic effects
Pan/Tilt: pan=540°, tilt=270°Auto- return correction, 16-bit precision
Iris: 5-100% linear adjustment, macro function
Strobe: 1-25Hz/s fast strobe with pulse/asynchronous/synchronous strobe effect
Dimmer: 0-100% electronic linear dimming
Prism: 1 variable speed bidirectional rotating prism
Frost: 0-100% linear softy adjustment
Animation wheel: 1 bidirectional rotating wheel
Noise: <40dB in ultra-silent mode

Others
Auto energy saving: Intelligent energy saving system for reducing power of light source
Power-off setting: built-in rechargeable battery to set menu without power
Eco mode: Auto stand-by and sleep mode when signal disconnected. Make the fixture more stable and safe.
Control Protocol: DMX/wireless DMX, software upgraded by DMX.
Cooling system: copper tube+ fan, with intelligent temperature control system. Effectively control temperature of fixture.

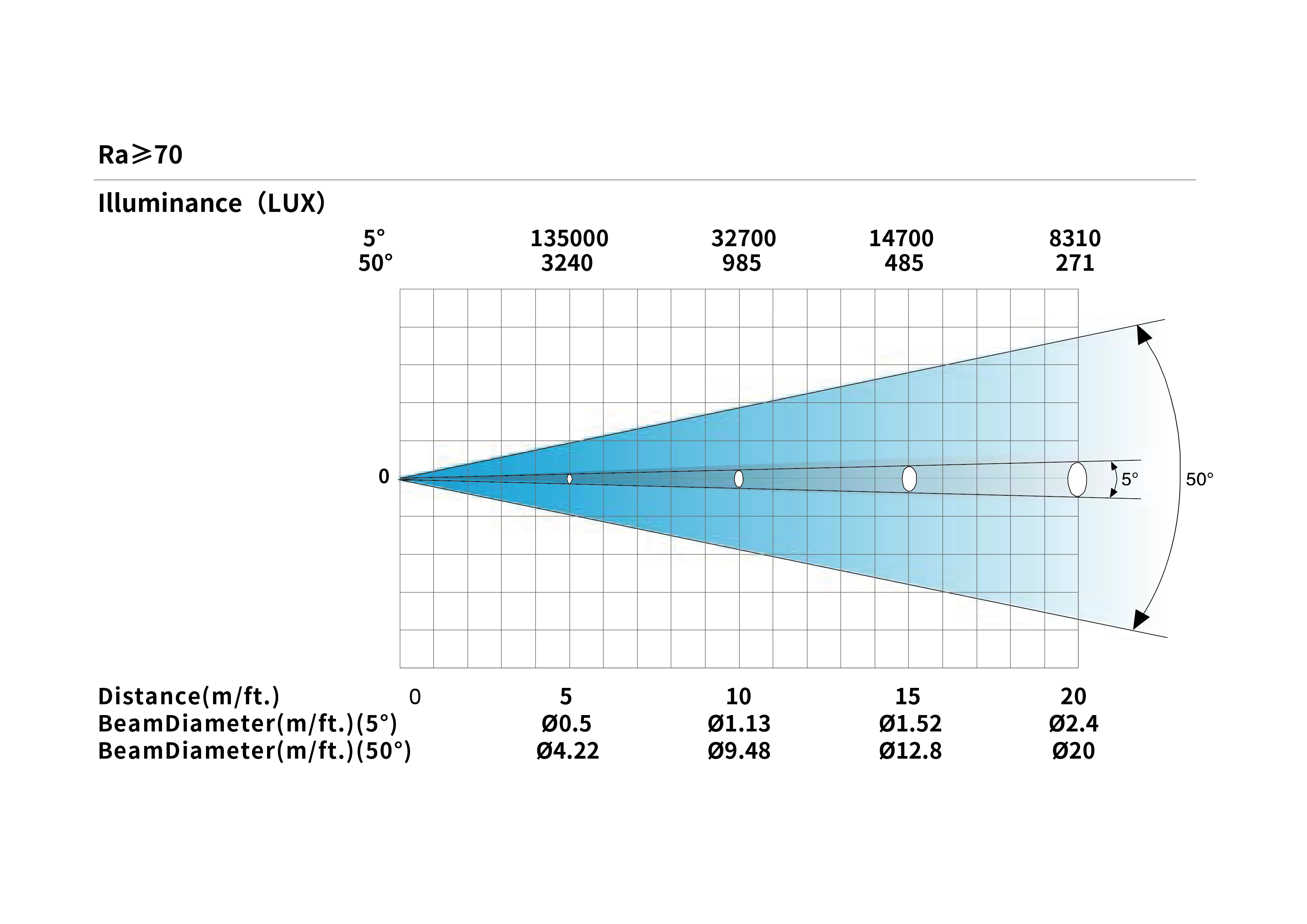

Photometric Diagram
Gobos & Colours
Exterior Dimensions
Accessories
Downloads
Product Video
GTD-F11 II BSWP (Standard version)
