Product Model
GTD-F4019 II PIXIE
Product Series
IP66 Series
Technical Specification

OPTICAL

· Light source: 40W RGBW * 19pcs

· Expected life: 20,000 hours

· Color temperature: 3,200K-6,500K linear adjustment

· Zoom: 9°-55°

COLOR

·RGBW Infinite color mixing, pixel control

ELECTRICAL

· Power input: AC 100-240V, 50/60Hz

· Max power: 960W

· Power supply unit: Waterproof (input/output)

· DMX data in/out: Waterproof 3-pin Seetronic XLR

CONTROL/PROGRAMMING

· Channel: 20/95/172

· Protocol: DMX 512, RDM

· Display: LCD backlit

DYNAMIC EFFECTS

· Pan/Tilt: Pan 540°, Tilt 230°, 16-bit control and automatic return correction

· Strobe: 1-25Hz, synchronized and asynchronized, pulse effects

· Dimmer: 0-100% electronic linear dimming

PHYSICAL

· Weight: 23kg

· IP rating: IP66

OTHERS

· Automatic energy-saving: Intelligent energy-saving system with timely reduction of light source power

· Power setting: Internal battery, able to control the LCD display without power connection

· Sleep mode: When disconnect DMX, the fixture returns to sleep mode automatically

· Transmission: DMX signal, update software by DMX

· Cooling: Copper tube + Active fan

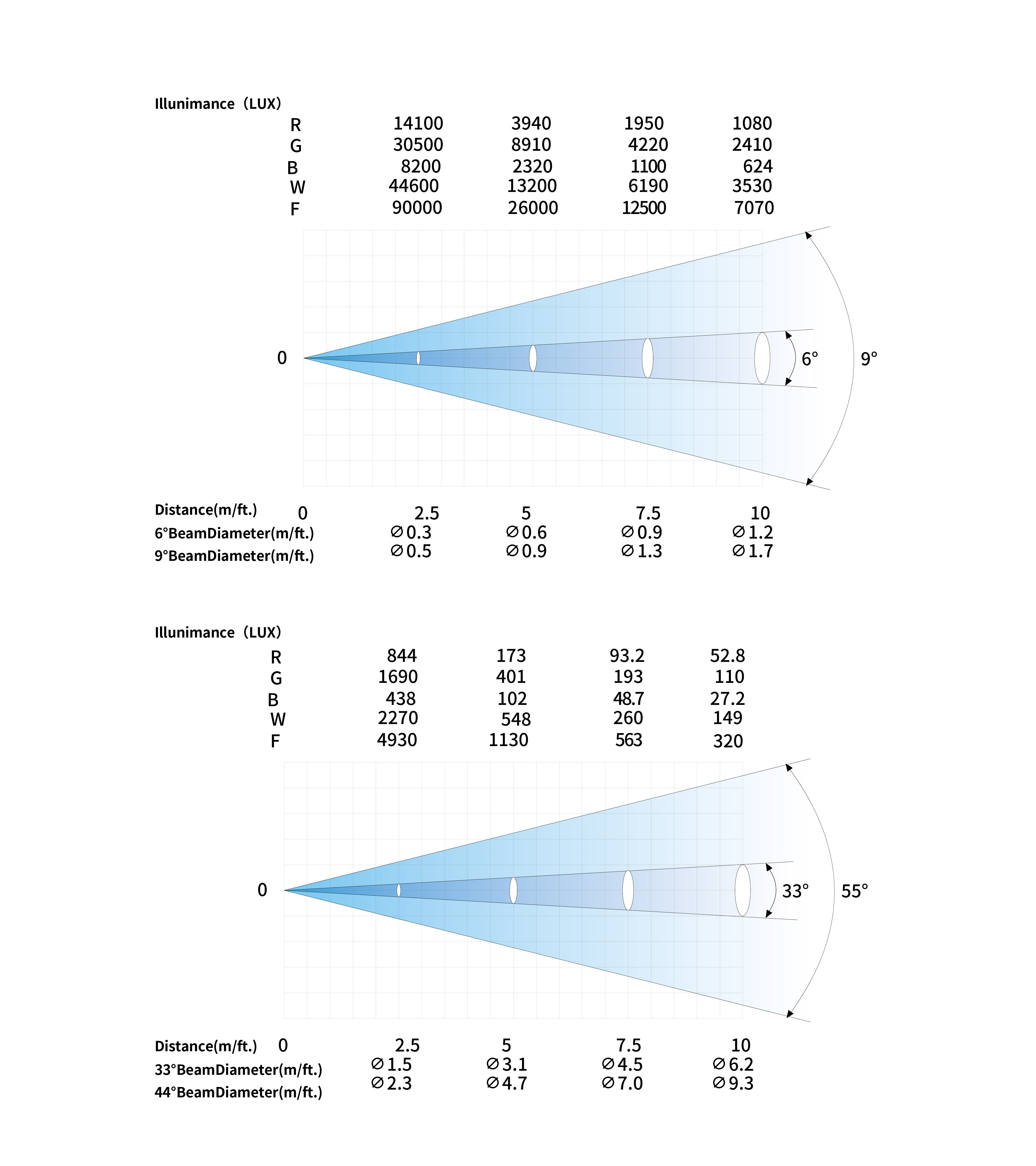

Photometric Diagram
Gobos & Colours

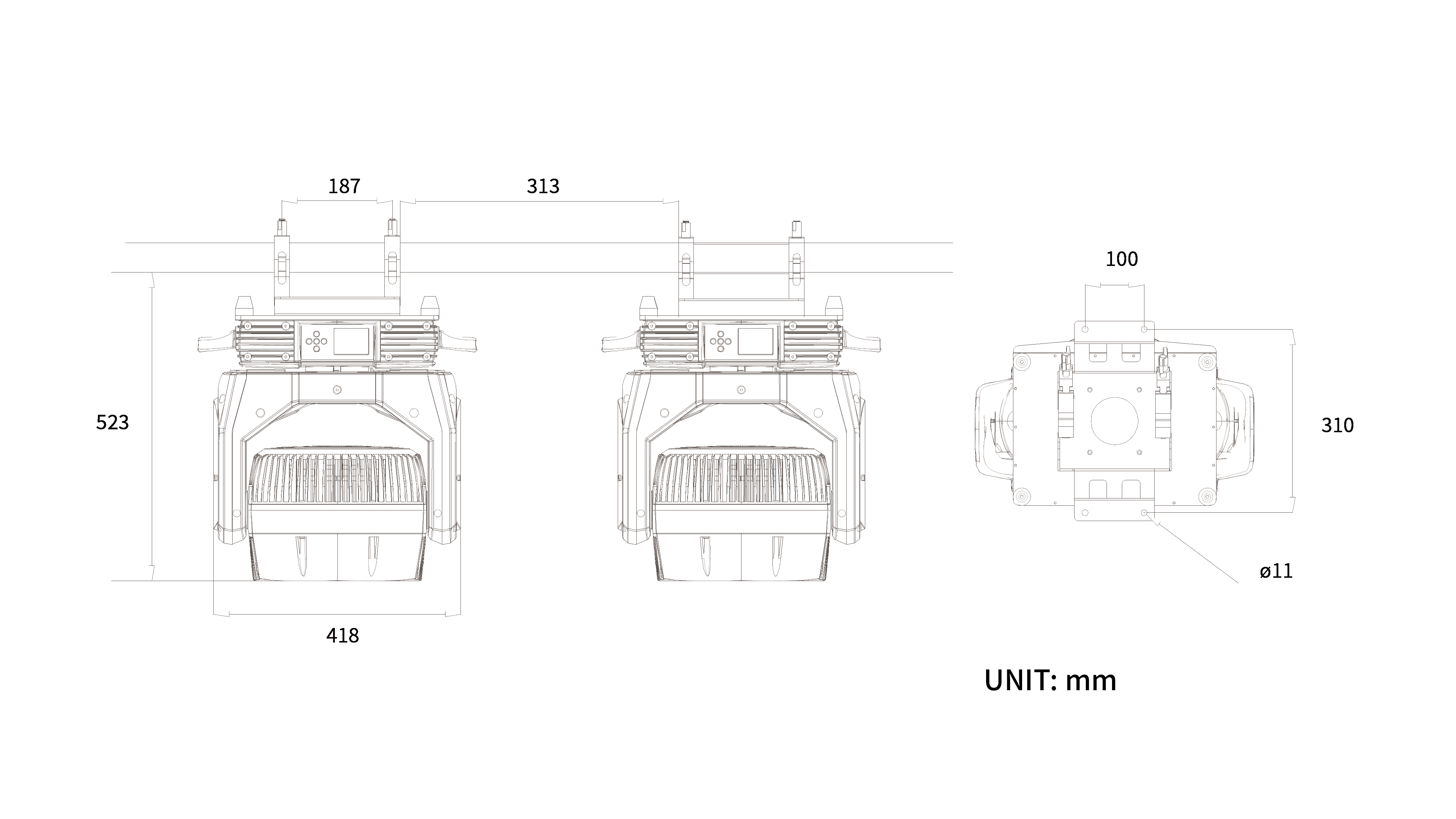

Exterior Dimensions
Accessories
Downloads
Product Video
GTD-F4019 II PIXIE
