Product Model
Product Series
550W series
Technical Specification

Light source: OSRAM SIRIUS HRI 550 W XL
Expected average lifetime: 1500 hours
Beam angle: Zoom range 2° - 15° beam application, zoom range 4° - 26° spot application
Focus: Variable range, from 5m to infinity
Prism: 8 + 16-facet prism, CW/CCW rotation, variable speed
Frost: On/Off
Ballast: Electronic
Animation effect: 1 wheel, CW/CCW rotation, variable speed

Total Output (Lumen): Beam: 19310 lm narrow/21560 lm wide
Color temperature: 7200K
CRI: Beam: ≥85

Rotating gobo: 8 interchangeable gobos + open, indexing, CW/CCW rotation, variable speed
Static gobo wheel: 10 gobos + open, CW/CCW rotation, variable speed
Gobo outside diameter: 14.4 mm
Max. Image diameter: 7 mm
Max. Thickness: 1.1 mm(Glass)
Glass/Metal gobo: Glass

Color wheel: 12 colors + open, split color, CW/CCW rotation, variable speed
CMY / CTO: CMY + CTO for linear infinity color mixing

Power input, nominal: AC 100-240V 50/60Hz
Max. Power consumption: 710W
Power supply unit: Auto-ranging electronic SMPS
Main fuse: 250V/10A

Control channels (DMX): 27/24/34
Protocol: DMX-512
Display: Graphic LCD backlit
16-bit control: Dimmer, CMY colors, CTO, focus, zoom, gobo indexing & rotation, rotating gobo wheel positioning
32-bit control: Pan/tilt

Physical / Installation
Weight: 30 kg(66.1 lbs.)
IP rating: IP20
Material: Aluminum, steel, plastic
Mounting points: Four quarter-turn locking points + attachment points for safety wire
Minimum distance to combustible materials: 0.5 mtr(1.64 ft.)
Minimum distance to illuminated surfaces: 15 mtr(49.2 ft.)

Dynamic effects
Pan/Tilt movement: 540˚/ 270˚
Strobe: 1-20Hz, synchronized, pulse effects
Dimmer: 0-100%, 16-bit, mechanical dimming
Zoom: Motorized
Built-in macros: Color

Operating range: 14˚F - 113˚F(-10˚C - 45˚C)
Startup range: 5˚F - 113˚F(-15˚C - 45˚C)
Storage range: -40˚F - 140˚F(-40˚C - 60˚C)
Cooling: Active fan
Humidity: ≤85%

AC power: Neutrik powerCon
DMX data input/output: Chassis 5-pin Neutrik XLR (in/out)

Certification and Safety
EMC: EN 55103-1:2009, EN 55103-2:2009, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013
Safety: EN 60598-2-17:1989/A2:1991

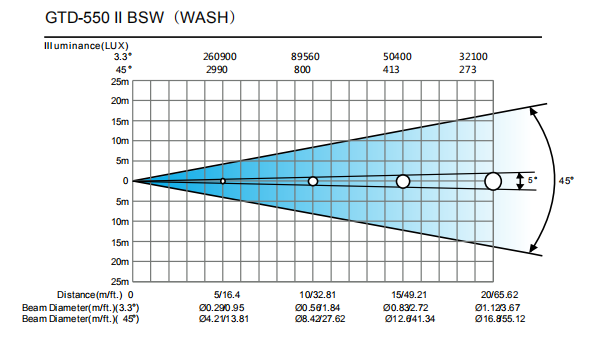

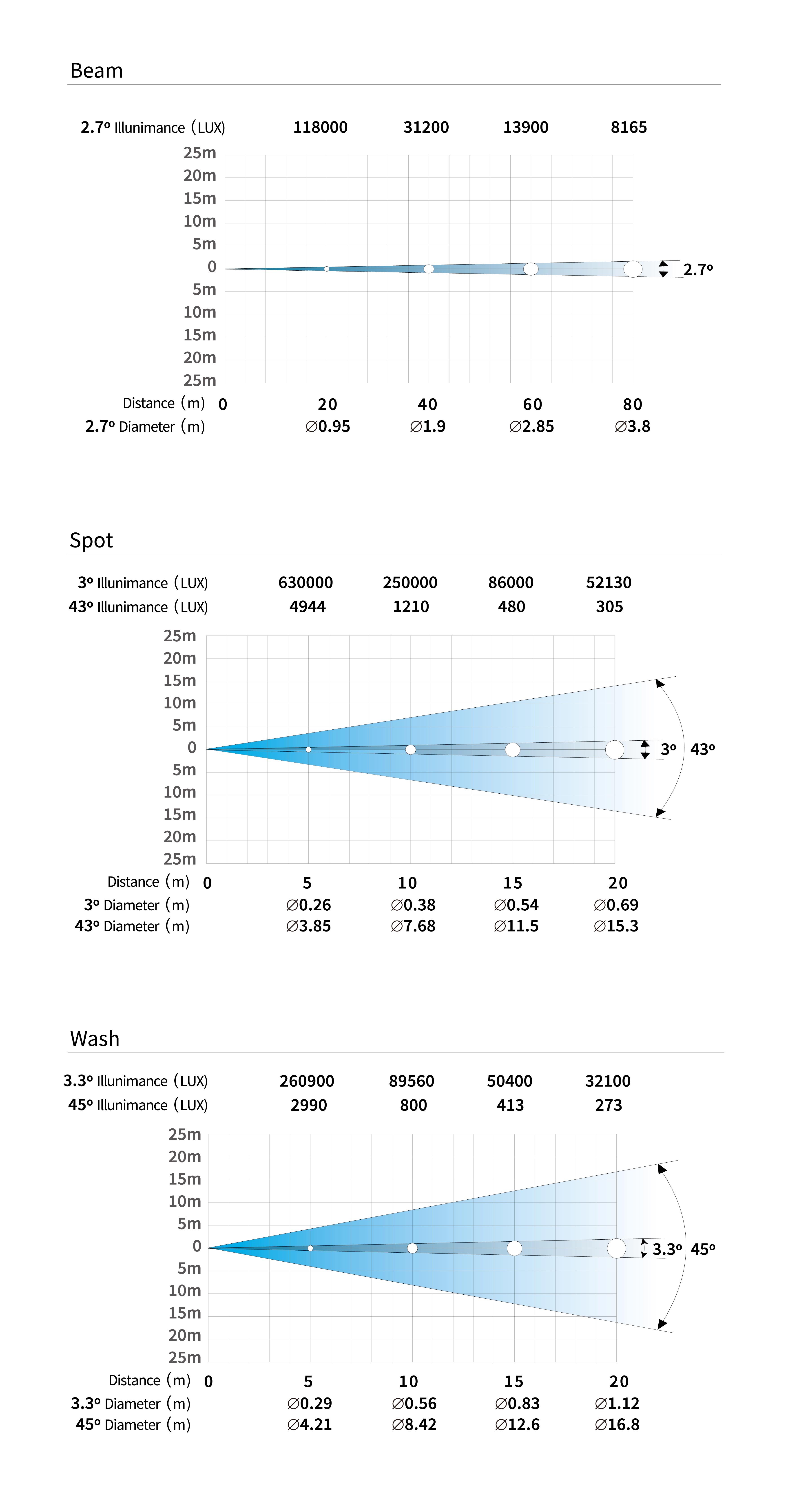

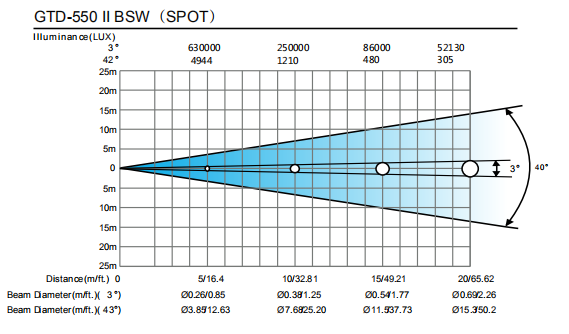

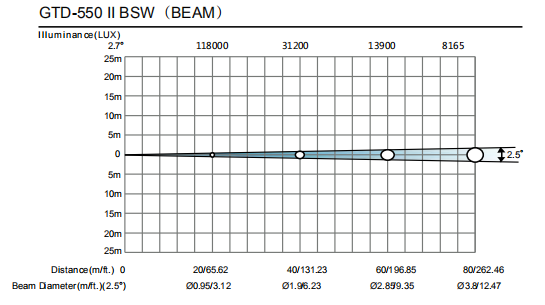

Photometric Diagram

Gobos & Colours

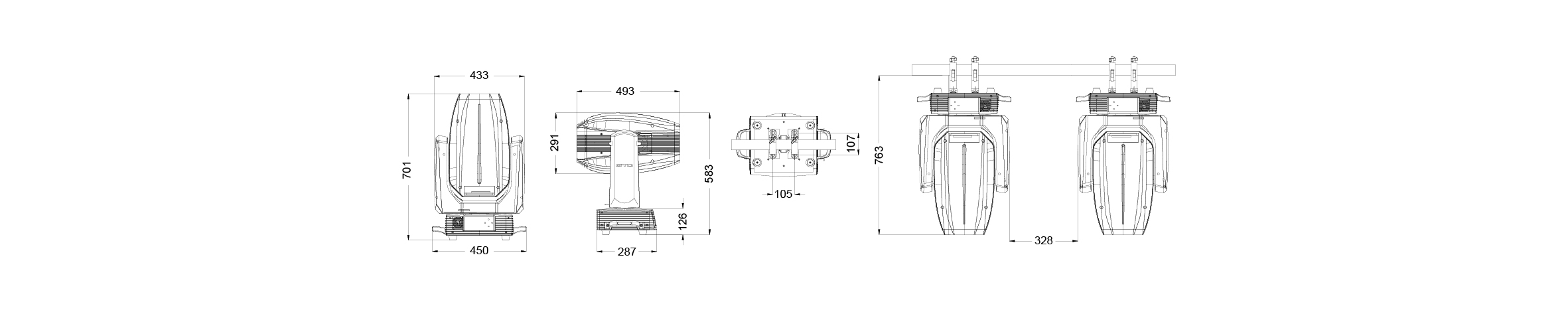

Exterior Dimensions
Product Video
