Optical
Light source: SIRIUS HRI 550 W F
Expected average lifetime: 1500 hours

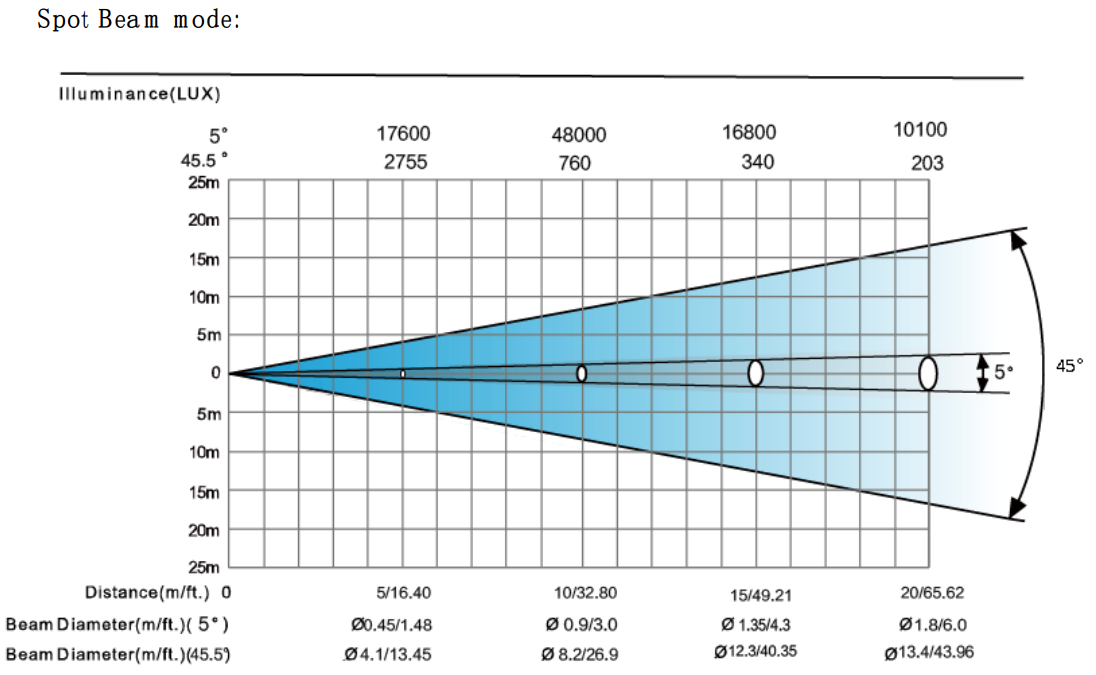

Zoom range: Beam spot 5°～ 44.5°/wash 9°～ 48°
Focus: High precision glass lens, electron linear focus
Prism: 1 four-prism, independent control effect
Frost: 1-independent frost effect
Photometric
Total Output (Lumen): 26000lm
Color temperature correction: 7000k
CRI: Ra≥90
Gobo
Rotating gobo: 1 interchangeable gobo rotator, 7 optional pattern pieces
Static gobo wheel: 1 fixed gobos，pattern CW/CCW rotation, produce flame, wave, cloud and other dynamic effects
Gobo outside diameter: 19mm
Max. Image diameter: 12mm
Max. Thickness: 1.1mm
Glass/Metal gobo: Glass
Cutting wheel: Rotation range:90°, 4 movable cutting molding pieces; can generate a variety of different sizes of geometric in whole cutting effect
Color
Color wheel: 5 color gel and open gobo, color linear transformation, and half “Rainbow effect”
CMY: The infinite color mixed
CTO: 6900K-2700K
Electrical
Power input, nominal: AC 100-240V 50/60Hz
Max. Power consumption: 845W
Max current: 8.45A
PF: 0.99
Power supply unit: Wide range electronic SMPS
Main fuse: 6.3A
Control and programming
Control channels (DMX): 34/31/50
Protocol: DMX-512 RDM
Display: LCD
Physical / Installation
Weight: 32kg (70.55 lbs.)
IP rating: IP20
Material: Aluminum, copper, steel, plastic
Mounting points: 4 fixed folding lamp hook + attachment points for safety wire
Dynamic effects
Pan/Tilt movement: 540˚/270˚，adopting a function which resets 32bit accurately and automatically
Strobe: 1-20
Dimmer: 0-100%, mechanical linear dimming
Thermal
Operating range: 14˚F to 113˚F (-10˚C to 45˚C)
Startup range: -13˚F - 113˚F (-25˚C - +45˚C)
Storage range: -40˚F - 140˚F (-40˚C - +60˚C)
Cooling: Active fan
Humidity: ≤ 85%
Connections
Power: input Self-contained power cord
DMX data input/output: Chassis 3-pin
Certification and Safety
EMC: EN 55103-1:2009, EN 55103-2:2009, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013, GB/T 17743-2007, GB 17625.1-2012
Safety: EN 60598-2-17:1989/A2:1991,GB 7000.1-2015, GB 7000.217-2008
EMC: EN 55103-1:2009, EN 55103-2:2009, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013, GB/T 17743-2007, GB 17625.1-2012
Safety: EN 60598-2-17:1989/A2:1991,GB 7000.1-2015, GB 7000.217-2008
