Electrical
Power input, nominal: AC 176-264V 50/60Hz
Max. Power consumption: 5.5W
Power supply unit: Auto-ranging electronic SMPS
Control/programming
Protocol: DMX-512
Physical/installation
Weight: 2.8 kg(6.2 lbs.)
IP rating: IP20
Material: Rugged aluminium housing
Height: 44 mm(1.7")
Width: 482 mm(19.0"), 19-inch rackmount
Depth: 214 mm(8.4")
Thermal
Operating range: 14˚F - 113˚F(-10˚C - 45˚C)
Startup range: 5˚F - 113˚F(-15˚C - 45˚C)
Storage range: -40˚F - 140˚F(-40˚C - 60˚C)
Cooling: Passive
Humidity: ≤98%

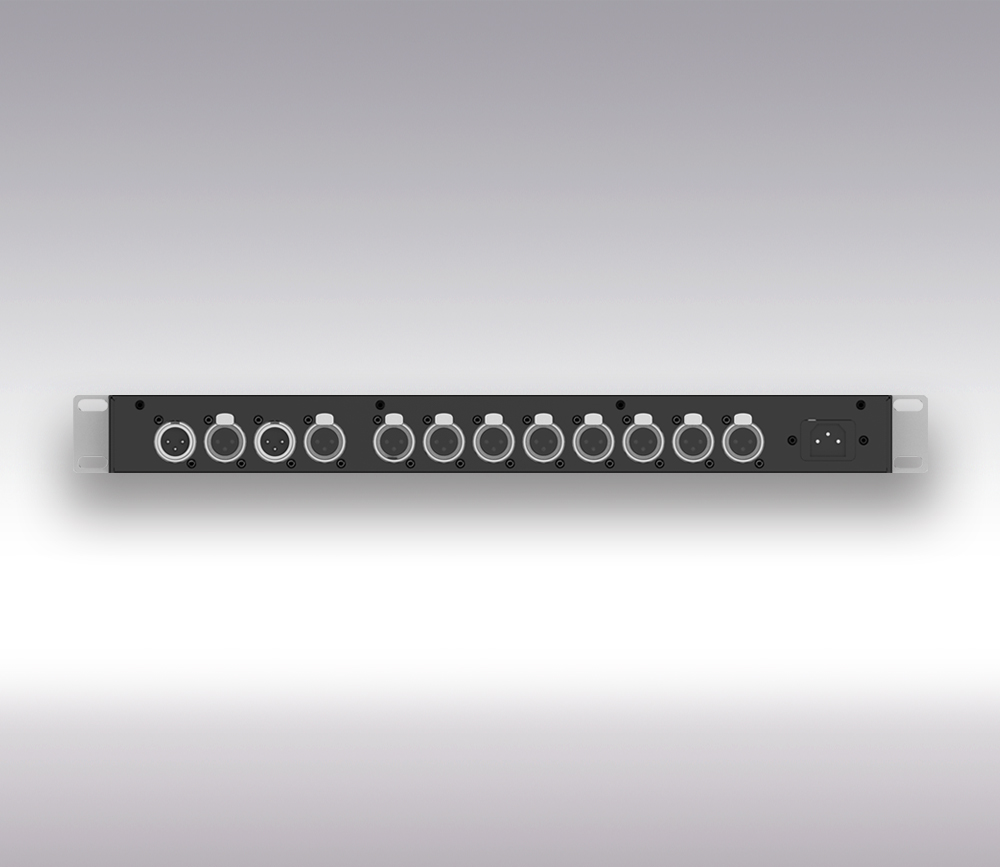

Connections
AC power: 1.5 m(4.92 ft.) cable tail with CN-type power plug
Data input: 3-pin XLR male (5-pin optional)
Data throughput (not amplified or branched): 3-pin XLR female (5-pin optional)

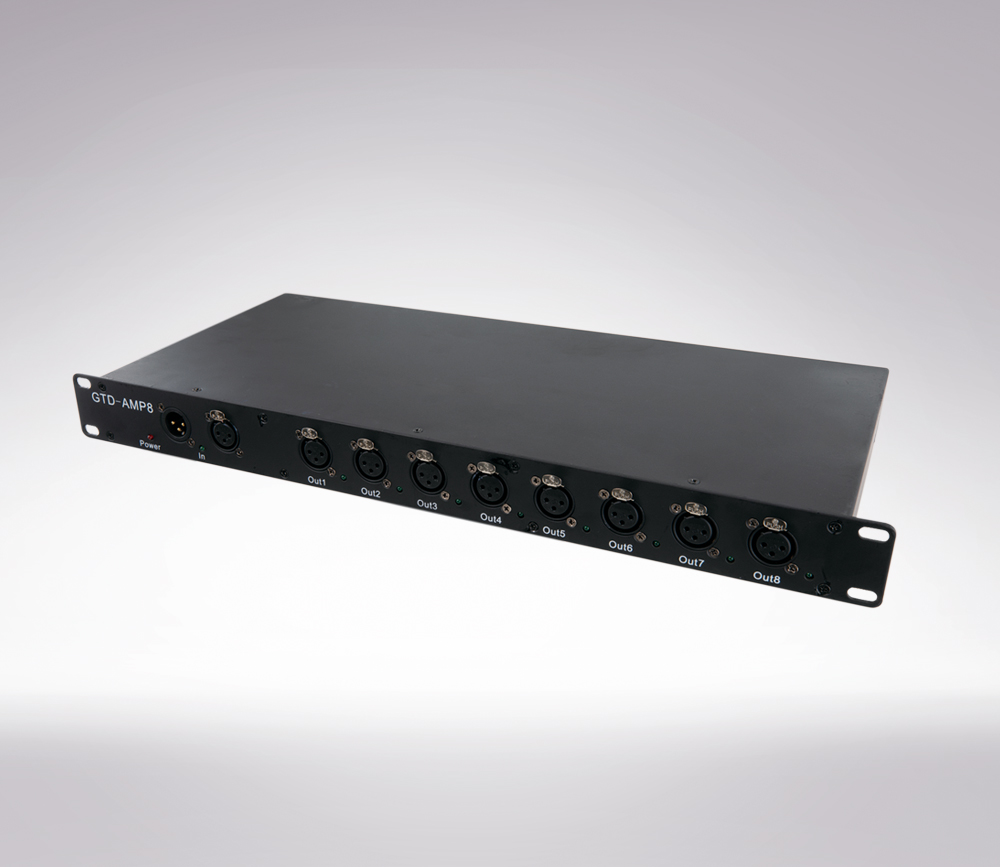

Data outputs (optically isolated and amplified): 8 x 3-pin XLR female (5-pin optional)
