Product Model
GTD-F5 II Beam
Product Series
IP66 Series
Technical Specification
Light source: PHILIPS 550W MSD Platinum 25 R
Expected average lifetime: 1500 hours
Beam angle: Zoom range 0° - 1.7°
Focus: Variable range, from 5m to infinity
Prism: One tip 8-facet prism, one flat 8-facet prism, one spherical prism, one 4-facet prism, one linear prism, can control the effect independently, 2 prism combination can produce concentric circle effect
Ballast: Electronic
Frost: One frost effect
Total Output (Lumen): 15000 lm
Color temperature: 7800K
CRI ≥70

Rotating gobo: 8 interchangeable gobos, CW/CCW rotation, variable speed
Static gobo wheel: 9 gobos + 2 animation gobos+open, variable speed
Gobo outside diameter: 18 mm
Max. Image diameter: 7 mm
Max. Thickness: 0.5 mm(metal)
Glass/Metal gobo: High temperature resistant metal

Color wheel: 2 static color wheels including12 filters, CMY linear color mixing, linear color shifing,split color and "Rainbow effect
CMY / CTO: CW/CCW rotation, variable speed

Power input, nominal: AC 100-240V 50/60Hz
Max. Power consumption: 800W
Power supply unit: Auto-ranging electronic SMPS
Main fuse: 250V/10A

Control and programming
Control channels (DMX): 24/22/30
Protocol: DMX-512 RDM
Display: OLED display
16-bit control: Dimmer, colors, CMY, CTO, focus, zoom, pan/tilt, gobo indexing & rotation, rotating gobo wheel positioning

Dynamic effects

Pan/Tilt movement: 540˚/270˚
Strobe: High speed strobe, 1-25Hz synchronized, pulse effects
Dimmer: 0-100%, mechanical dimming
Zoom: Motorized
Built-in macros: Prism,color

Physical / Installation
Weight: 45 kg(90 lbs.)
IP rating: IP66
Material: Aluminium, steel, plastic
Mounting points: Four quarter-turn locking points + attachment points for safety wire
Minimum distance to combustible materials: 0.5 mtr(1.64 ft.)
Minimum distance to illuminated surfaces: 15 mtr(49.21 ft.)

Operating range: 5˚F - 113˚F(-15˚C - 45˚C)
Startup range: -13˚F - 113˚F(-25˚C - 45˚C)
Storage range: -40˚F - 140˚F(-40˚C - 60˚C)
Cooling: Heat pipe radiator, temperature controls fan heat dissipation intelligently
AC power: Seetronic power socket
DMX data input/output: Seetronic 3-pin XLR (in/out)

Certification and Safety
EMC: EN 55103-1:2009, EN 55103-2:2009, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013,GB/T 17743-2007, GB 17625.1-2012
Safety: EN 60598-2-17:1989/A2:1991,GB 7000.1-2015, GB 7000.217-2008

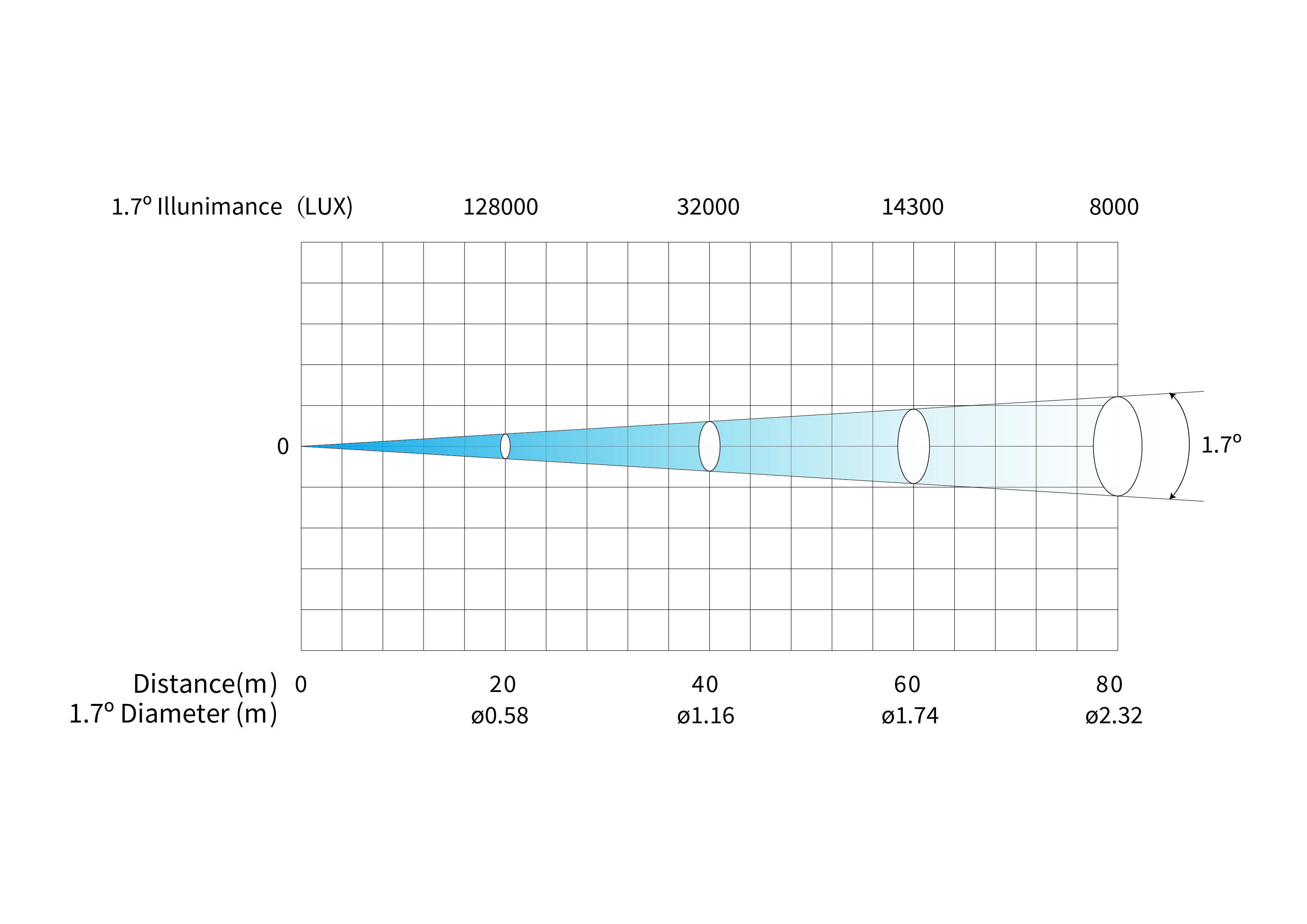

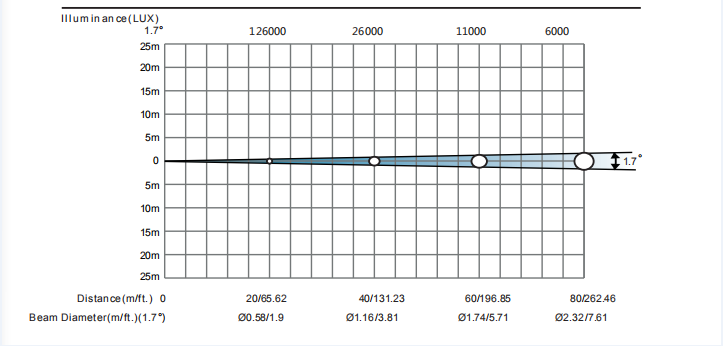

Photometric Diagram
Gobos & Colours

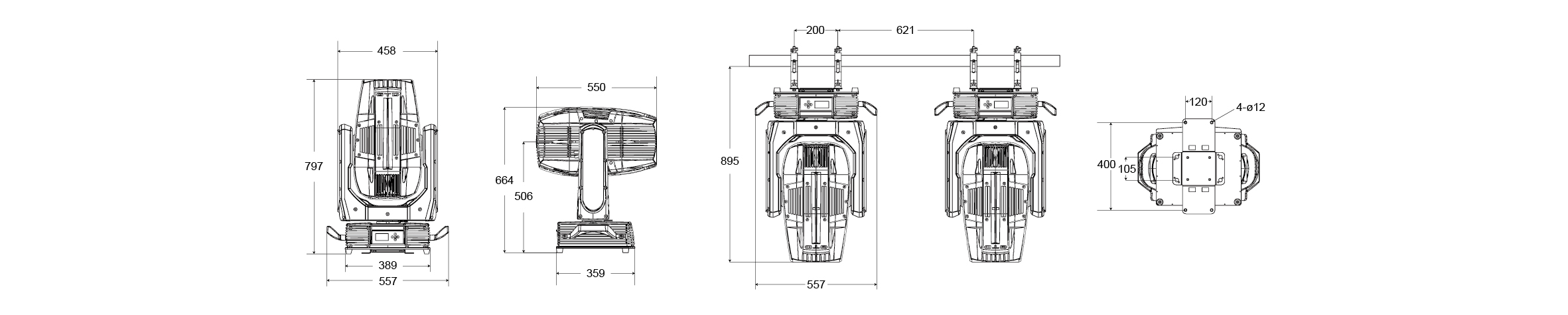

Exterior Dimensions
