OPTICAL
· Light source: OSRAM SIRIUS HRI® 420W S
· Expected Life: 4,000 hours
· Color temperature: 6,500K
· Focus: High-precision glass lens, electronic linear high-definition focusing

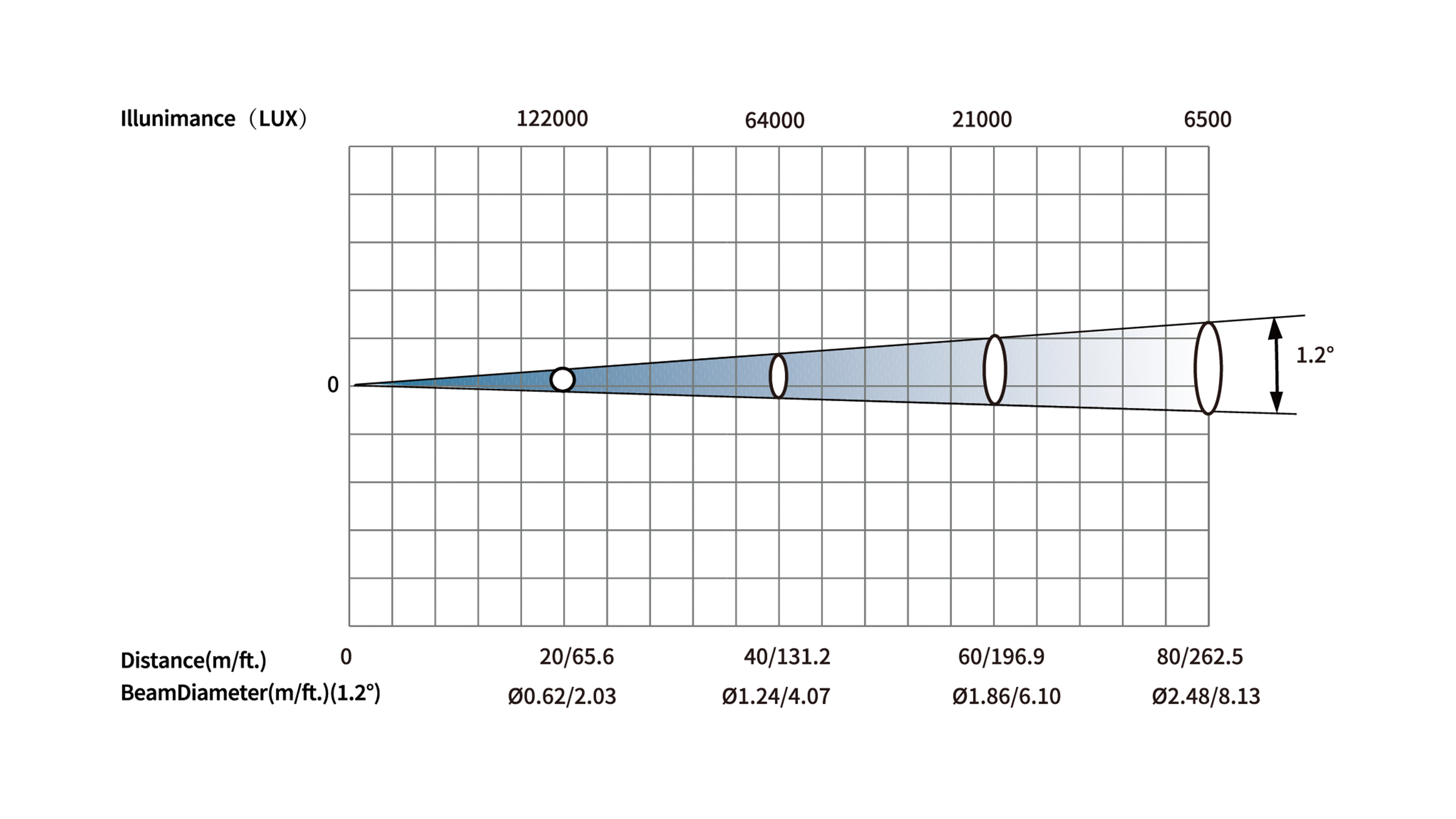

· Zoom: 1.2°
GOBO

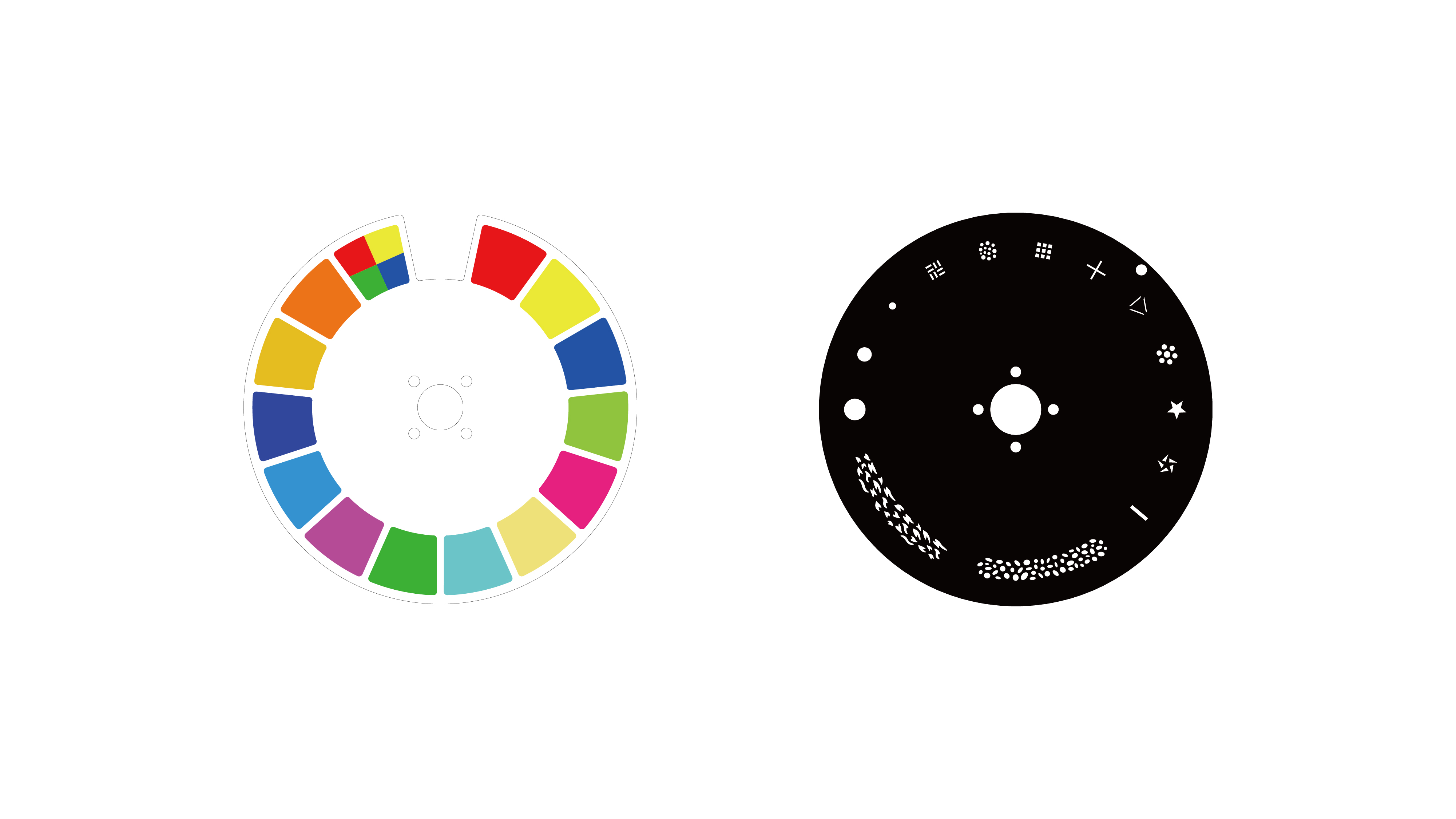

· Static gobo: 1 static gobo wheel with 9 gobos + 2 animation gobos + open, variable speed shaking and CW/CCW rotation
COLOR
· Color wheel: 14 colors, CW/CCW rainbow effect, split color and linear control
ELECTRICAL
· Power input: AC 200V-240V, 50/60Hz
· Maximum power consumption: 530W
· Power Interface: power plug input/output
· Signal Interface: signal plug input/output
CONTROL/PROGRAMMING
· Channel: 13/16/17
· Control protocol: DMX512, RDM
· Display: LCD backlit
DYNAMIC EFFECTS
· Pan/Tilt: pan=540°, tilt=270°, Auto-return correction, 16-bit precision
· Strobe: 1-20Hz, synchronized and asynchronized, pulse effects
· Dimmer: 0-100% mechanical linear dimming
· Prism: 2 independent variable speed bi-directional rotating prism
· Frost: 1 frost plate
PHYSICAL
· Weight: 20Kg
· IP rate: IP20
OTHERS
· Power setting: Automatic energy saving by reducing lighting source power consumption
· Eco mode: When disconnect DMX, the fixture returns to sleep mode automatically
· Control Protocol: DMX/wireless DMX, update software by DMX
·Cooling system: Active fan, auto-adjustment cooling system and effectively control temperature of fixture.
