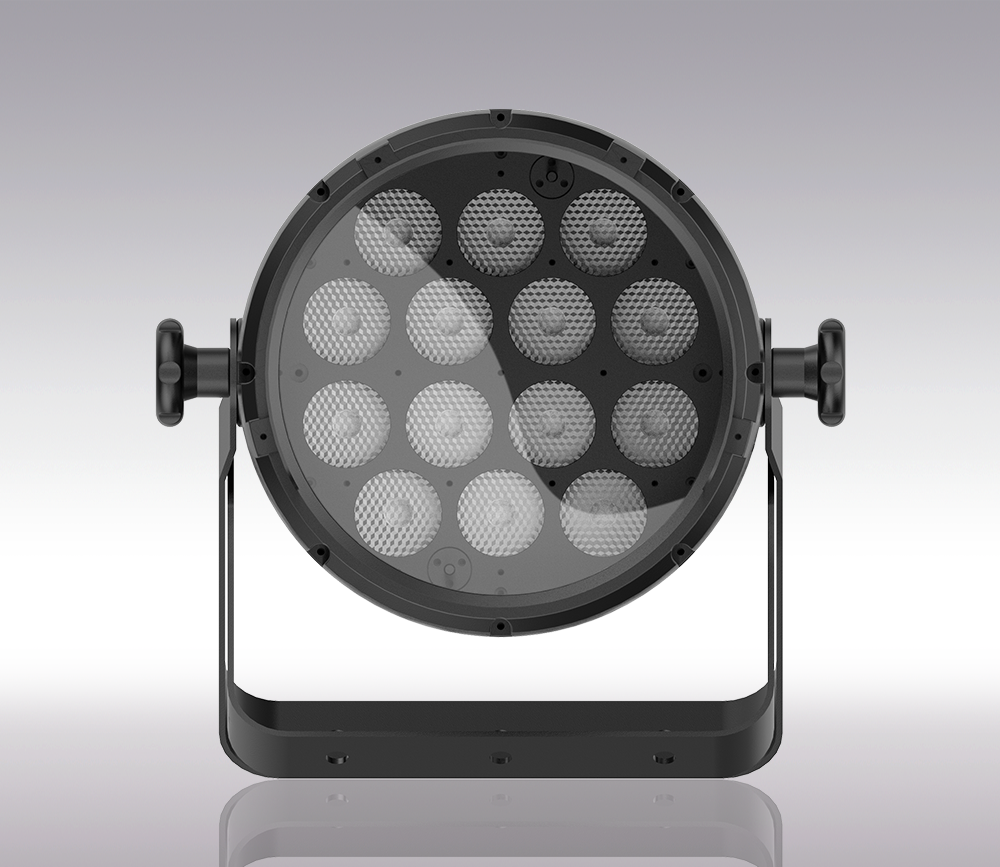

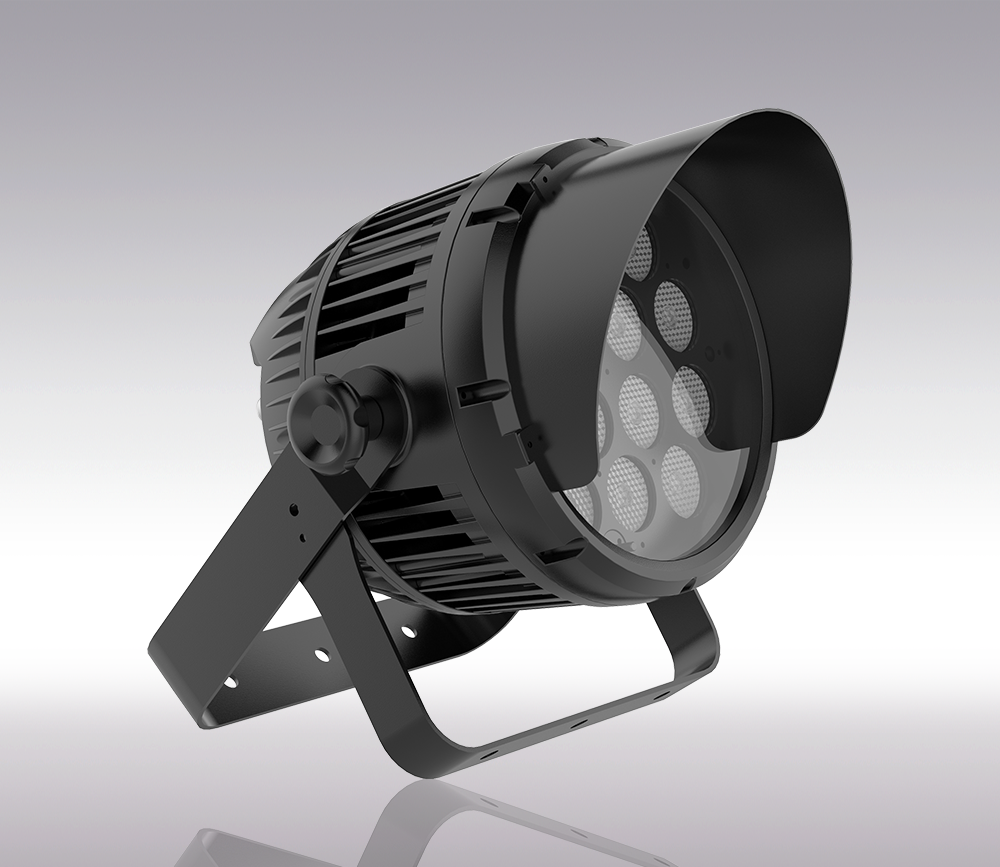

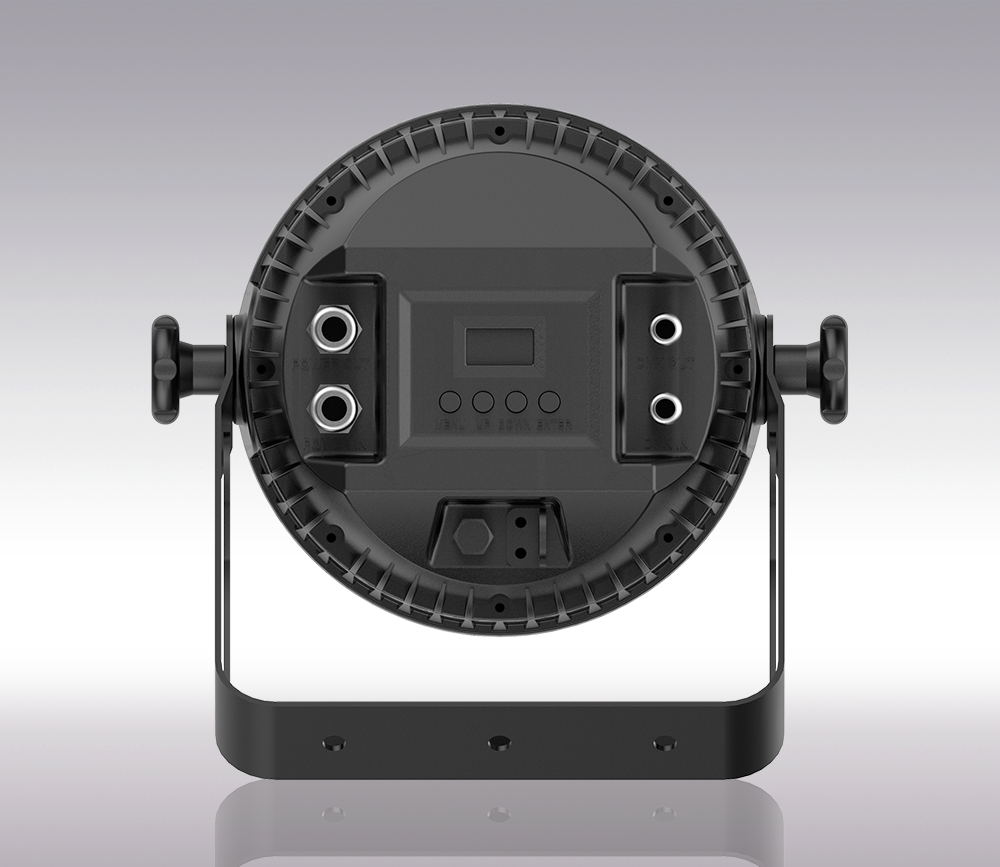

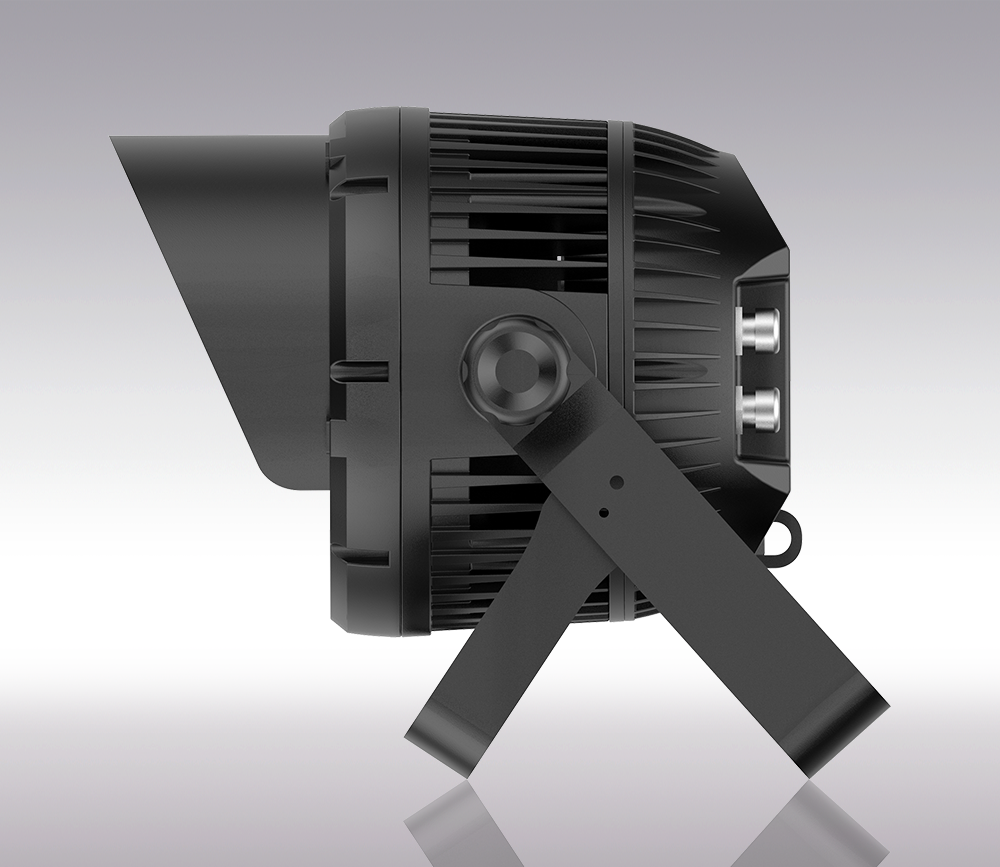

Product Model
GTD-LZ2514P
Product Series
IP65 SERIES
Technical Specification

OPTICAL

· Light source: 25w RGBALC (6 in 1) * 14 LED(blade optional)

· Expected average lifetime: 50000 hours

· Angle: 10°-35°(50%), 20°-70°(10%)

COLOR

· RGBALC  linear mixed colorbuilt-in macro function

ELECTRICAL

· Power input: AC 100-240V 50/60Hz

· Max Power: 265W

· AC power: 3 pin water proof plugs (in/out)

· DMX data input/output: 3 pin XLR

CONTROL/PROGRAMMING

· Control channels (DMX): 6/12/19

· Protocol: DMX-512; RDM

·  Display: OLED

DYNAMIC EFFECTS

· Strobe: 1-25Hz, synchronized, pulse effects

· Dimmer: 0-100% electronic linear dimming

PHYSICAL / INSTALLATION

· Weight: 7.5 kg

· IP rating: IP65

OTHERS

· Sleep Mode: When signal cable disconnected, the lamp will enter sleep mode automatically

· Transmission: DMX wired, fast and convenient software upgrade via DMX date cable

· Cooling System: intelligent cooling system and temperature monitoring system, automatically adjust the cooling system, effectively control the temperature of the lamp

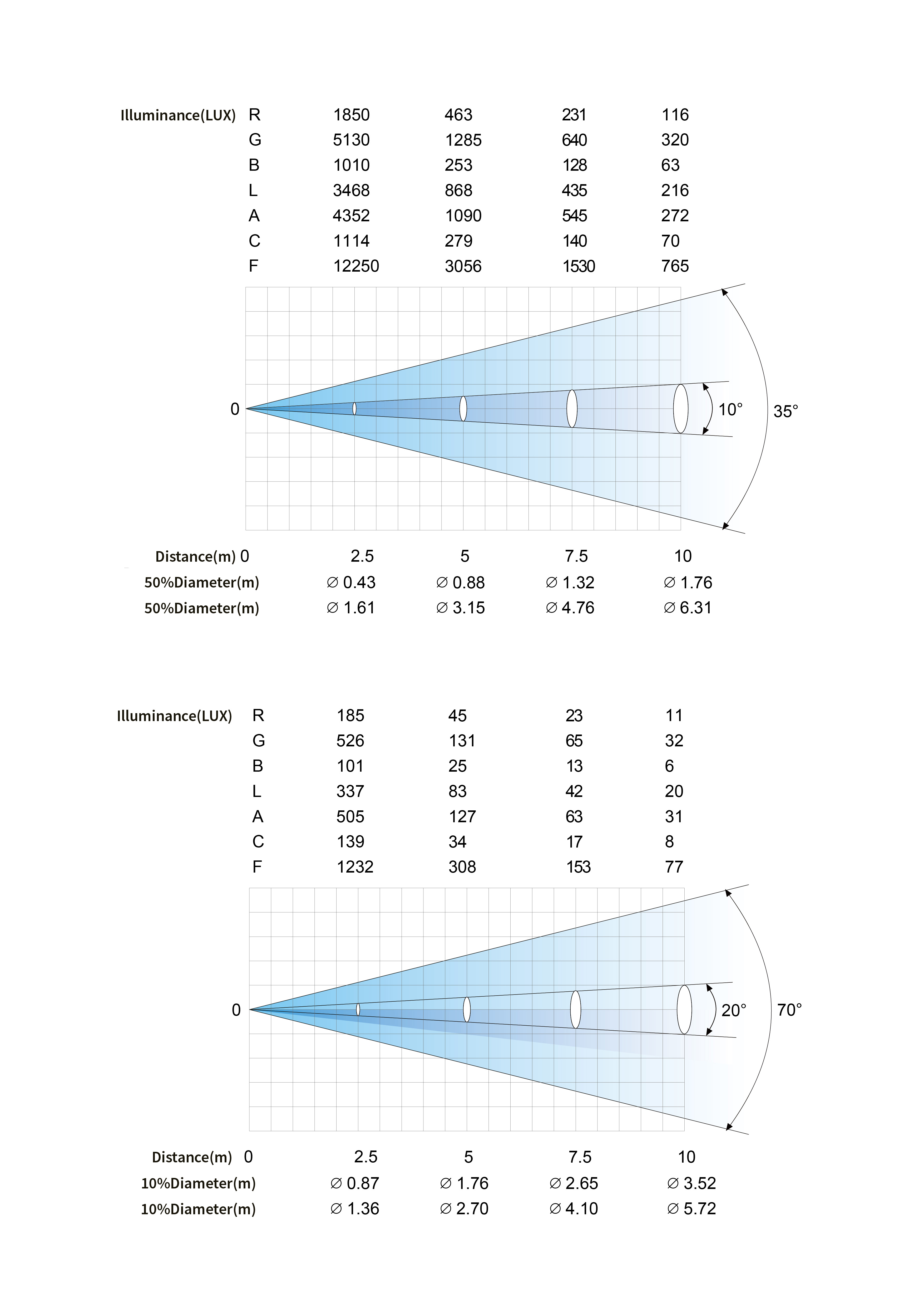

Photometric Diagram
Gobos & Colours

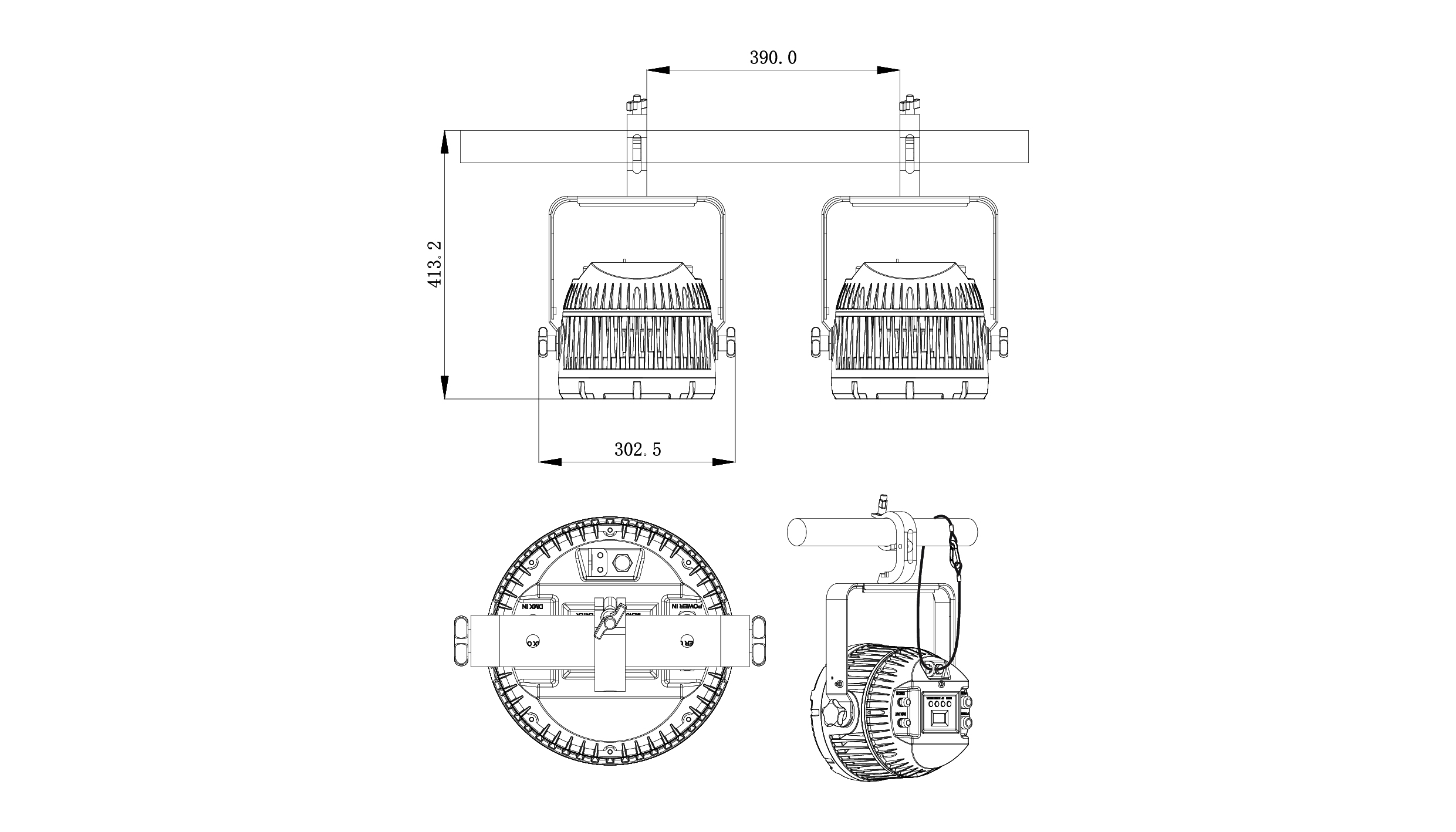

Exterior Dimensions
Accessories
Downloads
Product Video
GTD-LZ2514P
