Product Model

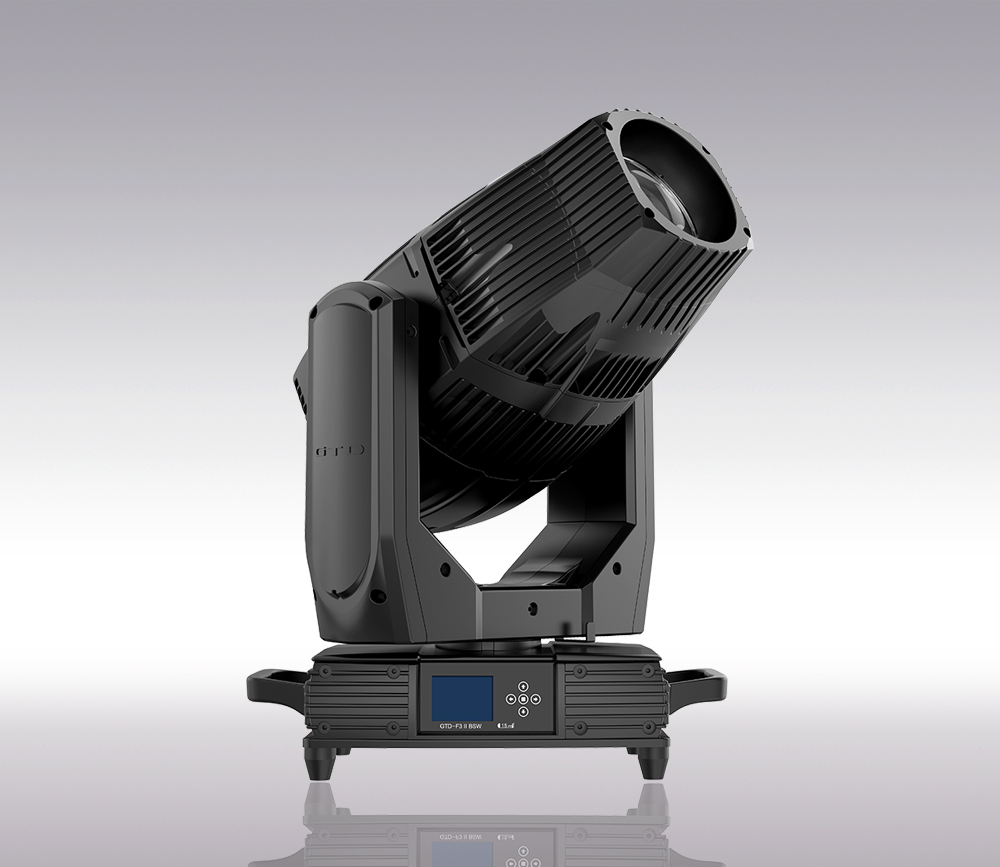

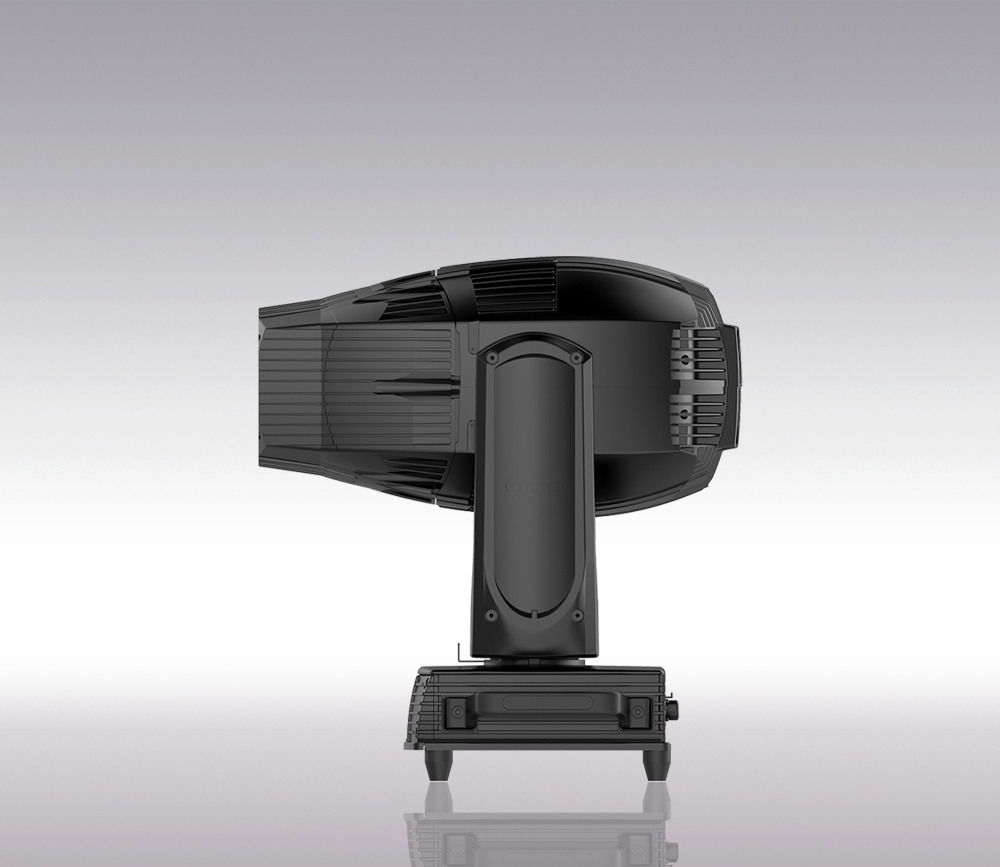

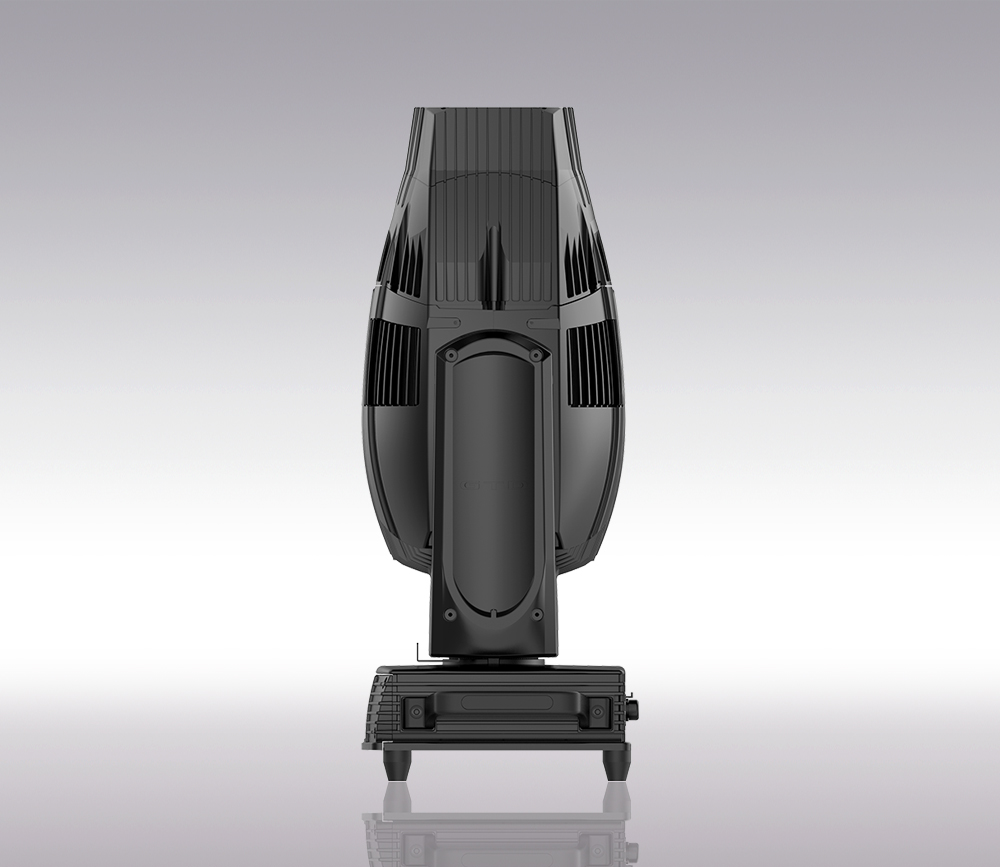

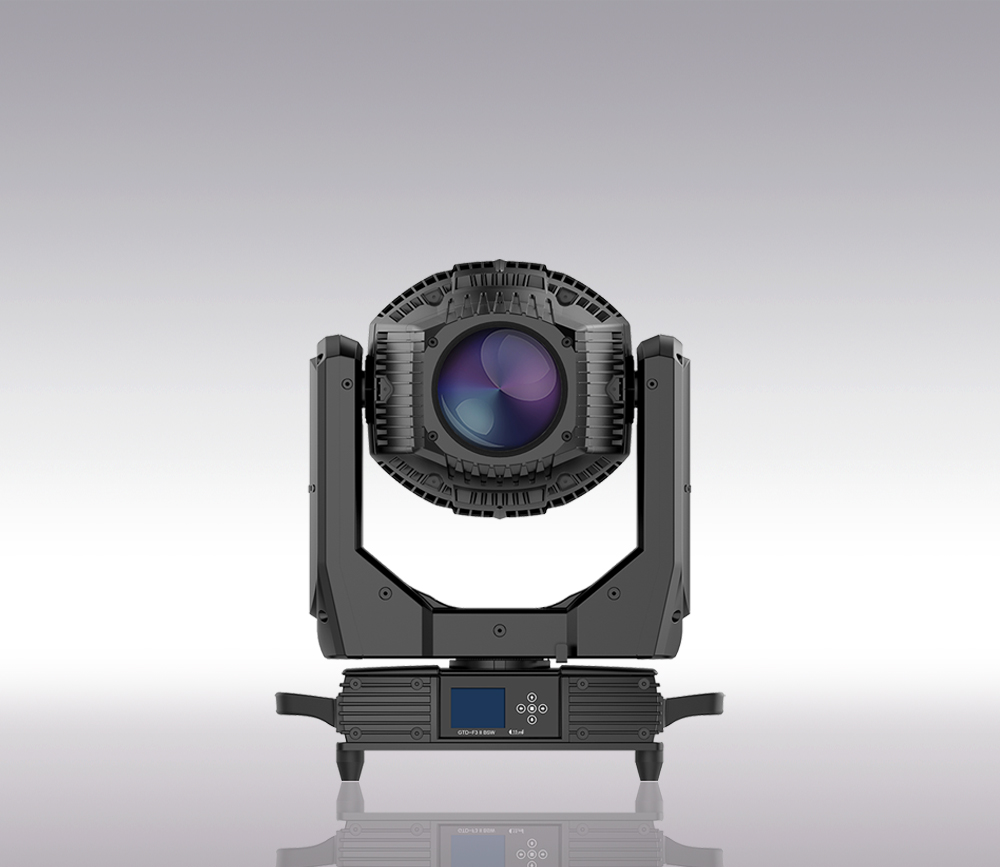

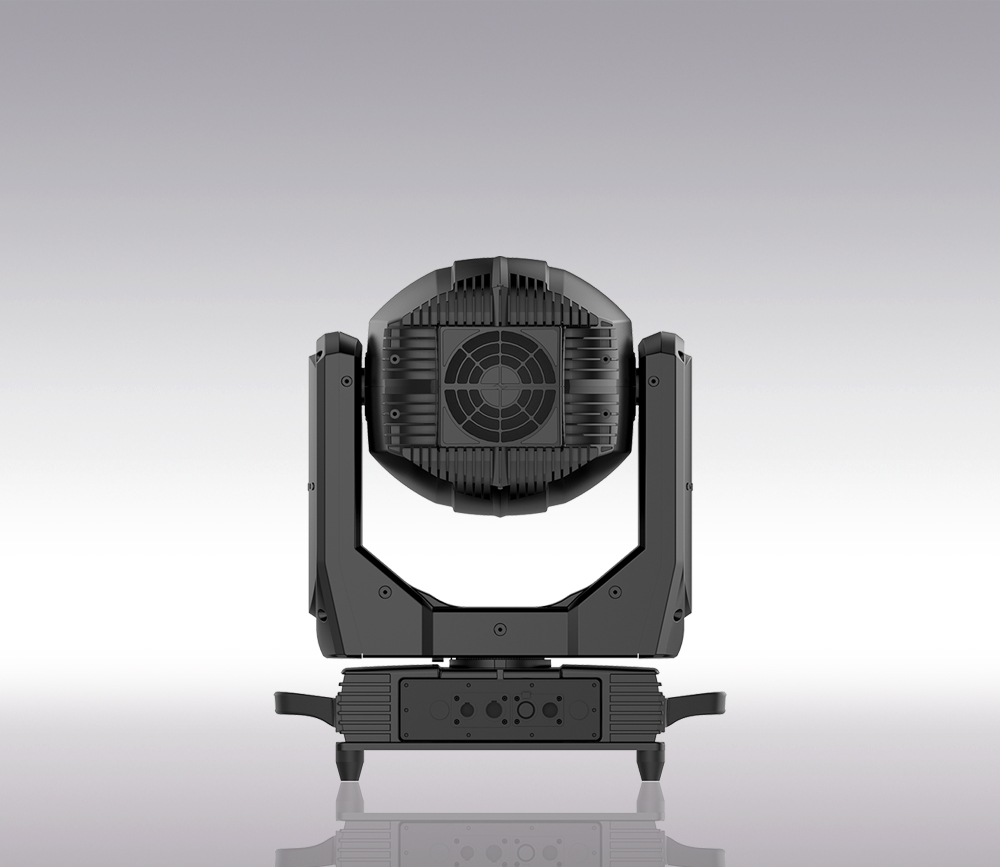

GTD-F4 II BSW
Product Series
IP66 Series
Technical Specification

OPTICAL

· Light source: LE PHILIPS MSD Platinum 19 R LL 420W

· Expected life: 4,000 hours

· Color temperature: 7,500K

· Zoom: Beam/ Spot 2.5°-43°  Wash 4°-45°

· Focus: High-precision glass lens, electronic linear high-definition focusing

GOBO

· Static gobo: 6 gobos + 1 animation gobos+ 1 open, CW/CCW rotation, variable speed

· Rotation gobo: 8 interchangeable gobos, CW/CCW rotation, variable speed

COLOR

· Color wheel: 11 colors, CW/CCW rainbow effect, split color and linear control

ELECTRICAL

· Input: AC 200V-240V  50/60Hz

· Max power consumption: 650W

· Power supply unit: IP power cable + plug

· DMX data in/out: Waterproof 3-pin Seetronic XLR

CONTROL/PROGRAMMING

· Control channels: 20/17/23

· Protocol: DMX512,  RDM

· Display: LCD backlit

DYNAMIC EFECTS

· Pan/tilt: 540°/270°, 16-bit control and automatic return correction

· Strobe: 1-20Hz, synchronized, pulse effects

· Dimmer: 0-100% mechanical dimming

· Prism: 2 prism wheel

· Frost: 1 frost plate

PHYSICAL

· Weight: 28kg

· IP rating: IP66

OTHERS

· Power setting: Internal battery, able to control the LCD display without power connection

· Sleep mode: When disconnect DMX, the fixture returns to sleep mode automatically

· Transmission: DMX signal, update software by DMX

· Cooling: Active fan

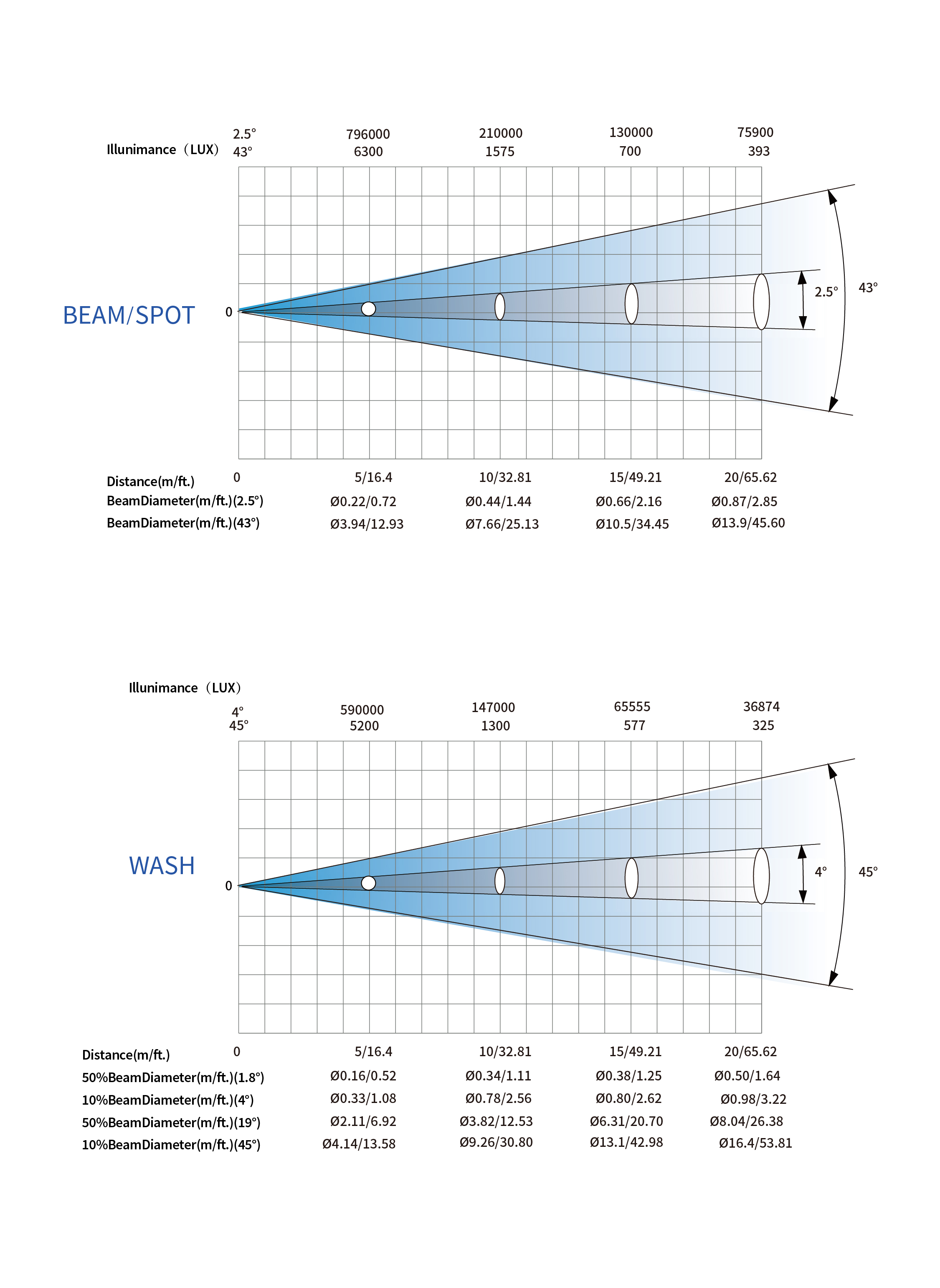

Photometric Diagram

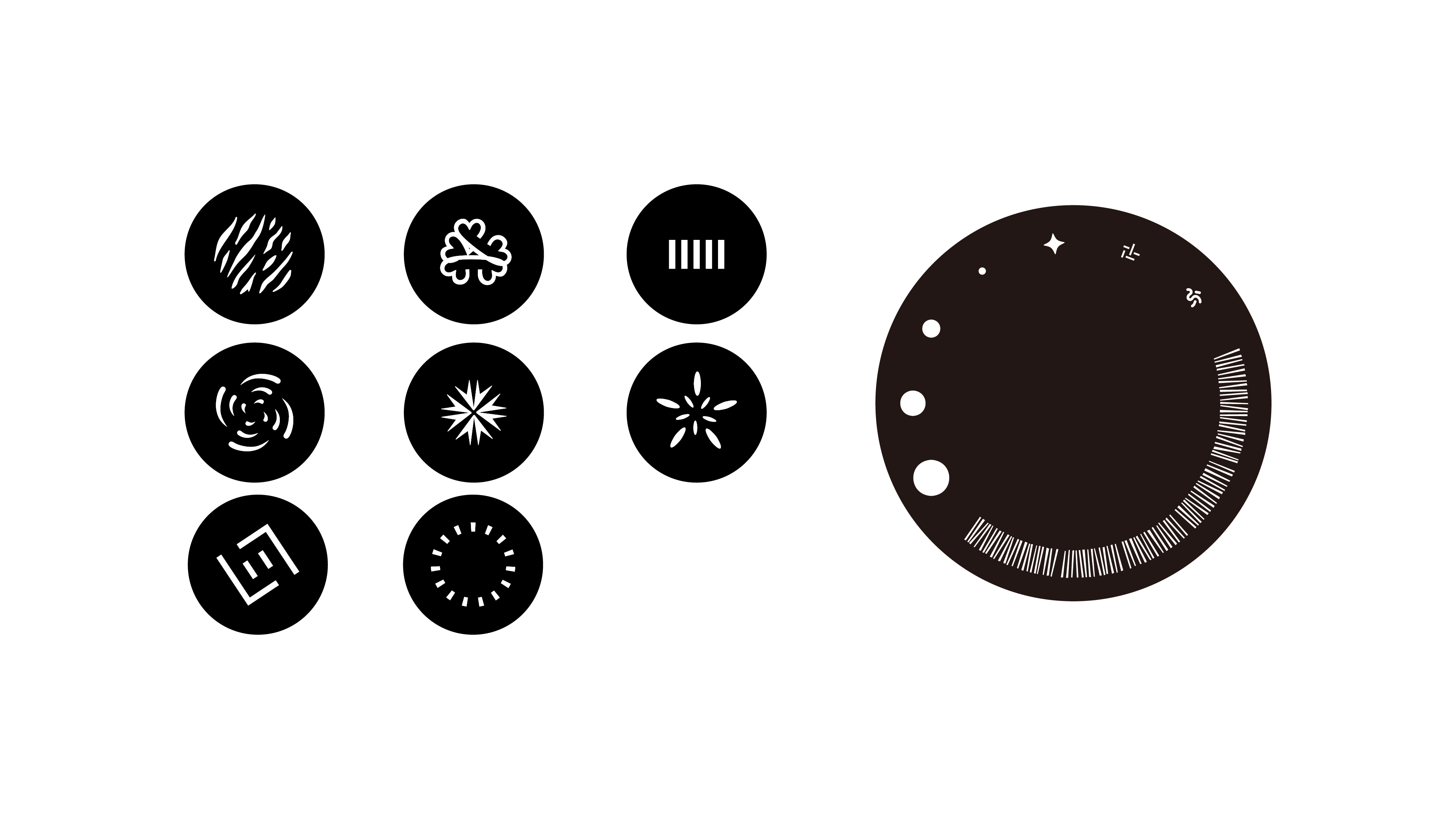

Gobos & Colours

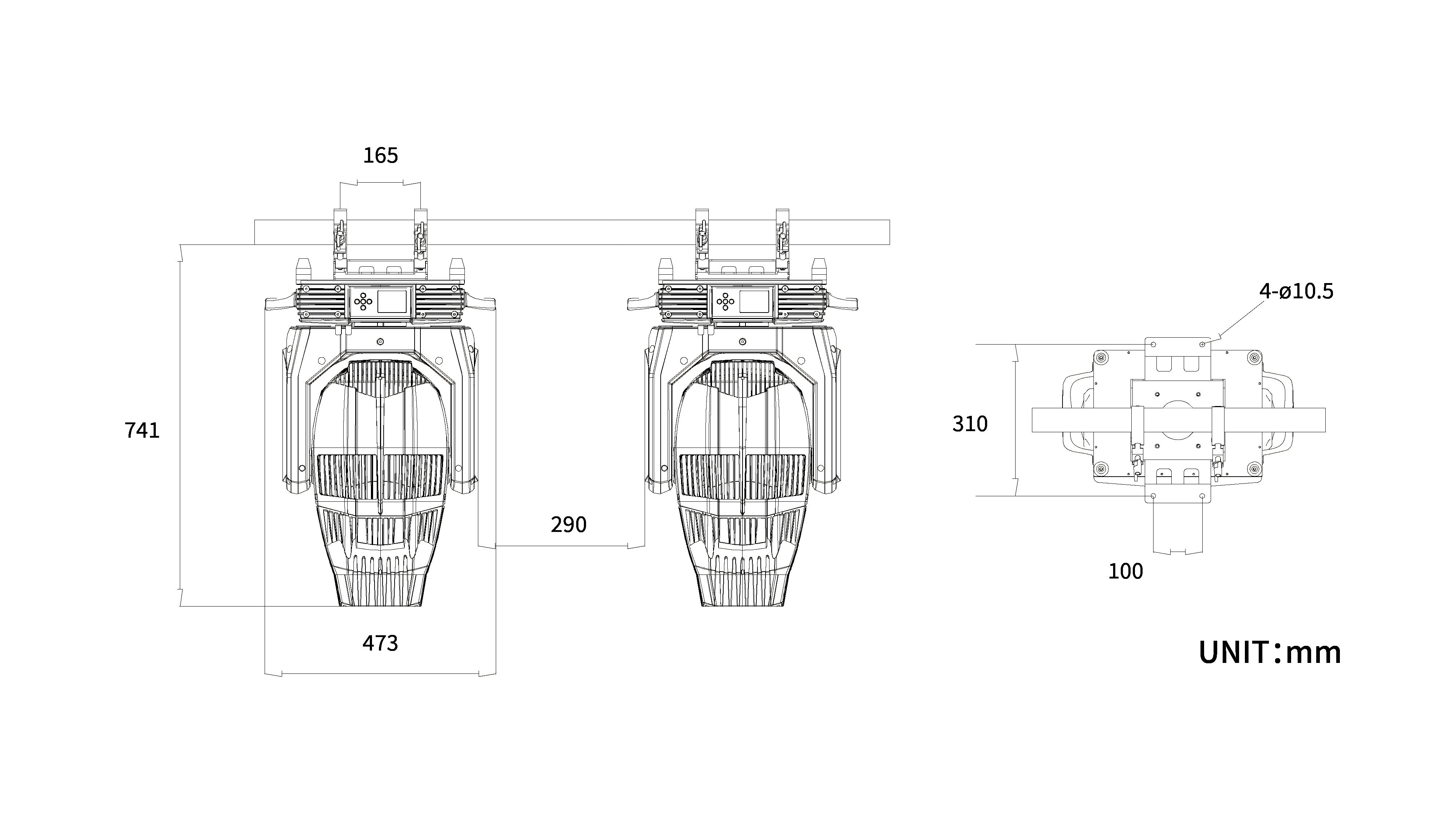

Exterior Dimensions
Accessories
Downloads
Product Video
GTD-F4 II BSW
