Optical
Light source: OSRAM SIRIUS HRI 231W
Expected average lifetime: 2000 hours
Color temperature: 7000K
Beam angle: 4°
Motorized focus: Variable range, from 15m to infinity
Prism: 8-facet prism, CW/CCW rotation, variable speed
Frost: On/Off
Ballast: Electronic
Gobo
Static gobo wheel: 17 gobos + open, CW/CCW rotation, variable speed
Max. Image diameter: 6 mm
Max. Thickness: 0.5 mm(Metal)
Glass/Metal gobo: Metal
Color
Color wheel: 14 colors + open, split color, CW/CCW rotation, variable speed
Electrical
Power input, nominal: AC 100-240V 50/60Hz
Max. Power consumption: 355W
Power supply unit: Auto-ranging electronic SMPS
Main fuse: 250V/5A
Control/Programming
Control channels (DMX): 15/12/16
Protocol: DMX-512
Display: Graphic LCD backlit
16-bit control: Dimmer, focus, pan/tilt
Physical / Installation
Weight: 17 kg(37.5 lbs.)
IP rating: IP20
Material: Aluminum, steel, plastic
Mounting points: Four quarter-turn locking points + attachment points for safety wire
Minimum distance to combustible materials: 0.5 mtr(1.64 ft.)
Minimum distance to illuminated surfaces: 12 mtr(39.4 ft.)
Dynamic effects
Pan/Tilt movement: 540˚/ 270˚
Strobe: 1-20Hz, synchronized, pulse effects
Dimmer: 0-100%, 16-bit, mechanical dimming
Thermal
Operating range: 14˚F - 113˚F(-10˚C - 45˚C)
Startup range: 5˚F - 113˚F(-15˚C - 45˚C)
Storage range: -40˚F - 140˚F(-40˚C - 60˚C)
Cooling: Active fan
Humidity: ≤85%
Connections
AC power: Neutrik powerCon
DMX data input/output: Chassis 5-pin Neutrik XLR (in/out)
Certification and Safety
EMC: EN 55103-1:2009, EN 55103-2:2009, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013
Safety: EN 60598-2-17:1989/A2:1991
Technical Specification

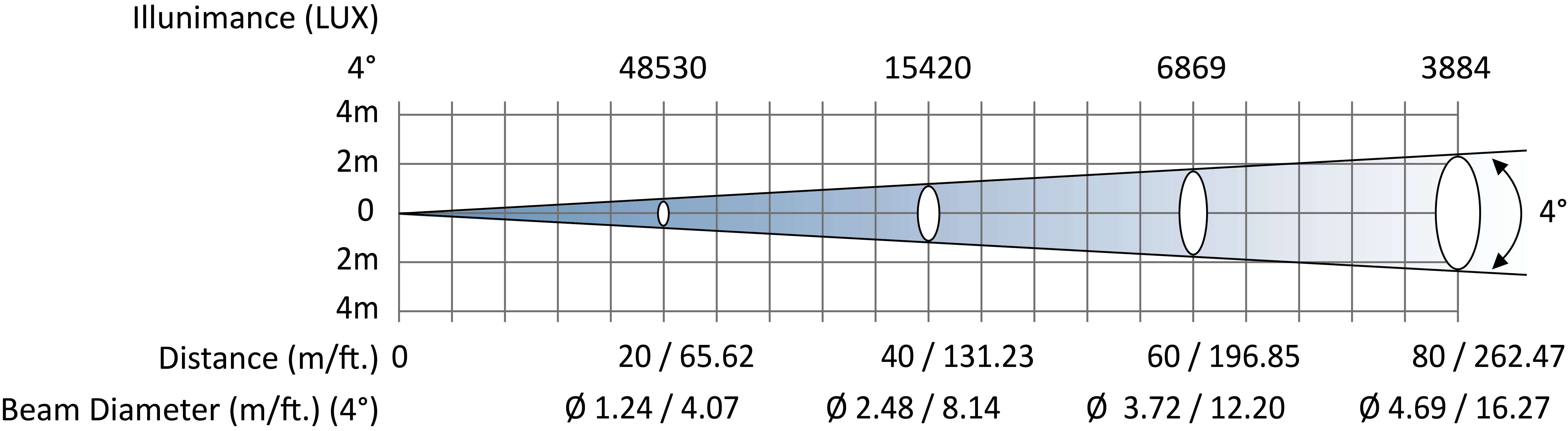

Photometric Diagram
Gobos & Colours

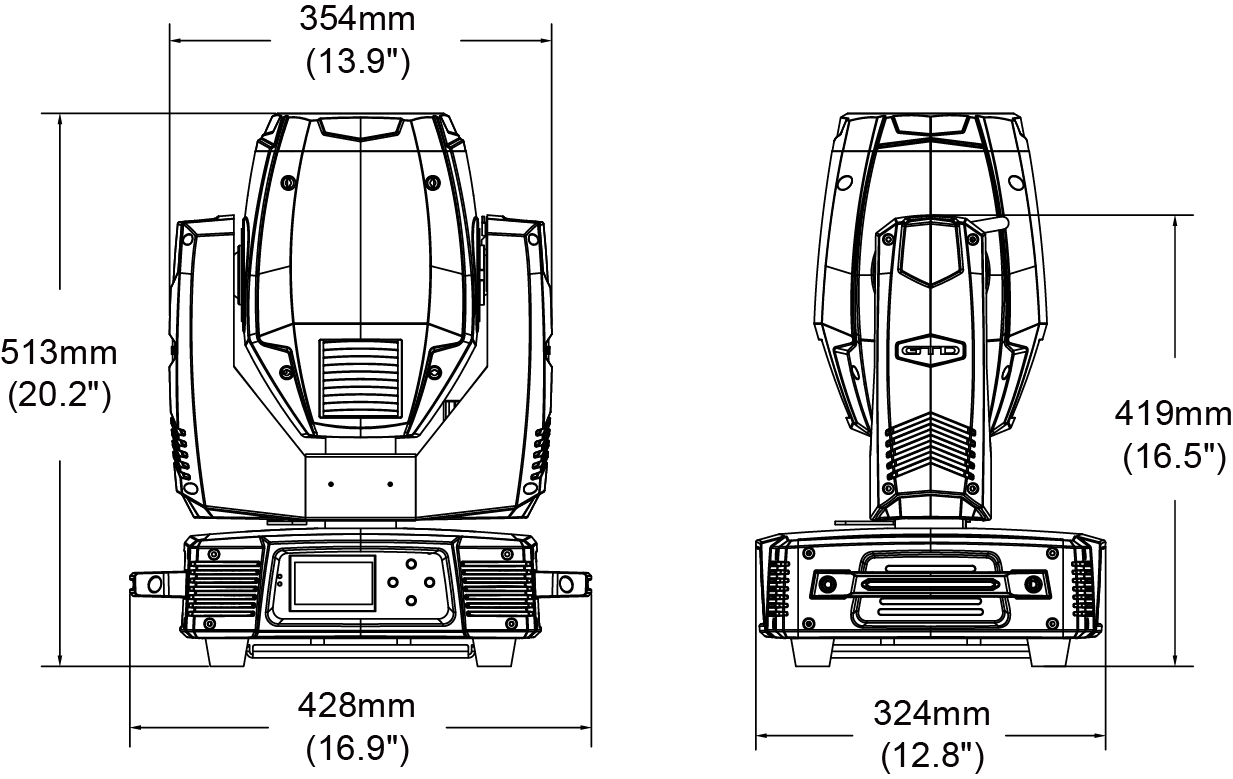

Exterior Dimensions
Accessories
Downloads
Product Video

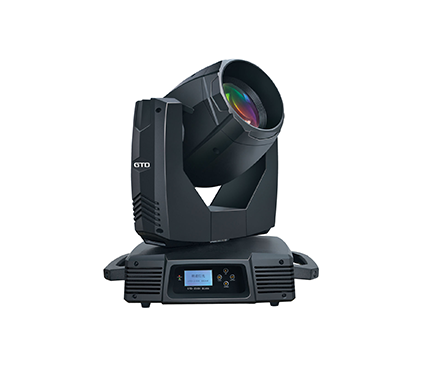

GTD-230 G BEAM
