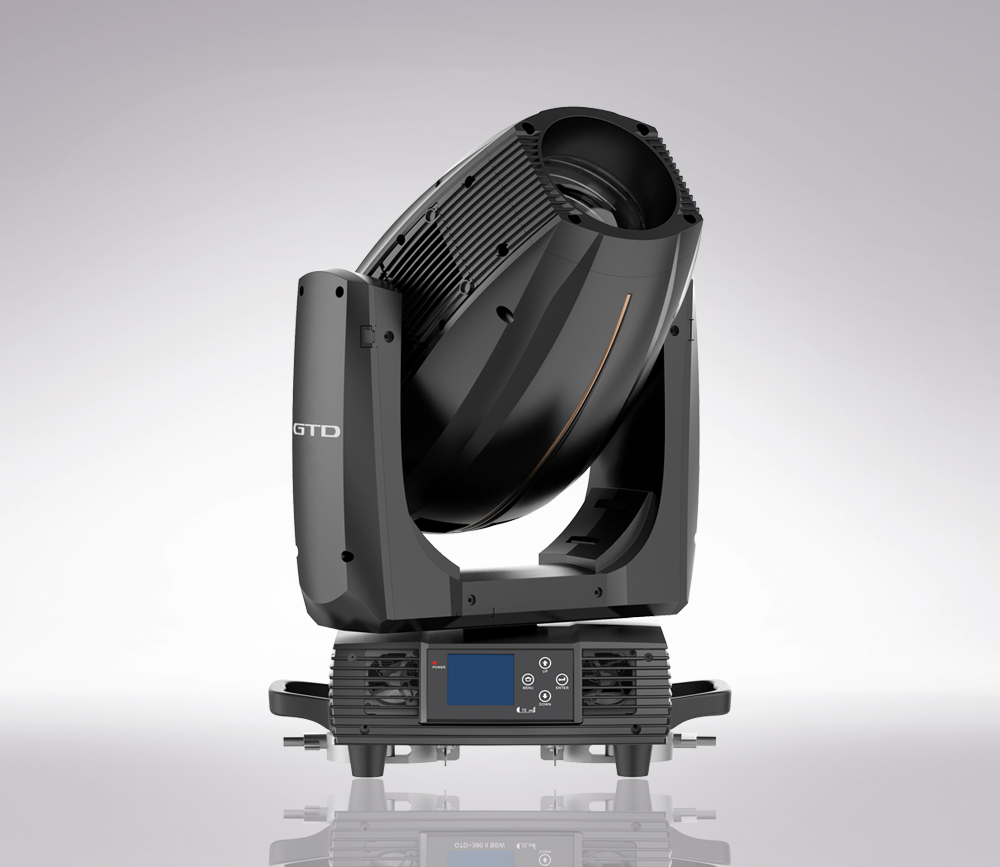

Product Model
GTD-380 N BSW
Product Series
380W Series
Technical Specification
Optical
Light source: Spec SIRIUS HRI 371W
Expected average lifetime: 1500 h
Zoom range: BEAM 0º-2.5º SPOT 3º-43º WASH4º-45º
Focus: With precision HD Glass lens, electronic linear focus clearly
Prism: 1 symmetric mirror, a 16-prism
Frost: 1-independent frost effect
Ballast: Electronic ballast

Photometric
Total Output (Lumen): 16000 lumens
Color temperature: 7000K
CRI: Ra>=80

Gobo
Rotating gobo: 1 interchangeable gobo rotator, 8 optional pattern pieces
Static gobo wheel: 9 gobos + open, CW/CCW rotation, variable speed
Gobo outside diameter: 14.4mm
Max. Image diameter: 6mm
Max. Thickness: 1.1mm
Glass/Metal gobo: Metal

Color
Color wheel: 11 color gel and open gobo, linear adjustment function, “Rainbow effect” in both directions

Electrical
Power input, nominal: AC 200-240V - 50/60Hz
Max. Power consumption: 555W
Max current: 2.7A
PF: 0.997
Power supply unit: Narrow range electronic SMPS
Main fuse: 10A

Control and programming
Control channels (DMX): 19/16/22
Protocol: DMX-512 RDM
Display: LCD display

Physical / Installation
Weight: 27.9kg (61lbs.)
IP rating: IP20
Material: Aluminum, copper, steel, plastic
Mounting points: Fixed folding lamp hook + attachment points for safety wire

Dynamic effects

Pan/Tilt movement: 540˚/270˚, adopting a function which resets 32bit accurately and automatically
Strobe: 1-25Hz, strobe randomly, pulse randomly, strobe synchronously and asynchronously
Dimmer: 0-100%, electronic linear dimming

Thermal

Operating range:  -15˚C - 45˚C (5˚F - 113˚F)
Startup range: -25˚C - 45˚C (-13˚F - 113˚F)
Storage range: -40˚C - 60˚C (-40˚F - 140˚F)
Cooling: Active fan
Humidity: ≤85%

Connections
AC power: Self-contained power cord
DMX data input/output: Chassis 3-pin

Certification and Safety

EMC: EN 55103-1:2009, EN 55103-2:2009, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013,GB/T 17743-2007, GB 17625.1-2012
Safety: EN 60598-2-17:1989/A2:1991,GB 7000.1-2015, GB 7000.217-2008

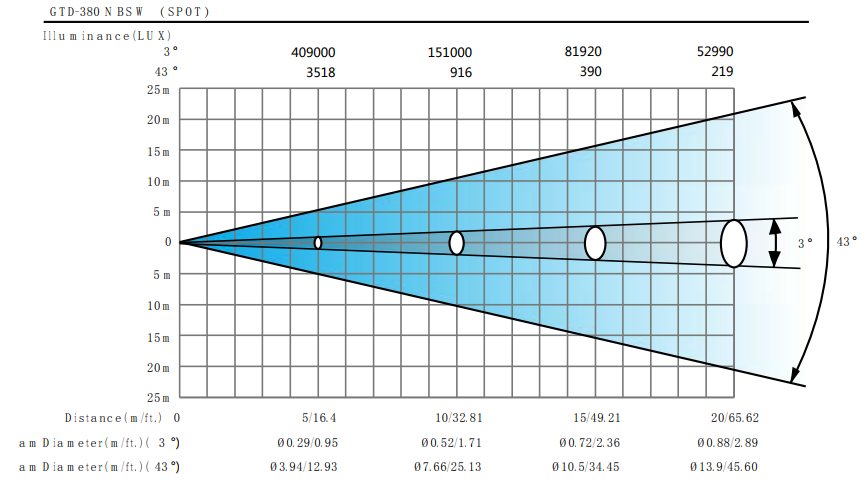

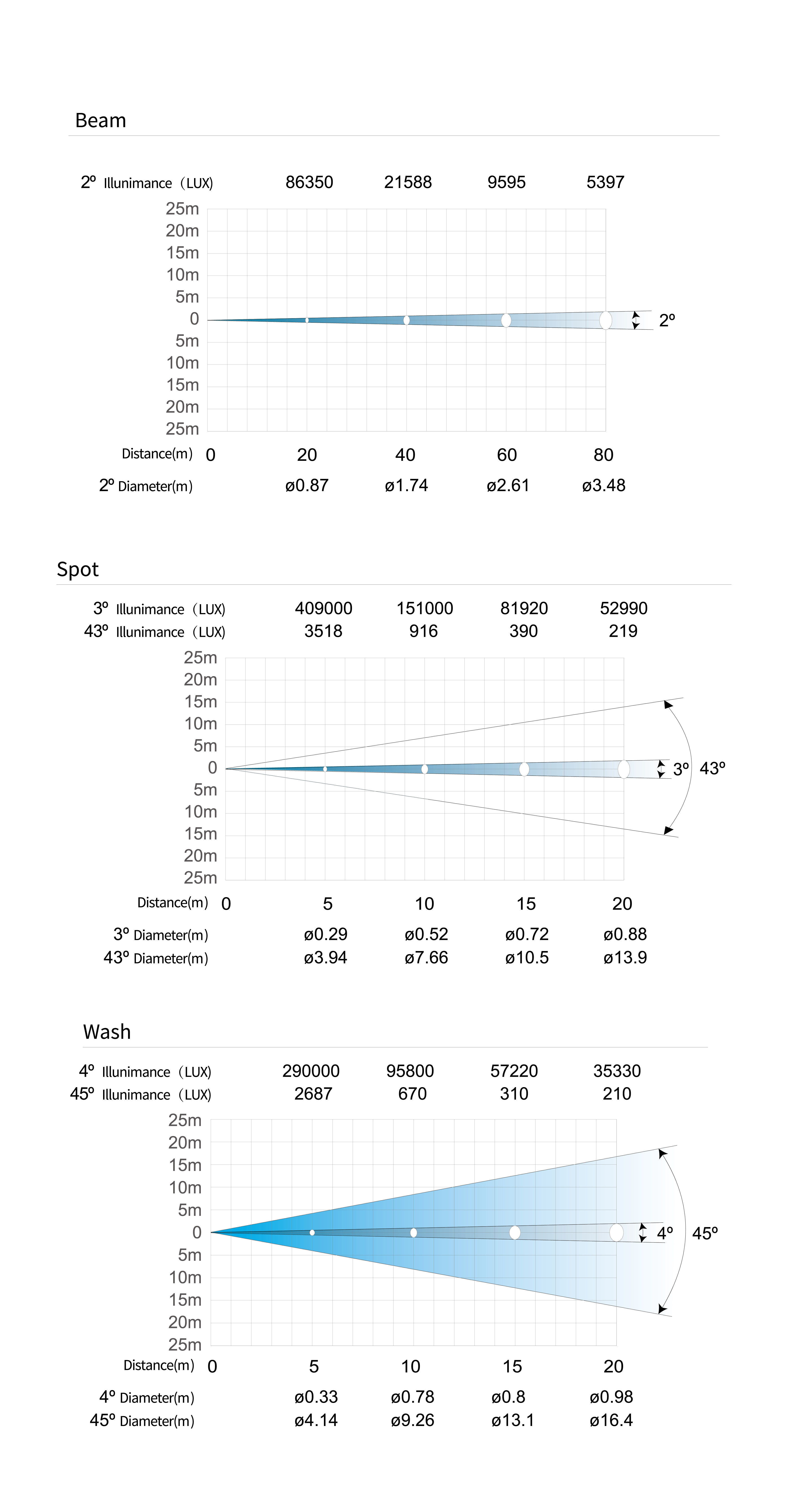

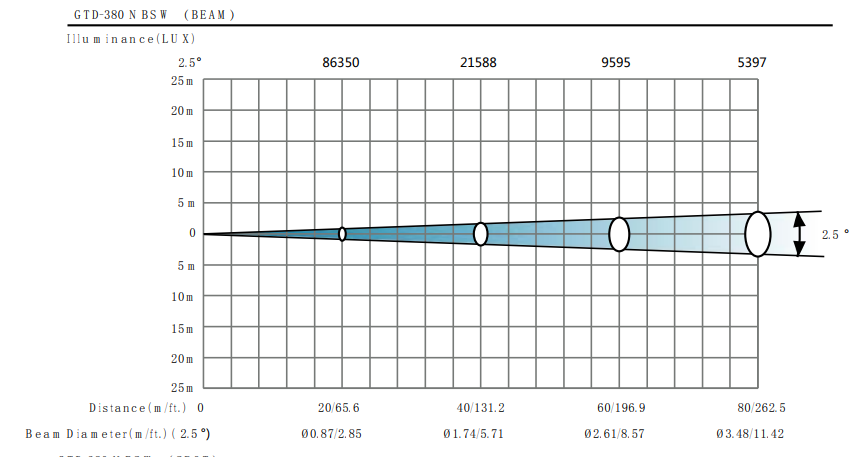

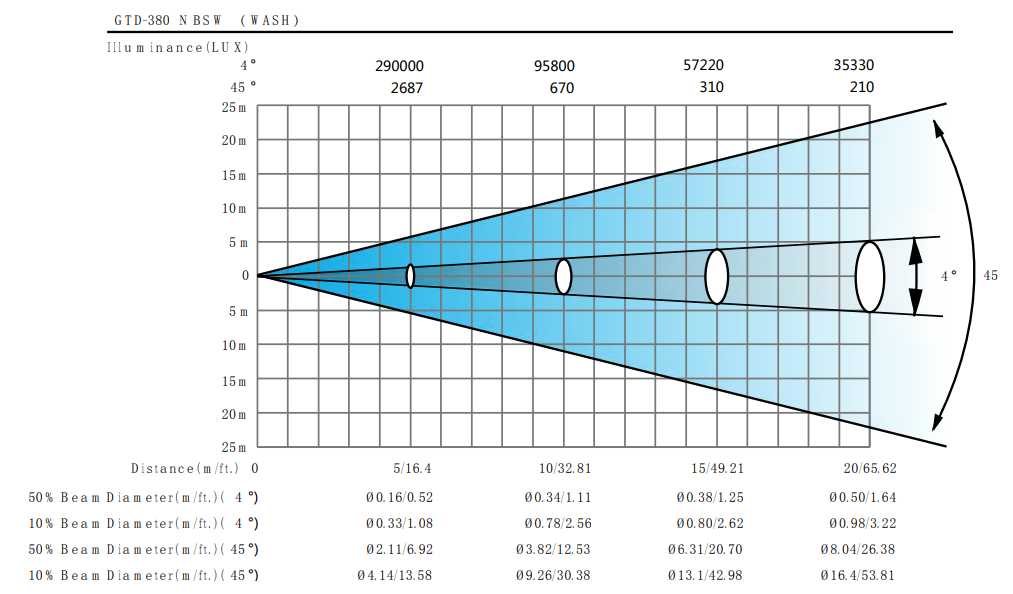

Photometric Diagram

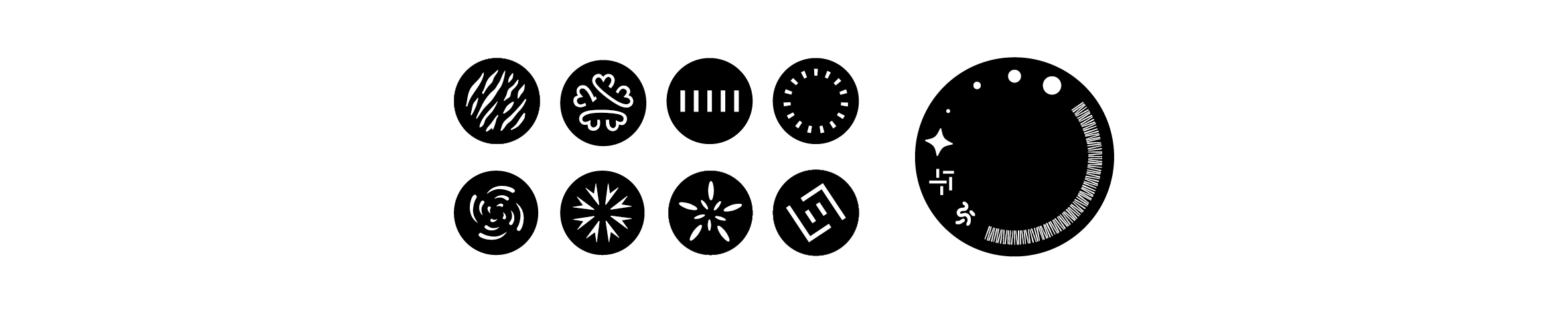

Gobos & Colours

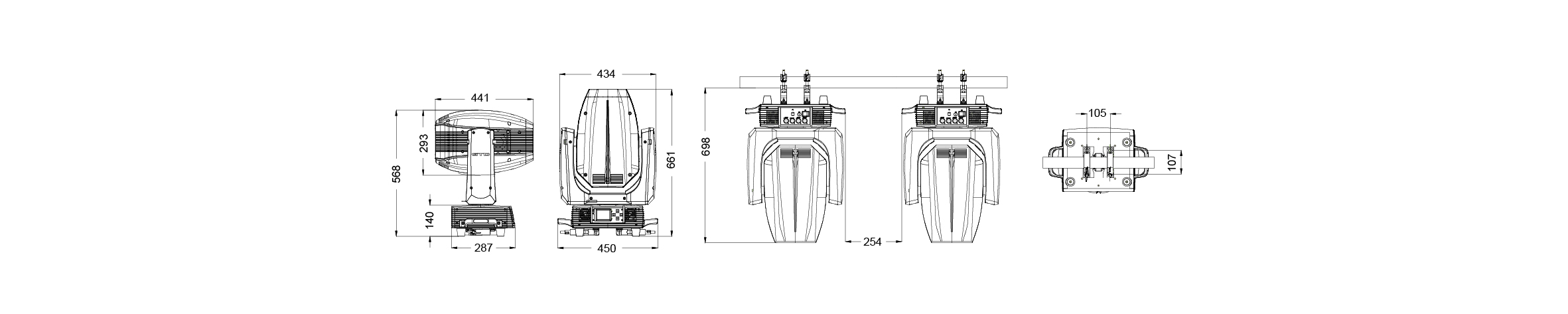

Exterior Dimensions
Accessories
Product Video
GTD-380 N BSW
