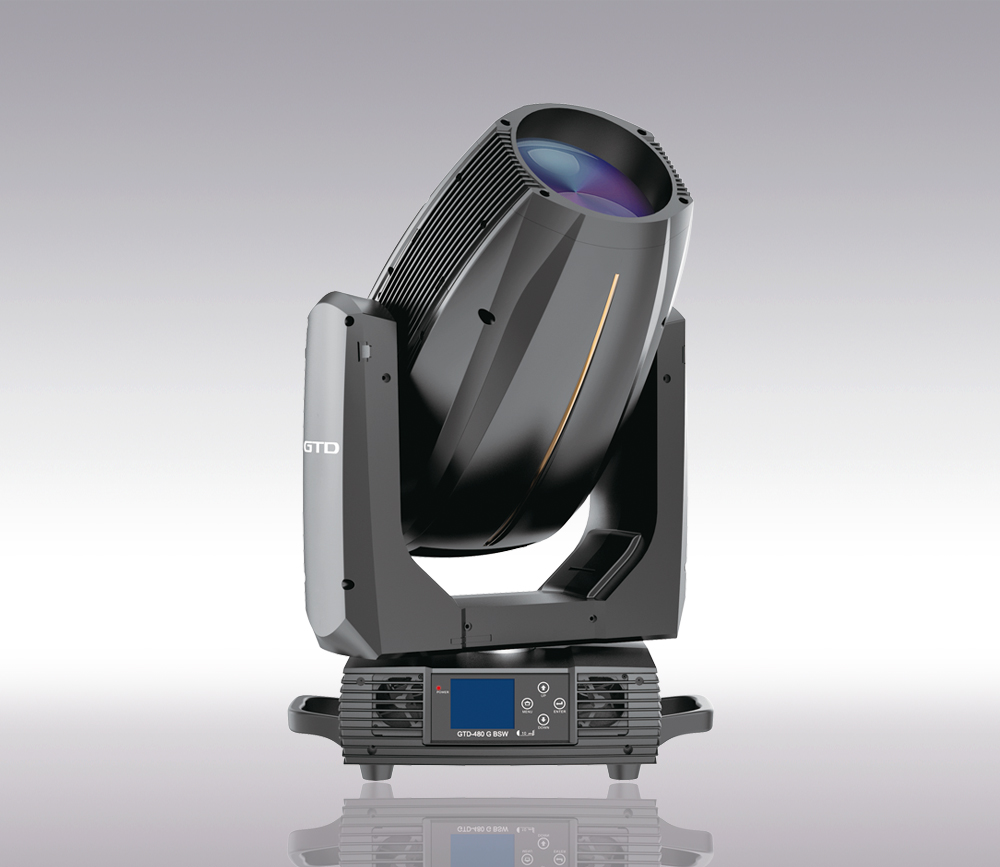

Product Model
GTD-480 G BSW
Product Series
480W SERIES
Technical Specification
Optical
Light source: MSD platinum 21R 470W
Expected average lifetime: 1500 h
Zoom range: BEAM 0°~2.6°/ SPOT 2.6°~ 34.4°/WASH 6.9°~ 48.8°
Focus: High precision glass lens, electronic linear high focus
Prism: 1 eight-pointed prism, 1 eight-flat prism
Softening filter: 1 softening filter

Photometric
Total Output (Lumen): 16000 lumens
Color temperature: 6733k-3200k
CRI: Ra≥ 77.6

Gobo
Rotating gobo: 1 interchangeable gobo rotator, 8 optional pattern pieces
Static gobo wheel: 6 gobos + open(including one running water pattern),CW/CCW rotation, variable speed
Gobo overall diameter: 14.4 mm
Largest gobo effective diameter: 9mm
Maximum thickness: 1.1mm
Material: Glass

Color
Color wheel: 12 optional color piece + open
CMY: Infinite color mixed, with the color macro function
CTO: Linear color temperature adjustment

Electrical
Power input, nominal: AC 100-240V - 50/60Hz
Max. Power consumption: 792W
Max current: 7.9A
PF: 0.978
Power supply unit: Wide range electronic SMPS
Main fuse: 250V/10A
Ballast: Electrical ballast

Control and programming
Control channels (DMX): 27/24/34
Protocol: DMX-512 RDM
Display: LCD display

Physical / Installation
Weight: 30Kg (60lbs.)
IP rating: IP20
Material: Aluminum, copper, steel, plastic
Mounting points: Locking points + attachment points for safety wire

Dynamic effects
Pan/Tilt movement: 540˚/270˚, adopting a function which resets 32bit accurately and automatically
Strobe: 1-25Hz, 1-25Hz, synchronized, pulse effects
Dimmer: 0-100%,  mechanical dimming

Thermal
Operating range:  -15˚C - 45˚C (5˚F - 113˚F)
Startup range: -25˚C - 45˚C (-13˚F - 113˚F)
Storage range: -40˚C - 60˚C (-40˚F - 140˚F)
Cooling: Active fan
Humidity: ≤85%

Connections
AC power: Self-contained power cord
DMX data input/output: Chassis 3-pin (in/out)

Certification and Safety
EMC: EN 55103-1:2009, EN 55103-2:2009, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013,GB/T 17743-2007, GB 17625.1-2012
Safety: EN 60598-2-17:1989/A2:1991,GB 7000.1-2015, GB 7000.217-2008

Included items
User manual
1.5m*2.5mm² connect blue plug
Hanging integrated folding lamp

Notes
Sleep mode
Automatic energy saving mode

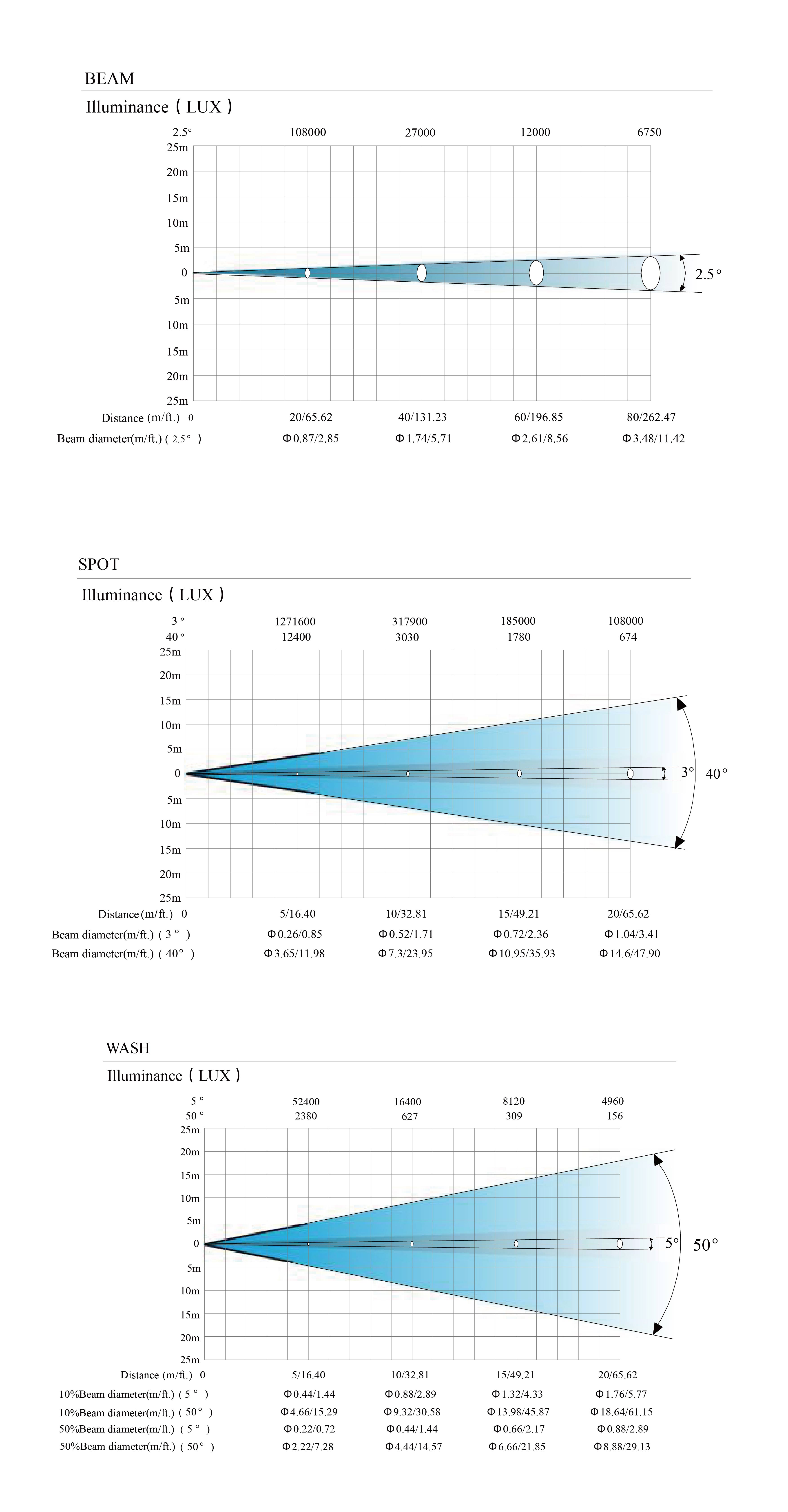

Photometric Diagram

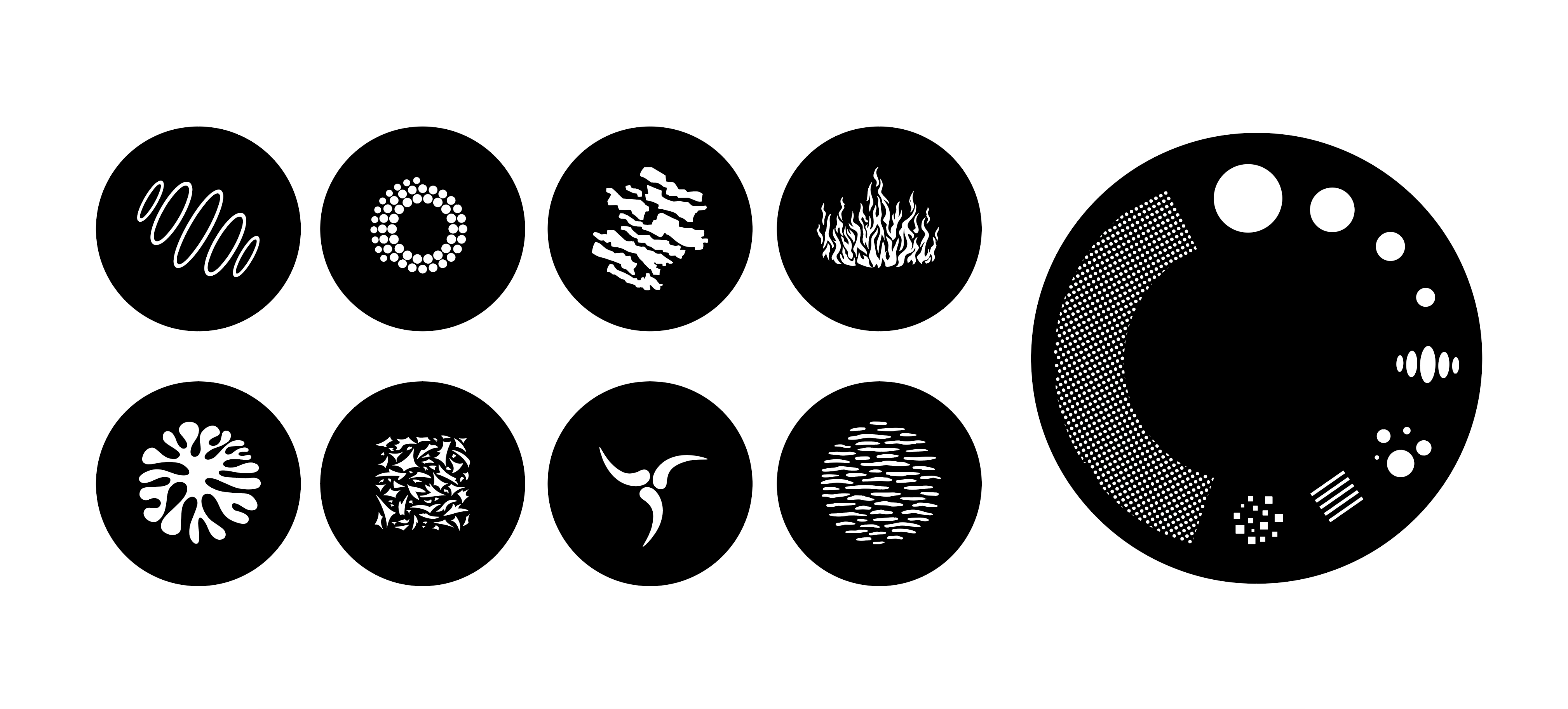

Gobos & Colours

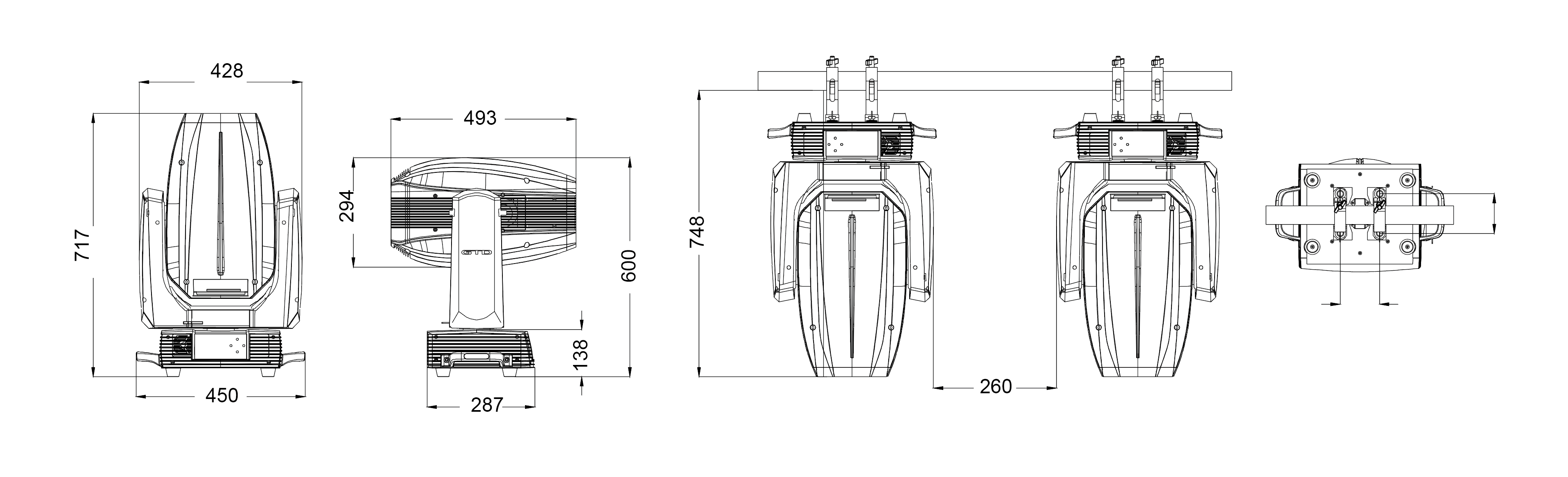

Exterior Dimensions
