Product Model

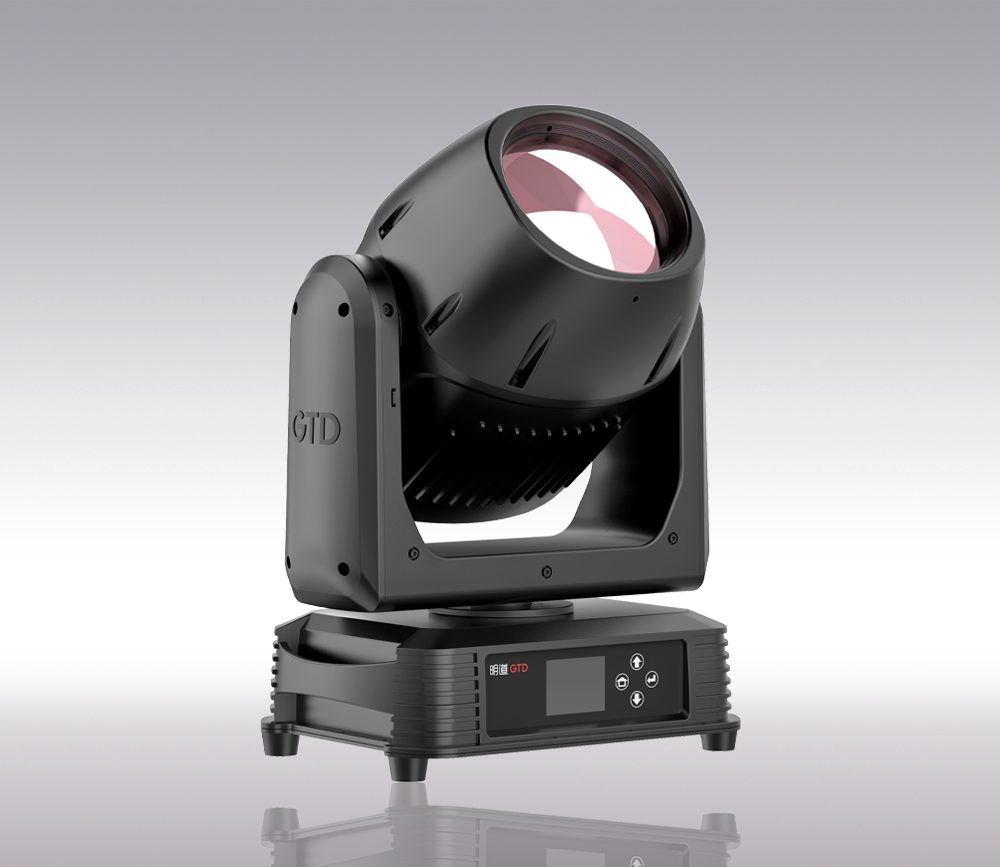

GTD-FL100 II BEAM
Product Series
IP66 Series
Technical Specification

OPTICAL

· Light source: 100W laser-based light engine

· Expected life: 20,000 hours

· Color temperature: 6,500K

· Focus: High-precision glass lens, electronic linear high-definition focusing

· Beam angle: 1°

GOBO

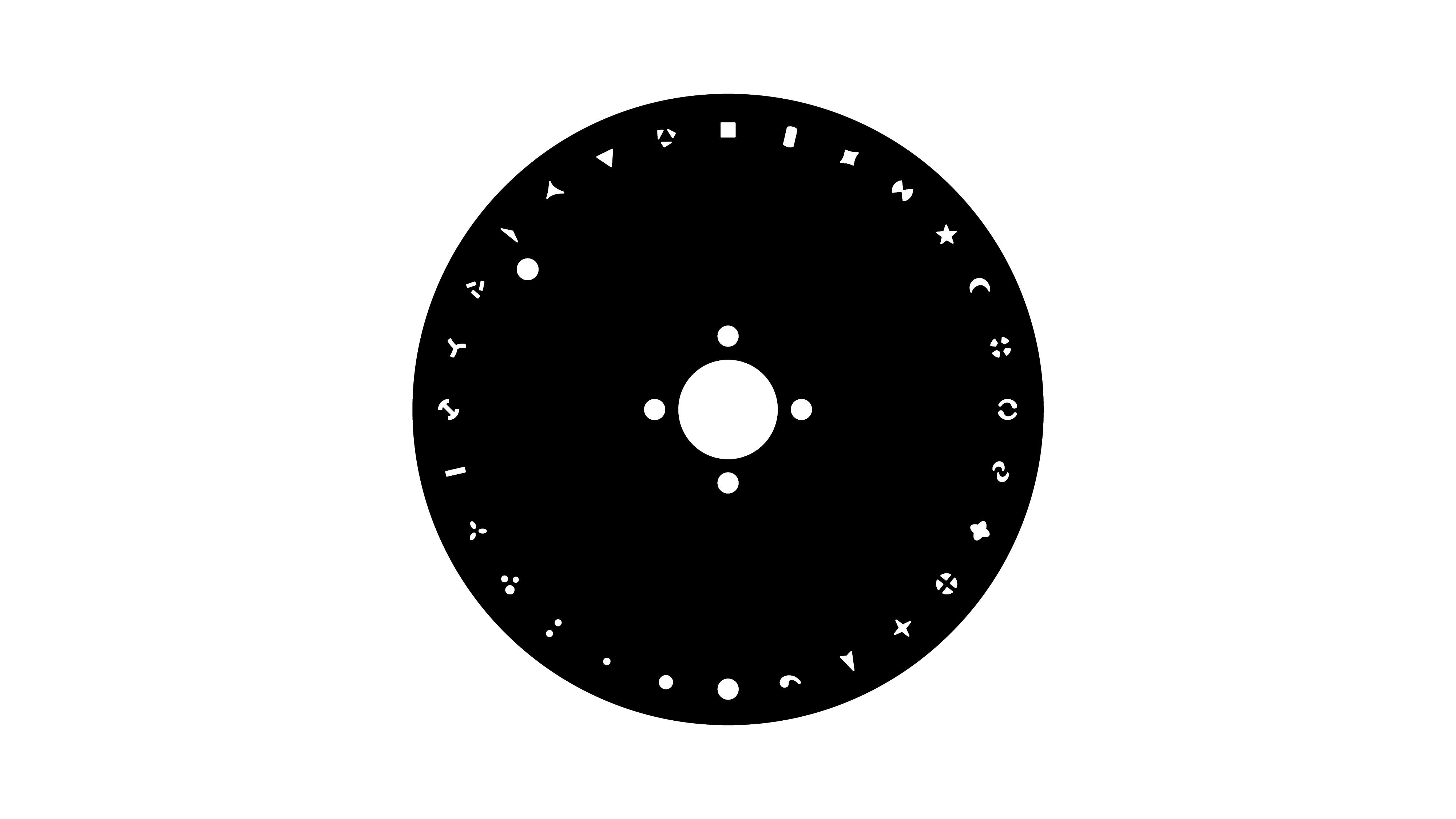

· Static gobo: 1 static gobo wheel with 25 gobos+ 3 open, CW/CCW rotation, variable speed

COLOR

· Color wheel: 14 colors, CW/CCW rainbow effect, split color and linear control

ELECTRICAL

· Power input: AC 100V-240V 50/60Hz

· Max power consumption: 610W

· CONTROL/PROGRAMMING

· Protocol: DMX-512, RDM

· Control channel: 13/16/17

· Display: LCD backli

DYNAMIC EFFECTS

· Pan/Tilt: 540°/270°,16 bit control and Automatic return correction

· Strobe: 1-25Hz, synchronized and asynchronized, pulse effects

· Dimmer: 0-100% linear mechanical dimmer

· Prism: 2 independent prism wheel, CW/CCW rotation

· Frost: 1 independent frost plate

PHYSICAL

· Weight:  21kg

· IP Rating: IP66

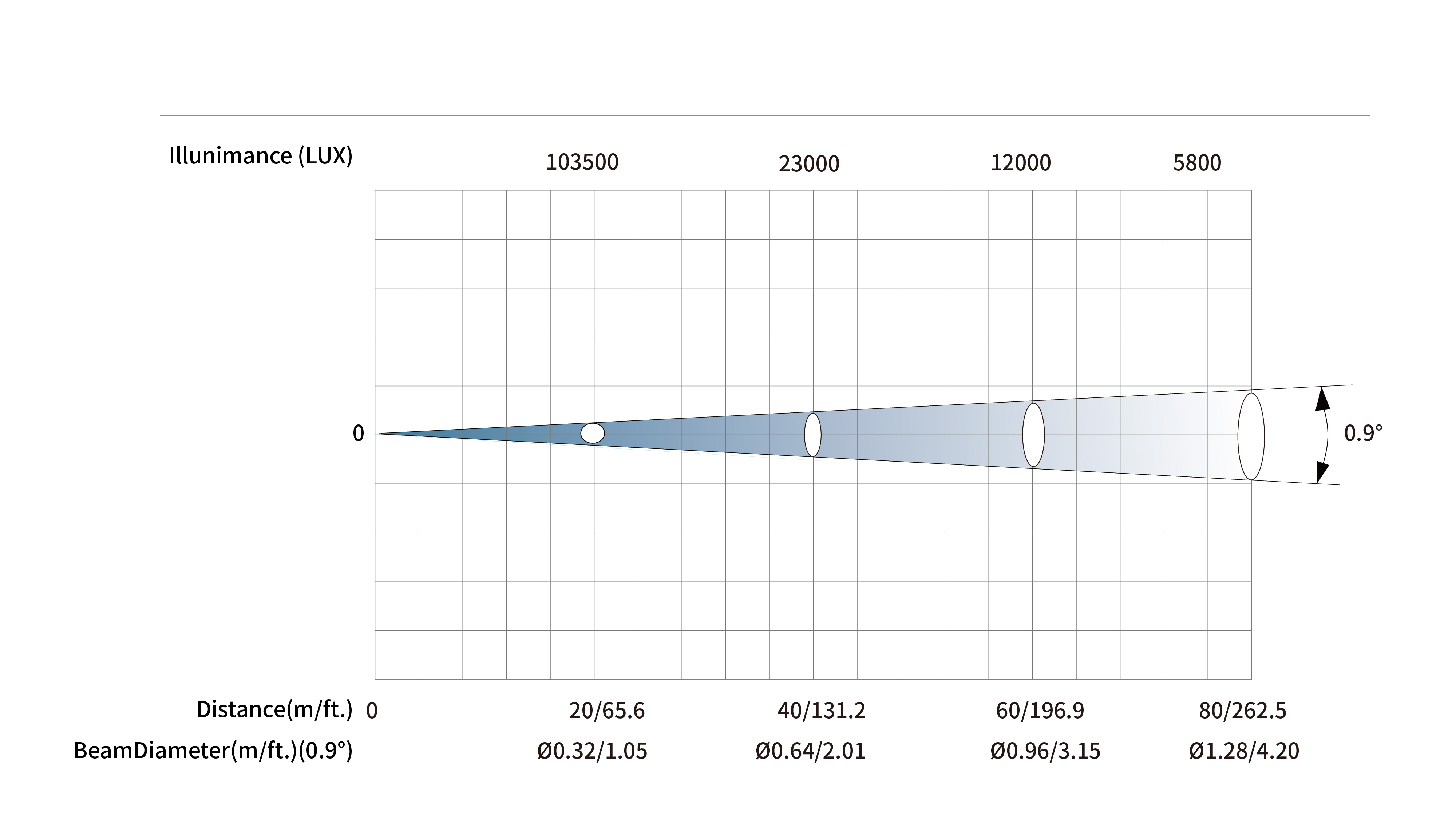

Photometric Diagram
Gobos & Colours

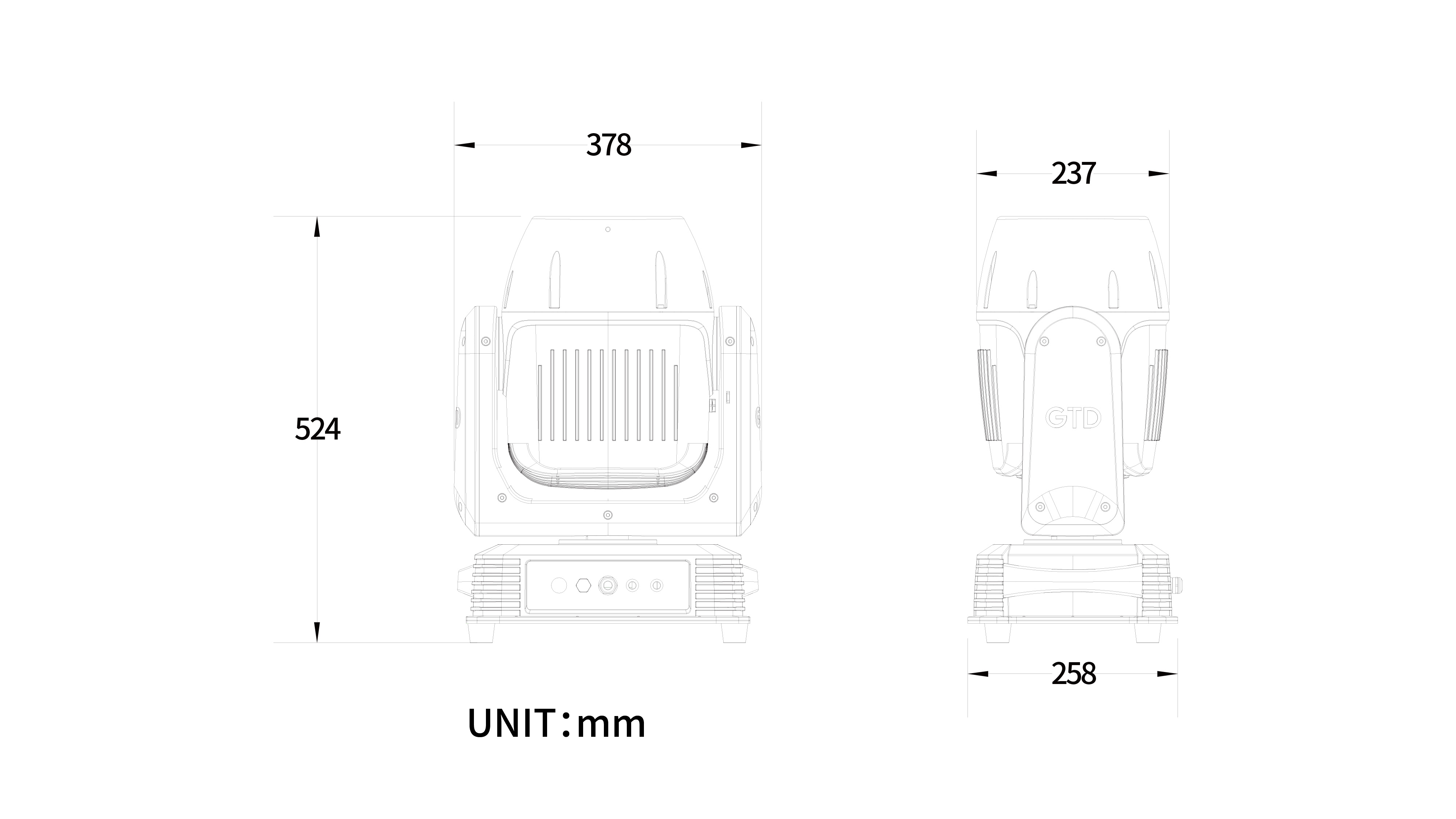

Exterior Dimensions
Accessories
Downloads
Product Video
GTD-FL100 II BEAM
