Product Model
GTD-F400 WASH
Product Series
IP66
Technical Specification
Optical
Light source: LED 500W
Expected average lifetime: 20000  hours
Zoom range: 12°-45°(10%)/7°-34°(50%)Linear high speed zoom
Focus: Any Any multi-point focus, 5 m to infinity tracking focusmulti-point focus, 5 m to infinity tracking focus
Total Output (Lumen): 10000lm

Color
Color: R/G/B/L/A, color conversion and perfect mix-color effect

Electrical
Power input, nominal: AC 100-240V 50/60Hz
Max. Power consumption: 619W
Max current: 7.62A
PF: ≧0.99
Power supply unit Wide range electronic: SMPS
Main fuse: 250V / 10A

Control and programming
Control channels (DMX): 16/13/22
Protocol: DMX-512 RDM
Display: LCD

Physical / Installation
Weight: 48.5 lbs. (22kg)
IP rating: IP66
Material: Aluminum, copper, steel, plastic, iron
Mounting points: Folding clamp + attachment points for safety wire
Dynamic effects
Pan/Tilt movement: 540˚/230°,adopting a function which resets 32bit accurately and automatically
Strobe: 1-25Hz, strobe randomly, pulse randomly, strobe synchronously and asynchronously
Dimmer: 0-100%, electronic linear dimming

Thermal
Operating range: 5˚F to 113˚F (-15˚C to 45˚C)
Startup range: -12.9˚F to 113˚F (-25˚C to 45˚C)
Storage range: -39.9˚F to 140˚F ( -40˚C to 60˚C)
Cooling: Active fan
Humidity: ≤75%

Connections
AC power: Power plug
DMX data input/output: Chassis 3-pin

Certification and Safety
EMC: EN 55103-1:2009, EN 55103-2:2009, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013,GB/T 17743-2007, GB 17625.1-2012
Safety: EN 60598-2-17:1989/A2:1991,GB 7000.1-2015, GB 7000.217-200811

Included items
User manual
4.92 ft. (1.5m) cable with seetronic PowerCon
Hanging integrated folding lamp

Notes
Sleep mode
Automatic energy saving mode

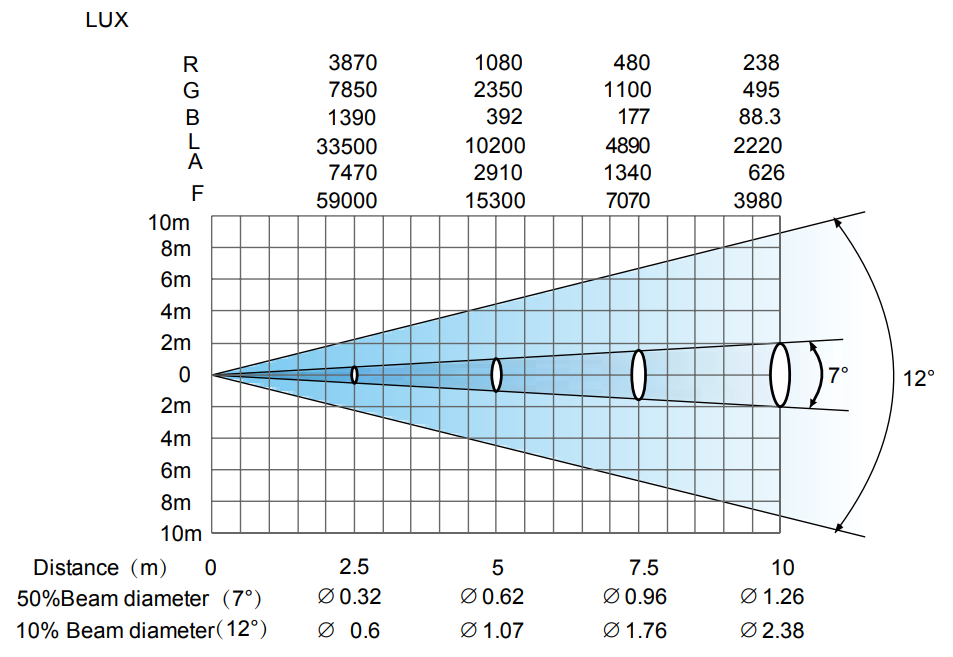

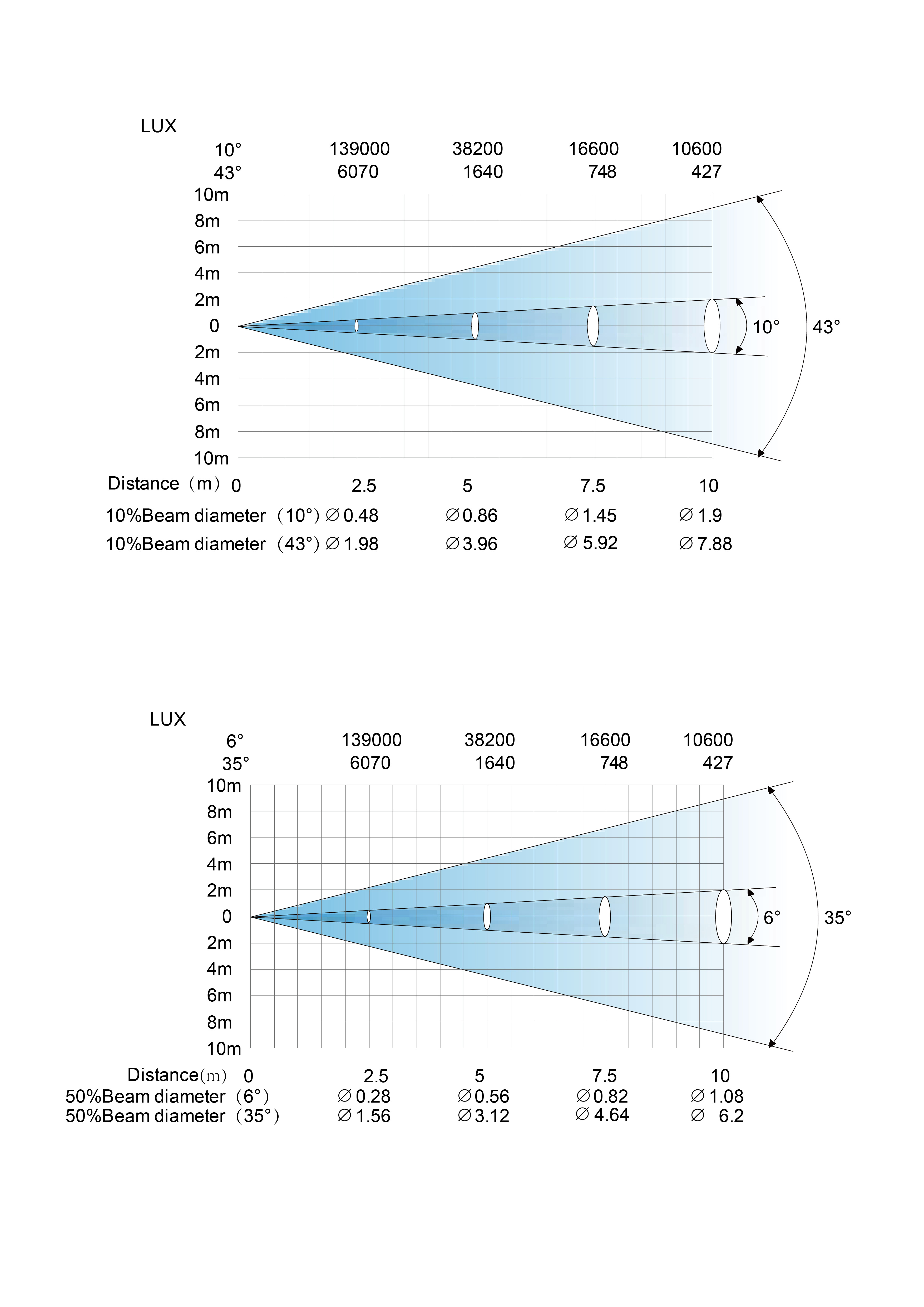

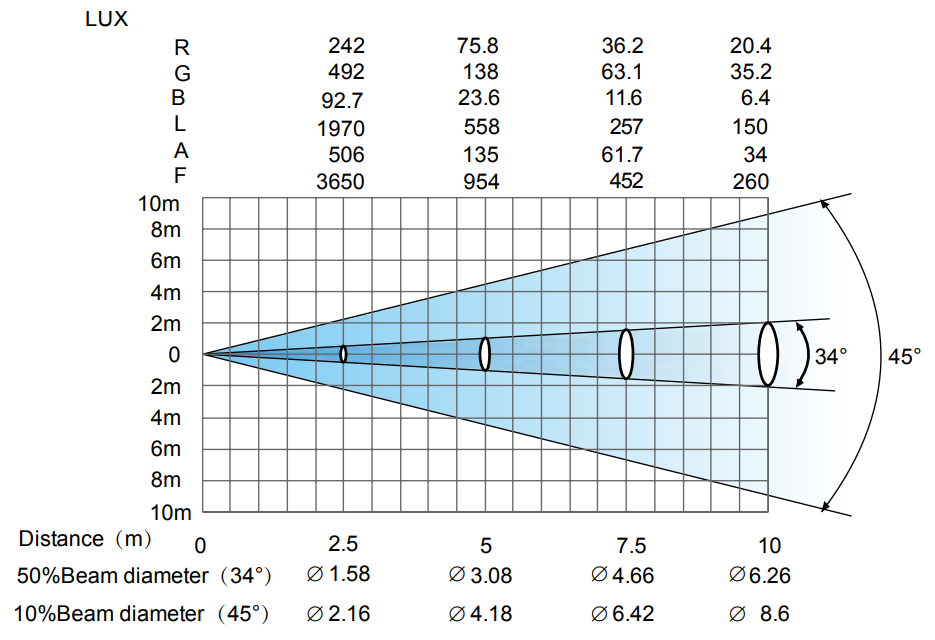

Photometric Diagram
Gobos & Colours

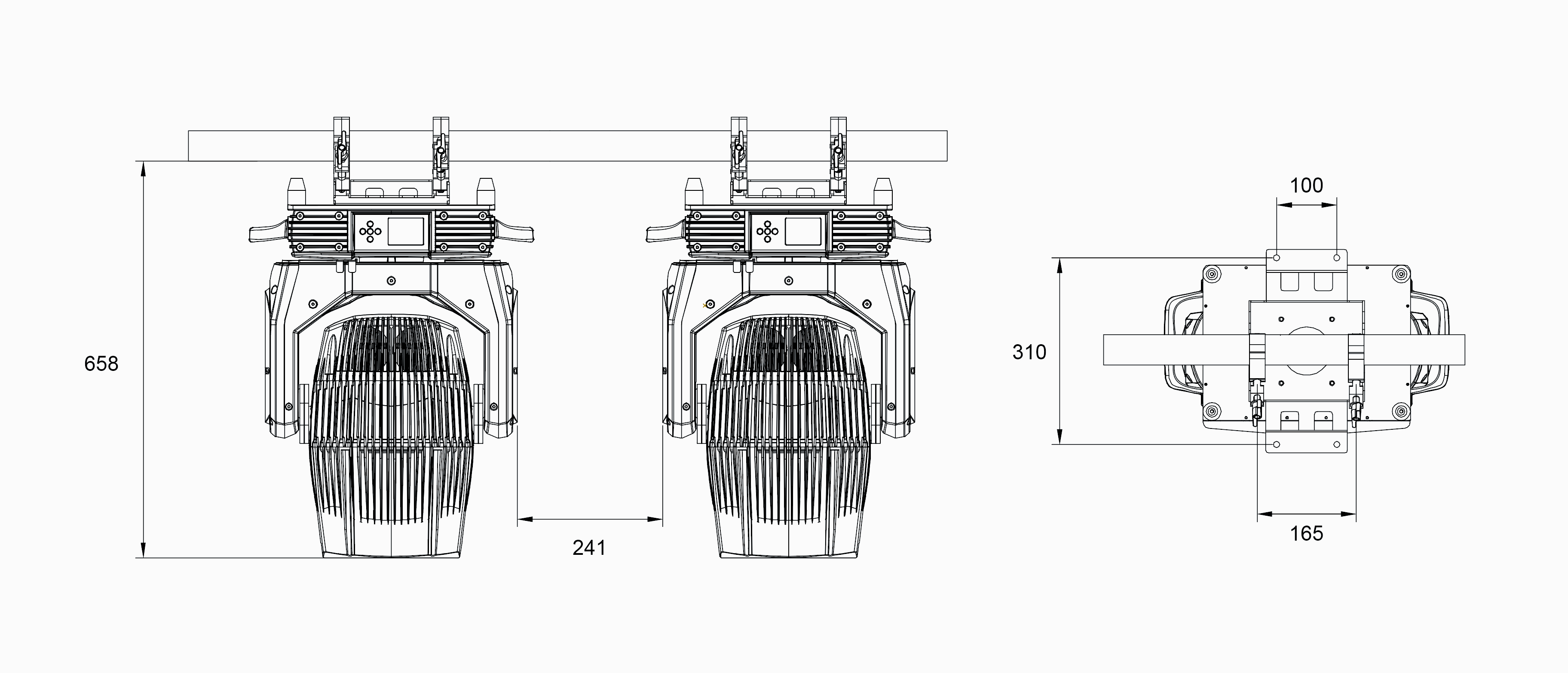

Exterior Dimensions
