Optical
Light source: OSRAM TI_SIRIUS HRI 371W S
Expected average lifetime: 1500 hours
Beam angle: Zoom range 0° - 2.4°
Focus: Regulate by DMX512
Frost: 1-independent frost effect
Ballast: Electronic
Total Output (Lumen): 16000 lm
Color temperature: 7000K
Gobo
Static gobo wheel: 8 gobos + 2 animation gobos + open, CW/CCW rotation, water effect,variable speed
Gobo outside diameter: 11.9 mm
Max. Image diameter: 6 mm
Max Thickness: 0.5 mm
Gobo material: Metal
Color
Color wheel: 14 colors + open, linear adjustment function, “Rainbow effect” in both directions
Electrical
Power input, nominal: AC 200-240V 50/60Hz
Max. Power consumption: 523W
Power supply unit: Narrow range electronic SMPS
Main fuse: 250V/6.3A
Control/Programming
Control channels (DMX): 18/15/20
Protocol: DMX-512
Display: Graphic LCD backlit
16-bit control: Dimmer, focus, prism zoom, pan/tilt, gobo indexing & rotation, rotating gobo wheel positioning
Physical / Installation
Weight: 24 kg(53 lbs.)
IP rating: IP20
Material: Aluminum, steel, plastic
Mounting points: Four quarter-turn locking points + attachment points for safety wire
Minimum distance to combustible materials: 0.5 mtr(1.64 ft.)
Minimum distance to illuminated surfaces: 15 mtr(49.2 ft.)
Dynamic effects
Pan/Tilt movement: 540˚/ 270˚
Strobe: 1-25Hz, strobe randomly, pulse randomly, strobe synchronously and asynchronously
Dimmer: 0-100%, 16-bit, electronic linear dimming
Thermal
Operating range: 5˚F - 113˚F(-15˚C - 45˚C)
Startup range: -13˚F - 113˚F(-25˚C - 45˚C)
Storage range: -40˚F - 140˚F(-40˚C - 60˚C)
Cooling: Active fan
Humidity: ≤85%
Connections
AC power: Neutrik powerCon
DMX data input/output: Chassis 5-pin & 3-pin Seetronic XLR (in/out)
Certification and Safety
EMC: EN 55103-1:2009, EN 55103-2:2009, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013
Safety: EN 60598-2-17:1989/A2:1991
Technical Specification
Photometric Diagram
Gobos & Colours
Exterior Dimensions
Accessories
Downloads
Product Video

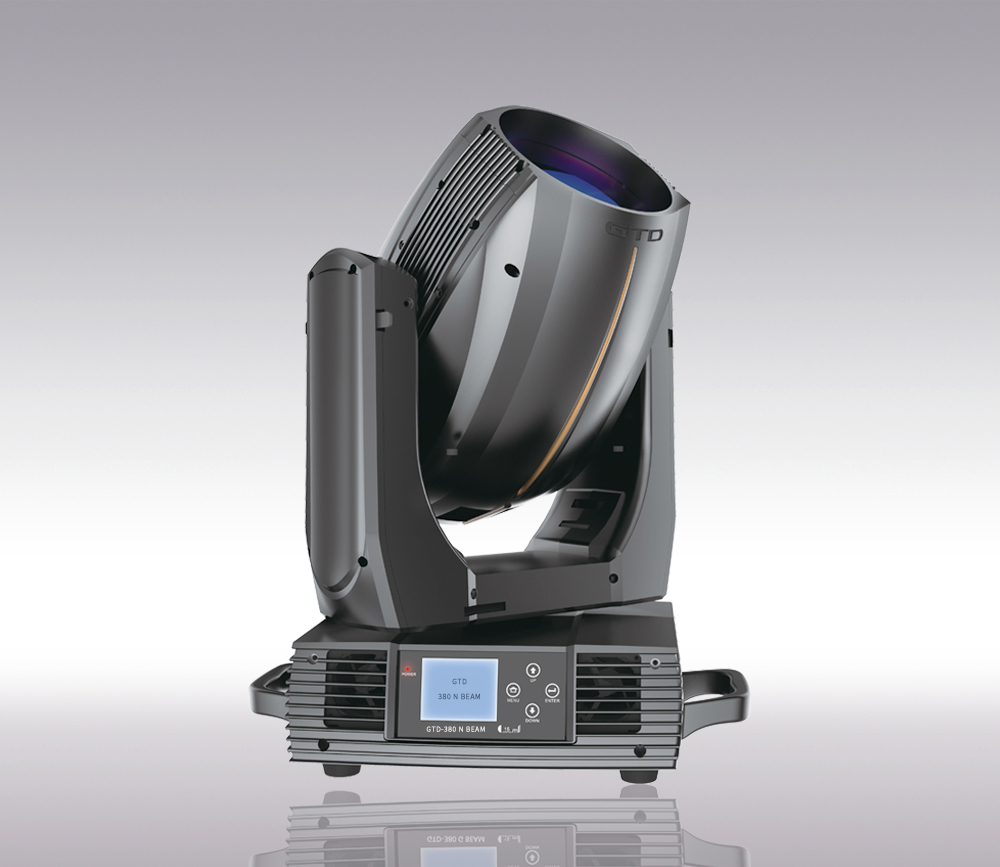

GTD-380 II BEAM
