Optical
Light source: 6W(RGB 3-in-1) 238 LEDs
Expected average lifetime: 50000 hours

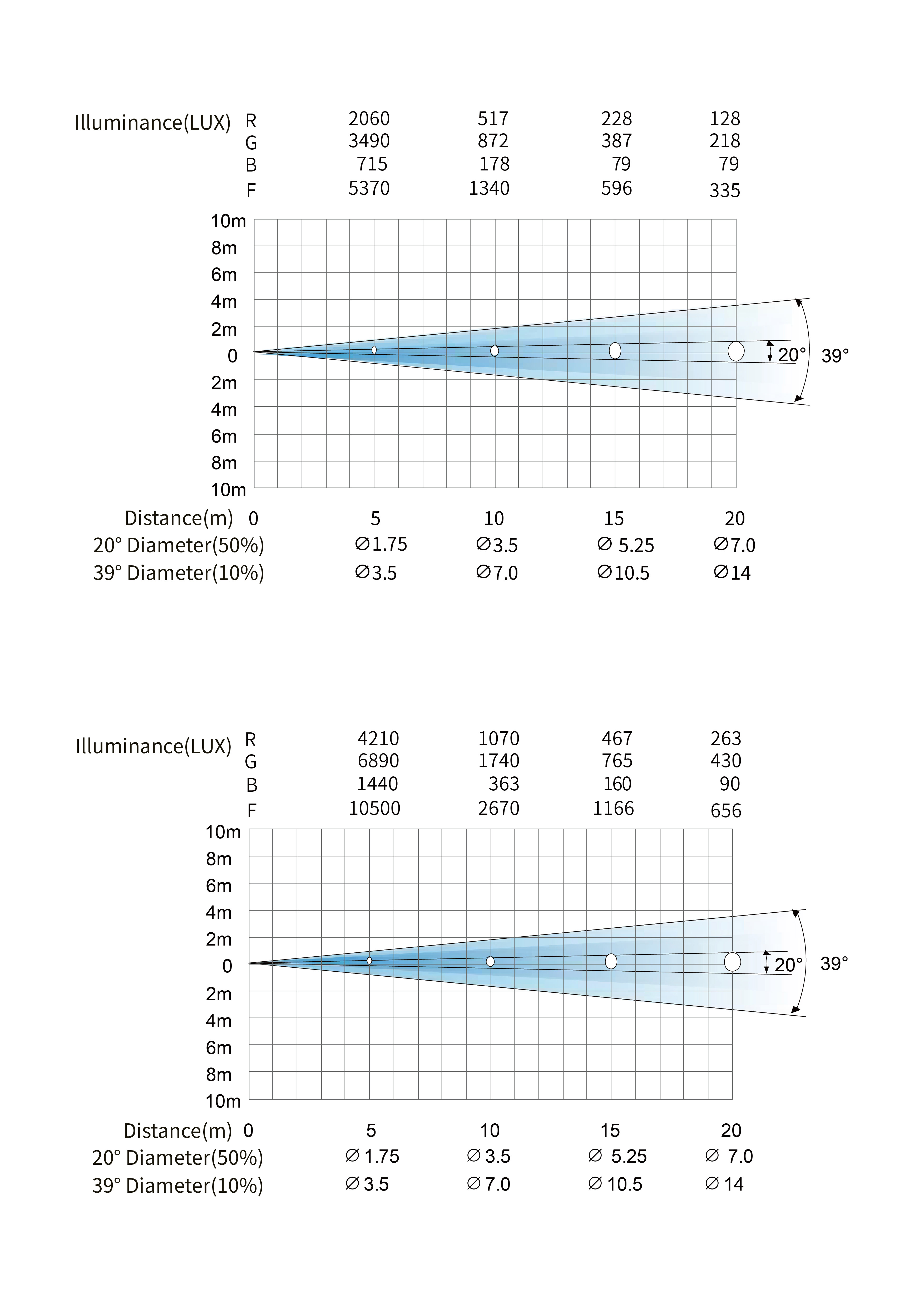

Angle: 37°
Ballast: Electronic
Color temperature: 3200K-7200K
Electrical
Power input, nominal: AC 100-240V - 50/60Hz
Max. Power consumption: 1050W
Power supply unit: Wide range electronic SMPS
Control and programming
Control channels (DMX): 11/15
Protocol: DMX-512 RDM
Display: LED
Dynamic effects
Light source: 6W(RGB 3-in-1) 238 LEDs
Expected average lifetime: 50000 hours
Angle: 37°
Ballast: Electronic
Color temperature: 3200K-7200K
Electrical
Power input, nominal: AC 100-240V - 50/60Hz
Max. Power consumption: 1050W
Power supply unit: Wide range electronic SMPS
Control and programming
Control channels (DMX): 11/15
Protocol: DMX-512 RDM
Display: LED
Dynamic effects
Strobe: 1-25Hz, strobe randomly, pulse randomly, strobe synchronously and asynchronously
Dimmer: 0-100%, 16-bit, electronic linear dimming
Build-in macros: Color
Physical / Installation
Weight: 28 kg(61.73 lbs.)
IP rating: IP65
Material: Aluminum, copper, steel, plastic
Mounting points: Fixed folding lamp hook + attachment points for safety wire
Minimum distance to combustible materials: 0.5 mtr(1.64 ft.)
Minimum distance to illuminated surfaces: 1 mtr(3.3 ft.)
Thermal
Operating range: 5˚F - 113˚F(-15˚C - 45˚C)
Startup range: -13˚F - 113˚F(-25˚C - 45˚C)
Storage range: -40˚F - 140˚F(-40˚C - 60˚C)
Cooling: Active fan
Humidity: ≤98%
Dimmer: 0-100%, 16-bit, electronic linear dimming
Build-in macros: Color
Physical / Installation
Weight: 28 kg(61.73 lbs.)
IP rating: IP65
Material: Aluminum, copper, steel, plastic
Mounting points: Fixed folding lamp hook + attachment points for safety wire
Minimum distance to combustible materials: 0.5 mtr(1.64 ft.)
Minimum distance to illuminated surfaces: 1 mtr(3.3 ft.)
Thermal
Operating range: 5˚F - 113˚F(-15˚C - 45˚C)
Startup range: -13˚F - 113˚F(-25˚C - 45˚C)
Storage range: -40˚F - 140˚F(-40˚C - 60˚C)
Cooling: Active fan
Humidity: ≤98%
Connections
AC power: Self-contained power cord
DMX data input/output: Chassis 3-pin
Certification and Safety
EMC: EN 55103-1:2009, EN 55103-2:2009, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013
Safety: EN 60598-2-17:1989/A2:1991, GB 7000.1-2015, GB 7000.217-2008
AC power: Self-contained power cord
DMX data input/output: Chassis 3-pin
Certification and Safety
EMC: EN 55103-1:2009, EN 55103-2:2009, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013
Safety: EN 60598-2-17:1989/A2:1991, GB 7000.1-2015, GB 7000.217-2008
