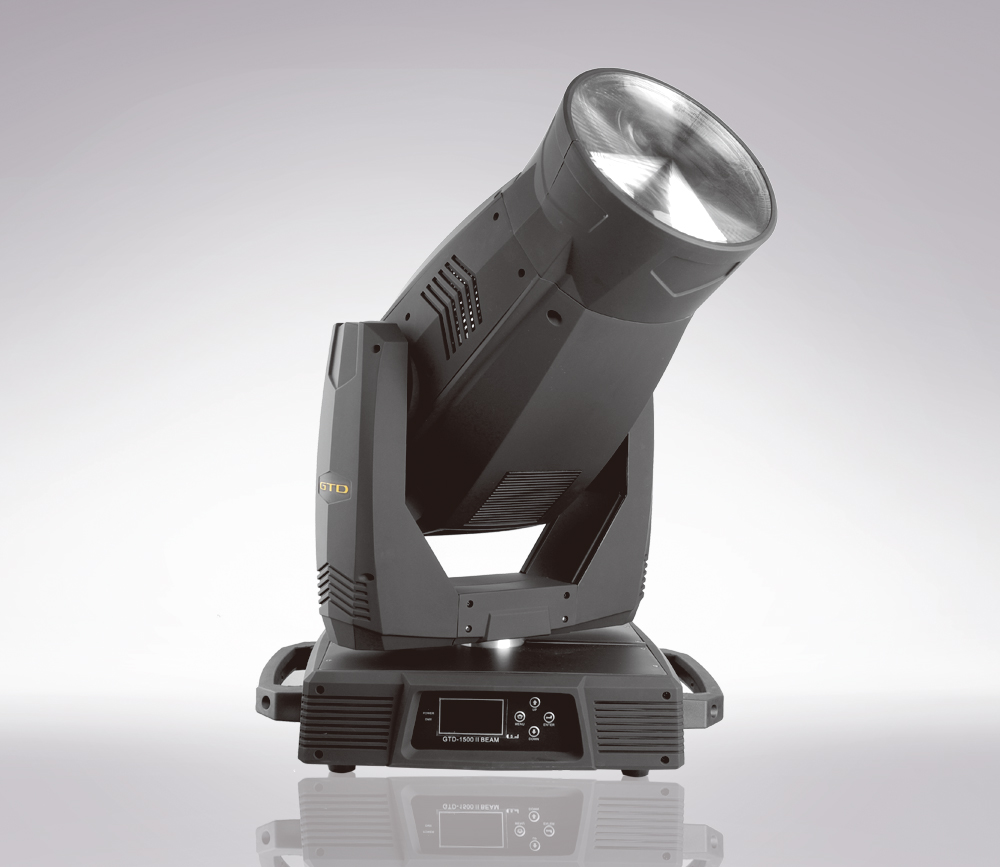

Product Model
GTD-1500 II BEAM
Product Series
1500W Series
Technical Specification

Optical
Light source: OSRAM Lok-it! HTI 1500 W/60/P50
Expected average lifetime: 750 hours
Beam angle: 5° (zoom range 10° - 25° with frost)
Focus: Variable range, from 15m to infinity
Prism: 3-facet prism, CW/CCW rotation, variable speed
Frost: On/Off
Ballast: Electronic
Total output (Lumen): 44400 lm

Gobo
Rotating gobo: 6 interchangeable gobos + open, indexing, CW/CCW rotation, variable speed
Static gobo wheel: 7 gobos + open, CW/CCW rotation, variable speed
Gobo outside diameter: 33 mm
Max. Image diameter: 24 mm
Max. Thickness: 0.5 mm(Metal)/1.1 mm(Glass)
Glass/Metal gobo: Glass/Metal

Color
Color wheel: 7 colors + open, split color, CW/CCW rotation, variable speed
CMY / CTO: CMY + CTO for linear infinity color mixing

Electrical
Power input, nominal: AC 200-240V 50/60Hz
Max. Power consumption: 1780W
Power supply unit : Auto-ranging electronic SMPS
Main fuse: 250V/15A

Control and programming
Control channels (DMX): 25/23/31
Protocol: DMX-512
Display: Graphic LCD backlit
16-bit control : Dimmer, CMY colors, CTO, focus, frost, zoom, pan/tilt, gobo indexing & rotation, rotating gobo wheel positioning

Dynamic effects
Pan/Tilt movement: 540˚/ 270˚
Iris: 5-100% high speed, with built-in macros
Strobe: 1-20Hz, synchronized, pulse effects
Dimmer: 0-100%, 16-bit, mechanical dimming
Zoom: Motorized
Built-in macros: Color, Iris


Physical / Installation
Weight: 41 kg(90 lbs.)
IP rating: IP20
Material: Aluminum, steel, plastic
Mounting points: Four quarter-turn locking points + attachment points for safety wire
Minimum distance to combustible materials: 0.5 mtr(1.64 ft.)
Minimum distance to illuminated surfaces: 5 mtr(16.4 ft.)

Thermal
Operating range: 14˚F - 113˚F(-10˚C - 45˚C)
Startup range: 5˚F - 113˚F(-15˚C - 45˚C)
Storage range: -40˚F - 140˚F(-40˚C - 60˚C)
Cooling: Active fan
Humidity: ≤85%

Connections
AC power: Neutrik powerCon
DMX data input/output: Chassis 3-pin & 5-pin Neutrik XLR (in/out)

Certification and Safety
EMC: EN 55103-1:2009, EN 55103-2:2009, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013
Safety: EN 60598-2-17:1989/A2:1991




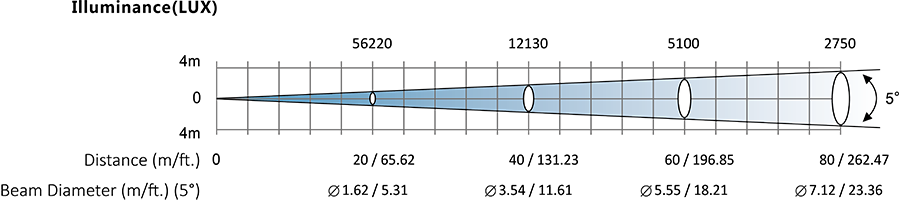

Photometric Diagram

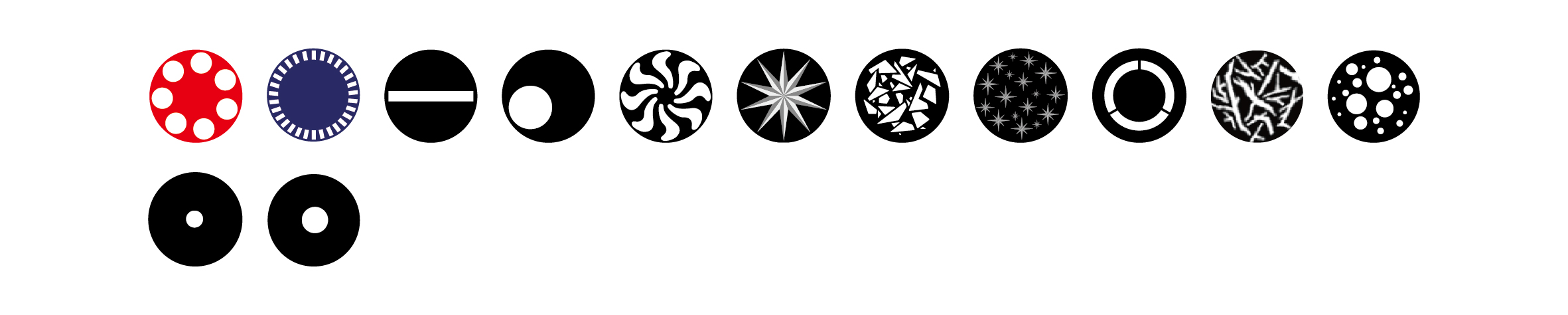

Gobos & Colours

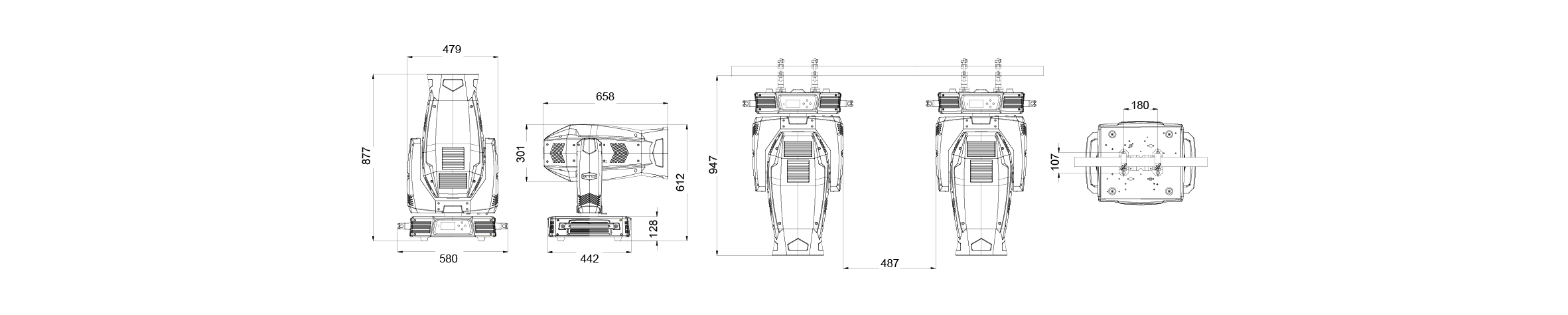

Exterior Dimensions
Accessories
1306010003 - OSRAM Lok-it! HTI 1500 W/60/P50 VS1
1503030237 - Flight case, single for 1500P Beam series
5198020104 - G-clamp with 1/4-turn fasteners, for Ø42-52mm,  Max. 200 kg
