Optical
Light source: OSRAM SHARXS HTI 1500 W/D7/60
Expected average lifetime: 750 hours
Beam angle: Zoom range 11˚ - 53˚
Focus: Variable range, from 5m to infinity
Prism: 3-facet prism, CW/CCW rotation, variable speed
Animation effect: Aluminium animation wheel, used alone or in combination with gobos, rotating in both directions at variable speed
Ballast: Electronic
Total output (Lumen): 25200 lm narrow/26400 lm wide
Gobo
Rotating gobo: 2 rotating gobo wheels, 6 interchangeable gobos + open, 5 interchangeable gobos + open, indexing, CW/CCW rotation, variable speed
Static gobo wheel: 7 gobos + open, CW/CCW rotation, variable speed
Gobo outside diameter: 33 mm
Max. Image diameter: 27 mm
Max. Thickness: 0.5 mm(Metal)/5.0 mm(Glass)
Glass/Metal gobo: Glass/Metal
Color
Color wheel: 7 colors + open, split color, CW/CCW rotation, variable speed
CMY / CTO: CMY + CTO for linear infinity color mixing
Electrical
Power input, nominal: AC 200-240V 50/60Hz
Max. Power consumption: 1860W
Power supply unit: Auto-ranging electronic SMPS
Main fuse: 250V/15A
Control/programming
Control channels (DMX): 31/28/37
Protocol: DMX-512
Display: Graphic LCD backlit
16-bit control: Dimmer, CMY colors, CTO, focus, zoom, pan/tilt, gobo indexing & rotation, rotating gobo wheel positioning
Dynamic effects
Pan/Tilt movement: 540˚/ 270˚
Iris: 5-100% high speed, with built-in macros
Strobe: 1-20Hz, synchronized, pulse effects
Dimmer: 0-100%, 16-bit, mechanical dimming
Zoom: Motorized
Built-in macros: Color, Iris
Physical/Installation
Weight: 47 kg(103 lbs.)
IP rating: IP20
Material: Aluminum, steel, plastic
Mounting points: Four quarter-turn locking points + attachment points for safety wire
Minimum distance to combustible materials: 0.5 mtr(1.64 ft.)
Minimum distance to illuminated surfaces: 5 mtr(16.4 ft.)
Thermal
Operating range: 14˚F - 113˚F(-10˚C - 45˚C)
Startup range: 5˚F - 113˚F(-15˚C - 45˚C)
Storage range: -40˚F - 140˚F(-40˚C - 60˚C)
Cooling: Active fan
Humidity: ≤85%
Connections
AC power: Neutrik powerCon
DMX data input/output: Chassis 3-pin & 5-pin Neutrik XLR (in/out)
Certification and Safety
EMC: EN 55103-1:2009, EN 55103-2:2009, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013
Safety: EN 60598-2-17:1989/A2:1991
Technical Specification

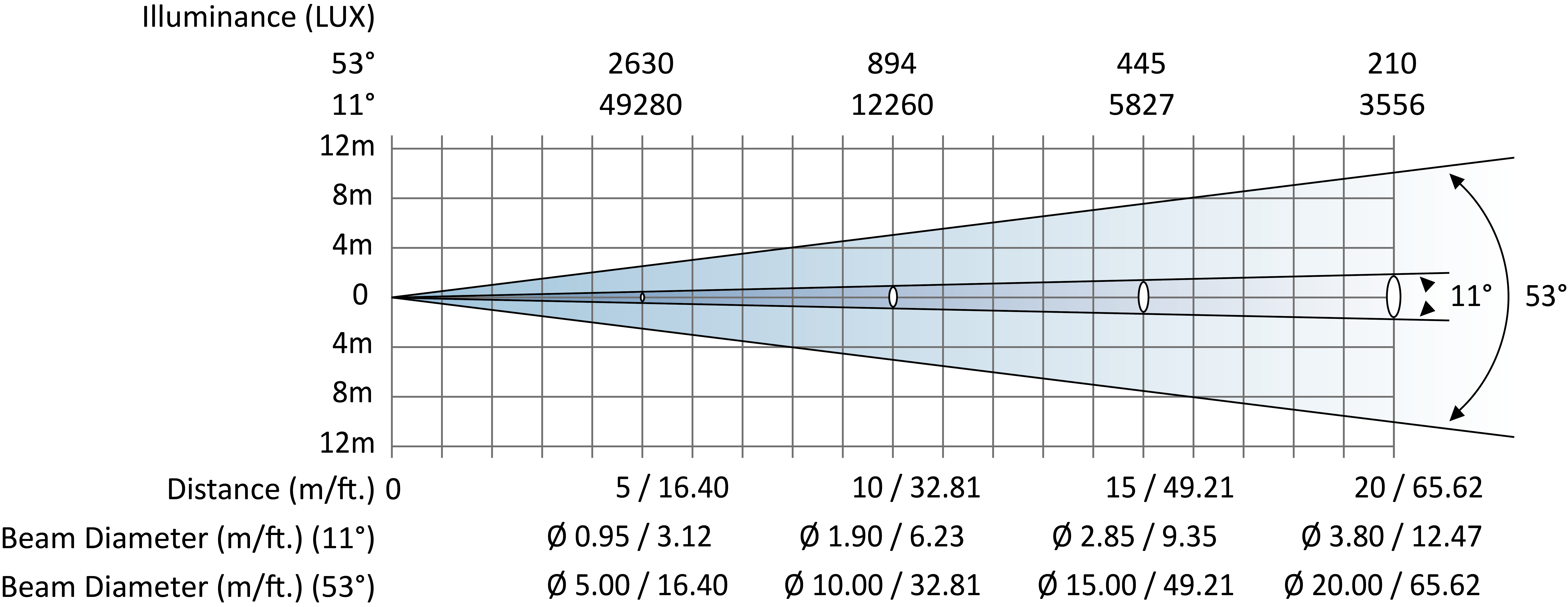

Photometric Diagram
Gobos & Colours

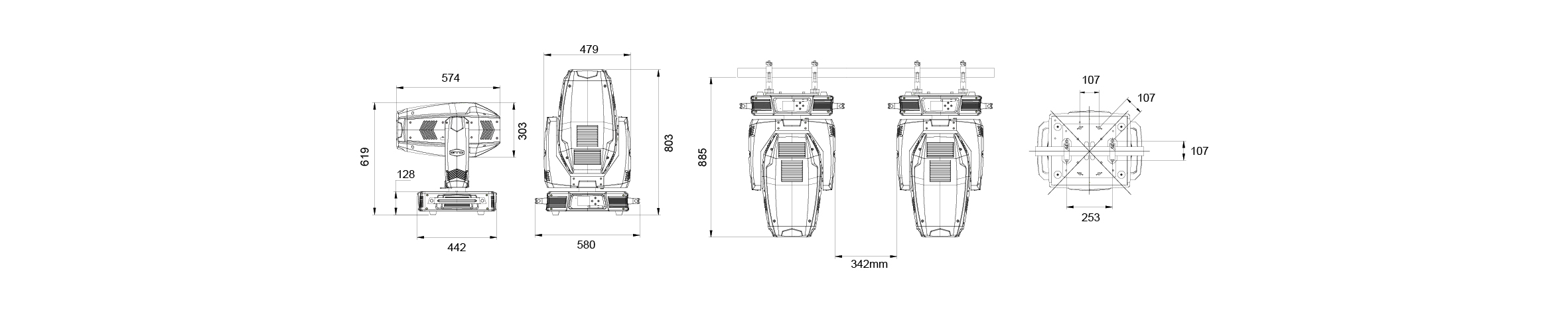

Exterior Dimensions
Accessories
Accessories
1306010004 - OSRAM SHARXS HTI 1500 W/D7/60
1503030205 - Flight case, single for 1200/1500 series
5198020104 - G-clamp with 1/4-turn fasteners, for Ø42-52mm, Max. 200 kg
1306010004 - OSRAM SHARXS HTI 1500 W/D7/60
1503030205 - Flight case, single for 1200/1500 series
5198020104 - G-clamp with 1/4-turn fasteners, for Ø42-52mm, Max. 200 kg
