Product Model
Product Series
Technical Specification

Light source: 12W (RGBW 4-in-1) 54 LEDs
Expected average lifetime: 50000 hours
Beam angle: 19° (27° and 43° optional)
Total Output (Lumen): 6900 lm
Color temperature: 3200K - 7200K linear regulation
Mixing distance: >0.3 mtr(1.0 ft.)

Power input, nominal: AC 200-240V 50/60Hz
Max. Power consumption: 170W
Power supply unit: Auto-ranging electronic SMPS

Control / Programing
DMX Protocol modes: 2
Control channels (DMX): 15/8
Protocol: DMX-512
Display: 4 x 8 segment display
16-bit control: Dimmer, RGBW colors

Physical / Installation
Weight: 7.5 kg(16.5 lbs.)
IP rating: IP65
Material: Aluminium
Mounting points: One quarter-turn locking point + attachment points for safety wire
Minimum distance to combustible materials: 0.5 mtr(1.64 ft.)
Minimum distance to illuminated surfaces: 1 mtr(3.3 ft.)

Dynamic effects
Pan movement: Manually adjustable
Tilt movement: Manually adjustable
Strobe: 1-25Hz, synchronized, pulse effects
Dimmer: 0-100%, 16-bit, electronic linear dimming
Built-in macros: Color

Operating range: 14˚F - 113˚F(-10˚C - 45˚C)
Startup range: 5˚F - 113˚F(-15˚C - 45˚C)
Storage range: -40˚F - 140˚F(-40˚C - 60˚C)
Cooling: Passive
Humidity: ≤98%

AC power: 1.64 ft.(0.5 m) cable with water proof plugs (in/out)
DMX data input/output: 2 x 1.64 ft.(0.5 m) cable with 5-pin Neutrik IP65 XLR plugs (in/out)

Certification and Safety
EMC: EN 55103-1:2009, EN 55103-2:2009, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013, GB/T 17743-2007, GB 17625.1-2012
Safety: EN 60598-2-17:1989/A2:1991, GB 7000.1-2015, GB 7000.217-2008

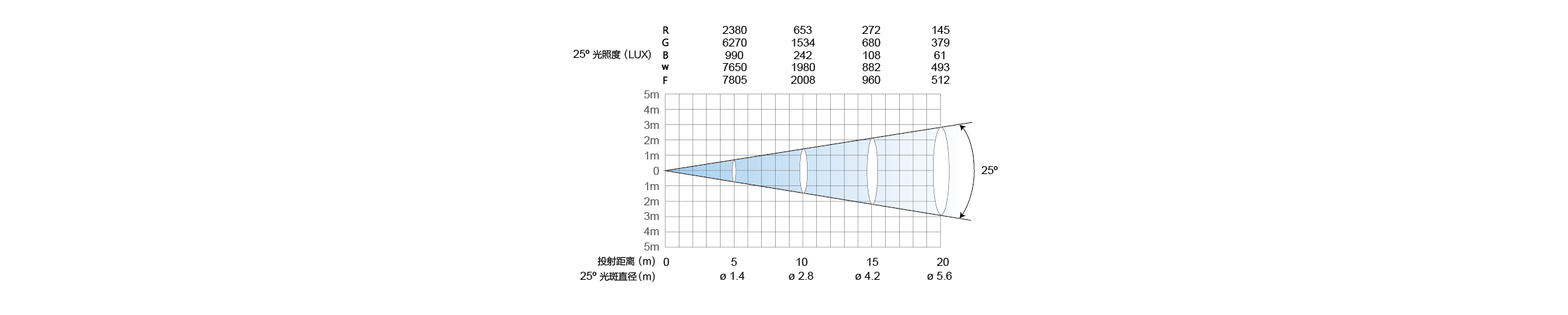

Photometric Diagram
Gobos & Colours

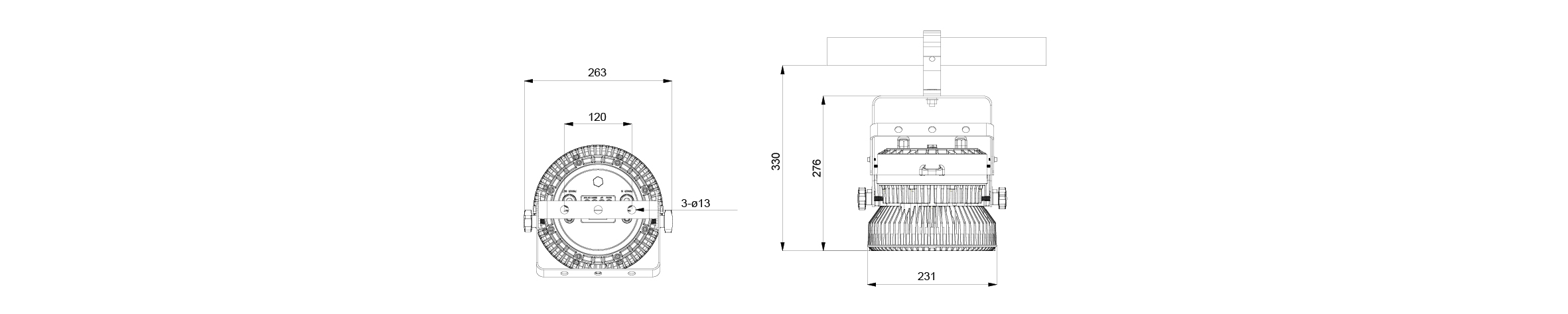

Exterior Dimensions
1503030204 - Flight case, 6 unit for L1254P series
1503080018 - G-clamp, for Ø42-52mm, Max. 200 kg
