OPTICAL
· Light source: 15W(RGBW 4-in-1)37LEDs(White/Amber LED optional)
· Expected average lifetime: 50,000 hours

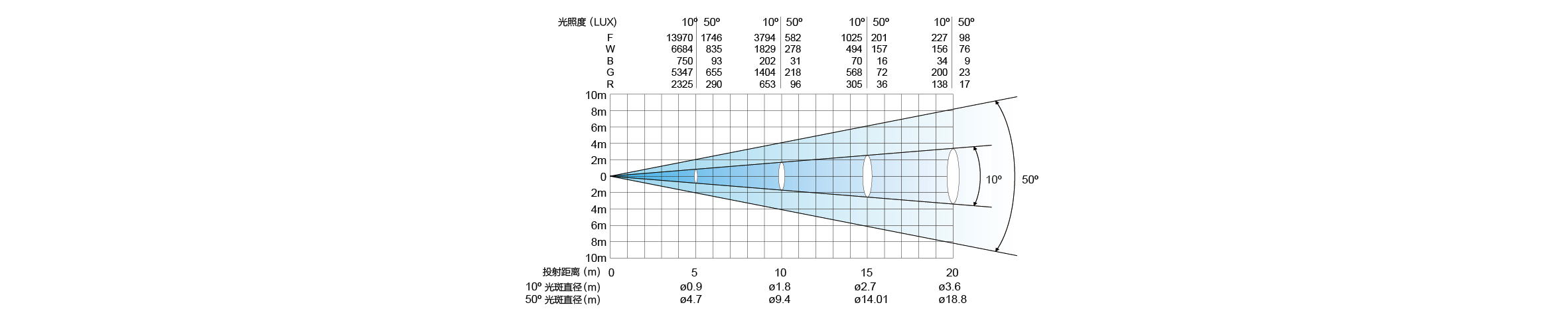

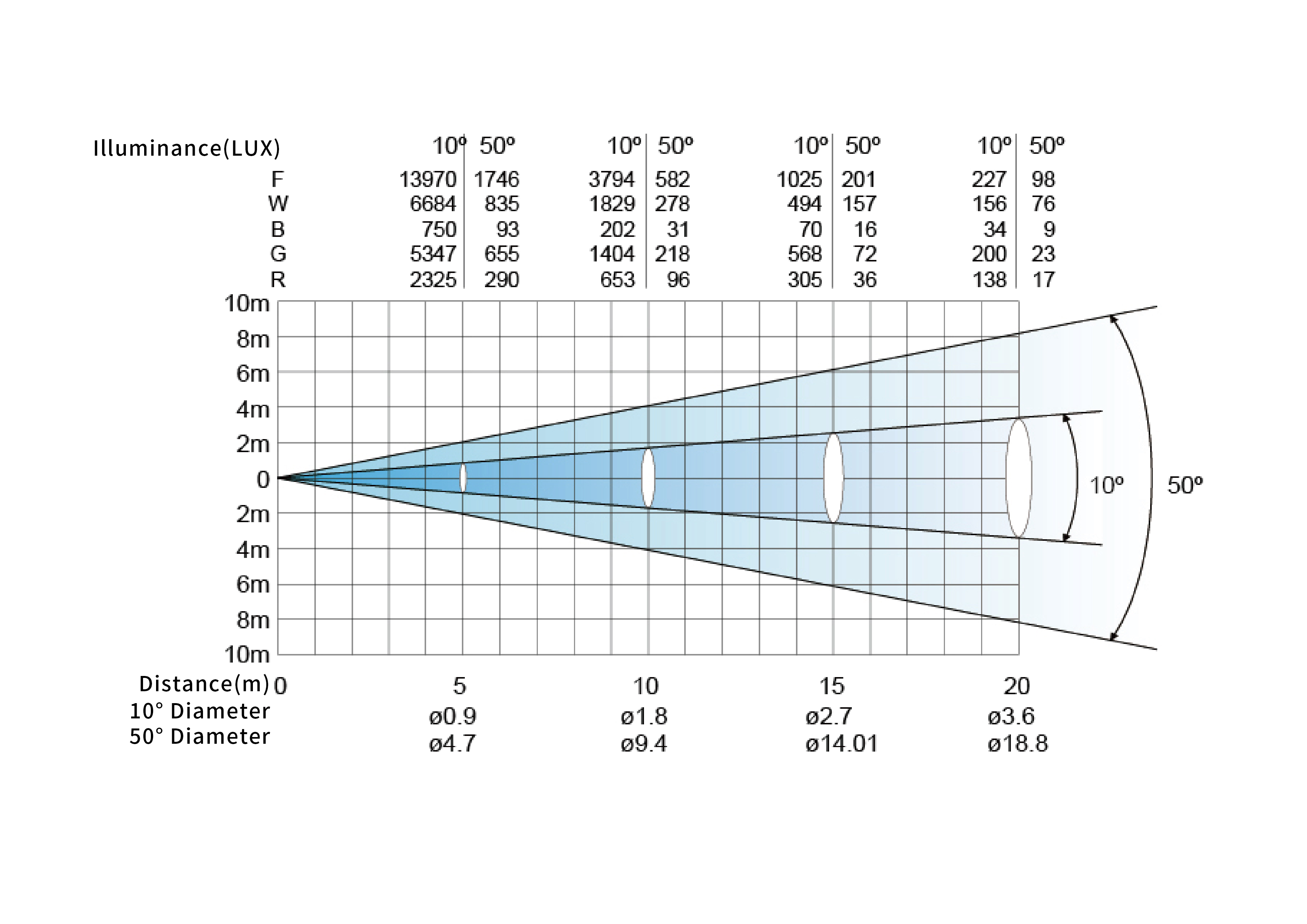

· Beam angle: Zoom range 9°-48°
ELECTRICAL
· Power inputnominal: AC100-240V-50/60Hz
· Max.Power consumption: 576W
· Power supplyunit: Auto-ranging electronic SMPS
· Mainfuse: 250V/6.3A
CONTROL/PROGRAMMING
· Controlchannels(DMX): 25/21/45
· Protocol: DMX-512
· Display: Graphic LCD backlit
· 16-bitcontrol: DimmerRGBWcolorszoompan/tilt
· LED Panel: 4individual pixels(rings)
DYNAMIC EFFECTS
· Pan/Tilt movement: 540/270
· Strobe: 1-25Hz,synchronized,pulse effects
· Dimmer: 0-100%,16-bit,electronic linear dimming
· Zoom: Motorized
· Built-in macros: Color
PHYSICAL / INSTALLATION
· Weight: 24 kg(52 lbs.)
· IPrating: IP20
· Material: Aluminium,steel, plastic
· Mounting points: Four quarter-turn locking points + attachment points for safety wire
· Minimum distance to combustible materials: 0.5 mtr(1.64ft.)
· Minimum distance to illuminated surfaces: 1 mtr(3.3ft.)
