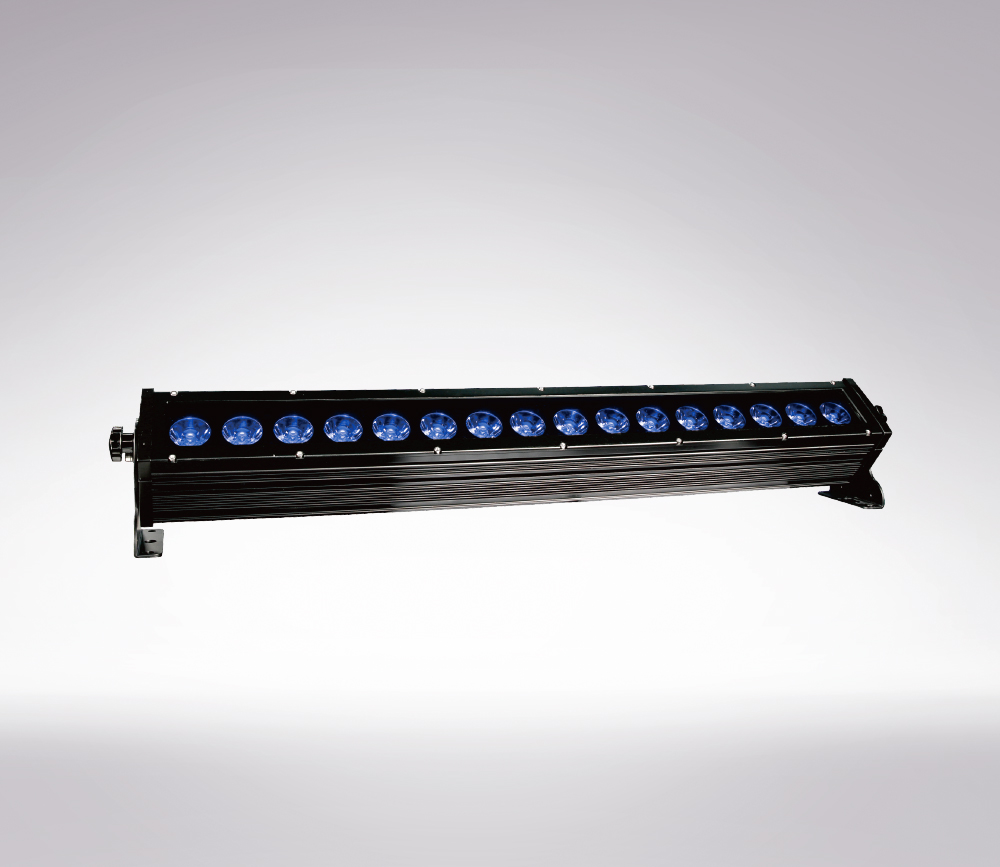

Product Model
GTD-L2016P
Product Series
IP65 Series
Technical Specification
Optical
Light source: 20W (RGBW) 16 LEDs
Expected average lifetime: 50000 hours
Beam angle: 6°
Ballast: Electronic
Mixing distance: >0.3 mtr(1.0 ft.)

Electrical
Power input, nominal: AC 100-240V 50/60Hz
Max. Power consumption: 290W
Power supply unit: Auto-ranging electronic SMPS

Control and programming
Control channels (DMX): 72/11
Protocol: DMX-512
Display: 4 x 8 segment display
16-bit control: Dimmer

Dynamic effects
Pan/Tilt movement: Manually adjustable
Strobe: 1-25Hz, synchronized, pulse effects
Dimmer: 0-100%, 16-bit, electronic linear dimming
Built-in macros: Color

Physical / Installation
Weight: 10 kg(22.0 lbs.)
IP rating: IP65
Material: Aluminum, steel
Mounting points: 12 mm holes for G-Clamp
Minimum distance to combustible materials: 0.5 mtr(1.64 ft.)
Minimum distance to illuminated surfaces: 1 mtr(3.3 ft.)

Thermal
Operating range:14˚F - 113˚F(-10˚C - 45˚C)
Startup range: 5˚F - 113˚F(-15˚C - 45˚C)
Storage range: -40˚F - 140˚F(-40˚C - 60˚C)
Cooling: Passive
Humidity: ≤85%

Connections
AC power: 3.28 ft.(1 m) cable with water proof plugs (in/out)
DMX data input/output: 2 x 3.28 ft.(1 m) cable with 5-pin Neutrik IP65 XLR plugs (in/out)

Certification and Safety
EMC: EN 55103-1:2009, EN 55103-2:2009, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013
Safety: EN 60598-2-17:1989/A2:1991



Photometric Diagram
Gobos & Colours

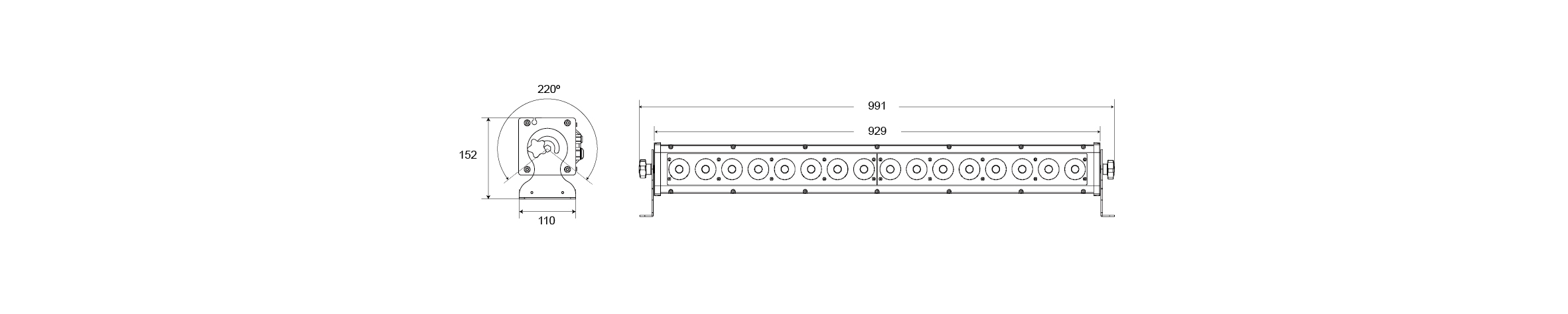

Exterior Dimensions
Accessories
1503030248 - Flight case, 6 units for L1516P/L2016P series
