Product Model
Product Series
Television Series
Technical Specification
Light source: LED 0.5W
Expected average lifetime: 50000 hours
Beam angle: 110°(10%), 70°(50%)
Total Output (Lumen): 13000 lm
Color temperature correction: 2800K~6000K
CRI: 97Ra
Power input, nominal: AC 100-240V - 50/60Hz
Max. Power consumption: 230W
Max.Current: 2.3A
Main fuse: 6.5A
PF: 0.94
Power supply unit: Wide range electronic SMPS
Control and programming
Control channels (DMX): 11/45
Protocol: DMX-512 RDM
Display: Nixie tube
Physical / Installation
Weight: 9 kg ( 19.8 lbs.)
IP rating: IP20
Material: Aluminium, steel, plastic
Mounting points: Fixed folding lamp hook + attachment points for safety wire
Dynamic effects
Pan/Tilt movement: 540˚/270˚, adopting a function which resets 32bit accurately and automatically
Strobe: 1-25Hz, strobe randomly, pulse randomly, strobe synchronously and asynchronously
Dimmer: 0-100%, electronic linear dimming


Power input: Self-contained power cord
DMX data input/output: Chassis 3-pin
Operating range: 14˚F - 113˚F ( -10˚C - 45˚C)
Startup range:  -13˚F - 113˚F( -25˚C - 45˚C)
Storage range:  -40˚F - 140˚F( -40˚C - 60˚C)
Cooling: Active fan
Humidity: ≤85%
Certification and Safety
EMC: EN 55103-1:2009, EN 55103-2:2009, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013, GB/T 17743-2007, GB 17625.1-2012
Safety: EN 60598-2-17:1989/A2:1991, GB 7000.1-2015, GB 7000.217-2008

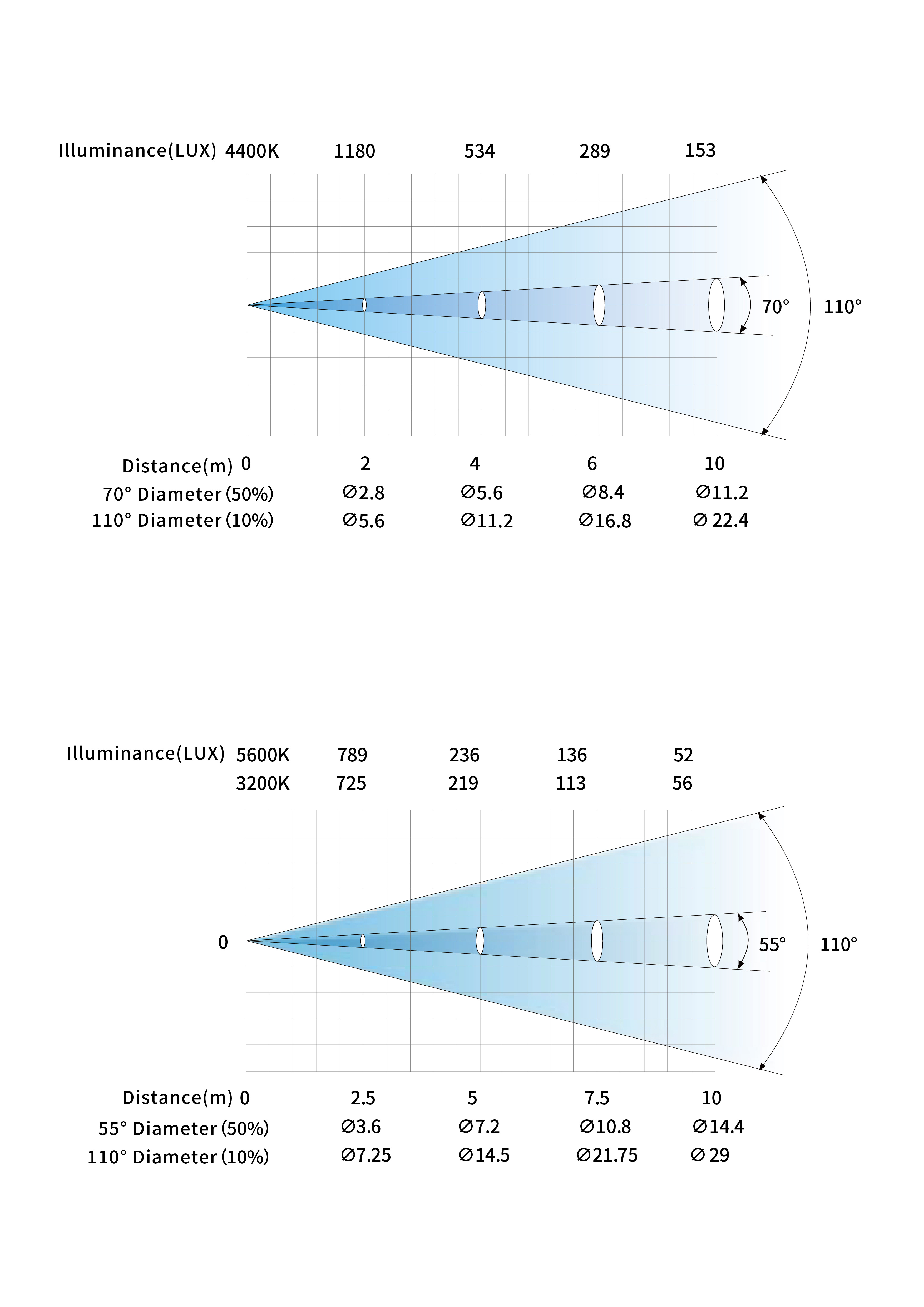

Photometric Diagram
Gobos & Colours

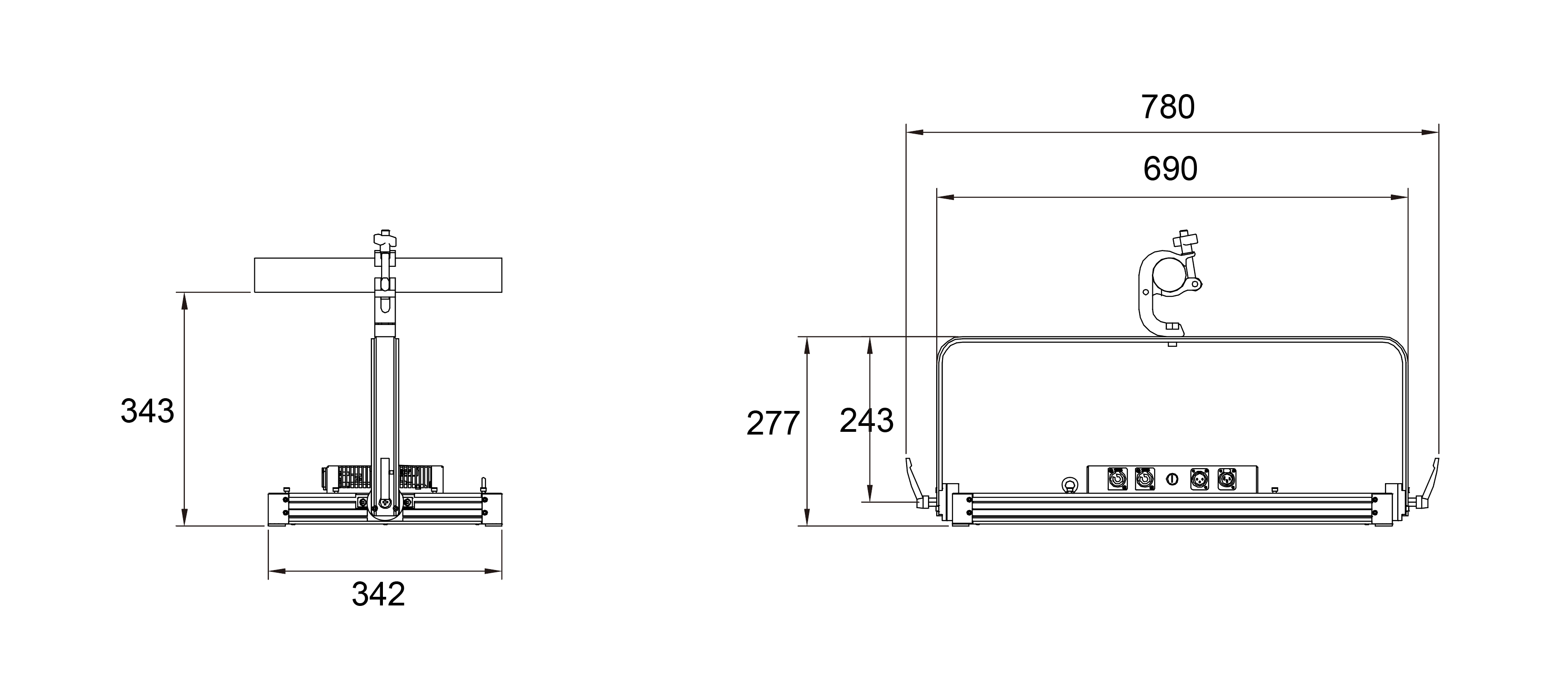

Exterior Dimensions
Product Video
