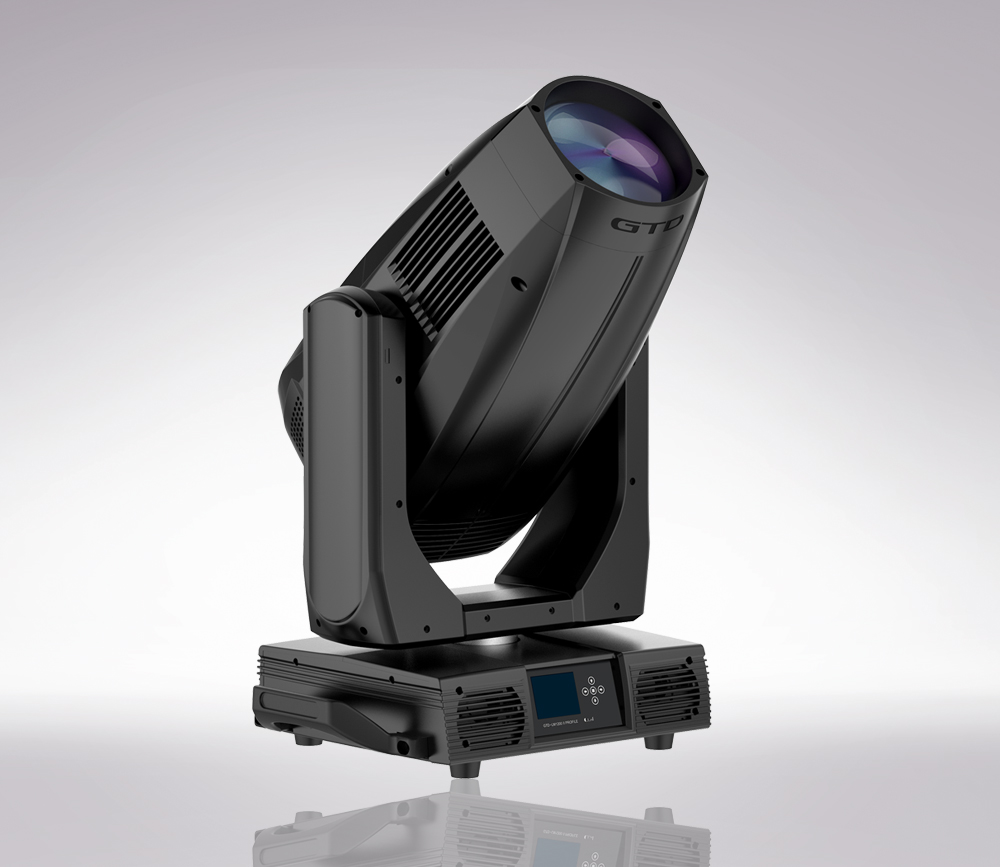

Product Model
GTD-LM1200 II Profile
Product Series
Moving Head Series
Technical Specification

Light source: Single White 1050W LED l
Expected average lifetime: 20000 hours
Beam angle: Zoom range 6˚- 50˚
Focus: High-precision glass lenses, electronic linear HD focus
Prism: one 4-facet  prism, CW/CCW rotation, variable speed
Frost: 2 independent frost effects, the light spot is soft and natural  after softening
Ballast: Electronic
Animation effect: 1 wheel, CW/CCW rotation, variable speed
Total Output (Lumen): 50000 lm
Color temperature: 2700K - 6500K
CRI: ≥70

Rotating gobo: 7 interchangeable gobos + open, indexing, CW/CCW rotation, variable speed
Static gobo wheel: 8 gobos + open, CW/CCW rotation, variable speed
Gobo outside diameter: 30 mm
Max. Image diameter: 26 mm
Max. Thickness: 1.1 mm(Glass)
Glass/Metal gobo: Glass

Color wheel: 6 colors + open, split color, CW/CCW rotation, variable speed, "Rainbow effect” in both directions
CMY / CTO: CMY + CTO for linear infinity color mixing

Power input, nominal: AC 100-240V 50/60Hz
Max. Power consumption: 1450W
Power supply unit: Auto-ranging electronic SMPS
Main fuse: 250V/15A

Control channels (DMX): 39/35/54
Protocol: DMX-512 RDM
Display: Graphic LCD backlit
16-bit control: Dimmer, CMY, CTO, focus, zoom, gobo indexing & rotation, rotating gobo wheel positioning, Pan/tilt, framing

Weight: 45 kg(99.2 lbs.)
IP rating: IP20
Material: Aluminum, steel, plastic
Mounting points: Four quarter-turn locking points + attachment points for safety wire
Minimum distance to combustible materials: 0.5 mtr(1.64 ft.)
Minimum distance to illuminated surfaces: 5 mtr(16.4 ft.)

Dynamic effects
Pan/Tilt movement: 540˚/ 270˚
Strobe: 1-25Hz, synchronized, pulse effects
Dimmer: 0-100%, 16-bit, electronic linear dimming
Zoom: Motorized
Built-in macros: Color
Framing: Rotating module 90˚, 4 shutter blades can make geometric figures of different sizes and shapes

Operating range: 5˚F - 113˚F(-15˚C - 45˚C)
Startup range: -13˚F - 113˚F(-25˚C - 45˚C)
Storage range: -40˚F - 140˚F(-40˚C - 60˚C)
Cooling: Heat pipe radiator, temperature controls fan heat dissipation intelligently
Humidity: ≤85%

AC power: Neutrik powerCon
DMX data input/output: Chassis 3-pin Neutrik XLR (in/out)

Certification and Safety
EMC: EN 55103-1:2009, EN 55103-2:2009, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013
Safety: EN 60598-2-17:1989/A2:1991

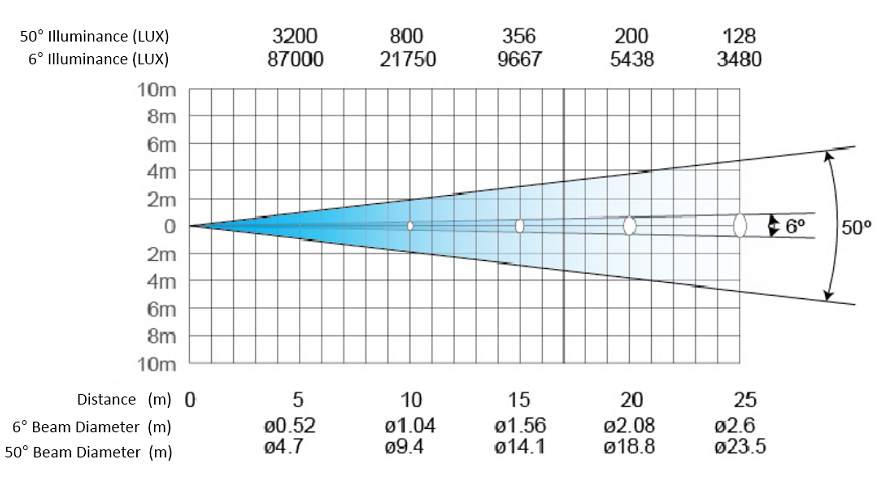

Photometric Diagram
Gobos & Colours

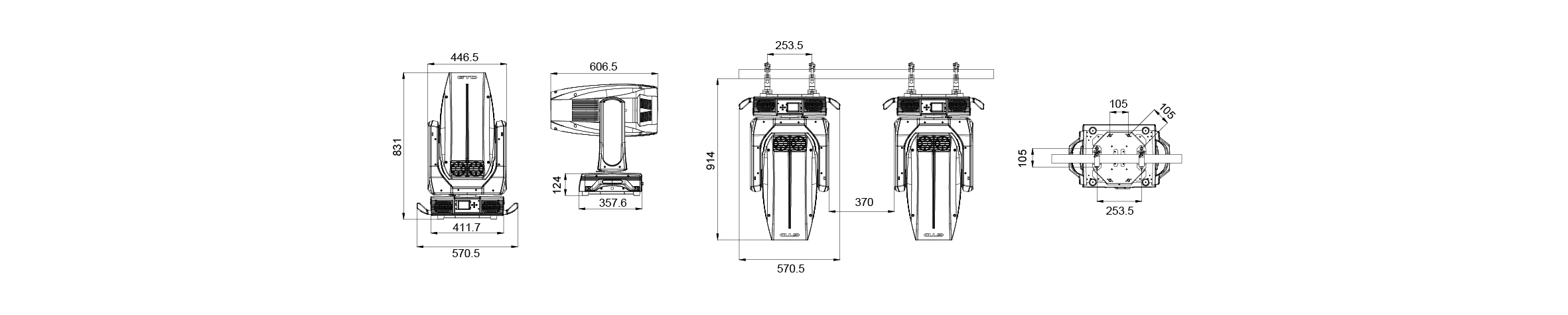

Exterior Dimensions
Product Video
