Product Model

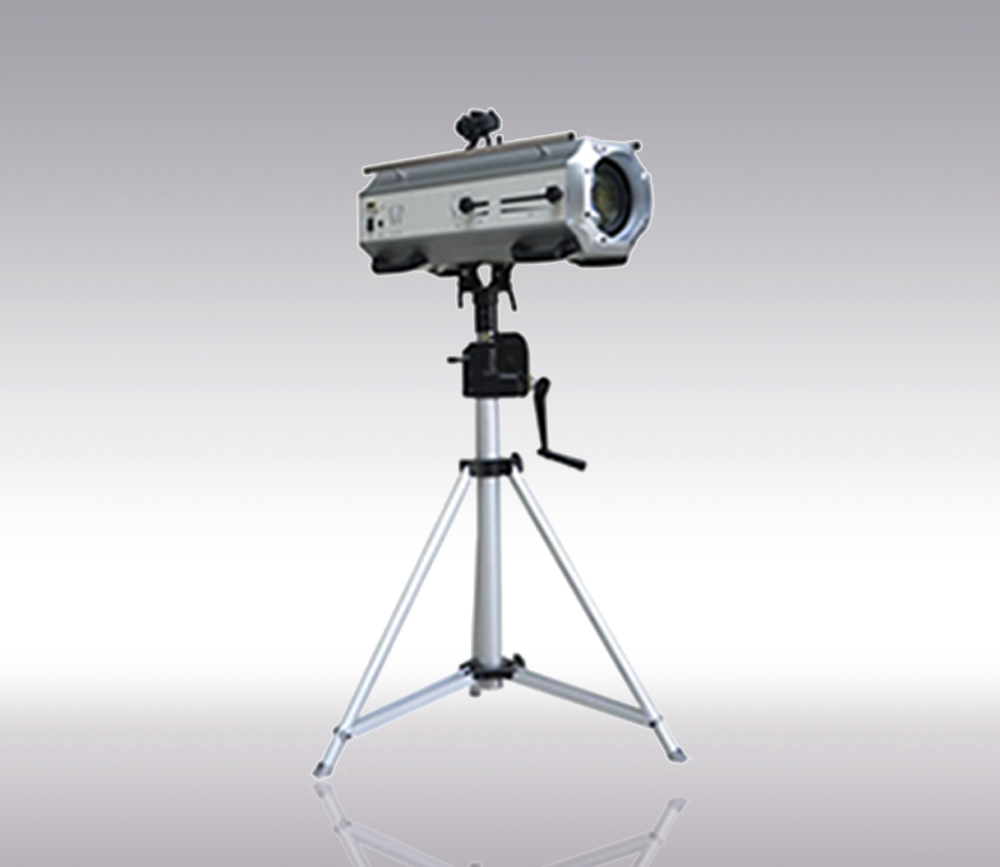

GTD-330 FS
Product Series
Technical Specification

Light source: OSRAM SIRIUS 330 W XL
Expected average lifetime: 1500 hours
Beam angle: Zoom range 6˚ - 12˚ (Manually adjustable)
Focus: Variable range, from 5m to infinity (Manually adjustable)
Ballast: Electronic
Total output (Lumen): 7200 lm narrow/8700 lm wide

Color wheel: 3 colors + 1 changeable color/gobo + open
CTO: Build-in adjustable CTO

Power input, nominal: AC 100-240V 50/60Hz
Max. Power consumption: 380W
Power supply unit: Auto-ranging electronic SMPS
Main fuse: 250V/6.3A

Control and programming
Display: 4 x 8 segment display

Physical / Installation
Weight: 20 kg(44 lbs.)
IP rating: IP20
Material: Aluminum, steel, plastic
Mounting points: Mounting for tripod
Minimum distance to combustible materials: 0.5 mtr(1.64 ft.)
Minimum distance to illuminated surfaces: 5 mtr(16.4 ft.)

Dynamic effects
Pan/Tilt movement: Manually adjustable
Iris: Manually adjustable
Dimmer: Mechanical manually adjustable(Build-in colour and linear dimmer)
Zoom: Manually adjustable

Operating range: 14˚F - 113˚F(-10˚C - 45˚C)
Startup range: 5˚F - 113˚F(-15˚C - 45˚C)
Storage range: -40˚F - 140˚F(-40˚C - 60˚C)
Cooling: Active fan
Humidity: ≤85%

AC power: Neutrik powerCon

Certification and Safety
EMC: EN 55103-1:2009, EN 55103-2:2009, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013
Safety: EN 60598-2-17:1989/A2:1991


Photometric Diagram
Gobos & Colours

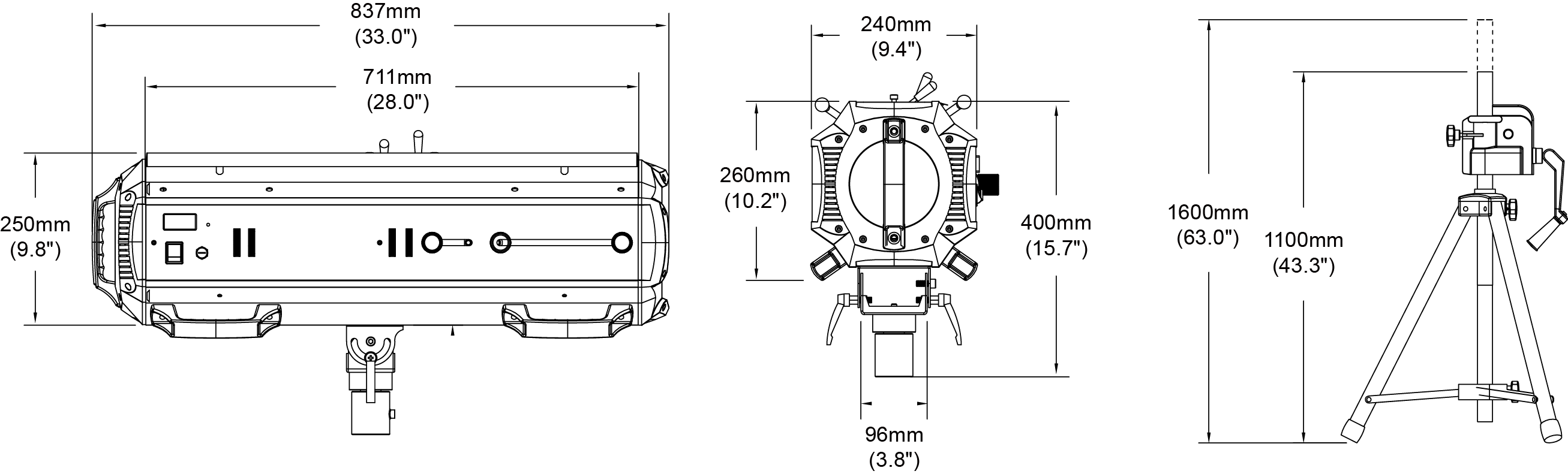

Exterior Dimensions
Product Video
GTD-330 FS
