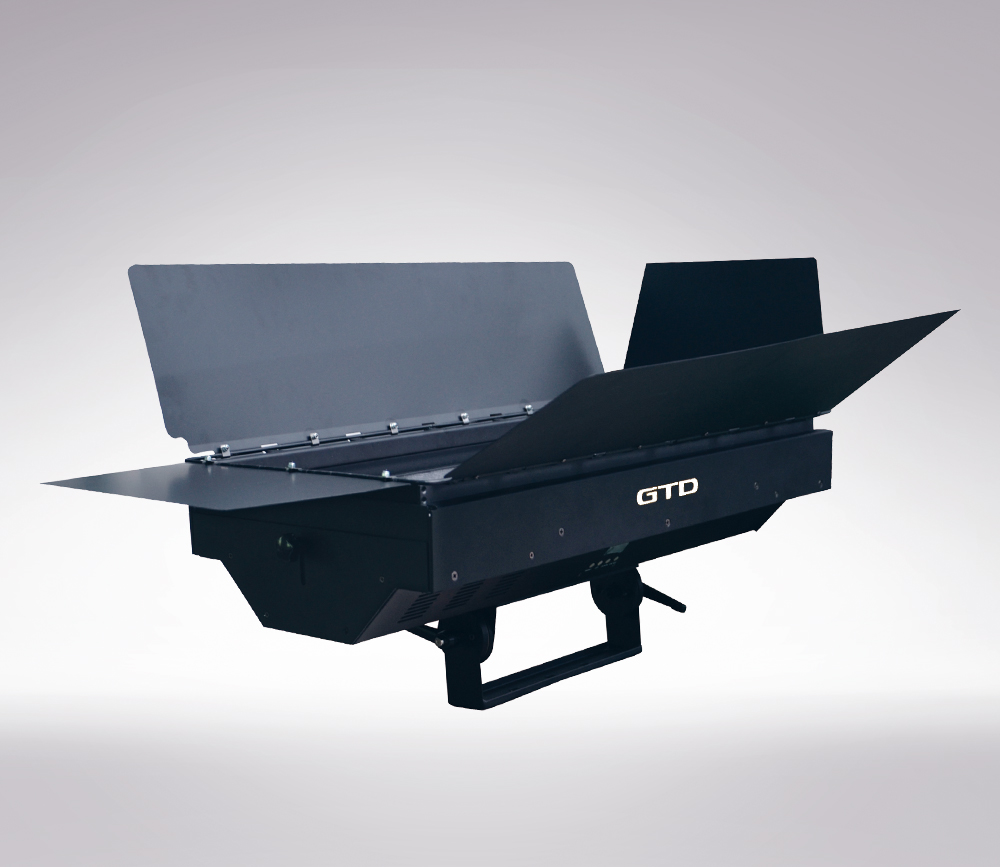

Product Model
GTD-LYS011764WW
Product Series
Television Series
Technical Specification
Optical
Light source: 0,1W WW (3200K) 1764 LEDs
Expected average lifetime: 50000 hours
Beam angle: 66°
Total Output (Lumen): 11100 lm
Color temperature: 3200K
CRI: ≥92

Electrical
Power input, nominal: AC 100-240V 50/60Hz
Max. Power consumption: 140W
Power supply unit: Auto-ranging electronic SMPS
Main fuse: 250V/3.15A

Control and programming
Control channels (DMX): 7/4
Protocol: DMX-512
Display: 4 x 8 segment display
16-bit control: Dimmer, cold white color, warm white color

Physical / Installation
Weight: 10 kg(22 lbs.)
IP rating: IP20
Material: Aluminum, steel, plastic
Mounting points: 12mm holes for G-Clamp
Minimum distance to combustible materials: 0.5 mtr(1.64 ft.)
Minimum distance to illuminated surfaces: 1 mtr(3.3 ft.)

Dynamic effects
Pan/Tilt movement: Manually adjustable
Dimmer: 0-100%, 16-bit, electronic linear dimming

Thermal
Operating range: 14˚F - 113˚F(-10˚C - 45˚C)
Startup range: 5˚F - 113˚F(-15˚C - 45˚C)
Storage range: -40˚F - 140˚F(-40˚C - 60˚C)
Cooling: Passive
Humidity: ≤85%

Connections
AC power: Neutrik powerCon
DMX data input/output: Chassis 5-pin Neutrik XLR (in/out)

Certification and Safety
EMC: EN 55103-1:2009, EN 55103-2:2009, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013
Safety: EN 60598-2-17:1989/A2:1991

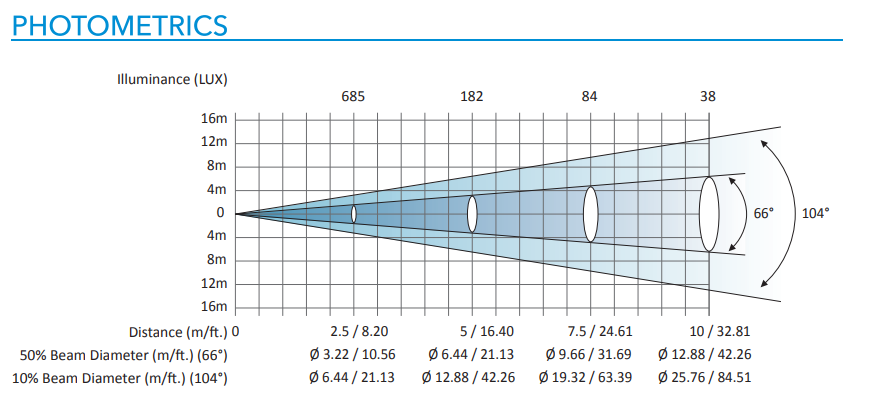

Photometric Diagram
Gobos & Colours

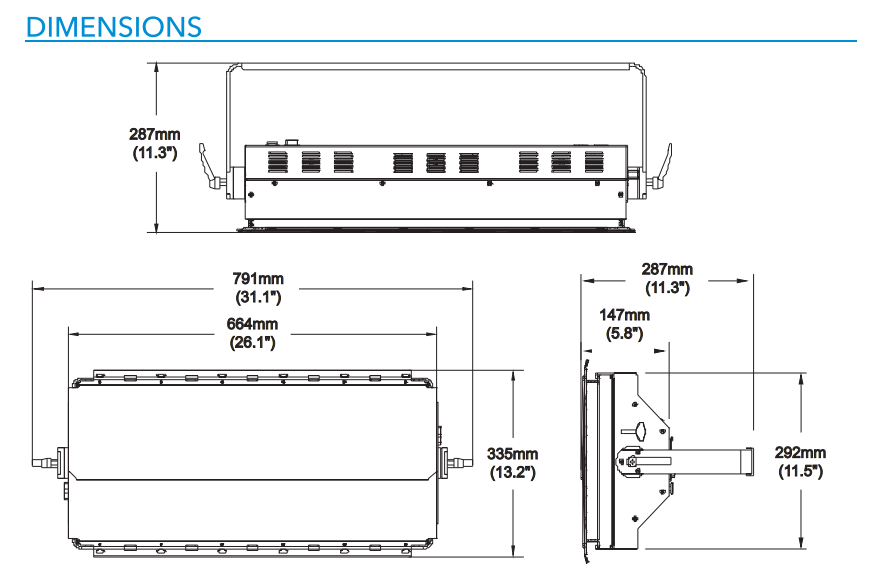

Exterior Dimensions
