Product Model

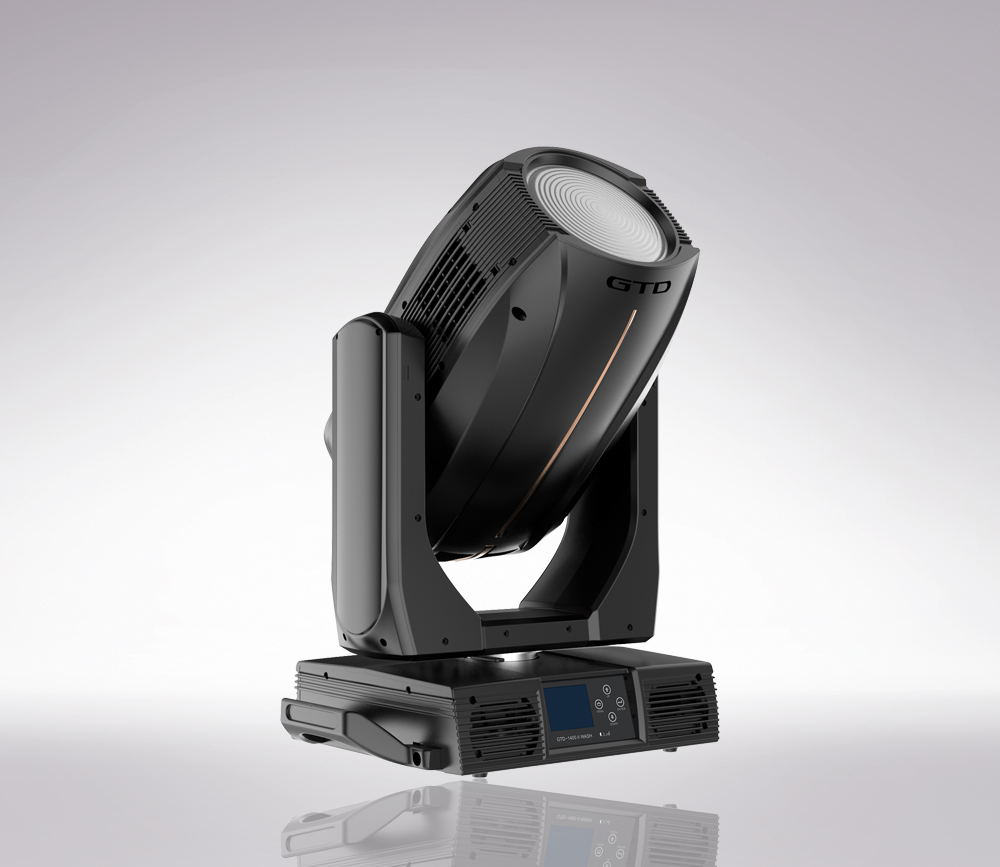

GTD-1400 II Wash
Product Series
Technical Specification

Light source: OSRAM 1400/PS Brilliant
Expected average lifetime: 750 hours
Beam angle: Zoom range 5°/10° - 30°/65°
Ballast: Electronic
Total Output (Lumen): 29283 lm narrow/38175 lm wide

Color wheel: 2 wheels including 12 interchangeable gobos + open, linear color shifing, split color and "Rainbow effect”
CMY / CTO: CMY + CTO for linear infinity color mixing

Power input, nominal: AC 200-240V 50/60Hz
Max. Power consumption: 1814W
Power supply unit: Auto-ranging electronic SMPS
Main fuse: 250V/15A

Control channels (DMX): 16/14/22
Protocol: DMX-512
Display: Graphic LCD backlit
16-bit control: Dimmer, CMY colors, CTO, zoom, pan/tilt

Physical / Installation
Weight: 39kg(86 lbs.)
IP rating: IP20
Material: Aluminum, steel, plastic
Mounting points: Four quarter-turn locking points + attachment points for safety wire
Minimum distance to combustible materials: 0.5 mtr(1.64 ft.)
Minimum distance to illuminated surfaces: 5 mtr(16.4 ft.)

Dynamic effects
Pan/Tilt movement: 540˚/ 270˚
Strobe: 1-20Hz, synchronized, pulse effects
Dimmer: 0-100%, 16-bit, mechanical dimming
Zoom: Motorized
Built-in macros: Color

Operating range: 5˚F - 113˚F(-15˚C - 45˚C)
Startup range: -13˚F - 113˚F(-25˚C - 45˚C)
Storage range: -40˚F - 140˚F(-40˚C - 60˚C)
Cooling: Active fan
Humidity: ≤85%

AC power: Neutrik powerCon
DMX data input/output: Chassis 3-pin & 5-pin Neutrik XLR (in/out)

Certification and Safety
EMC: EN 55103-1:2009, EN 55103-2:2009, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013
Safety: EN 60598-2-17:1989/A2:1991

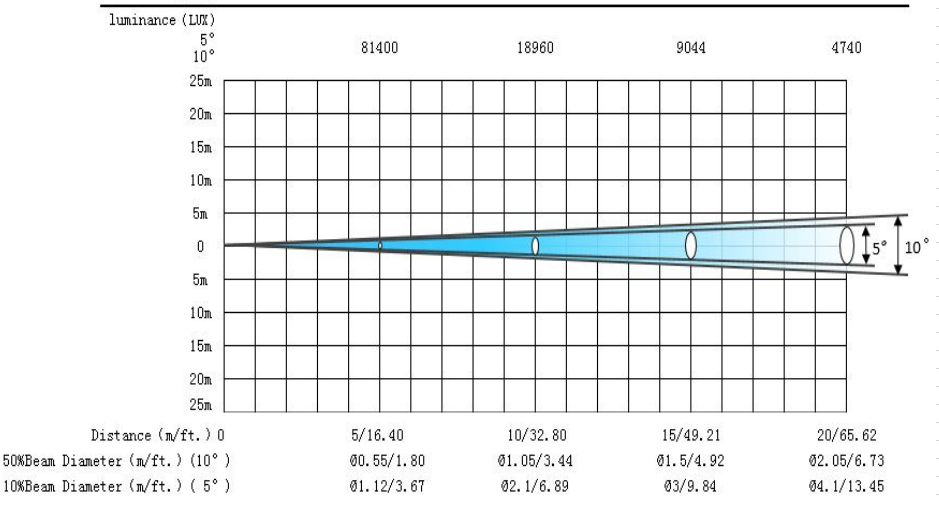

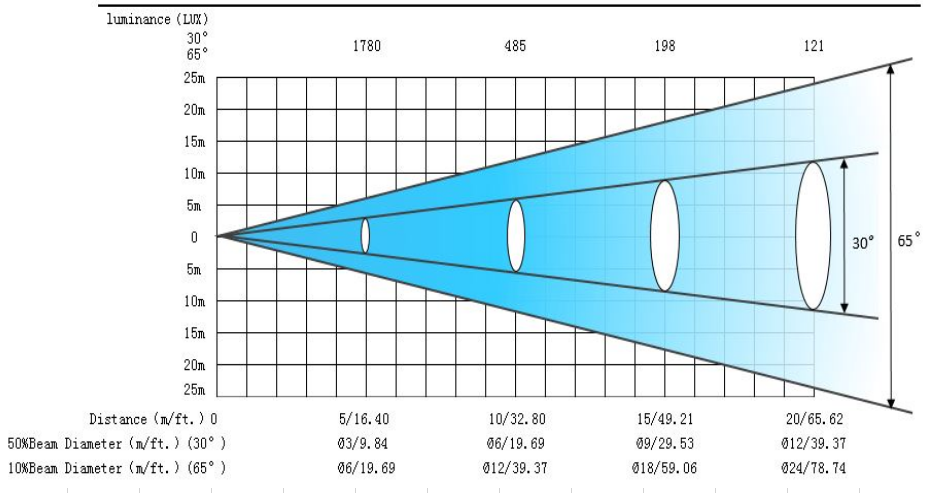

Photometric Diagram

Gobos & Colours

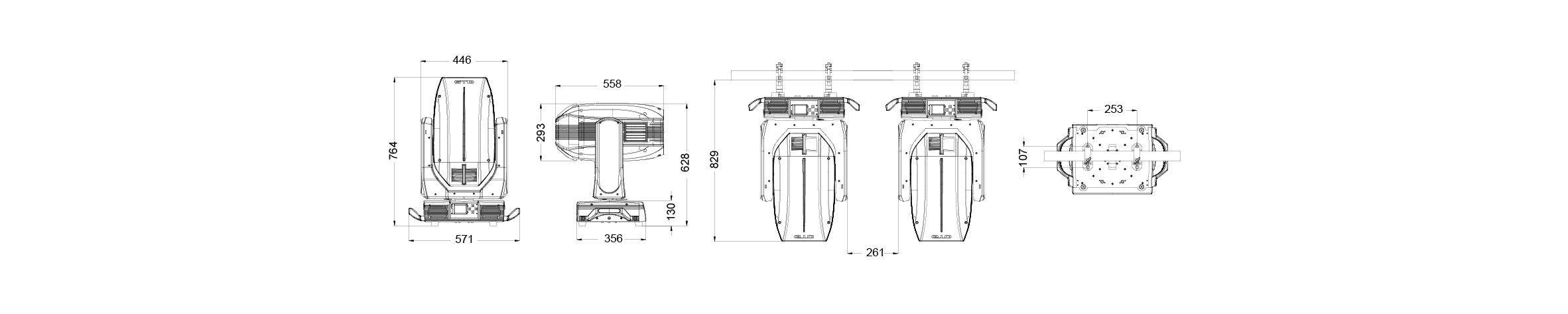

Exterior Dimensions

4.92 ft. (1.5m) cable with Neutrik PowerCon
2 x G-clamp, for Ø42-52mm, Max. 200 kg
