Optical
· Light source: OSRAM SIRIUS HRI 371 W
· Expected average lifetime: 3000 hours
· Color temperature: 7500K
· Focus: Variable range, from 15m to infinity

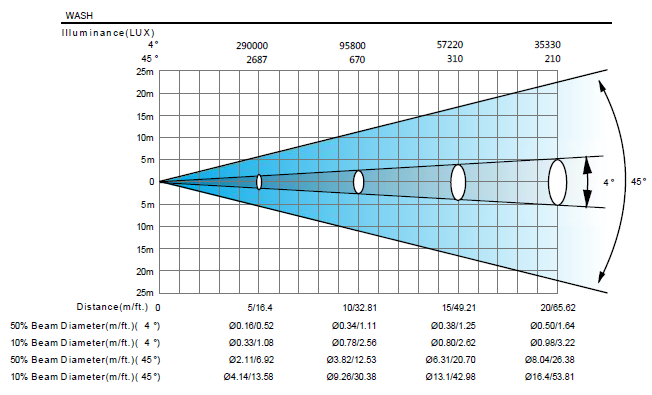

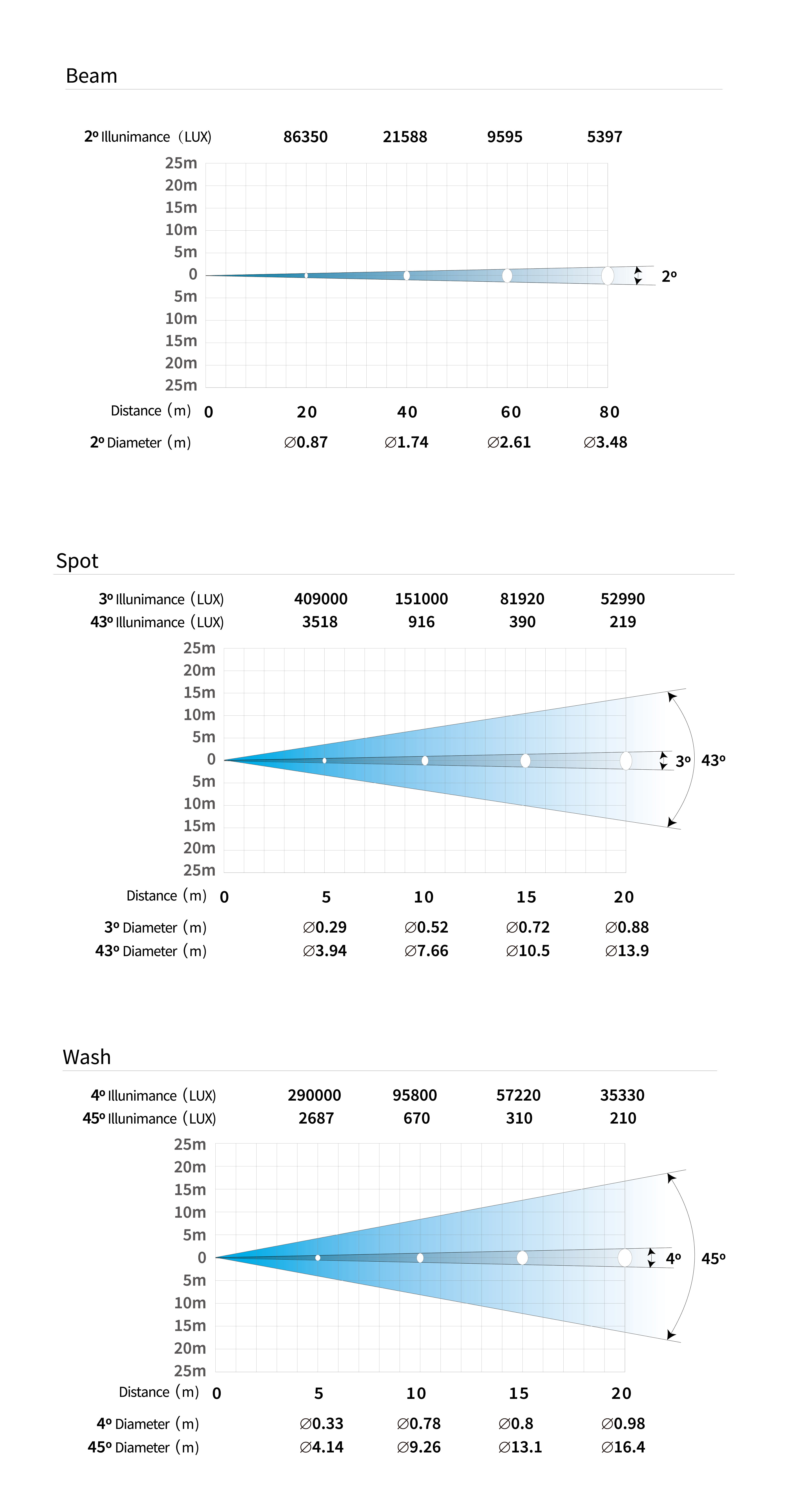

· Zoom range: BEAM 0° - 2° / SPOT 3° - 43° / WASH 4° - 45°

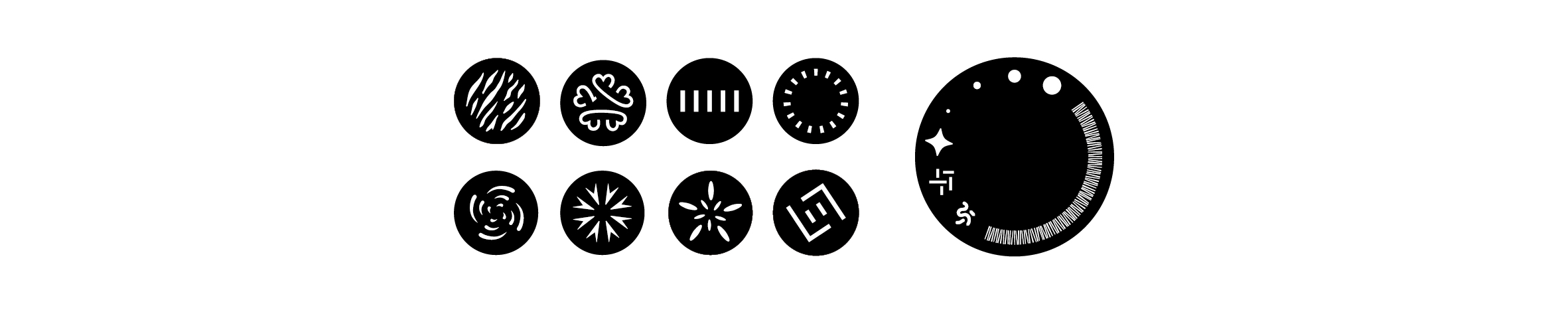

Gobo
· Rotating gobo: 8 interchangeable gobos + open
· Static gobo wheel: 6 gobos + open
Color
· Color wheel: 2 colors wheels, 8 colors, CMY + CTO
Electrical
· Power input, nominal: AC 100-240V 50/60Hz
· Max. Power consumption: 503W
· DMX data in/out: 3-pin, XLR
Control and programming
· Control channels (DMX): 24/23/32
· Protocol: DMX-512 RDM
· Display: LCD backlit
Dynamic effects
· Pan/Tilt movement: 540˚/ 270˚
· Strobe: 1-25Hz, synchronized, pulse effects
· Dimmer: 0-100%, 16-bit, mechanical dimming
· Prism: Linear + 16 facet prism
· Frost: 1 independent frost plate

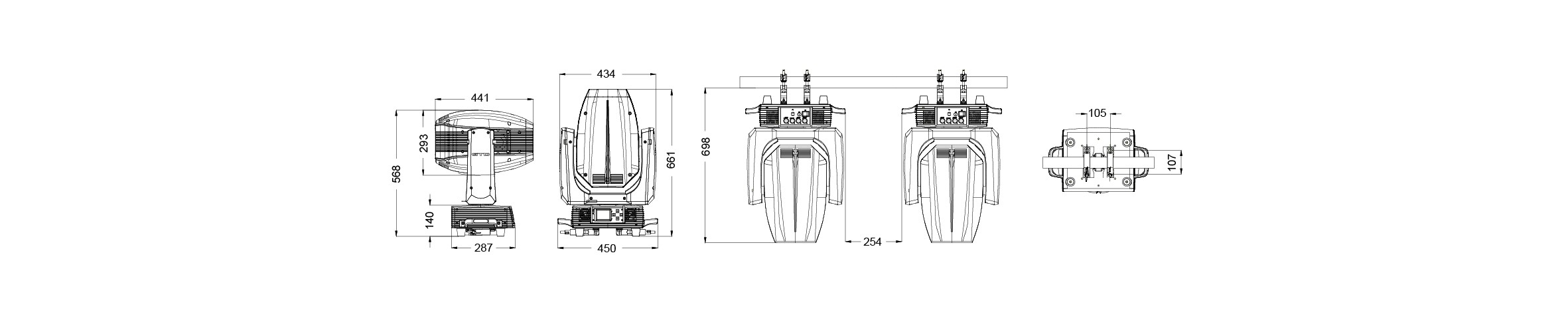

Physical / Installation
· Weight: 28 kg(61.7 lbs.)
· IP rating: IP20
Others
· Power-off setting: built-in rechargeable battery to set menu without power
· Eco mode: Auto stand-by and sleep mode when signal disconnected. Make the fixture more stable and safe.
· Control Protocol: DMX signal, software upgraded by DMX.
· Cooling system: Active fan
