Product Model
GTD-LF300
Product Series
television series
Technical Specification

OPTICAL

· Light Source: COB 300W

· Expected lifetime: 20,000 hours

· Color temperature correction: 5600K/3200K

· Zoom range: 12°- 55° electronic zoom

· Ra95

ELECTRICAL

· Power input: AC 100-240V 50/60Hz

· Max. Comsumption: 349W

· DMX data input/output: XLR 3-pin

CONTROL/PROGRAMMING

· Control channels (DMX): 3CH/2CH

· Protocol: DMX-512 RDM

· Display: LCD display

PHYSICAL

· Weight: 9kg (19.84lbs.)

· IP rating: IP20

DYNAMIC EFFECTS

· Color: RGB color mixing

· Dimmer: 0-100%, electronic linear dimming

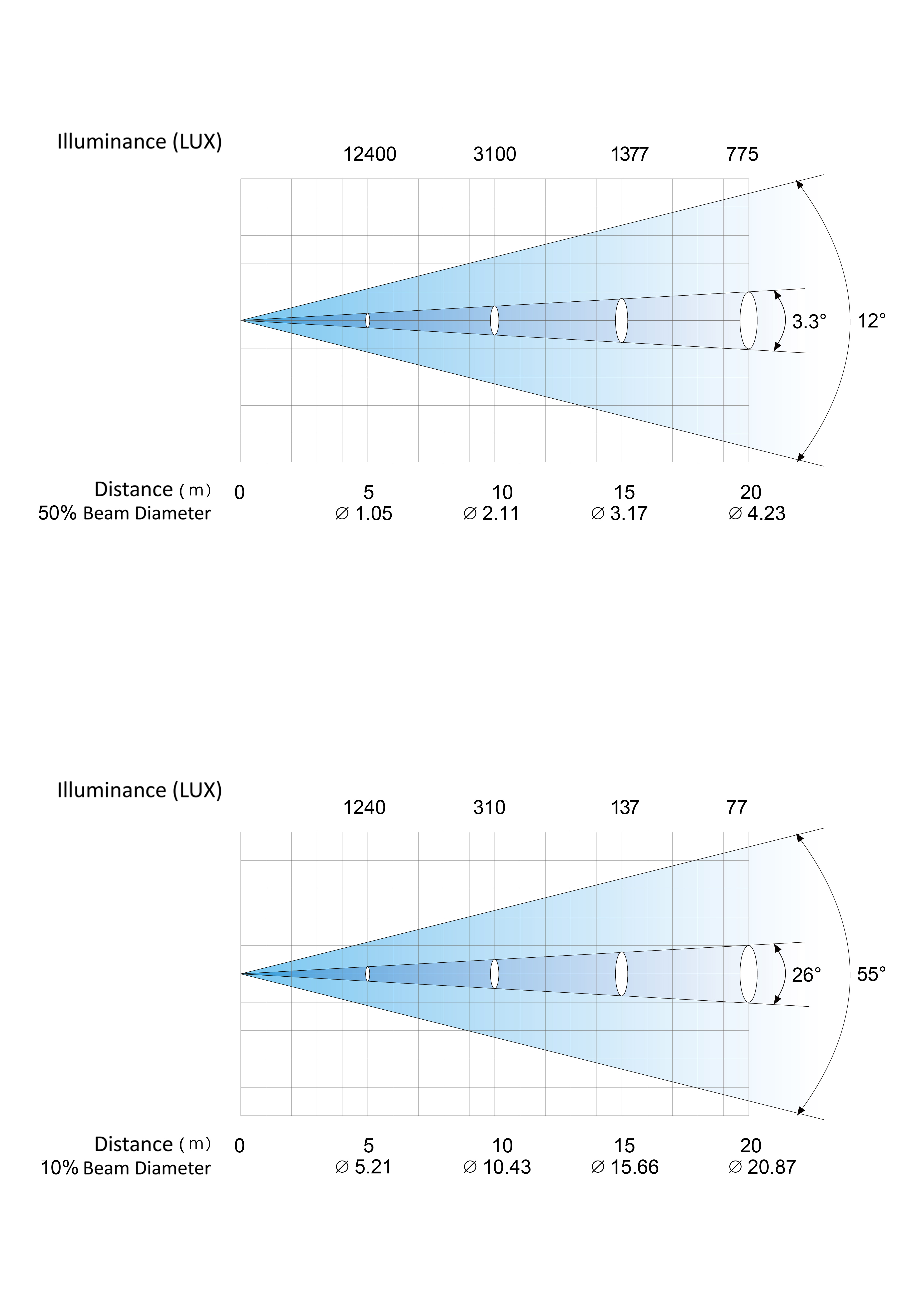

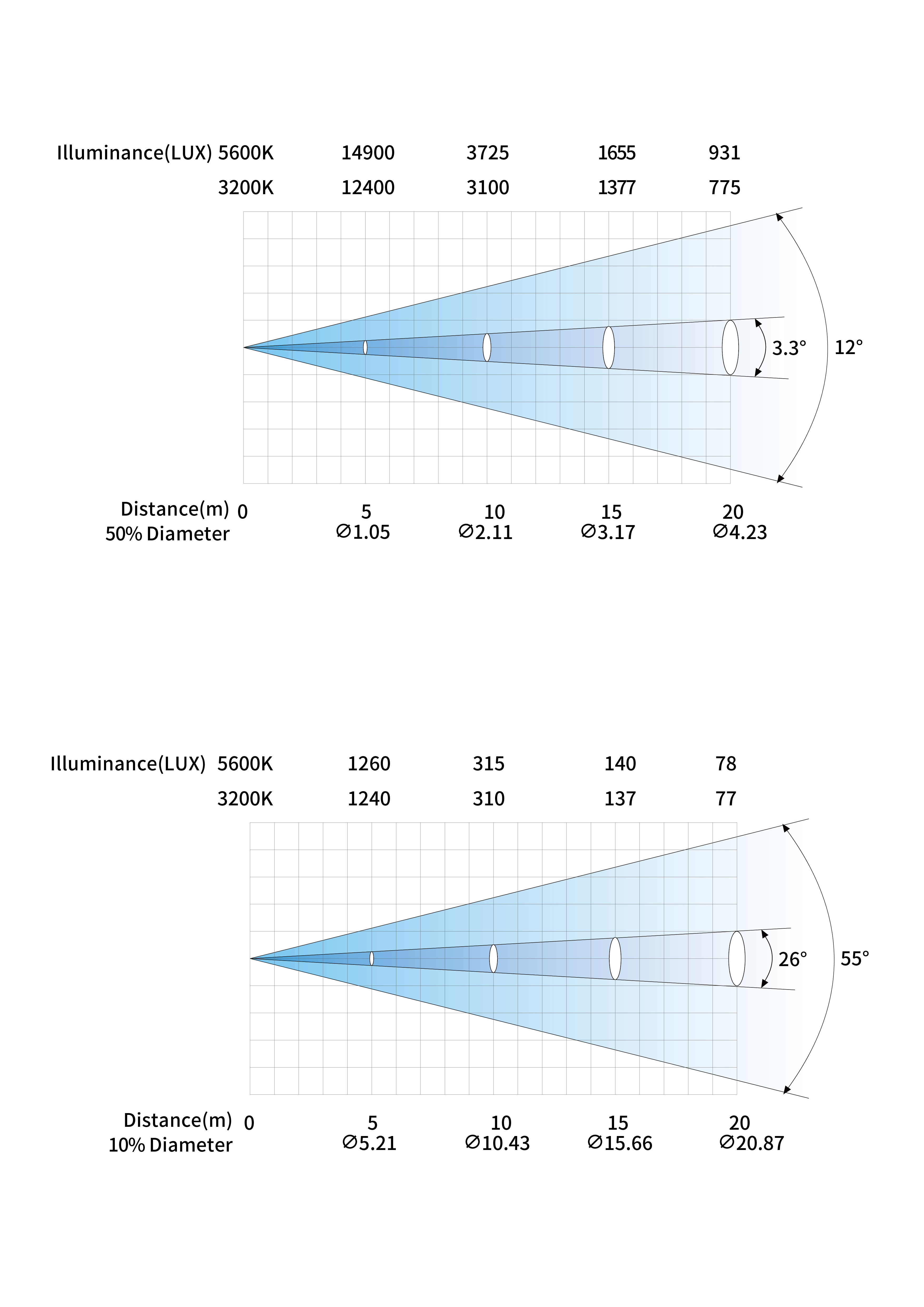

Photometric Diagram
Gobos & Colours

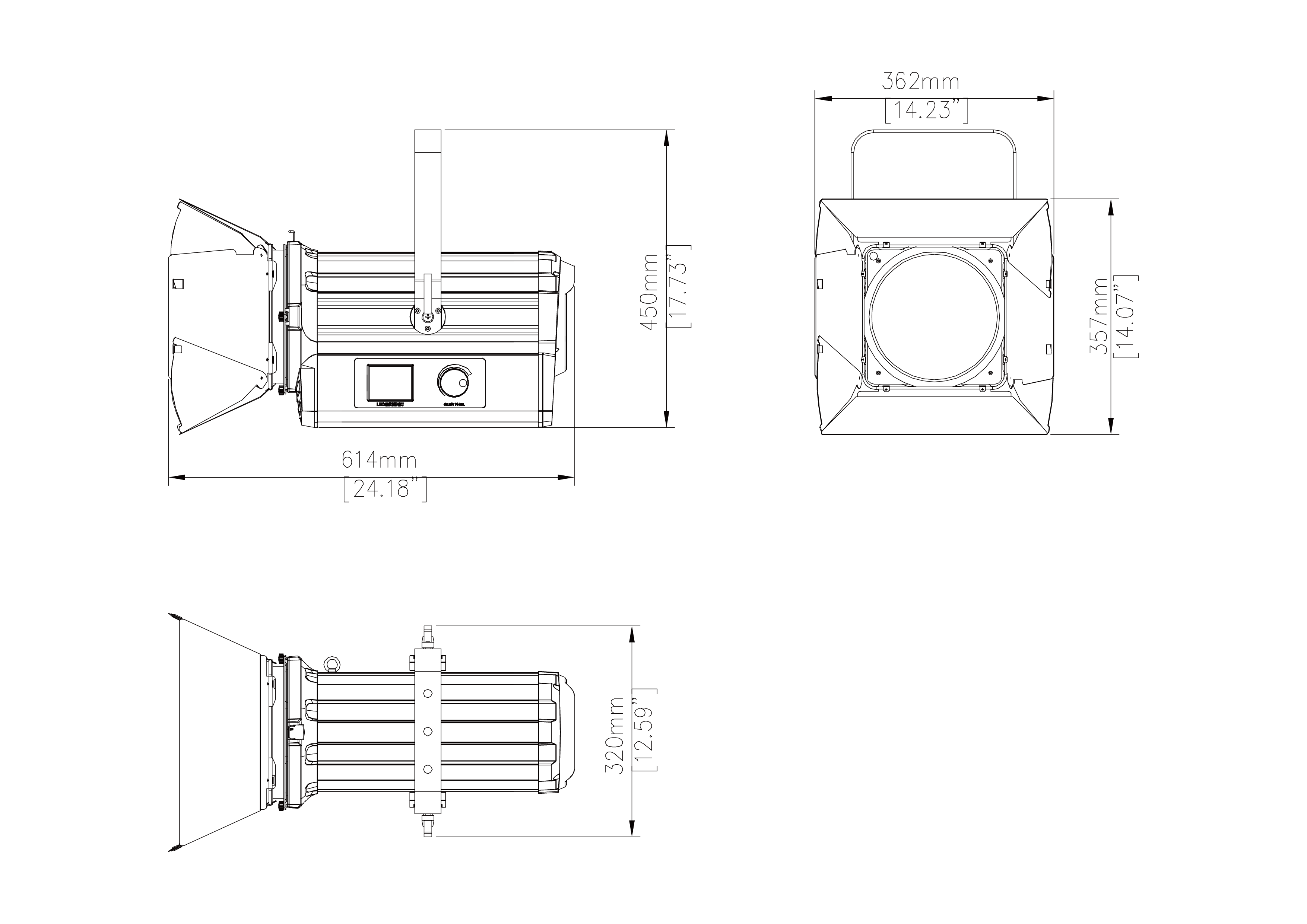

Exterior Dimensions
Accessories
Downloads
Product Video
GTD-LF300
