Optical
Light source: OSRAM Lok-it! 1400/PS Brilliant
Expected average lifetime: 750 hours

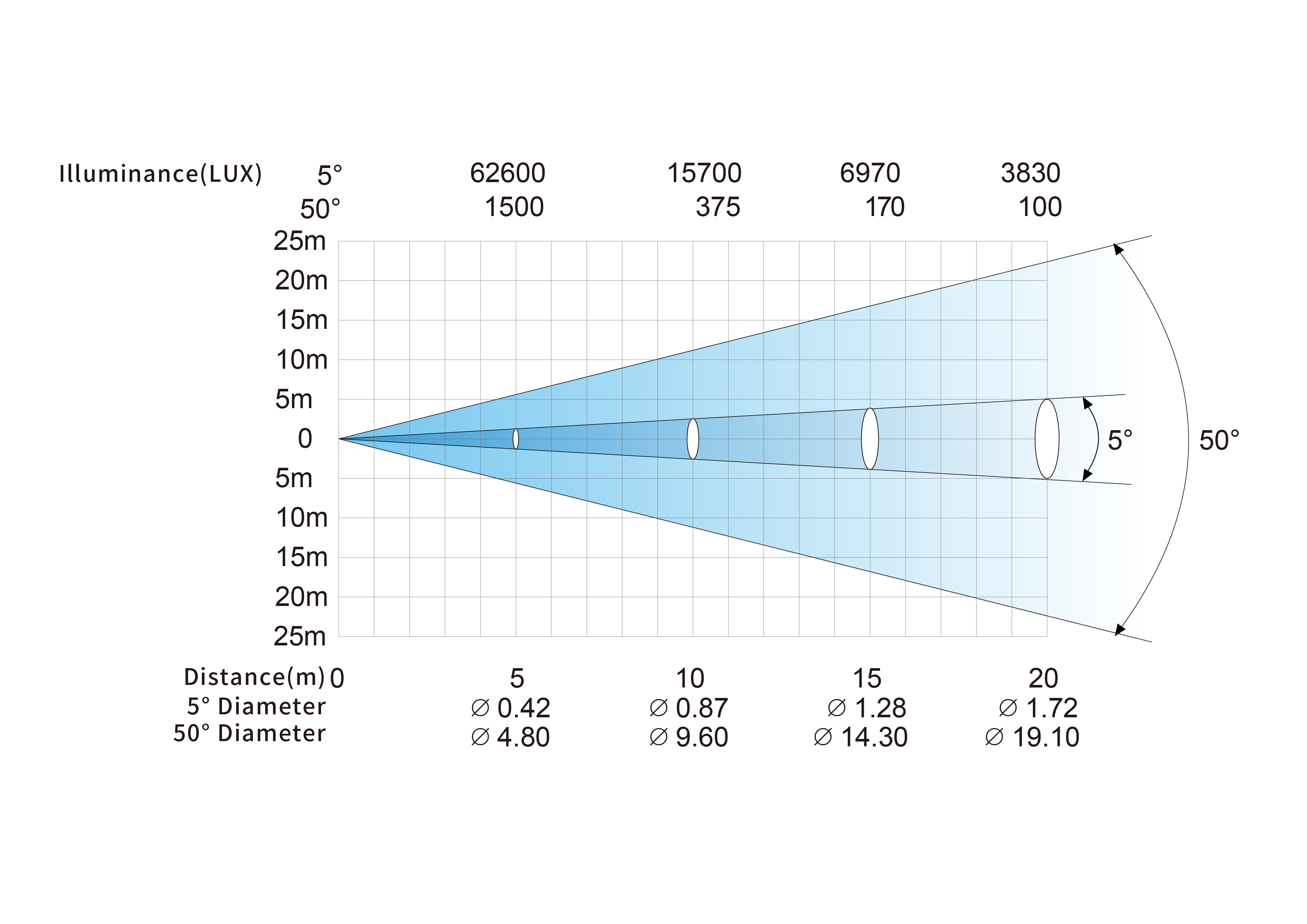

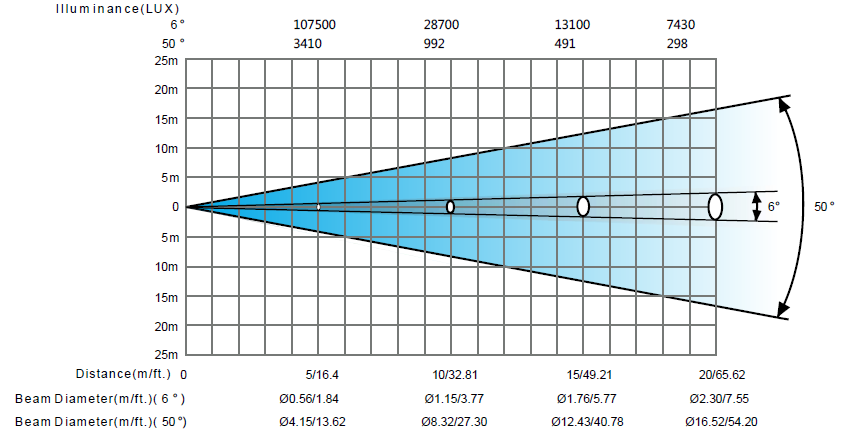

Beam angle: Zoom range 5˚- 55˚
Focus: Variable range, from 8m to infinity
Prism: 3-facet prism, CW/CCW rotation, variable speed
Frost: On/Off
Ballast: Electronic
Animation effect: Aluminium animation wheel, used alone or in combination with gobos, rotating in both directions at variable speed
Total Output (Lumen): 35000 lm
Color temperature: 2700K - 6000K
CRI: ≥96
Gobo
Rotating gobo: 5 interchangeable gobos + open, indexing, CW/CCW rotation, variable speed
Static gobo wheel: 7 gobos + open, CW/CCW rotation, variable speed
Gobo outside diameter: 36 mm
Max. Image diameter: 26 mm
Max. Thickness: 2.6 mm(Glass)
Glass/Metal gobo: Glass
Color
Color wheel: 7 colors + open, split color, CW/CCW rotation, variable speed
CMY / CTO: CMY + CTO for linear infinity color mixing
Electrical
Power input, nominal: AC 200-240V 50/60Hz
Max. Power consumption: 1660W
Power supply unit: Auto-ranging electronic SMPS
Main fuse: 250V/15A
Control/programming
Control channels (DMX): 37/34/54
Protocol: DMX-512, RDM
Display: Graphic LCD backlit
16-bit control: Dimmer, CMY colors, CTO, blade, framing rotation, focus, zoom, gobo indexing & rotation, rotating gobo wheel positioning
32-bit control: Pan/tilt

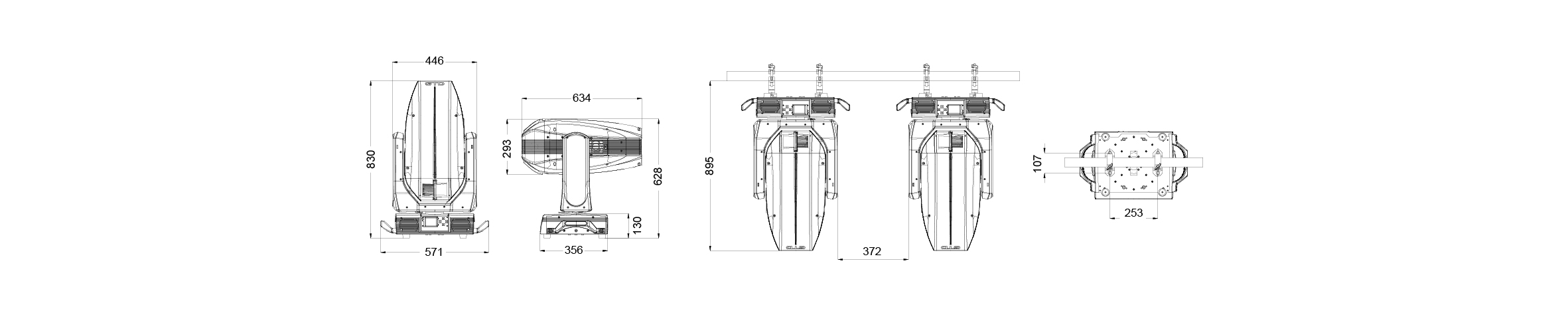

Physical/Installation
Weight: 46 kg(101.4 lbs.)
IP rating: IP20
Material: Aluminum, steel, plastic
Mounting points: Four quarter-turn locking points + attachment points for safety wire
Minimum distance to combustible materials: 0.5 mtr(1.64 ft.)
Minimum distance to illuminated surfaces: 5 mtr(16.4 ft.)
Dynamic effects
Pan/Tilt movement: 540˚/ 270˚
Iris: 5-100% high speed, with built-in macros
Strobe: 1-25Hz, synchronized, pulse effects
Dimmer: 0-100%, 16-bit, mechanical dimming
Zoom: Motorized
Built-in macros: Color, Iris

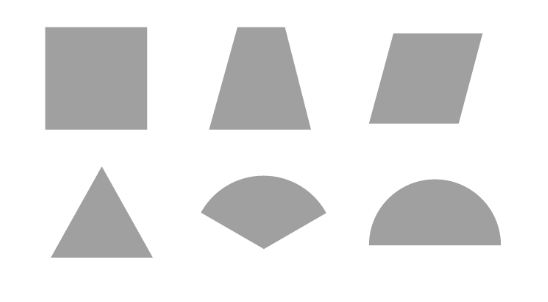

Framing: Rotating module +/- 45˚, 4 shutter blades, full crossover of each blade, angle of each blade +/-45˚
Thermal
Operating range: 5˚F - 113˚F(-15˚C - 45˚C)
Startup range: -13˚F - 113˚F(-25˚C - 45˚C)
Storage range: -40˚F - 140˚F(-40˚C - 60˚C)
Cooling: Active fan
Humidity: ≤85%
Connections
AC power: Neutrik powerCon
DMX data input/output: Chassis 3-pin & 5-pin Neutrik XLR (in/out)
Certification and Safety
EMC: EN 55103-1:2009, EN 55103-2:2009, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013
Safety: EN 60598-2-17:1989/A2:1991
