Product Model

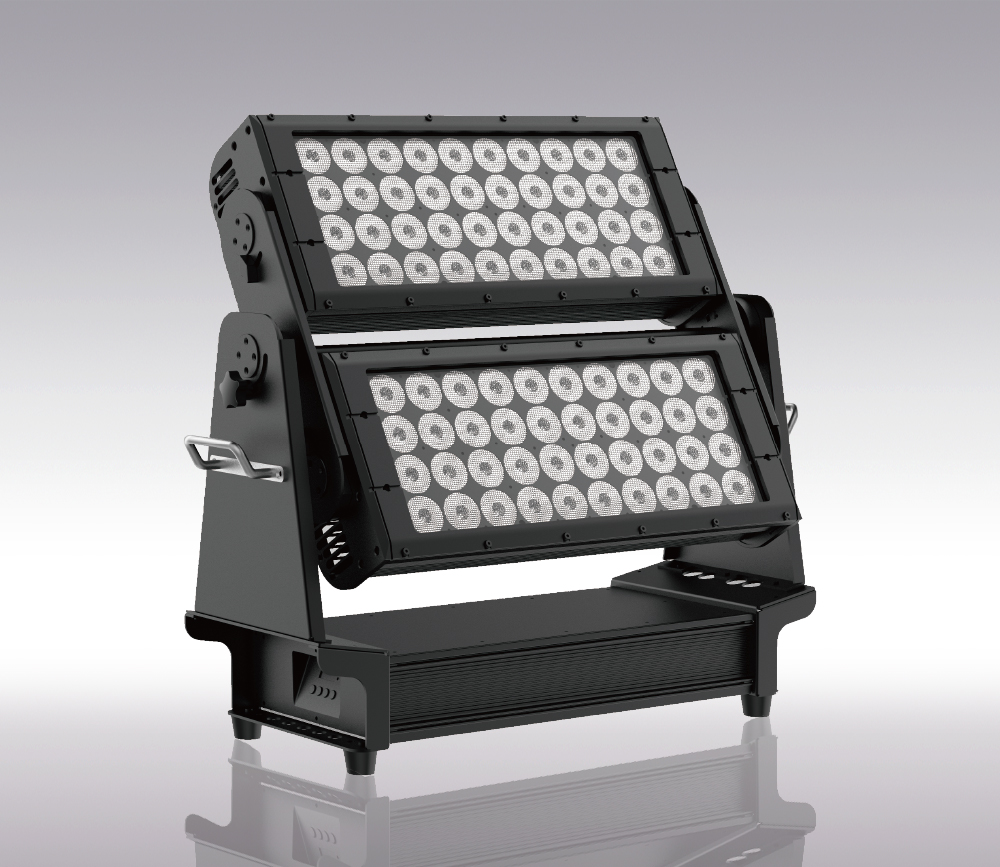

GTD-LT1600P
Product Series
IP65 SERIES
Technical Specification
Optical
Light source: 20W(RGBW 4-in-1) 80 LEDs
Expected average lifetime: 50000 hours
Angle: 20°; 10°/40° optional
Ballast: Electronic
Color temperature: 3200K-7200K

Electrical
Power input, nominal: AC 100-240V - 50/60Hz
Max. Power consumption: 1514W
Power supply unit: Wide range electronic SMPS

Control and programming
Control channels (DMX): 10/17
Protocol: DMX-512 RDM
Display: LED

Dynamic effects
Strobe: 1-25Hz, high speed strobe, pulse randomly, strobe synchronously and asynchronously
Dimmer: 0-100%, 16-bit, electronic linear dimming

Physical / Installation
Weight: 31 kg(68.34 lbs.)
IP rating: IP65
Material: Aluminum, copper, steel, plastic
Mounting points: Fixed folding lamp hook + attachment points for safety wire
Minimum distance to combustible materials: 0.5 mtr(1.64 ft.)
Minimum distance to illuminated surfaces: 5 mtr(16.4 ft.)

Thermal
Operating range: 5˚F - 113˚F(-15˚C - 45˚C)
Startup range: -13˚F - 113˚F(-25˚C - 45˚C)
Storage range: -40˚F - 140˚F(-40˚C - 60˚C)
Cooling: Active fan
Humidity: ≤98%

Connections
AC power: Self-contained power cord
DMX data input/output: Chassis 3-pin

Certification and Safety
EMC: EN 55103-1:2009, EN 55103-2:2009, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013
Safety:
EN 60598-2-17:1989/A2:1991, GB 7000.1-2015, GB 7000.217-2008

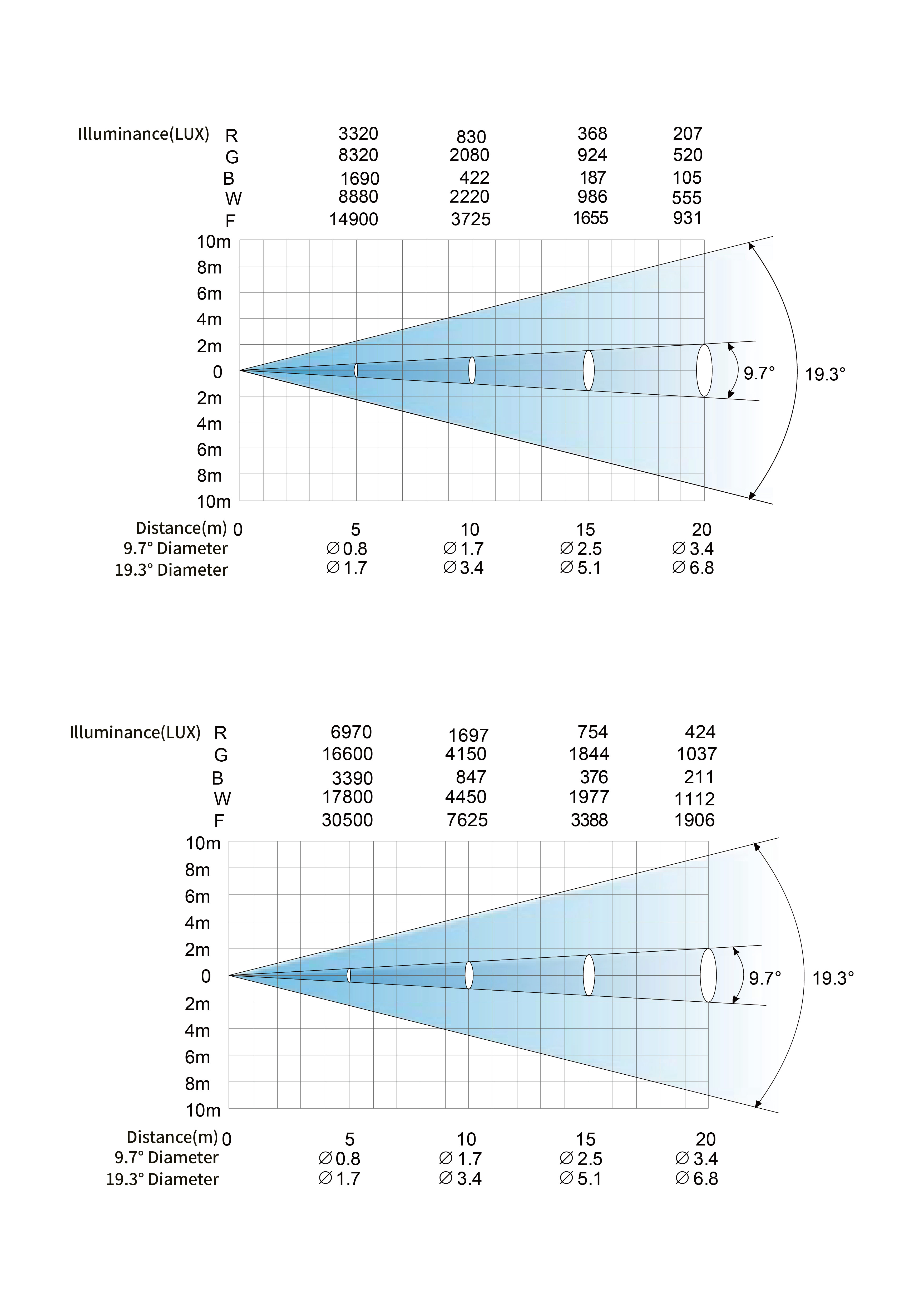

Photometric Diagram
Gobos & Colours

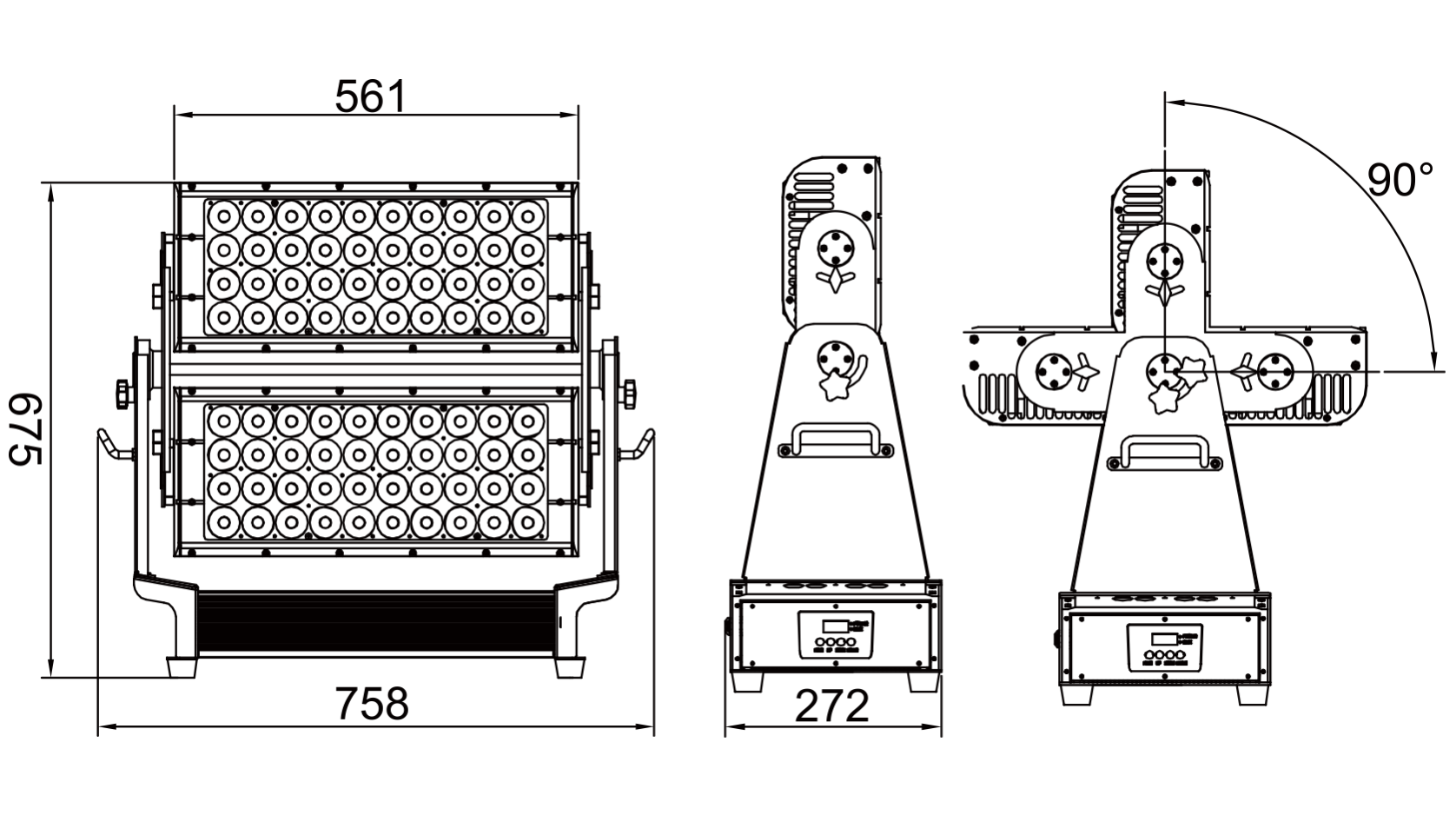

Exterior Dimensions
Accessories
Downloads
Product Video
GTD-LT1600P
