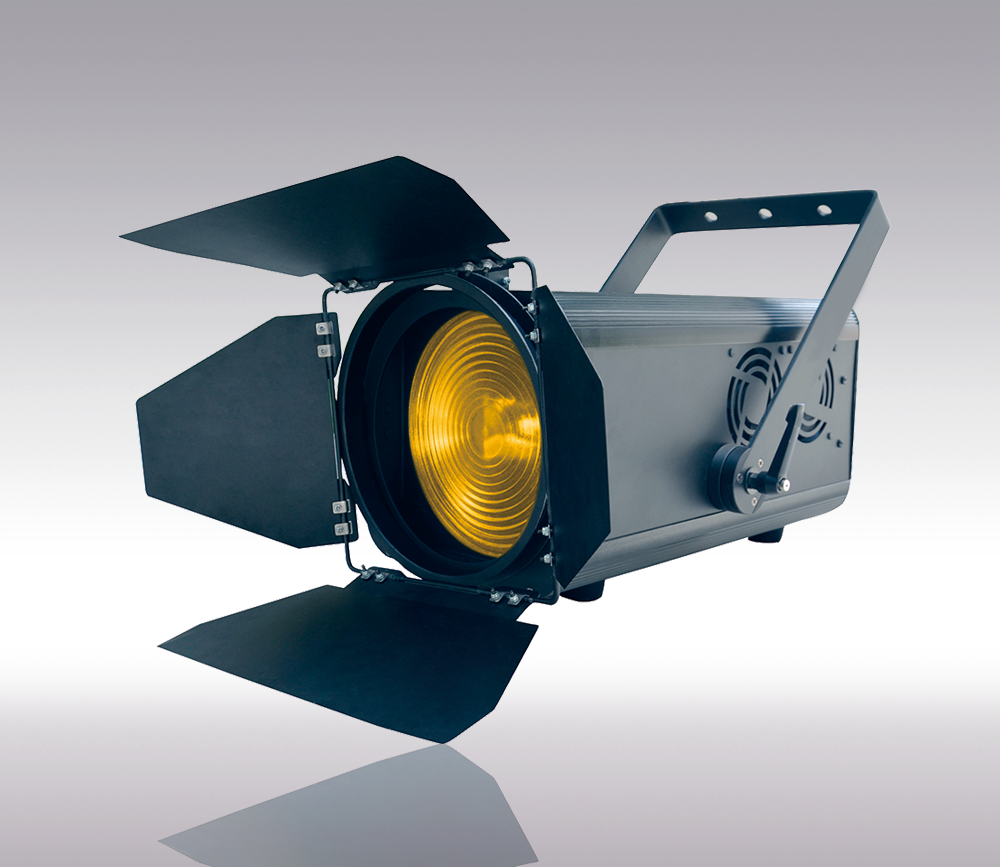

Product Model
GTD-LF200
Product Series
television series
Technical Specification

OPTICAL

· Light Source: COB 200W

· Expected lifetime: 20,000 hours

· Color temperature correction: 5,600K/3,200K

· Zoom range: 13°-74° manual zoom

· Ra95

ELECTRICAL

· Power input: AC 100-240V 50/60Hz

· Max. Comsumption: 180W

· DMX data input/output: XLR 3-pin

CONTROL/PROGRAMMING

· Control channels (DMX): 1CH

· Protocol: DMX-512

PHYSICAL

· Weight: 9.4kg (20.72 lbs.)

· IP rating: IP20

DYNAMIC EFFECTS

· Dimmer: 0-100%, electronic linear dimming

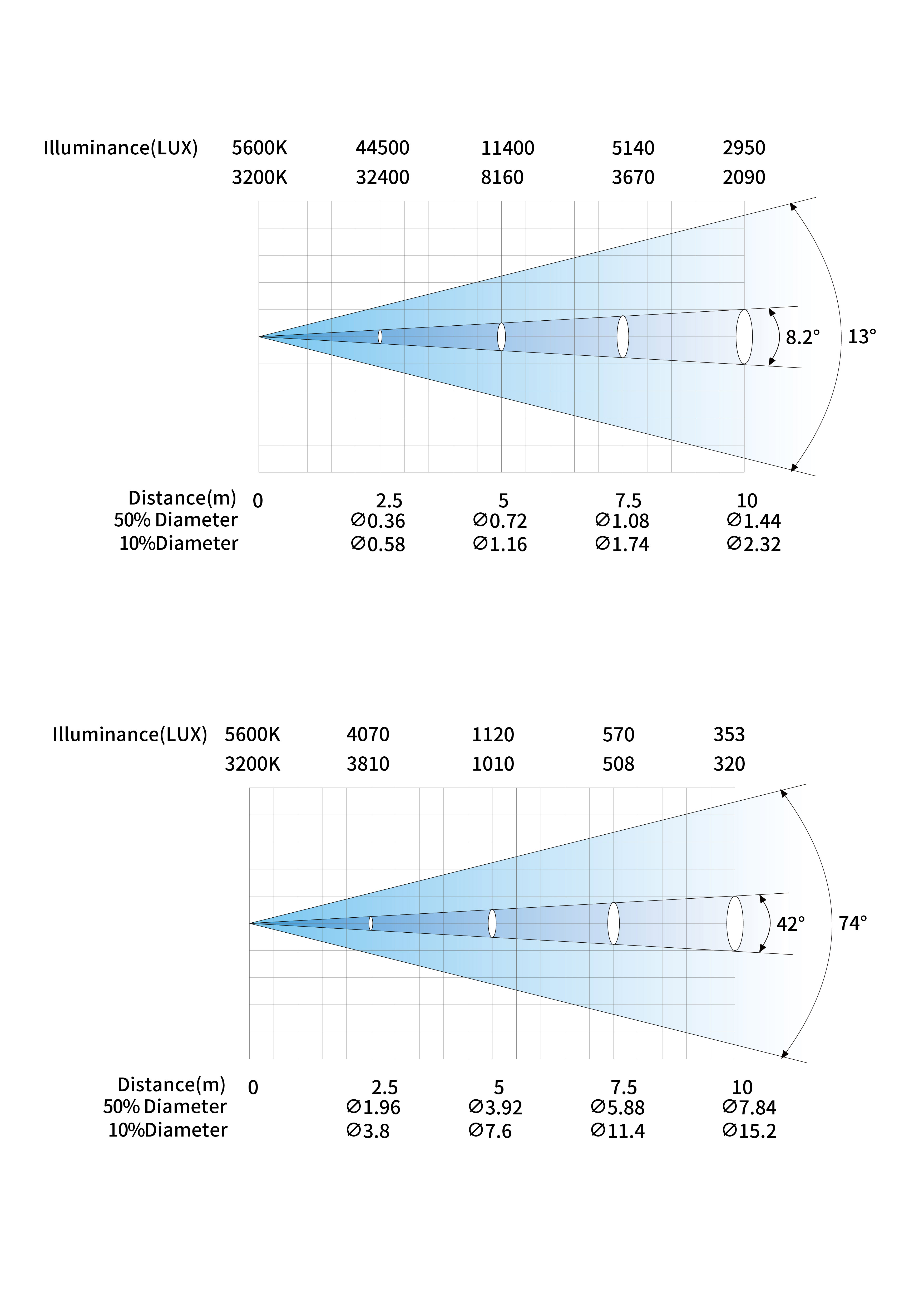

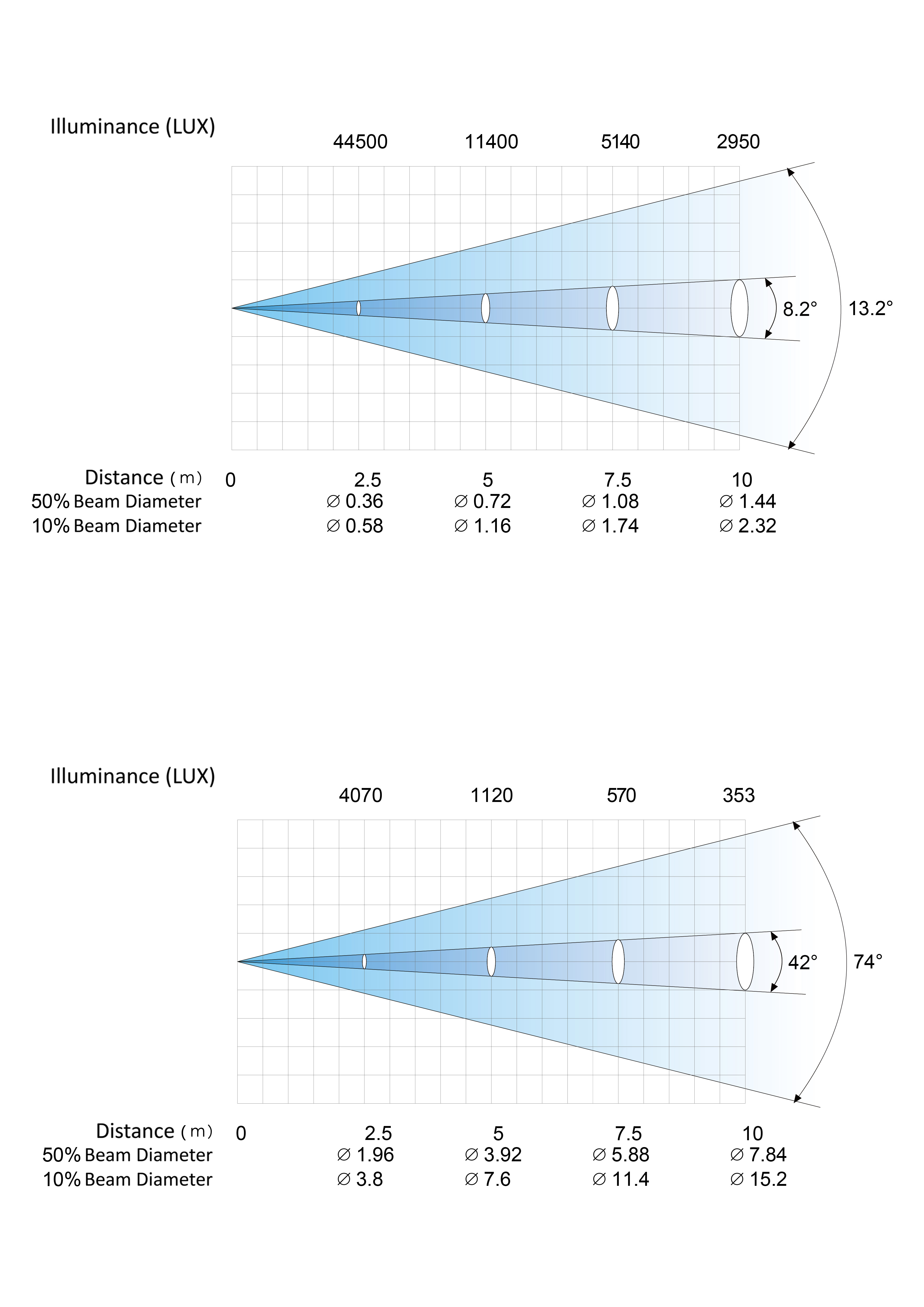

Photometric Diagram
Gobos & Colours

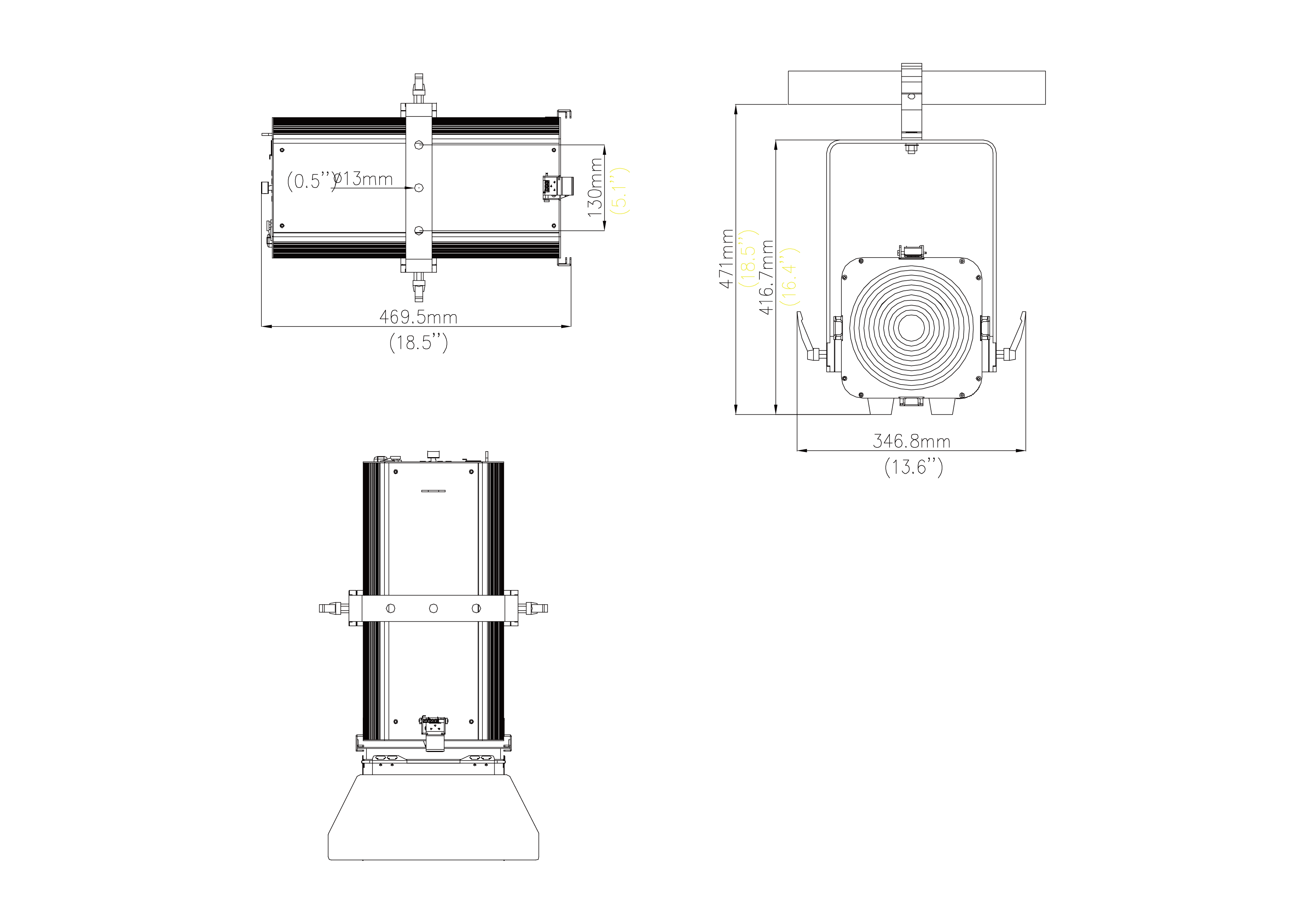

Exterior Dimensions
Accessories
Downloads
Product Video
GTD-LF200
