Product Model
Product Series
330W series
Technical Specification

Light source: OSRAM SIRIUS HRI 330 W XL
Expected average lifetime: 1500 hours
Beam angle: Zoom range 3° - 11° beam application, zoom range 7° - 29° spot application, zoom range 13° - 46° wash application
Focus: Variable range, from 5m to infinity
Prism: 2 x 8-facet prism, CW/CCW rotation, variable speed
Frost: On/Off
Ballast: Electronic
Total Output (Lumen): 9600 lm

Rotating gobo: 8 interchangeable gobos + open, indexing, CW/CCW rotation, variable speed
Static gobo wheel: 11 gobos + open, CW/CCW rotation, variable speed
Gobo outside diameter: 14.4 mm
Max. Image diameter: 9.5 mm
Max. Thickness: 0.5 mm(Metal)/1.1 mm(Glass)
Glass/Metal gobo: Glass/Metal

Color wheel: 11 colors + open, split color, CW/CCW rotation, variable speed
CMY / CTO: CMY for linear infinity color mixing

Power input, nominal: 100-240VAC 50/60Hz
Max. Power consumption: 540W
Power supply unit: Auto-ranging electronic SMPS
Main fuse: 250V/6.3A

Control channels (DMX): 24/21/30
Protocol: DMX-512
Display: Graphic LCD backlit
16-bit control: Dimmer, CMY colors, focus, zoom, pan/tilt, gobo indexing & rotation, rotating gobo wheel positioning

Physical / Installation
Weight: 26 kg (57 lbs.)
IP rating: IP20
Material: Aluminium, steel, plastic
Mounting points: Four quarter-turn locking points + attachment points for safety wire
Minimum distance to combustible materials: 0.5 mtr(1.64 ft.)
Minimum distance to illuminated surfaces: 5 mtr(16.4 ft.)

Dynamic effects
Pan/Tilt movement: 540˚/ 270˚
Strobe: 1-20Hz, synchronized, pulse effects
Dimmer: 0-100%, 16-bit, mechanical dimming
Zoom: Motorized
Built-in macros: Color

Operating range: -10˚- +45˚C(14˚ - 113˚F)
Startup range: -15˚- +45˚C(5˚ - 113˚F)
Storage range: -40˚- +60˚C(-40˚ - 140˚F)
Cooling: Active fan
Humidity: ≤85%

AC power: Neutrik powerCon
DMX data input/output: Chassis 5-pin Neutrik XLR (in/out)

Certification and Safety
EMC: EN 55103-1:2009, EN 55103-2:2009, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013
Safety: EN 60598-2-17:1989/A2:1991


Photometric Diagram

Gobos & Colours

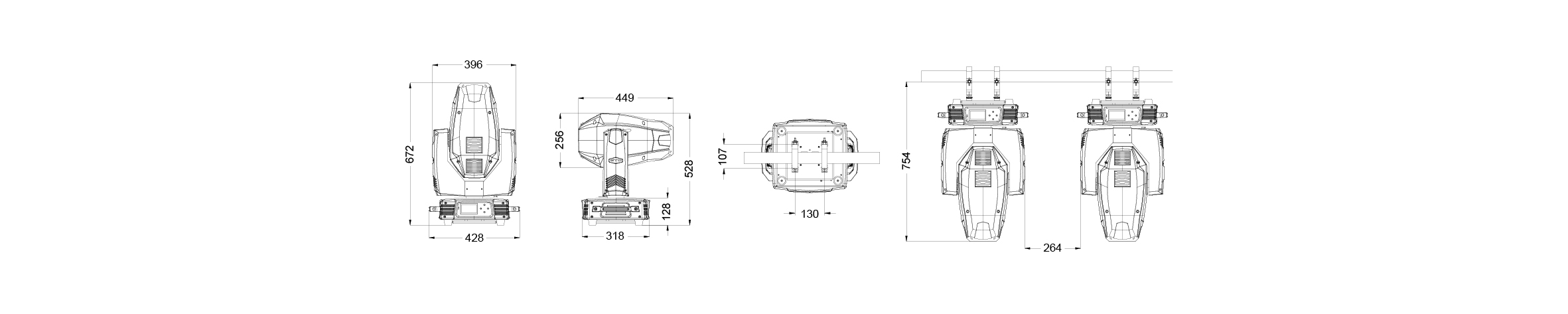

Exterior Dimensions
