Product Model

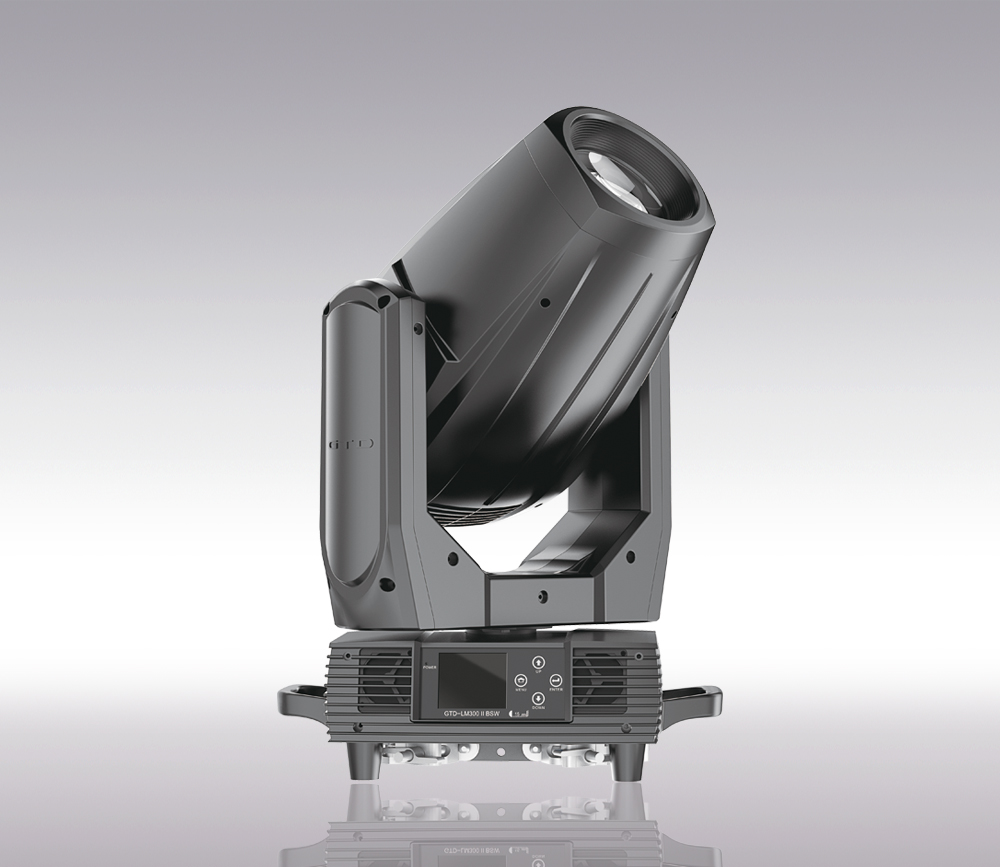

GTD-LM330 II SPOT
Product Series
Moving Head Series
Technical Specification

Optical
Light source: LED 330W
Expected average lifetime: 20000h
Color temperature correction: 6500K
Lumens: 16000 lm
Zoom range:4°~43.6° linear high speed zoom, he spot is uniform and consistent in any range
CRI: ≥70(optional ≥90)
Focus: with precision HD Glass lens, electronic linear focus clearly
Prism: 1 four-prism
Frost: 1-independent frost effect

Gobo
Rotating gobo wheel: 1 interchangeable gobo rotator, 7 optional pattern pieces
Fixed gobo wheel: 7 gobos + open, CW/CCW rotation, variable speed.
Gobo outside diameter: 23 mm
Max. Image diameter: 16 mm
Max Thickness: 1.1 mm
Gobo material: Glass

Color
Color wheel: 9 color gel and open gobo, linear adjustment function, “Rainbow effect” in both directions
CMY: The infinite color mixed,
CTO: Color temperature adjust linearly

Electrical
Power input, nominal: AC 100-240V 50/60Hz
Max. Power consumption: 512W
Max current: 4.8A, PF: 0.97
Power supply unit: wide range electronic SMPS
Main fuse: 6.3A
Power input: Self-contained power cord
DMX data input/output: Chassis 3-pin

Control and programming
Control channels (DMX): 23/20/30
Protocol: DMX-512 RDMDisplay: LCD

Physical / Installation
Weight: 22.6 Kg(49.8 lbs.)
IP rating: IP20

Material: Aluminum, copper, steel, plastic
Mounting points: Fixed folding lamp hook + attachment points for safety wire

Dynamic effects
Pan/Tilt movement: 540˚/270˚, adopting a function which resets 32bit accurately and automatically
Strobe: 1-25Hz, strobe randomly, pulse randomly, strobe synchronously and asynchronously
Dimmer: 0-100%, electronic linear dimming

Thermal
Operating range: 5˚F - 113˚F(-15˚C - 45˚C)
Startup range: -13˚F - 113˚F(-25˚C - 45˚C)
Storage range: -40˚F - 140˚F(-40˚C - 60˚C)
Cooling: Active fan
Humidity: ≤85%

Certification and Safety
EMC: EN 55103-1:2009, EN 55103-2:2009, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013,
Safety: EN 60598-2-17:1989/A2:1991, GB 7000.1-2015, GB 7000.217-200811

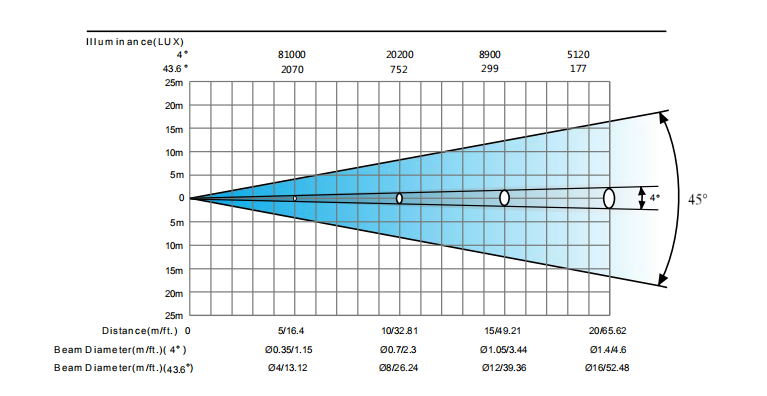

Photometric Diagram
Gobos & Colours
Exterior Dimensions
Accessories
