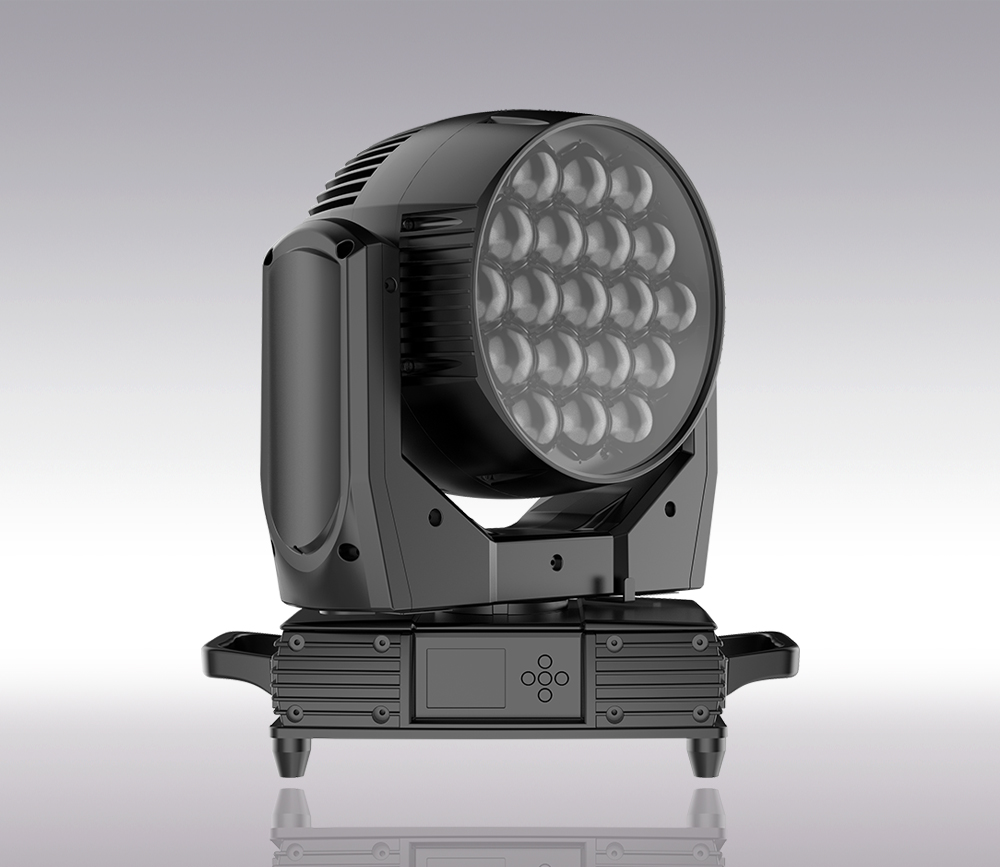

Product Model
GTD-F4019 WASH
Product Series
IP66 SERIES
Technical Specification
Optical
Light source: OSRAM LE RTDUW S2WN
Expected average lifetime: 20000 hours
Color temperature correction: 3200K-6500K
Lumens: large angle: 12984 lm, medium angle:13200 lm, small angle: 1467 lm
Zoom range: 9.8° - 48.8°(10%) / 6.6° - 33.6°(50%) linear high speed zoom
CRI: ≥77
Focus: Any multi-point focus, 5 m to infinity tracking focus
Prism: 1 four-prism
Frost: 2-independent frost effect
Color: R/G/B/W, color conversion and perfect mix-color effect

Electrical
Power input, nominal: AC 100-240V 50/60Hz
Max. Power consumption: 1062W
Max current: 10.82A, PF: ≧0.96
Power supply unit: Wide range electronic SMPS
Main fuse: 250V/15A
Power input: Power plug
DMX data input/output: Chassis 3-pin

Control and programming
Control channels (DMX): 21/21/37
Protocol: DMX-512 RDM
Display: LCD

Physical / Installation
Weight: 23kg(50.70 lbs)
IP rating: IP66
Material: Aluminum, copper, steel, plastic, iron
Mounting points: 4 fixed folding lamp(1/2 type) + attachment points for safety wire

Dynamic effects
Pan/Tilt movement: 540˚/270˚, adopting a function which resets 32-bit accurately and automatically
Strobe: 1-25Hz, strobe randomly, pulse randomly, strobe synchronously and asynchronously
Dimmer: 0-100%, electronic linear dimming

Thermal
Operating range: 5˚F to 113˚F(-15˚C to 45˚C)
Startup range: -12.9˚F to 113˚F(-25˚C to 45˚C)
Storage range: -39.9˚F to 140˚F( -40˚C to 60˚C)
Cooling: Active fan
Humidity: ≤75%

Certification and Safety
EMC: EN 55103-1:2009, EN 55103-2:2009, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013,
GB/T 17743-2007, GB 17625.1-2012
Safety: EN 60598-2-17:1989/A2:1991, GB 7000.1-2015, GB 7000.217-2008

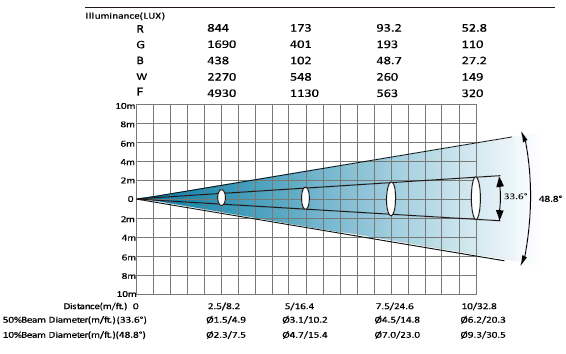

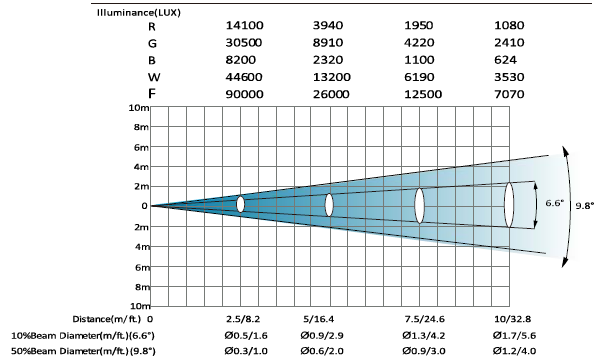

Photometric Diagram

Gobos & Colours

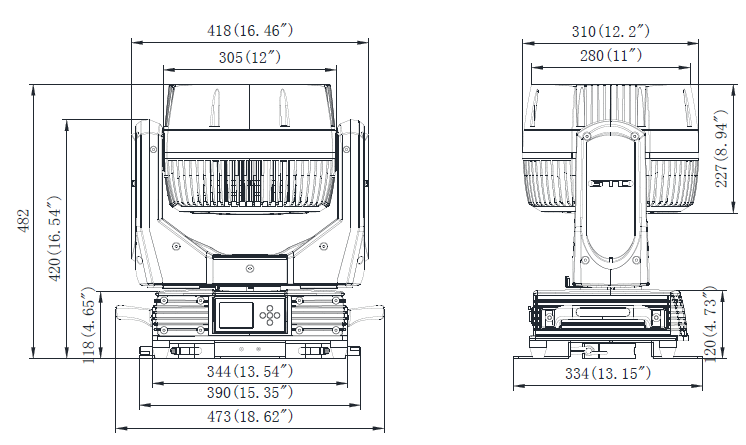

Exterior Dimensions
Accessories
Product Video
GTD-F4019 WASH
