Optical
Light source: LED 200W
Expected average lifetime: 50000 hours

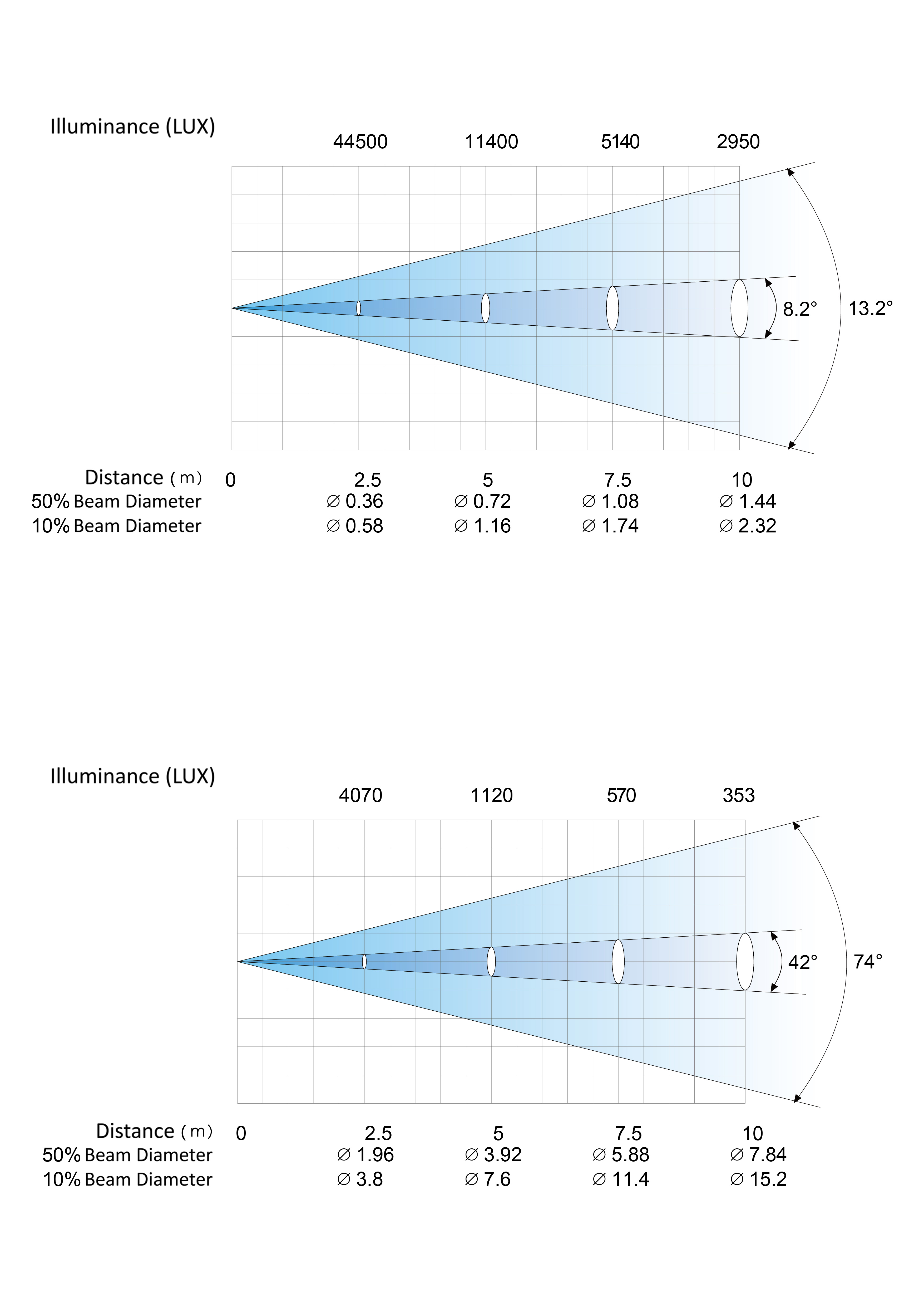

Beam angle: Zoom range 13.2° - 74°
Total output (Lumen): 11600 lm
Color temperature: 5600K
CRI: ≥95
Electrical
Power input, nominal: AC 100-240V 50/60Hz
Max. Power consumption: 183W
Power supply unit: Auto-ranging electronic SMPS
Main fuse: 250V/6.3A
Control and programming
Control channels (DMX): 1/1/1
Protocol: DMX-512
Display: LED display

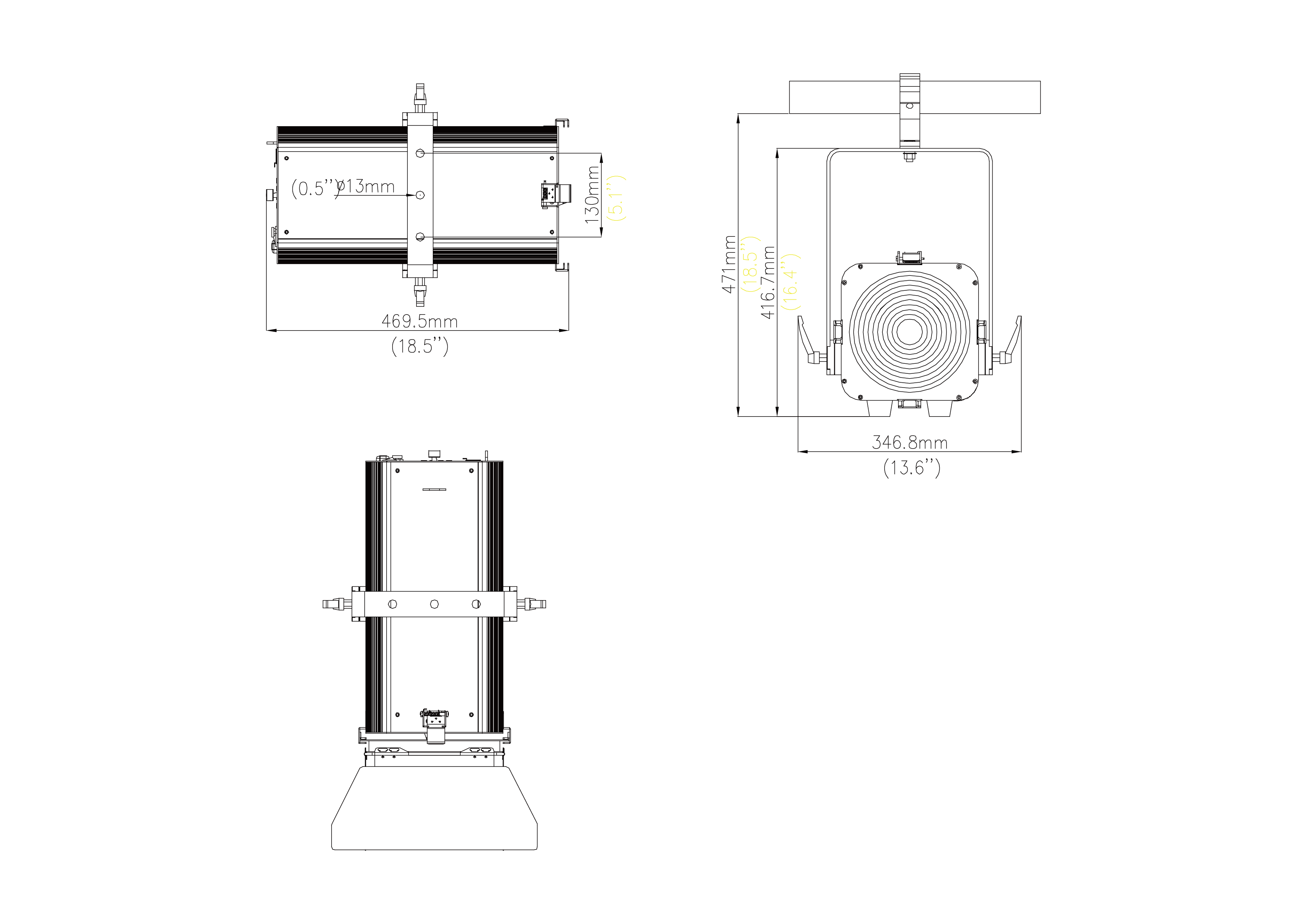

Physical / Installation
Weight: 9.4 kg(20.72 lbs.)
IP rating: IP20
Material: Aluminum, steel, plastic
Mounting points: 12mm holes for G-Clamp
Minimum distance to combustible materials: 0.5 mtr(1.64 ft.)
Minimum distance to illuminated surfaces: 5 mtr(16.4 ft.)
Dynamic effects
Dimmer: 0-100%, electronic linear dimming
Thermal
Operating range: 5˚F - 113˚F(-15˚C - 45˚C)
Startup range: -13˚F - 113˚F(-25˚C - 45˚C)
Storage range: -40˚F - 140˚F(-40˚C - 60˚C)
Cooling: Active fan
Humidity: ≤85%
Connections
AC power: 4.92 ft.(1.5 m) cable with the fixture
DMX data input/output: Chassis 3-pin XLR (in/out)
Certification and Safety
EMC: EN 55103-1:2009, EN 55103-2:2009, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013
Safety: EN 60598-2-17:1989/A2:1991
Expected average lifetime: 50000 hours
Beam angle: Zoom range 13.2° - 74°
Total output (Lumen): 11600 lm
Color temperature: 5600K
CRI: ≥95
Electrical
Power input, nominal: AC 100-240V 50/60Hz
Max. Power consumption: 183W
Power supply unit: Auto-ranging electronic SMPS
Main fuse: 250V/6.3A
Control and programming
Control channels (DMX): 1/1/1
Protocol: DMX-512
Display: LED display
Physical / Installation
Weight: 9.4 kg(20.72 lbs.)
IP rating: IP20
Material: Aluminum, steel, plastic
Mounting points: 12mm holes for G-Clamp
Minimum distance to combustible materials: 0.5 mtr(1.64 ft.)
Minimum distance to illuminated surfaces: 5 mtr(16.4 ft.)
Dynamic effects
Dimmer: 0-100%, electronic linear dimming
Thermal
Operating range: 5˚F - 113˚F(-15˚C - 45˚C)
Startup range: -13˚F - 113˚F(-25˚C - 45˚C)
Storage range: -40˚F - 140˚F(-40˚C - 60˚C)
Cooling: Active fan
Humidity: ≤85%
Connections
AC power: 4.92 ft.(1.5 m) cable with the fixture
DMX data input/output: Chassis 3-pin XLR (in/out)
Certification and Safety
EMC: EN 55103-1:2009, EN 55103-2:2009, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013
Safety: EN 60598-2-17:1989/A2:1991
