Optical
Light source: LED 200W
Expected average lifetime: 50000 hours

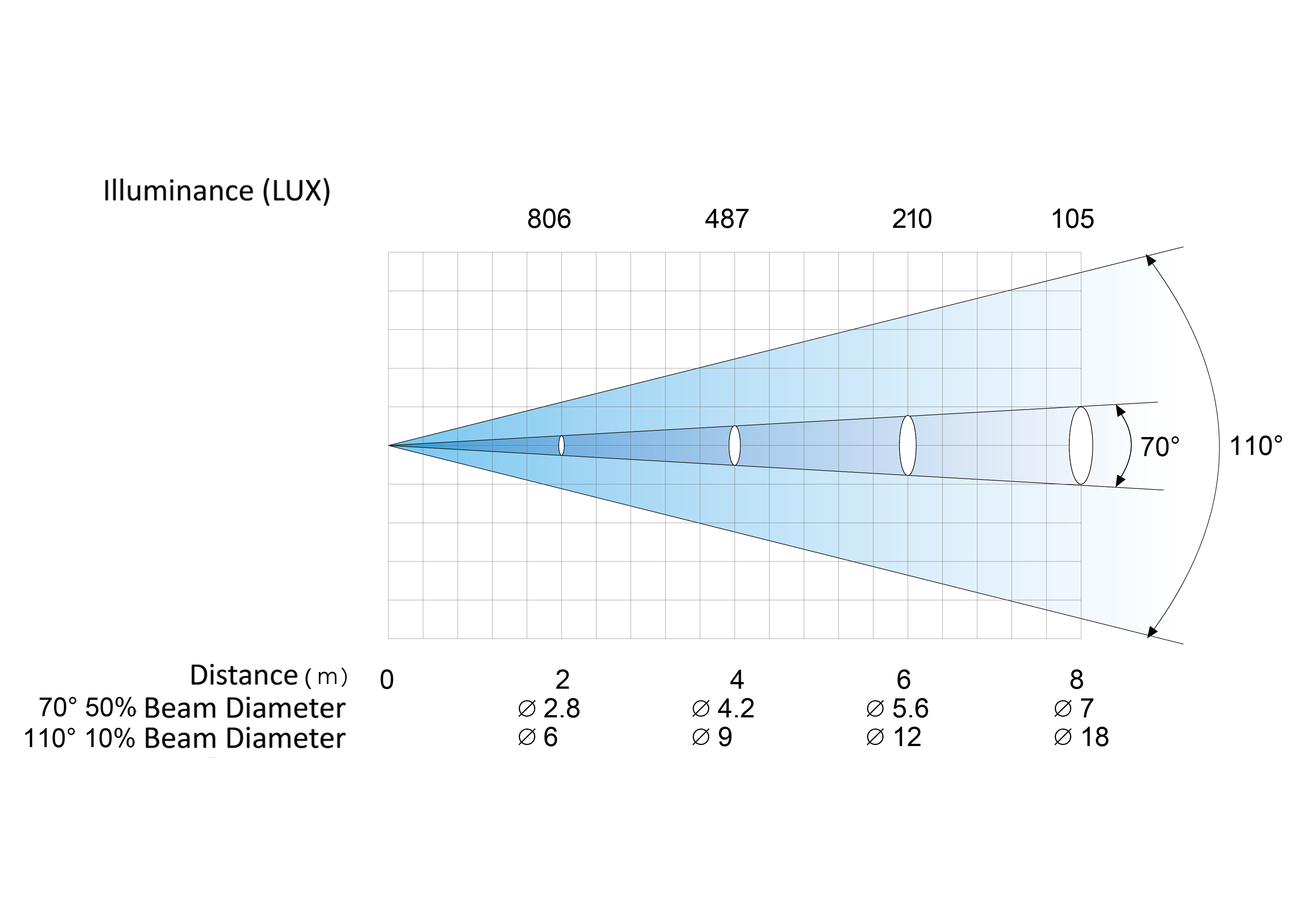

Beam angle: 110°
Photometric
Total Output (Lumen): 12000 lm
Color temperature: 3200K
CRI: ≥97
Electrical
Power input, nominal: AC 100-240V - 50/60Hz
Max. Power consumption: 200W
Power supply unit: Wide range electronic SMPS
Control and programming
Control channels (DMX): 1
Protocol: DMX-512 RDM
Display: LCD Display
Physical / Installation
Weight: 10 kg ( 22 lbs.)
IP rating: IP20
Material: Aluminium, steel, plastic
Mounting points: Fixed folding lamp hook + attachment points for safety wire
Dynamic effects
Pan/Tilt movement: 540˚/270˚, adopting a function which resets 32bit accurately and automatically
Strobe: 1-25Hz, strobe randomly, pulse randomly, strobe synchronously and asynchronously
Dimmer: 0-100%, electronic linear dimming
Connection
Connection
Power input: Self-contained power cord
DMX data input/output: Chassis 3-pin
Thermal
Operating range: 14˚F - 113˚F ( -10˚C - 45˚C)
Startup range: -13˚F - 113˚F( -25˚C - 45˚C)
Storage range: -40˚F - 140˚F( -40˚C - 60˚C)
Cooling: Active fan
Humidity: ≤85%
Certification and Safety
EMC: EN 55103-1:2009, EN 55103-2:2009, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013, GB/T 17743-2007, GB 17625.1-2012
Safety: EN 60598-2-17:1989/A2:1991, GB 7000.1-2015, GB 7000.217-2008
