Optical
Light source: 20W (RGBW 4-in-1) 80 LEDs
Expected average lifetime: 50000 hours
Beam angle: 7° (20° and 38° optional)
Total Output (Lumen): 34000 lm
Color temperature: 3200K-7200K linear regulation
Mixing distance: > 5 mtr(16.4 ft.)
Electrical
Power input, nominal: AC 100-240V 50/60Hz
Max. Power consumption: 1250W
Power supply unit: Auto-ranging electronic SMPS
Control and programming
DMX Protocol modes: 2
Control channels (DMX): 10/17
Protocol: DMX-512
Display: 4 x 8 segment display
Dynamic effects
Pan movement: Manually adjustable
Tilt movement: Manually adjustable
Strobe: 1-25Hz, synchronized, pulse effects
Dimmer: 0-100%, 16-bit, electronic linear dimming
Build-in macros: Color
Physical / Installation
Weight: 31.8 kg(70.1 lbs.)
IP rating: IP65
Material: Aluminum
Mounting points: Four quarter-turn locking point + attachment points for safety wire
Minimum distance to combustible materials: 0.5 mtr(1.64 ft.)
Minimum distance to illuminated surfaces: 5 mtr(16.4 ft.)
Thermal
Operating range:5˚F - 113˚F(-15˚C - 45˚C)
Startup range: -13˚F - 113˚F(-25˚C - 45˚C)
Storage range: -40˚F - 140˚F(-40˚C - 60˚C)
Cooling: Active fan
Humidity: ≤98%
Connections
AC power: 3.28 ft.(1 m) cable with water proof plugs (in/out)
DMX data input/output: 2 x 3.28 ft.(1 m) cable with 5-pin Neutrik IP65 XLR plugs (in/out)
Certification and Safety
EMC: EN 55103-1:2009, EN 55103-2:2009, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013
Safety: EN 60598-2-17:1989/A2:1991
Technical Specification

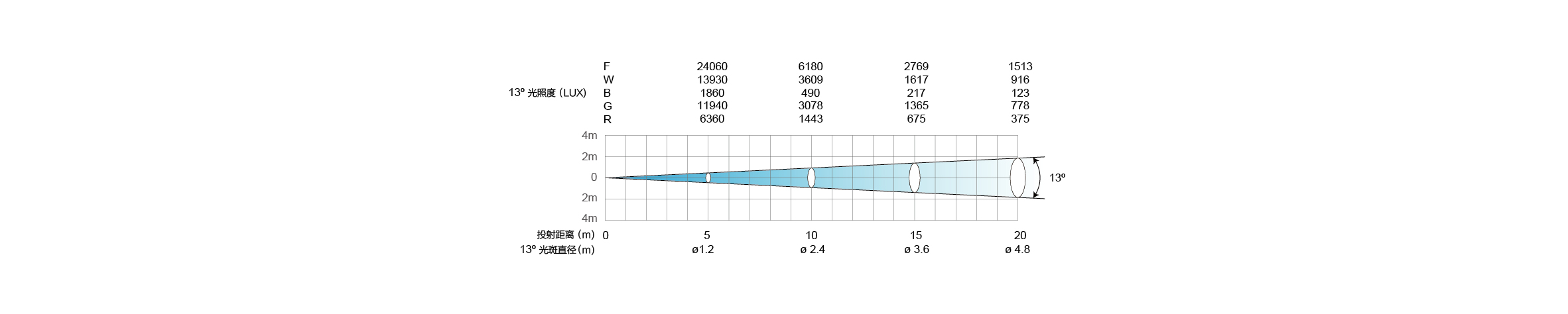

Photometric Diagram
Gobos & Colours

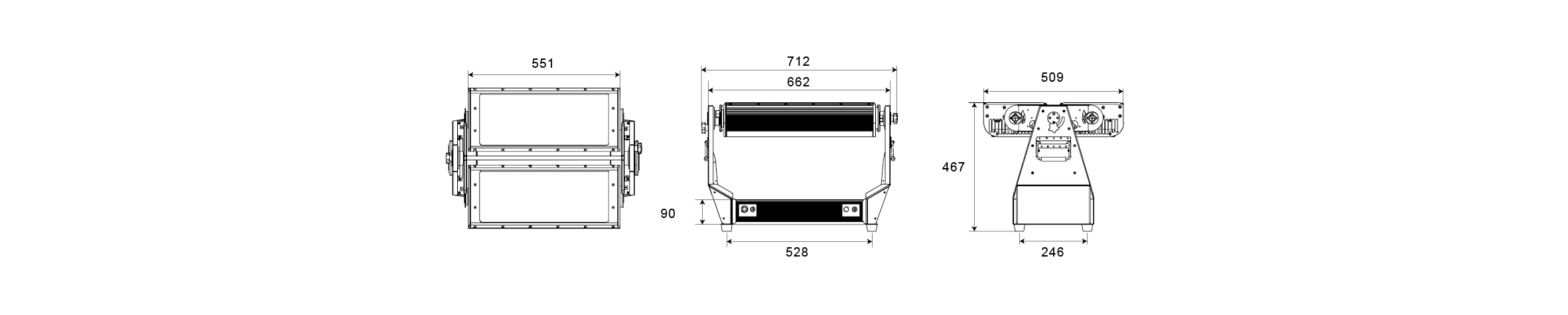

Exterior Dimensions
Accessories
Product Video

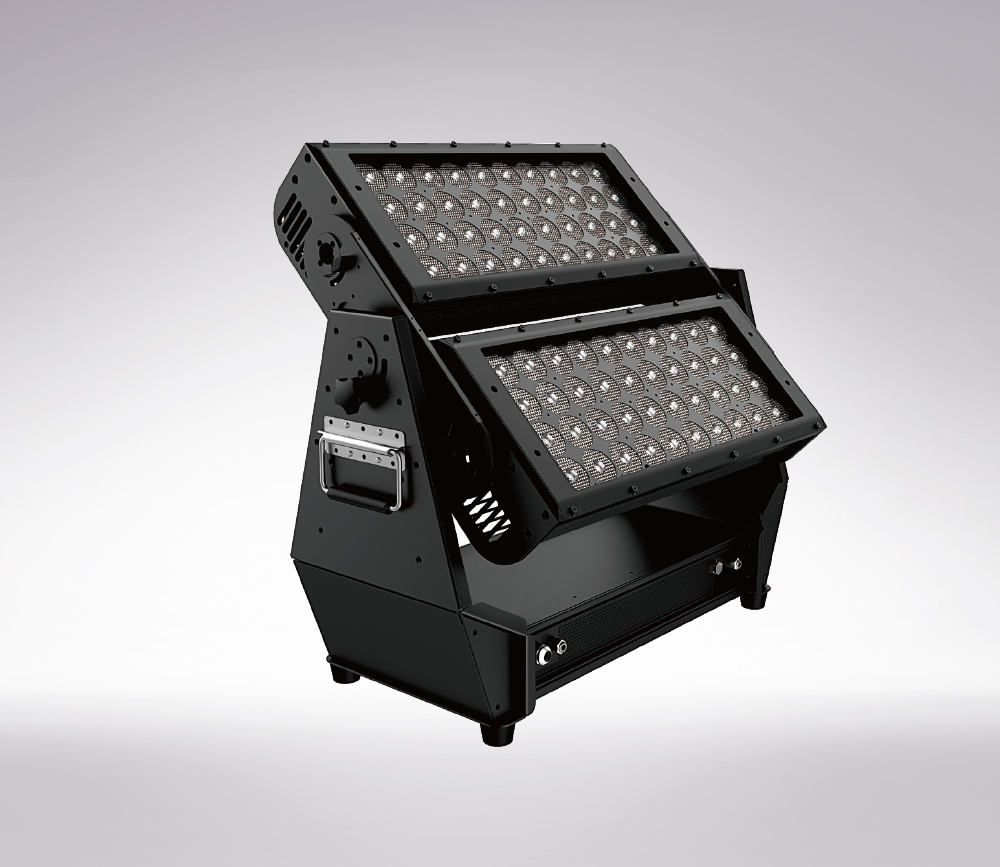

GTD-L2080P
