Optical
Light source: OSRAM SIRIUS HRI 440 W S
Expected average lifetime: 1500 hours
Beam angle: 2.1˚
Focus: Variable range, from 3m to 65m
Prism: 8 + 16-facet prism, CW/CCW rotation, variable speed
Frost: On/Off
Ballast: Electronic
Total Output (Lumen): 22800 lm
Color temperature: 7000K
Gobo
Rotating gobo: 12 interchangeable gobos + open, indexing, CW/CCW rotation, variable speed
Static gobo wheel: 16 gobos + open, CW/CCW rotation, variable speed
Gobo outside diameter: 12 mm
Max. Image diameter: 7 mm
Max. Thickness: 0.5 mm(Metal)/1.1 mm(Glass)
Glass/Metal gobo: Glass/Metal
Color
Color wheel: 14 colors + open, split color, CW/CCW rotation, variable speed
Electrical
Power input, nominal: AC 100-240V 50/60Hz
Max. Power consumption: 760W
Power supply unit: Auto-ranging electronic SMPS
Main fuse: 250V/10A
Control and programming
Control channels (DMX): 19/16/21
Protocol: DMX-512
Display: Graphic LCD backlit
16-bit control: Dimmer, focus, pan/tilt, gobo indexing & rotation, rotating gobo wheel positioning
Physical / Installation
Weight: 36 kg(79.4 lbs.)
IP rating: IP45
Material: Aluminum, steel, plastic
Mounting points: Four quarter-turn locking points + attachment points for safety wire
Minimum distance to combustible materials: 0.5 mtr(1.64 ft.)
Minimum distance to illuminated surfaces: 15 mtr(49.2 ft.)
Dynamic effects
Pan/Tilt movement: 540˚/ 270˚
Strobe: 1-20Hz, synchronized, pulse effects
Dimmer: 0-100%, 16-bit, mechanical dimming
Thermal
Operating range: 14˚F - 113˚F(-10˚C - 45˚C)
Startup range: 5˚F - 113˚F(-15˚C - 45˚C)
Storage range: -40˚F - 140˚F(-40˚C - 60˚C)
Cooling: Active fan
Humidity: ≤82%
Connections
AC power: 3.28 ft.(1 m) cable with water proof plugs
DMX data input/output: 2 x 3.28 ft.(1 m) cable with 5-pin Neutrik IP65 XLR plugs (in/out)
Certification and Safety
EMC: EN 55103-1:2009, EN 55103-2:2009, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013
Safety: EN 60598-2-17:1989/A2:1991
Technical Specification
Photometric Diagram
Gobos & Colours
Exterior Dimensions
Accessories
1306030010 - Bulb, OSRAM SIRIUS HRI 440 W S VS60
1503030251 - Flight case, 2 unit for 440P II Beam
5198020104 - G-clamp with 1/4-turn fasteners, for Ø42-52mm, Max. 200 kg
Downloads
Product Video

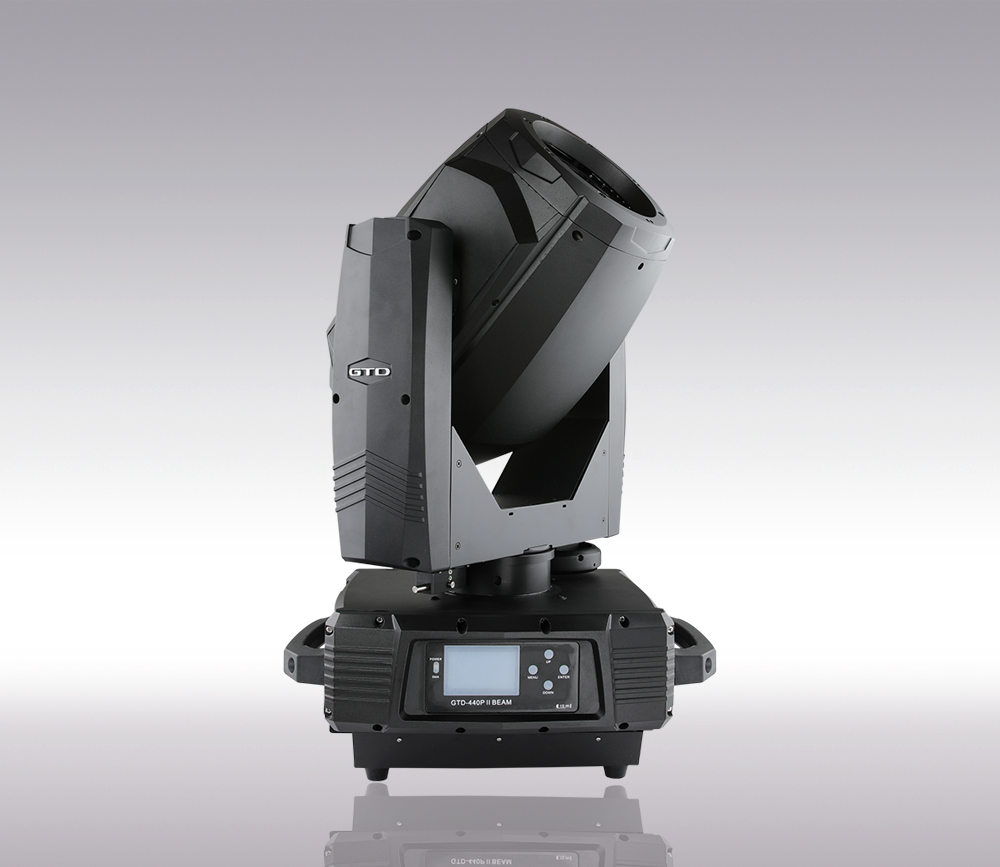

GTD-440P II BEAM
