Optical
Light source: OSRAM Lok-it! HTI 1500 W/60/P50
Expected average lifetime: 750 hours
Beam angle: 5° (zoom range 8° - 10° with frost)
Focus: Variable range, from 2m to infinity
Prism: 3-facet prism, CW/CCW rotation, variable speed
Frost: On/Off
Ballast: Electronic
Total Output (Lumen): 24800 lm
Color temperature: 6000K
Gobo
Rotating gobo: 6 interchangeable gobos + open, indexing, CW/CCW rotation, variable speed
Static gobo wheel: 7 gobos + open, CW/CCW rotation, variable speed
Gobo outside diameter: 33 mm
Max. Image diameter: 22 mm
Max. Thickness: 0.5 mm(Metal)/1.0 mm(Glass)
Glass/Metal gobo: Glass/Metal
Color
Color wheel: 7 colors + open, split color, CW/CCW rotation, variable speed
CMY / CTO: CMY + CTO for linear infinity color mixing
Electrical
Power input, nominal: AC 200-240V 50/60Hz
Max. Power consumption: 1890W
Power supply unit: Auto-ranging electronic SMPS
Main fuse: 250V/15A
Control and programming
Control channels (DMX): 25/23/31
Protocol: DMX-512
Display: Graphic LCD backlit
16-bit control: Dimmer, CMY colors, CTO, focus, frost, zoom, pan/tilt, gobo indexing & rotation, rotating gobo wheel positioning
Dynamic effects
Pan/Tilt movement: 540˚/ 230˚
Iris: 5-100% high speed, with built-in macros
Strobe: 1-20Hz, synchronized, pulse effects
Dimmer: 0-100%, 16-bit, mechanical dimming
Zoom: Motorized
Built-in macros: Color, Iris
Physical / Installation
Weight: 56 kg(123.5 lbs.)
IP rating: IP45
Material: Aluminium, steel, plastic
Mounting points: Four quarter-turn locking points + attachment points for safety wire
Minimum distance to combustible materials: 0.5 mtr(1.64 ft.)
Minimum distance to illuminated surfaces: 5 mtr(16.4 ft.)
Thermal
Operating range: 14°F - 113°F(-10°C - 45°C)
Startup range: 5°F - 113°F(-15°C - 45°C)
Storage range: -40°F - 140°F(-40°C - 60°C)
Cooling: Active fan
Humidity: ≤85%
Connections
AC power: 3.28 ft.(1 m) cable with water proof plugs (in/out)
DMX data input/output: 2 x 3.28 ft.(1 m) cable with 5-pin Neutrik IP65 XLR plugs (in/out)
Certification and Safety
EMC: EN 55103-1:2009, EN 55103-2:2009, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013
Safety:EN 60598-2-17:1989/A2:1991
Technical Specification
Photometric Diagram

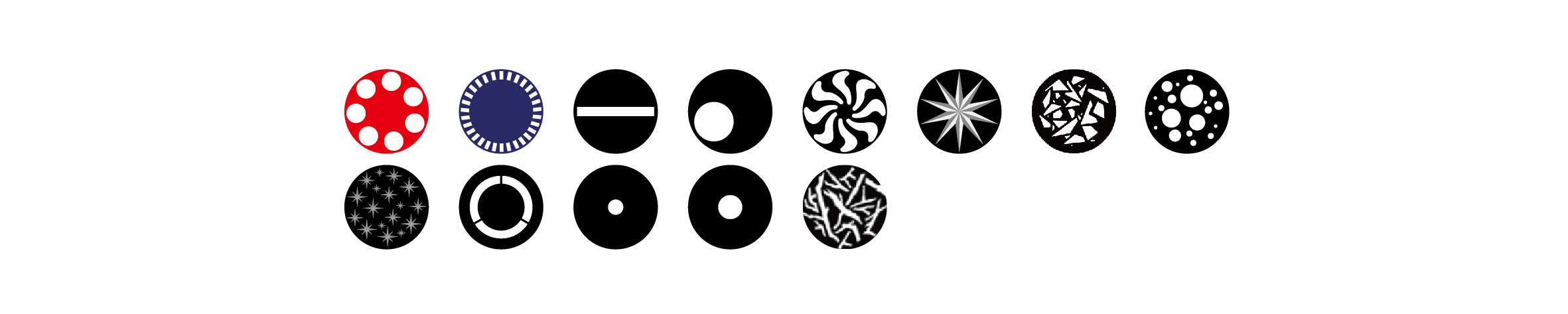

Gobos & Colours

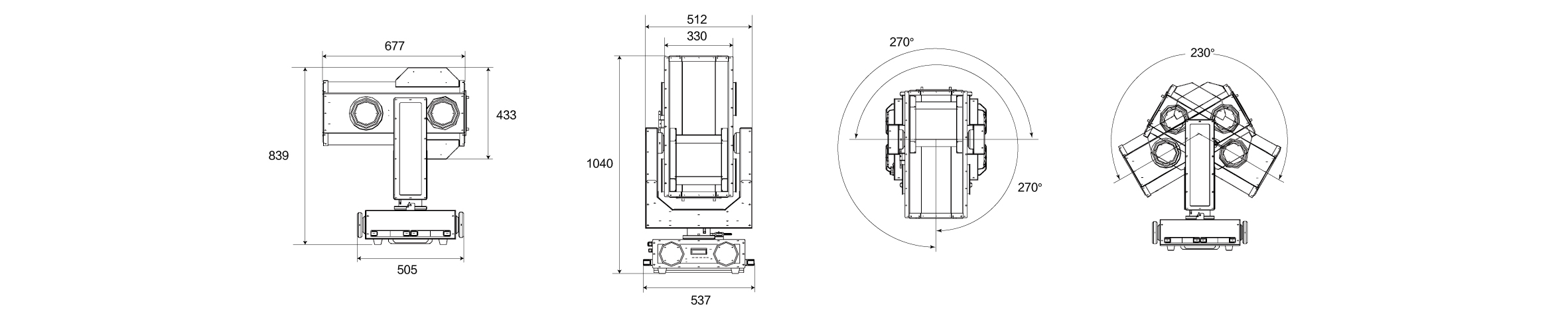

Exterior Dimensions
Accessories
| 1306010003 - OSRAM Lok-it! HTI 1500 W/60/P50 VS1 | |
| 1503030237 - Flight case, single for 1500P Beam series | |
| 5198020104 - G-clamp with 1/4-turn fasteners, for Ø42-52mm, Max. 200 kg |
Downloads
Product Video

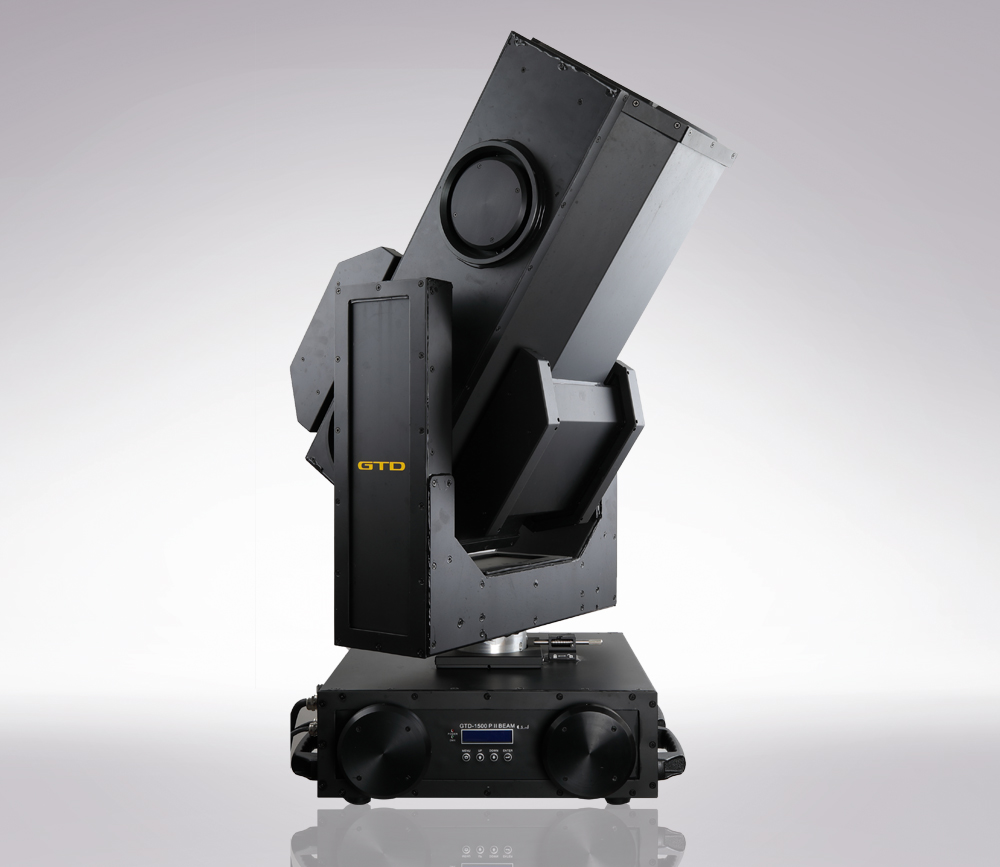

GTD-1500P II BEAM
