Optical
Light source: OSRAM SIRIUS HRI 440 W
Expected average lifetime: 1500 hours
Beam angle: Zoom range 3° - 15° beam application, zoom range 5° - 25° spot application
Focus: Variable range, from 5m to infinity
Prism: 8 + 16-facet prism, CW/CCW rotation, variable speed
Frost: On/Off
Ballast: Electronic
Total Output (Lumen): 15000 lm
Color temperature: 6700K
CRI ≥80
Gobo
Rotating gobo: 8 interchangeable gobos + open, indexing, CW/CCW rotation, variable speed
Static gobo wheel: 14 gobos + open, CW/CCW rotation, variable speed
Gobo outside diameter: 14.4 mm
Max. Image diameter: 6.5 mm
Max. Thickness: 1.1 mm(Glass)
Glass/Metal gobo: Glass
Color
Color wheel: 12 colors + open, split color, CW/CCW rotation, variable speed
CMY / CTO: CMY + CTO for linear infinity color mixing
Electrical
Power input, nominal: AC 100-240V 50/60Hz
Max. Power consumption: 720W
Power supply unit: Auto-ranging electronic SMPS
Main fuse: 250V/10A
Control and programming
Control channels (DMX): 26/23/33
Protocol: DMX-512
Display: Graphic LCD backlit
16-bit control: Dimmer, CMY colors, CTO, focus, zoom, pan/tilt, gobo indexing & rotation, rotating gobo wheel positioning
Dynamic effects
Pan/Tilt movement: 540˚/ 270˚
Strobe: 1-20Hz, synchronized, pulse effects
Dimmer: 0-100%, 16-bit, mechanical dimming
Zoom: Motorized
Built-in macros: Color
Physical / Installation
Weight: 40 kg(88.2 lbs.)
IP rating: IP45
Material: Aluminium, steel, plastic
Mounting points: Four quarter-turn locking points + attachment points for safety wire
Minimum distance to combustible materials: 0.5 mtr(1.64 ft.)
Minimum distance to illuminated surfaces: 15 mtr(49.2 ft.)
Thermal
Operating range: 14˚F - 113˚F(-10˚C - 45˚C)
Startup range: 5˚F - 113˚F(-15˚C - 45˚C)
Storage range: -40˚F - 140˚F(-40˚C - 60˚C)
Cooling: Active fan
Humidity: ≤85%
Connections
AC power: Neutrik powerCon
DMX data input/output: Chassis 5-pin Neutrik XLR (in/out)
Certification and Safety
EMC: EN 55103-1:2009, EN 55103-2:2009, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013
Safety: EN 60598-2-17:1989/A2:1991
Technical Specification
Photometric Diagram
Gobos & Colours

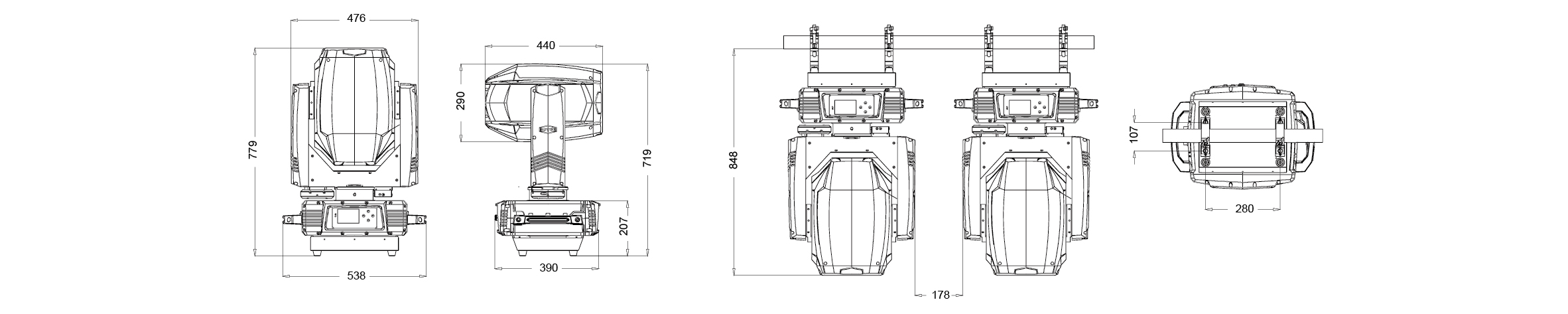

Exterior Dimensions
Accessories
Downloads
Product Video

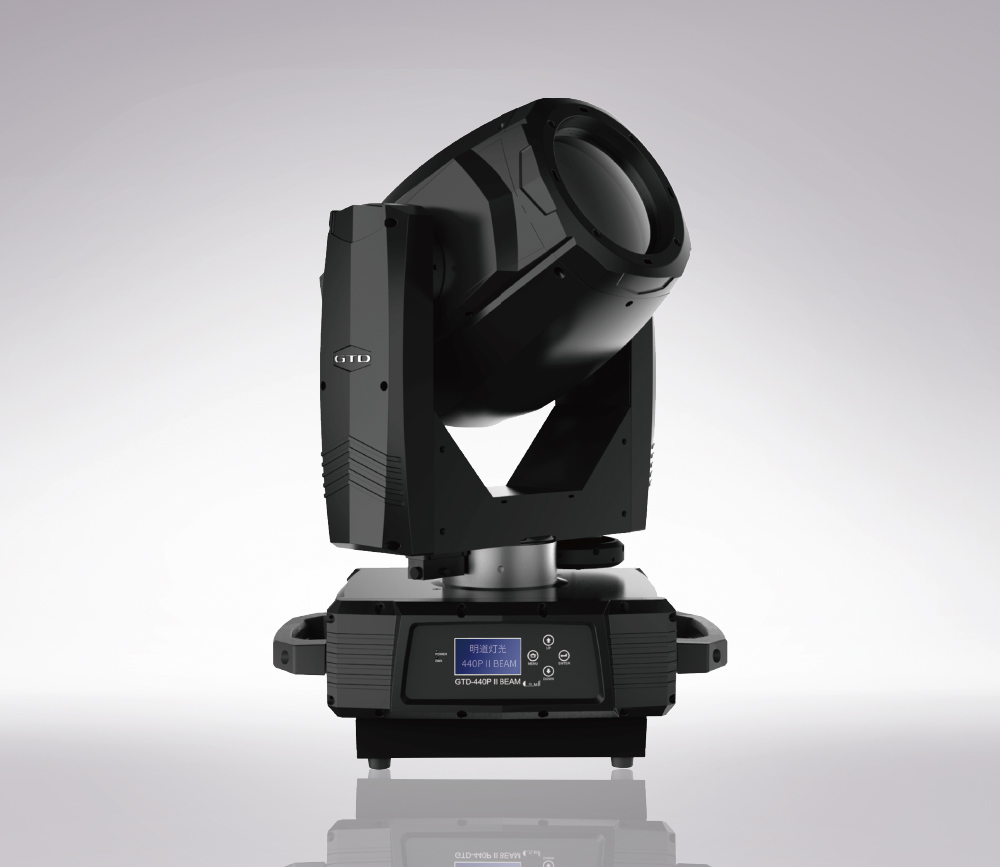

GTD-440P II BSW
