Optical
Light source: 4× 100W White LED chips
Expected average lifetime: 50000 hours
Beam angle: Zoom range 40° - 60°
Total Output (Lumen): 30000 lm
Color temperature: 4700K
CRI: ≥91
Electrical
Power input, nominal: AC 100-240V 50/60Hz
Max. Power consumption: 480W
Power supply unit: Auto-ranging electronic SMPS
Main fuse: 250V/3.15A
Control and programming
Control channels (DMX): 2/6
Protocol: DMX-512
Display: 4 x 8 segment display
16-bit control: Dimmer
Dynamic effects
Pan/Tilt movement: Manually adjustable
Strobe: 1-25Hz, synchronized, pulse effects
Dimmer: 0-100%, 16-bit, electronic linear dimming
Zoom: Manually adjustable
Physical / Installation
Weight: 11.8 kg(26.0 lbs.)
IP rating: IP65
Material: Aluminum, plastic
Mounting points: One quarter-turn locking point + attachment points for safety wire
Minimum distance to combustible materials: 0.5 mtr(1.64 ft.)
Minimum distance to illuminated surfaces: 5 mtr(16.4 ft.)
Thermal
Operating range: 5˚F - 113˚F(-15˚C - 45˚C)
Startup range: -13˚F - 113˚F(-25˚C - 45˚C)
Storage range: -40˚F - 140˚F(-40˚C - 60˚C)
Cooling: Passive
Humidity: ≤98%
Connections
AC power: 4.92 ft.(1.5 m) cable with the fixture
DMX data input/output: Chassis 5-pin Neutrik XLR (in/out)
Certification and Safety
EMC: EN 55103-1:2009,EN 55103-2:2009,EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013
Safety: EN 60598-2-17:1989/A2:1991
Technical Specification
Photometric Diagram
Gobos & Colours

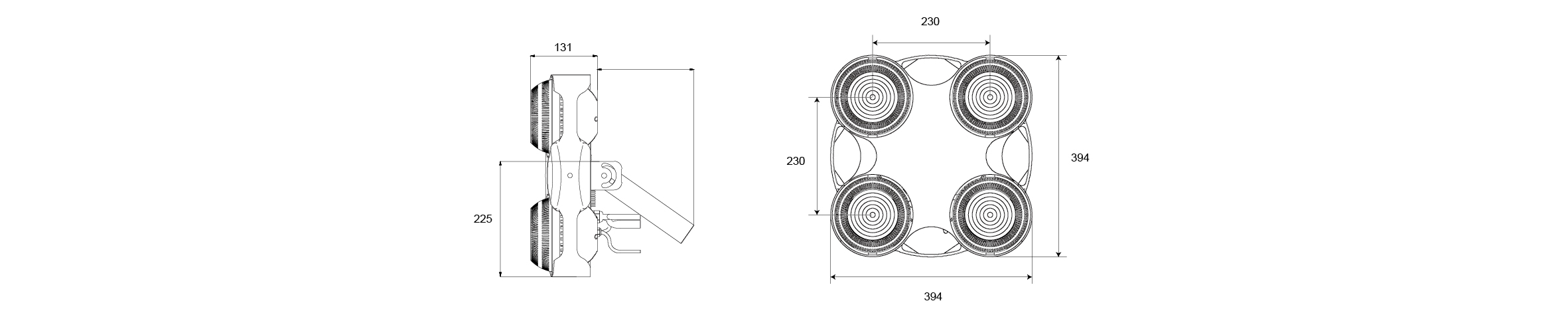

Exterior Dimensions
Accessories
Downloads
Product Video
GTD-L400P
