Optical
Light source: OSRAM SIRIUS HRI 461 W
Expected average lifetime: 1500 hours
Beam angle: Beam: 2° / Spot: 4° - 26°
Focus: Variable range, from 10m to infinity
Prism: 8 + 16-facet prism, CW/CCW rotation, variable speed
Frost: On/Off
Ballast: Electronic
Total output (Lumen): 17500 lm
Color temperature: 7500K
CRI: ≥85
Gobo

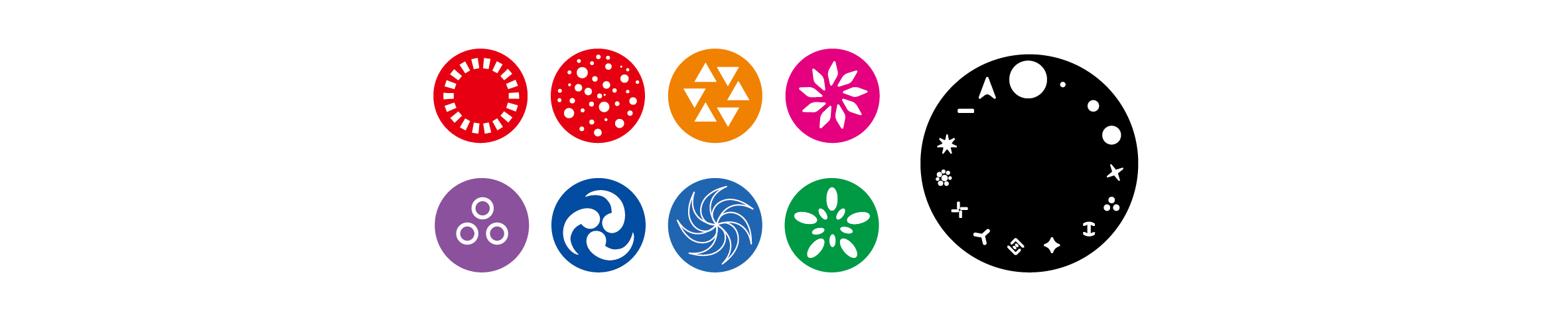

Rotating gobo: 8 interchangeable gobos + open, indexing, CW/CCW rotation, variable speed
Static gobo wheel: 14 gobos + open, CW/CCW rotation, variable speed
Gobo outside diameter: 14.4mm
Max. Image diameter: 7mm
Max. Thickness: 1.1mm (Glass)
Glass/Metal gobo: Glass
Color
Color wheel: 2 color wheels, each with 7 colors + open, split color, CW/CCW rotation, variable speed
CMY/CTO: CMY + CTO for linear infinity color mixing
Electrical
Power input, nominal: AC 100-240V 50/60Hz
Max. Power consumption: 757W
Power supply unit: Auto-ranging electronic SMPS
Main fuse: 250V/10A
Control/Programming
Control channels (DMX): 26/23/23
Protocol: DMX-512
Display: Graphic LCD backlit
16-bit control: Dimmer, CMY colors, CTO, focus, zoom, pan/tilt, gobo indexing & rotation, rotating gobo wheel positioning
Physical / Installation
Weight: 29 kg(63.9 lbs.)
IP rating: IP20
Material: Aluminum, steel, plastic
Mounting points: Four quarter-turn locking points + attachment points for safety wire
Minimum distance to combustible materials: 0.5 mtr(1.64 ft.)
Minimum distance to illuminated surfaces: 10 mtr(32.8 ft.)
Dynamic effects

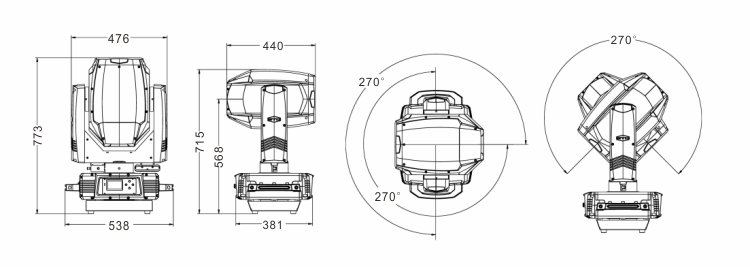

Pan/Tilt movement: 540˚/ 270˚
Strobe: 1-20Hz, synchronized, pulse effects
Dimmer: 0-100%, 16-bit, mechanical dimming
Zoom: Motorized
Built-in macros: Color
Thermal
Operating range: 14˚F - 113˚F(-10˚C - 45˚C)
Startup range: 5˚F - 113˚F(-15˚C - 45˚C)
Storage range: -40˚F - 140˚F(-40˚C - 60˚C)
Cooling: Active fan
Humidity: ≤ 85%
Connections
AC power: Neutrik powerCon
DMX data input/output: Chassis 5-pin Neutrik XLR (in/out)
Certification and Safety
EMC: EN 55103-1:2009, EN 55103-2:2009, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013
Safety: EN 60598-2-17:1989/A2:1991
