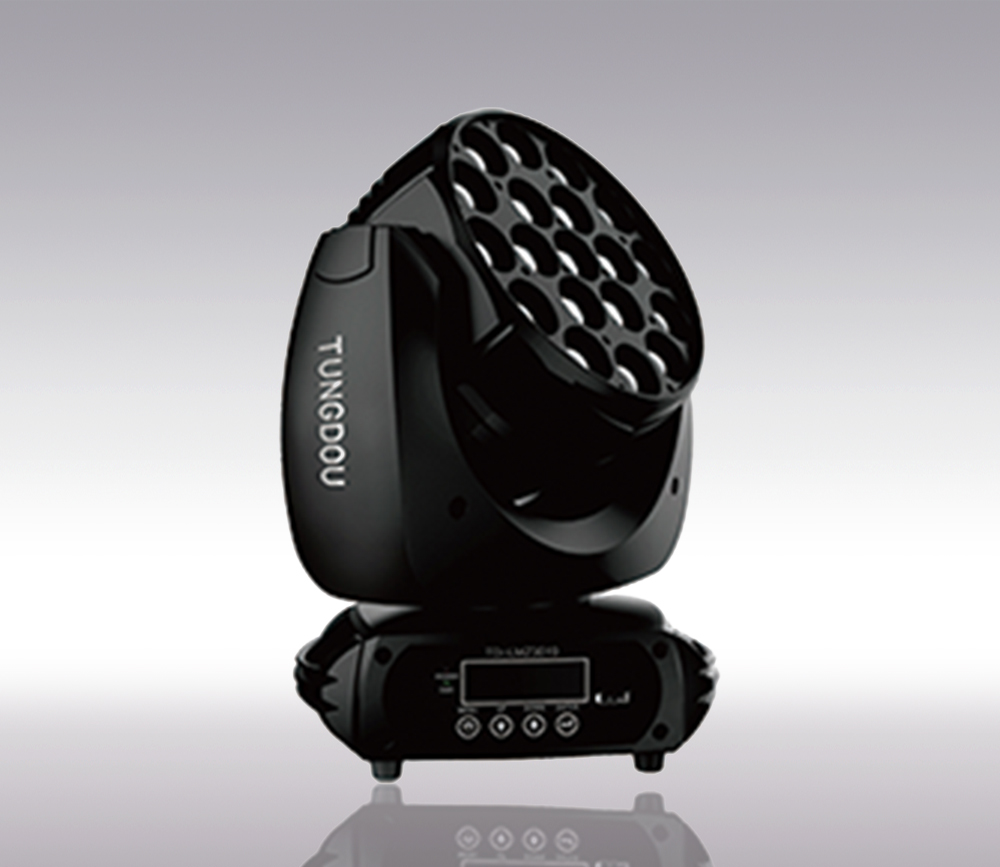

Product Model
TD-LMZ3019 N
Product Series
Technical Specification

Light source: 30W (RGBW 4-in-1) 19 LEDs (White/Amber LED optional)
Expected average lifetime: 50000 hours
Beam angle: Zoom range 3° - 50°
Total output (Lumen): 4830 lm narrow / 6450 lm wide
Color temperature: 3200K - 7200K linear regulation
Mixing distance: >2 mtr(6.6 ft.)

Power input, nominal: AC 220-240V 50/60Hz
Max. Power consumption: 750W
Power supply unit: Auto-ranging electronic SMPS
Main fuse: 250V/3.3A

Control channels (DMX): 22/22/38
Protocol: DMX-512
Display: Graphic LCD backlit
16-bit control: Dimmer, RGBW colors, zoom, pan/tilt
LED Panel: 3 individual pixels (rings)

Physical / Installation
Weight: 7.2 kg(15.9 lbs.)
IP rating: IP20
Material: Aluminium, steel, plastic
Mounting points: Two quarter-turn locking points + attachment points for safety wire
Minimum distance to combustible materials: 0.5 mtr(1.64 ft.)
Minimum distance to illuminated surfaces: 1 mtr(3.3 ft.)

Dynamic effects
Pan/Tilt movement: Pan: 540° (630° optional) Tilt: 240°
Strobe: 1-25Hz, synchronized, pulse effects
Dimmer: 0-100%, 16-bit, electronic linear dimming
Zoom: Motorized
Built-in macros: Color

Operating range: 5˚F - 113˚F(-15˚C - 45˚C)
Startup range: -13˚F - 113˚F(-25˚C - 45˚C)
Storage range: -40˚F - 140˚F(-40˚C - 60˚C)
Cooling: Active fan
Humidity: ≤85%

AC power: Neutrik powerCon
DMX data input/output: Chassis 5-pin Neutrik XLR (in/out)

Certification and Safety
EMC: EN 55103-1:2009, EN 55103-2:2009, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013
Safety: EN 60598-2-17:1989/A2:1991

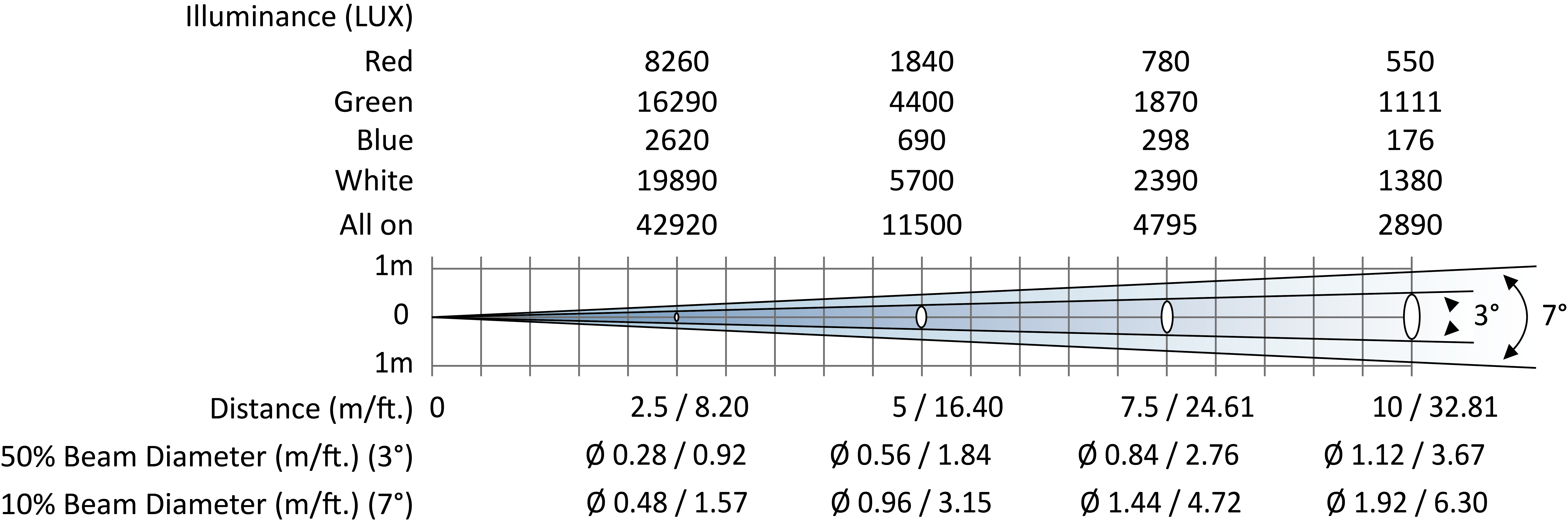

Photometric Diagram

Gobos & Colours

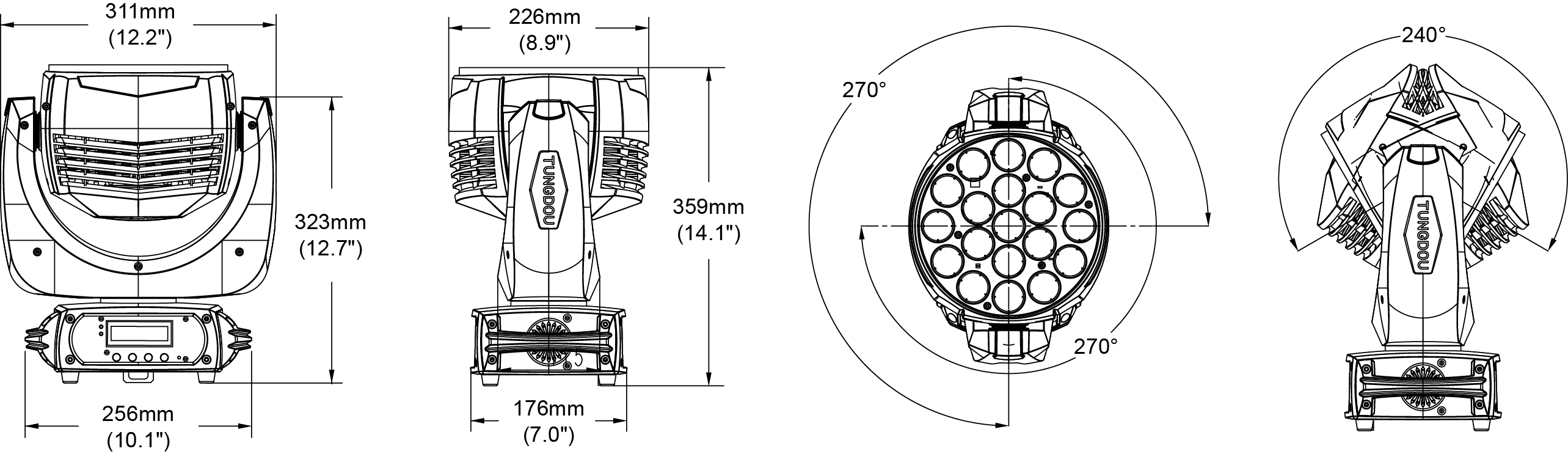

Exterior Dimensions
