Product Model

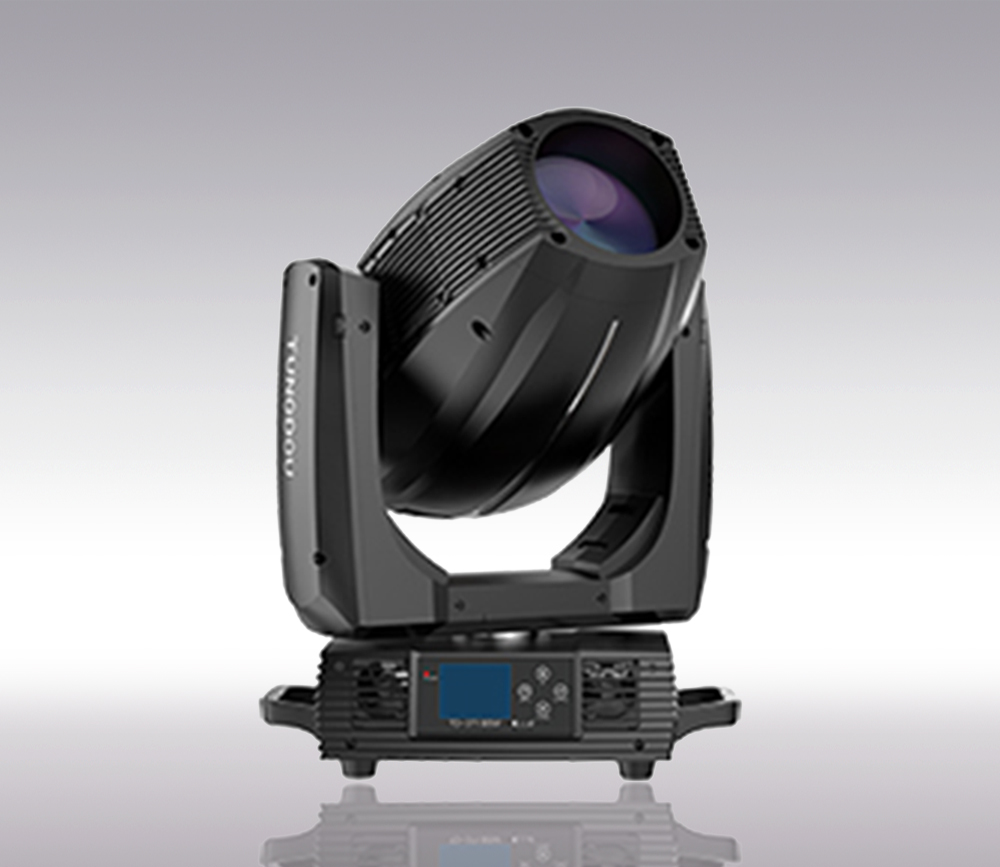

TD-371 BSW
Product Series
Technical Specification

Light source: OSRAM SIRIUS HRI 371 W
Expected average lifetime: 1500 hours
Zoom range: BEAM 0° - 2.5° / SPOT 3° - 43°/ WASH 4° - 45°
Focus: Variable range, from 15m to infinity
Prism: One 8-facet prism, one flat 8-facet prism
Frost: On/Off
Ballast: Electronic
Total output (Lumen): 13090 lm wide / 12550 lm narrow
Color temperature: 7400K
CRI: ≥80

Rotating gobo: 8 interchangeable gobos + open, indexing, CW/CCW rotation, variable speed
Static gobo wheel: 10 gobos + open, CW/CCW rotation, variable speed
Gobo outside diameter: 11.9 mm
Max. Image diameter: 6 mm
Max. Thickness: 0.5 mm (Metal)
Glass/Metal gobo: Metal

Color wheel: 11 colors + open, split color, CW/CCW rotation, variable speed

Power input, nominal: AC 200-240V 50/60Hz
Max. Power consumption: 560W
Power supply unit: Auto-ranging electronic SMPS
Main fuse: 250V/10A

Control and programming
Control channels (DMX): 19/16/22
Protocol: DMX-512 RDM
Display: Graphic LCD backlit
16-bit control: Dimmer, focus, gobo indexing & rotation, rotating gobo wheel positioning
32-bit control: Pan/tilt

Physical / Installation
Weight: 28 kg(61.7 lbs.)
IP rating: IP20
Material: Aluminum, steel, plastic
Mounting points: Four quarter-turn locking points + attachment points for safety wire
Minimum distance to combustible materials: 0.5 mtr(1.64 ft.)
Minimum distance to illuminated surfaces: 15 mtr(49.2 ft.)

Dynamic effects
Pan/Tilt movement: 540˚/ 270˚
Strobe: 1-20Hz, synchronized, pulse effects
Dimmer: 0-100%, 16-bit, mechanical dimming

Operating range: 5˚F - 113˚F(-15˚C - 45˚C)
Startup range: -13˚F - 113˚F(-25˚C - 45˚C)
Storage range: -40˚F - 140˚F(-40˚C - 60˚C)
Cooling: Active fan
Humidity: ≤85%

AC power: Neutrik powerCon
DMX data input/output: Chassis 5-pin Neutrik XLR (in/out)

Certification and Safety
EMC: EN 55103-1:2009, EN 55103-2:2009, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013
Safety: EN 60598-2-17:1989/A2:1991

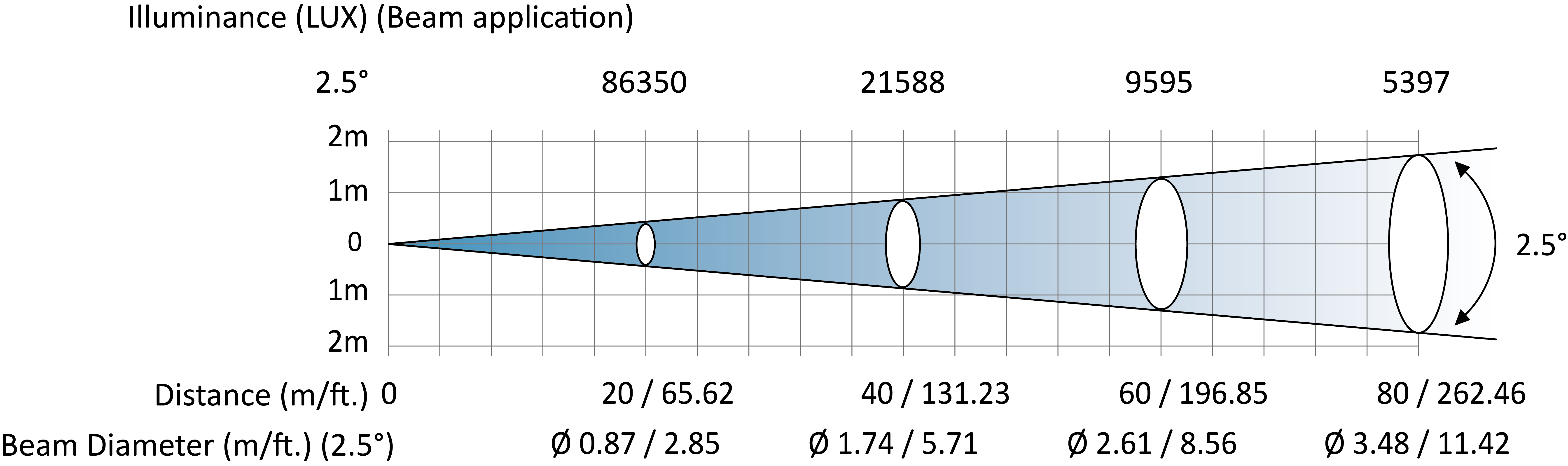

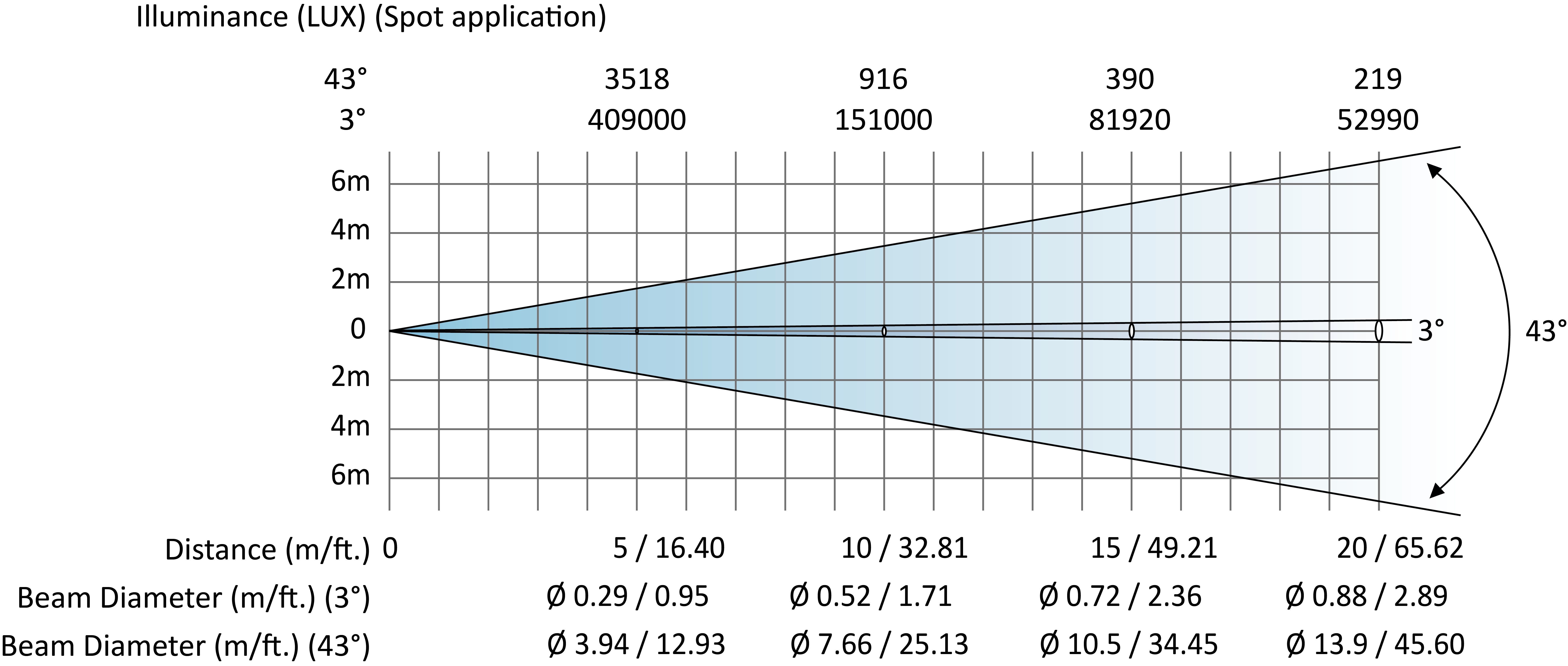

Photometric Diagram

Gobos & Colours

Exterior Dimensions
Product Video
