Optical
Light source: LE sheet MSD Platinum Flex 300S
Expected average lifetime: 6000 hours

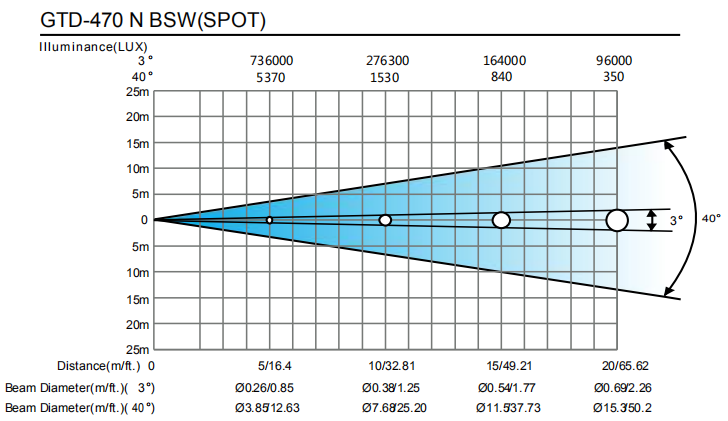

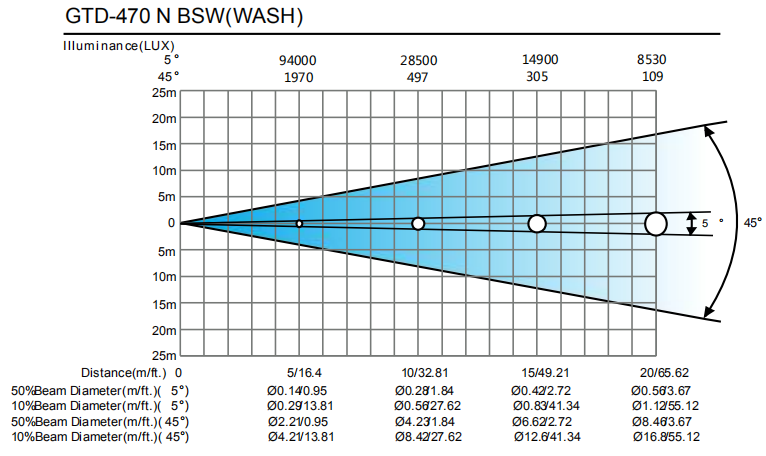

Beam angle: Zoom range 2°
Focus: Variable range, from 5m to infinity
Prism: One tip 8-facet prism, one tip 16-facet prism; can control the effect independently; 2 prism combination can produce 24 prism effect
Ballast: Electronic
Total Output (Lumen): 12000 lm
Color temperature: 7200K
CRI: ≥80

Gobo

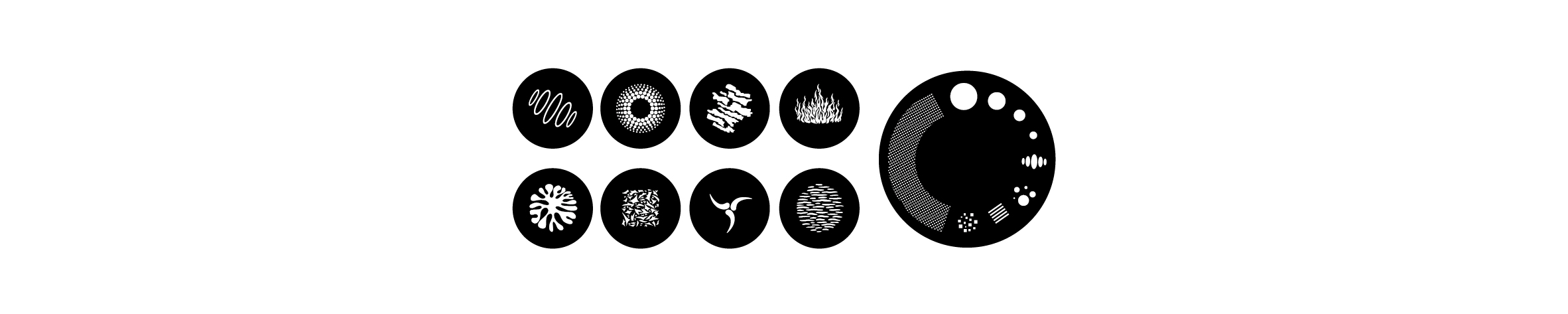

Rotating gobo: 12 gobos + open, variable speed


Color
Color wheel: 14 gobos + open, linear color shifing, split color and "Rainbow effect”

Electrical
Power input, nominal: AC 200-240V 50/60Hz
Max. Power consumption: 580W
Power supply unit: Auto-ranging electronic SMPS
Main fuse: 250V/6.3A

Control/Programming
Control channels (DMX): 15/13/17
Protocol: DMX-512
Display: Graphic LCD backlit
16-bit control: Dimmer, colors, focus, zoom, pan/tilt, gobo indexing & rotation
32-bit control: Pan/tilt

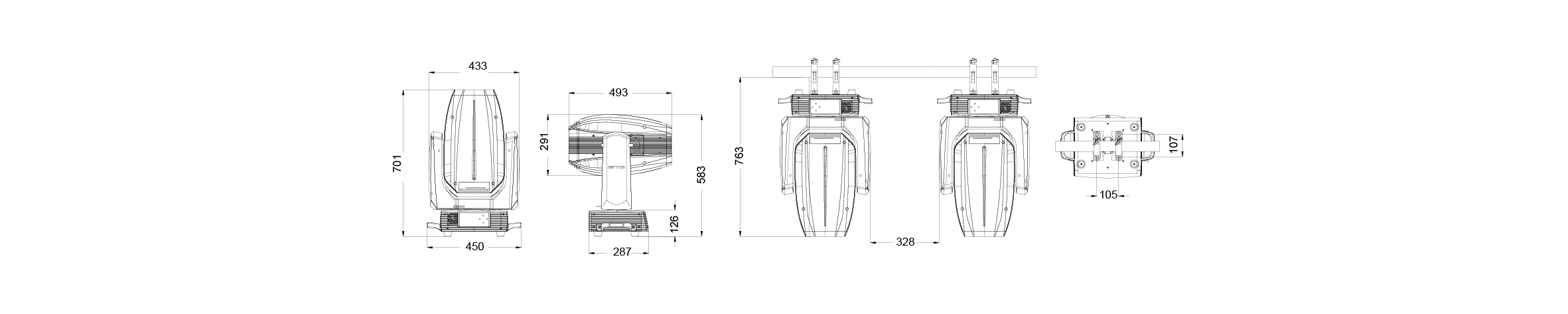

Physical / Installation
Weight: 26 kg(57 lbs.)
IP rating: IP20
Material: Aluminum, steel, plastic
Mounting points: Four quarter-turn locking points + attachment points for safety wire
Minimum distance to combustible materials: 0.5 mtr(1.64 ft.)
Minimum distance to illuminated surfaces: 15 mtr(49.2 ft.)

Dynamic effects
Pan/Tilt movement: 540˚/ 270˚
Strobe: High speed strobe, 1-25hz random strobe, pulse strobe from slow to fast, synchronous and asynchronous strobe
Dimmer: 0-100%, 16-bit, mechanical dimming
Zoom: Motorized
Built-in macros: Color

Thermal
Operating range: 5˚F - 113˚F(-15˚C - 45˚C)
Startup range: -13˚F - 113˚F(-25˚C - 45˚C)
Storage range: -40˚F - 140˚F(-40˚C - 60˚C)
Cooling: Heat pipe radiator, temperature controls fan heat dissipation intelligently
Humidity: ≤85%

Connections
AC power: 4.92 ft.(1.5 m) cable with water proof plugs
DMX data input/output: 4.92 ft.(1.5 m) cable with 3-pin XLR (in/out)

Certification and Safety
EMC: EN 55103-1:2009, EN 55103-2:2009, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013,GB/T 17743-2007, GB 17625.1-2012

Safety: EN 60598-2-17:1989/A2:1991,GB 7000.1-2015, GB 7000.217-2008
